Description

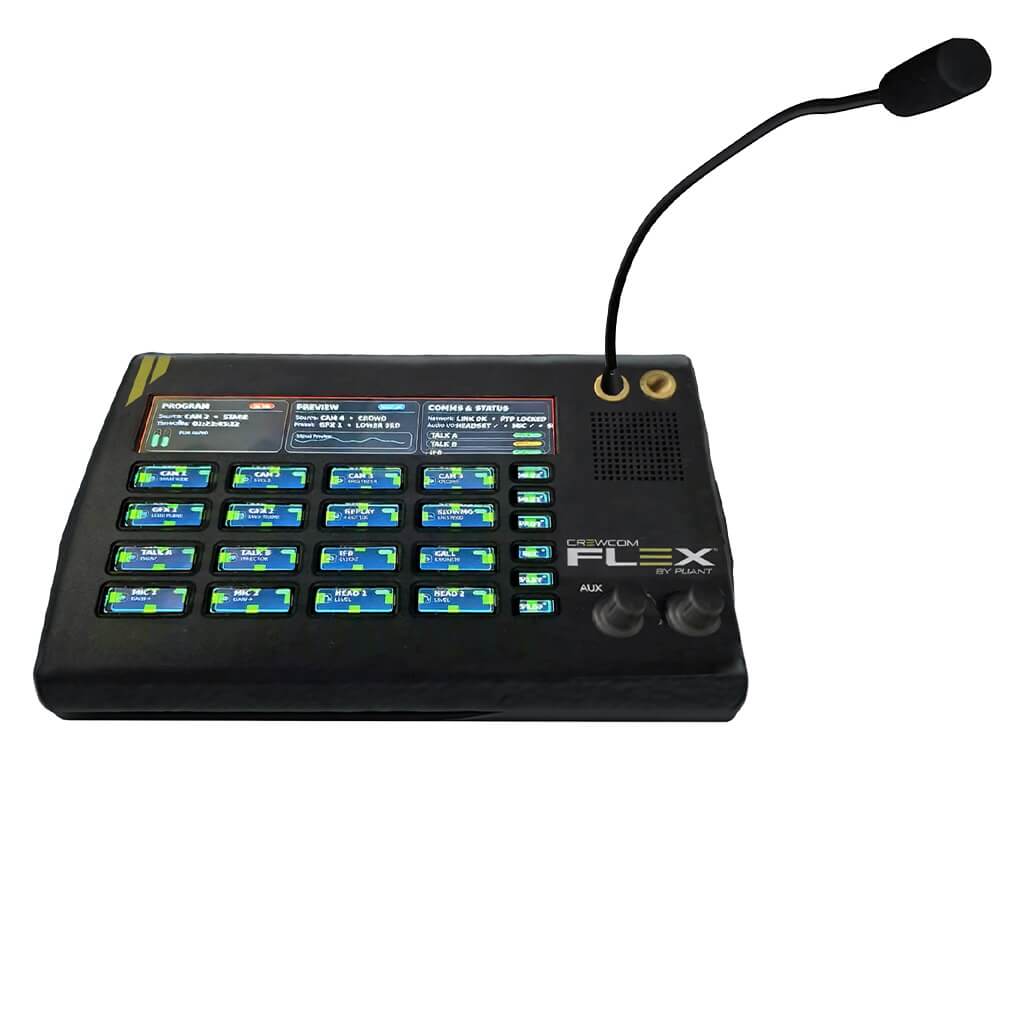

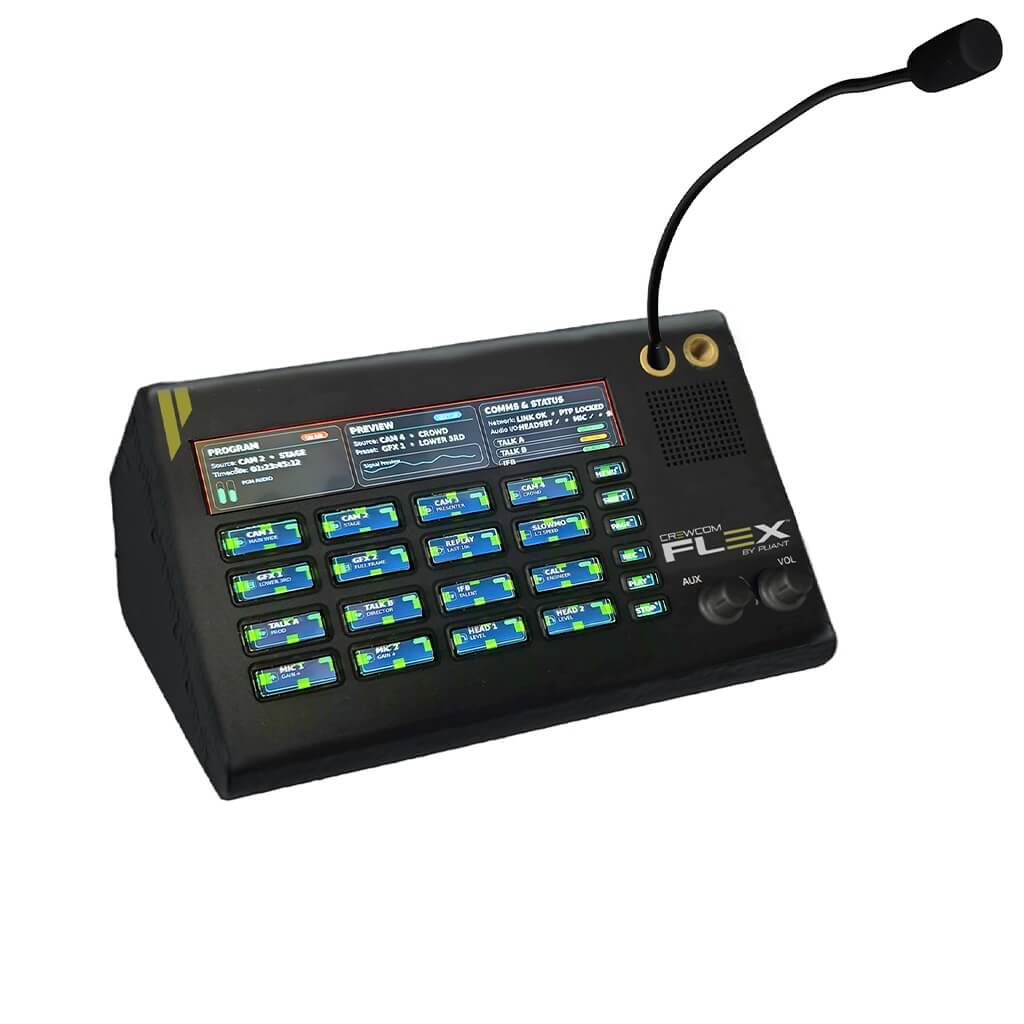

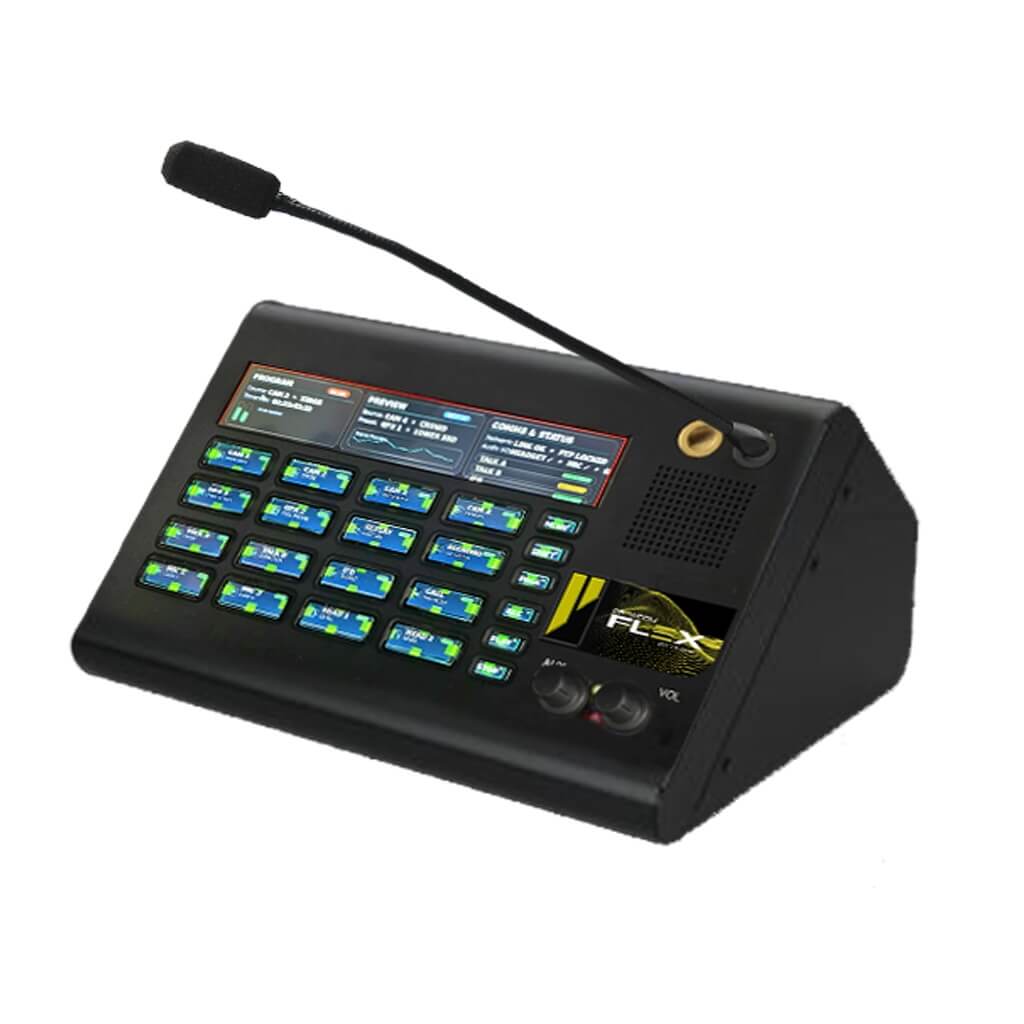

The Pliant Technologies CDP-16 is a Frameless IP intercom desktop panel with 16 tactile four-way "compass" keys for Talk/Listen and individual channel volume control. It features a high-visibility TFT LCD display, 10W voice-optimized speaker, gooseneck mic input, 4-Pin XLR headset connector, and USB audio support. Native AES67 AoIP with dual Gigabit Ethernet (PoE primary), SMPTE 2022-7 redundancy and CrewWare 2.0 integration.
Features
• 16 keys with Up/Down for Talk/Listen and Left/Right for individual volume control
• 3 shift pages providing 48 assignable keys total + "Reply to Last Caller" function
• High-visibility TFT LCD display with 16.7 million colors support
• Additional utility touchscreen located above the keys (for clock, system metering, status, or future applications)
• Larger fonts and support for more characters per label
• Built-in 10W speaker optimized for voice communication (200 Hz – 6.5 kHz)
• Professional audio inputs: 1/4" jack gooseneck microphone socket with threaded brass collet, 4-pin XLR-M headset connector, Rear USB 2.0 port for USB headsets and external audio devices
• Native AES67 / Livewire+ AoIP interoperability
• Dual Gigabit Ethernet ports (Primary supports PoE)
• Flexible secondary port supporting daisy-chaining, bonded failover, or SMPTE ST 2022-7 hitless redundant streaming
• Redundant power options: PoE (Primary) + included 12V DC power supply
• Full configuration and management via CrewWare 2.0
• Onboard web UI for direct device setup and maintenance
• Gooseneck microphone not included
