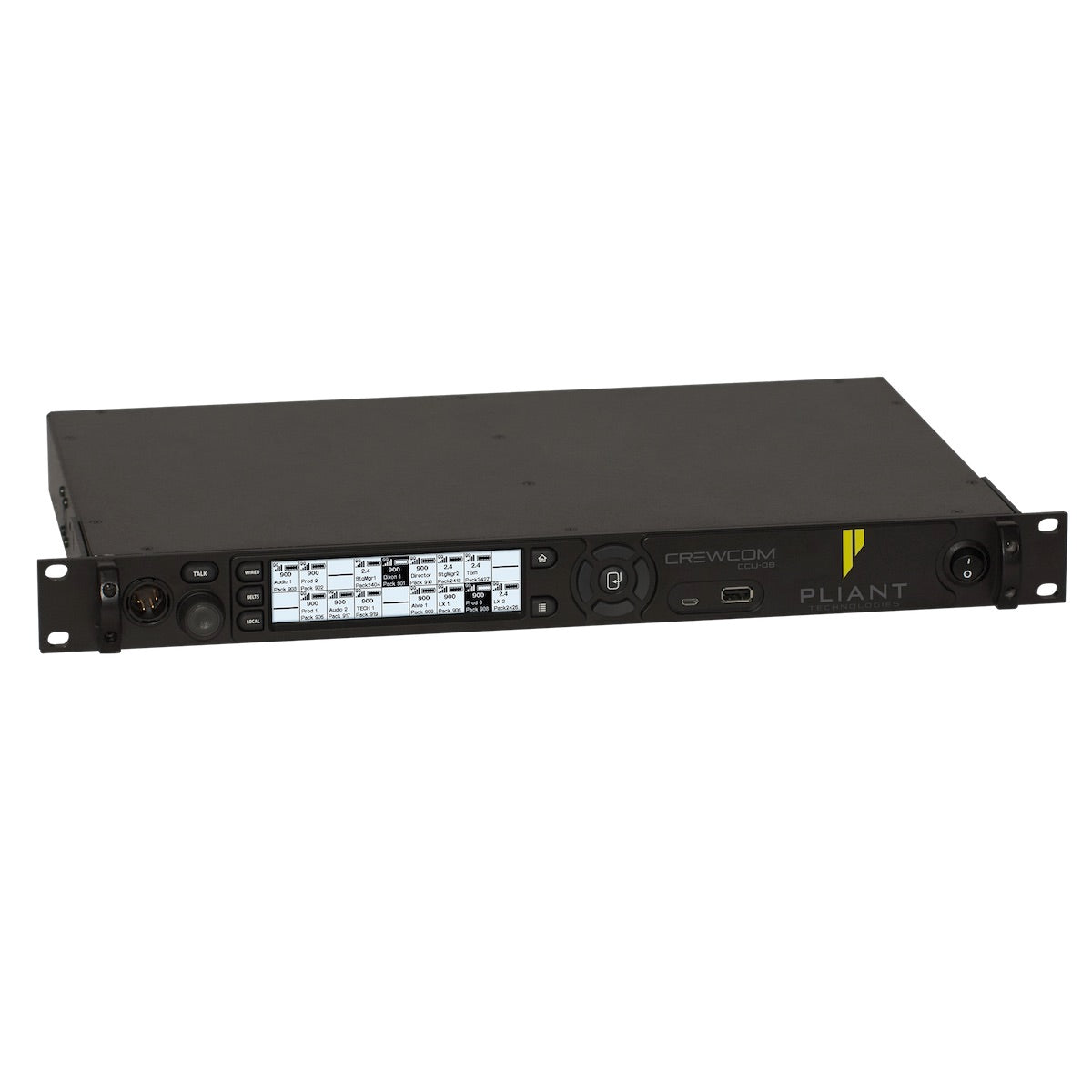

The Pliant Technologies CrewCom CCU-08 Control Unit is a foundational element of the CrewCom system and establishes the CrewNet-based infrastructure while also providing eight 4-wire external connections to common established intercom systems. By design, this CU contains no radio and is frequency agnostic and can therefore control and monitor any device across CrewNet regardless of radio frequency bands being utilized. With the combination of CrewCom Radio Transceivers, CCU-08 supports up to 82 Radio Packs, 18 Normal mode and 64 High Density mode, across all available RF bands.
The Control Unit does not include any other associated CrewCom products such as Radio Packs or Radio Transceivers, which are sold separately.
Features
• Supports up to 18 Normal Mode Radio Packs (RPs) and 64 High Density Mode RPs across all RF bands

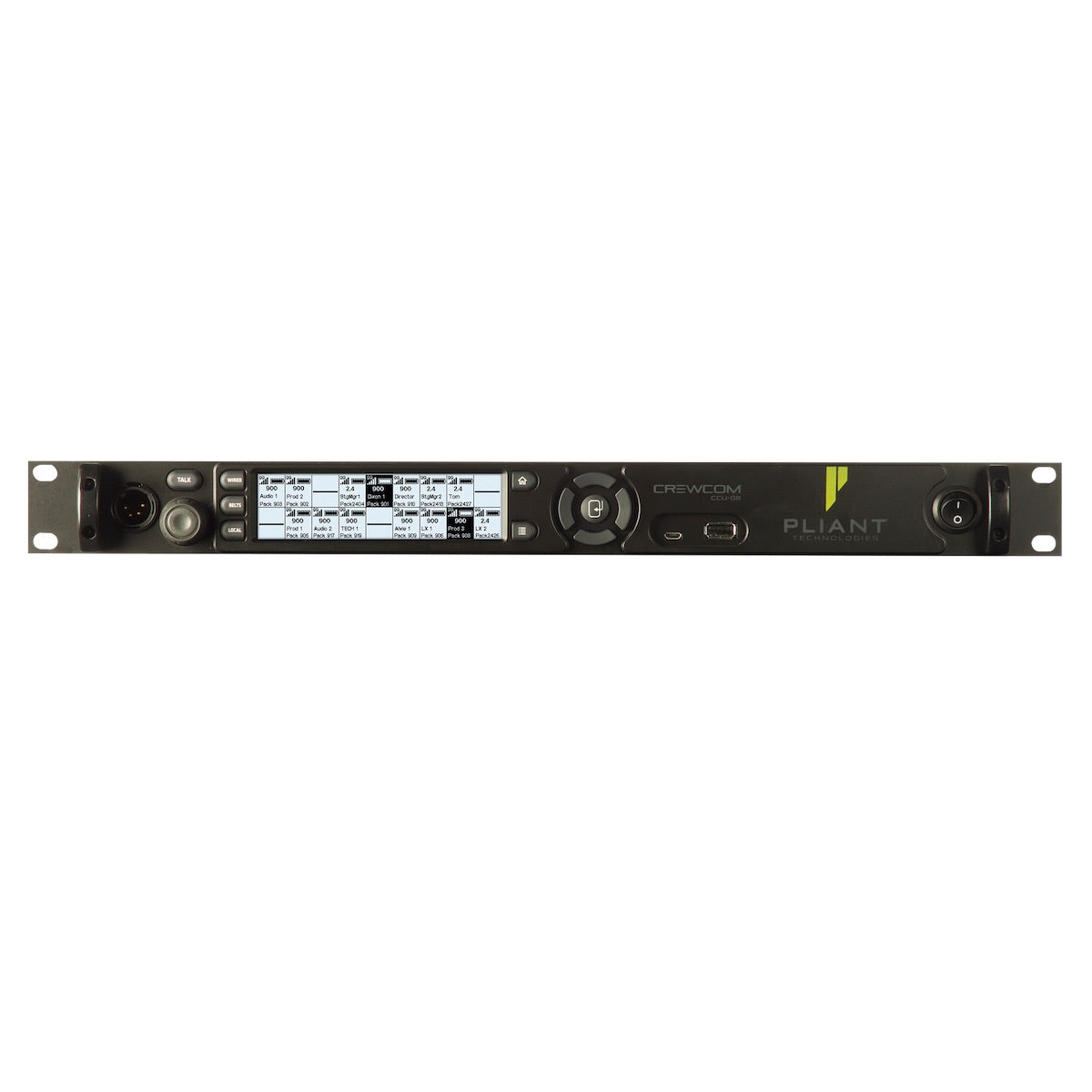

• Easy-to-use interface with large informative backlit display and quick access controls

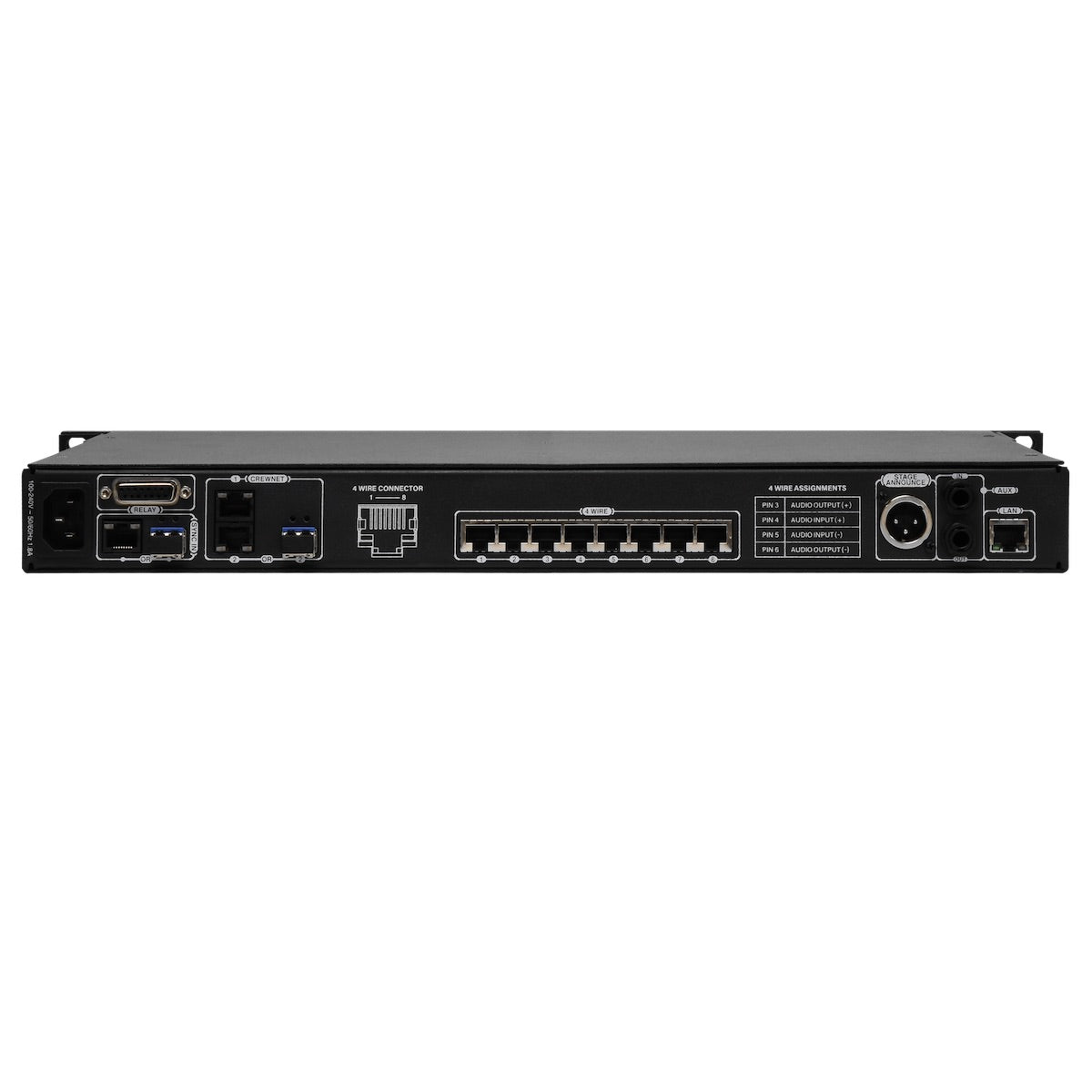

• Simultaneously active eight 4-Wire intercom connections
• Front panel USB ports for Radio Pack pairing, CrewCom device firmware updates and computer connectivity
• Duplex LC Single Mode Fiber and traditional Cat 5e or greater CrewNet connections
• LAN port for CrewWare connectivity via computer network
• Front panel headset monitor station
• Stage announce audio output
• AUX In/Out for program input and intercom audio output
• GPO Contact closure relays (x 5)
• Sync input to receive sync from another CrewCom system
• 1RU rack mountable
