The Optimal Audio Cuboid 5TX is a full range, two way, passive 5" loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.
With its attractive design and included mounting hardware, Cuboid 5TX can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.
Cuboid 5TX features a 5.25" low frequency driver and a 0.75" silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.

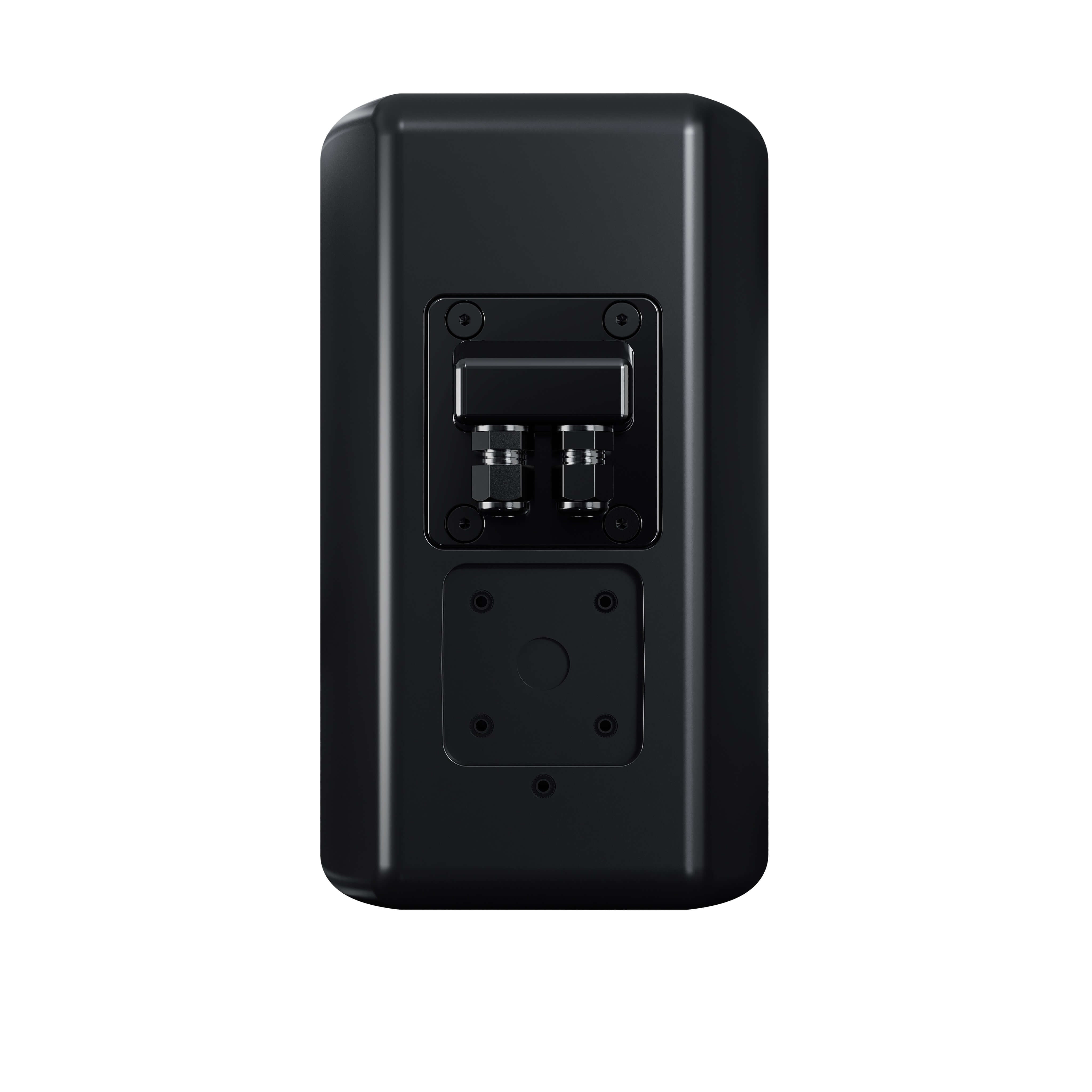

Each Cuboid 5TX can be run on a series of 70 or 100V taps or at low impedance. Tap selection is via a rotary switch on the rear of the cabinet.
When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.
Features
• Discreet size, high performance
• Portrait or landscape mounting options

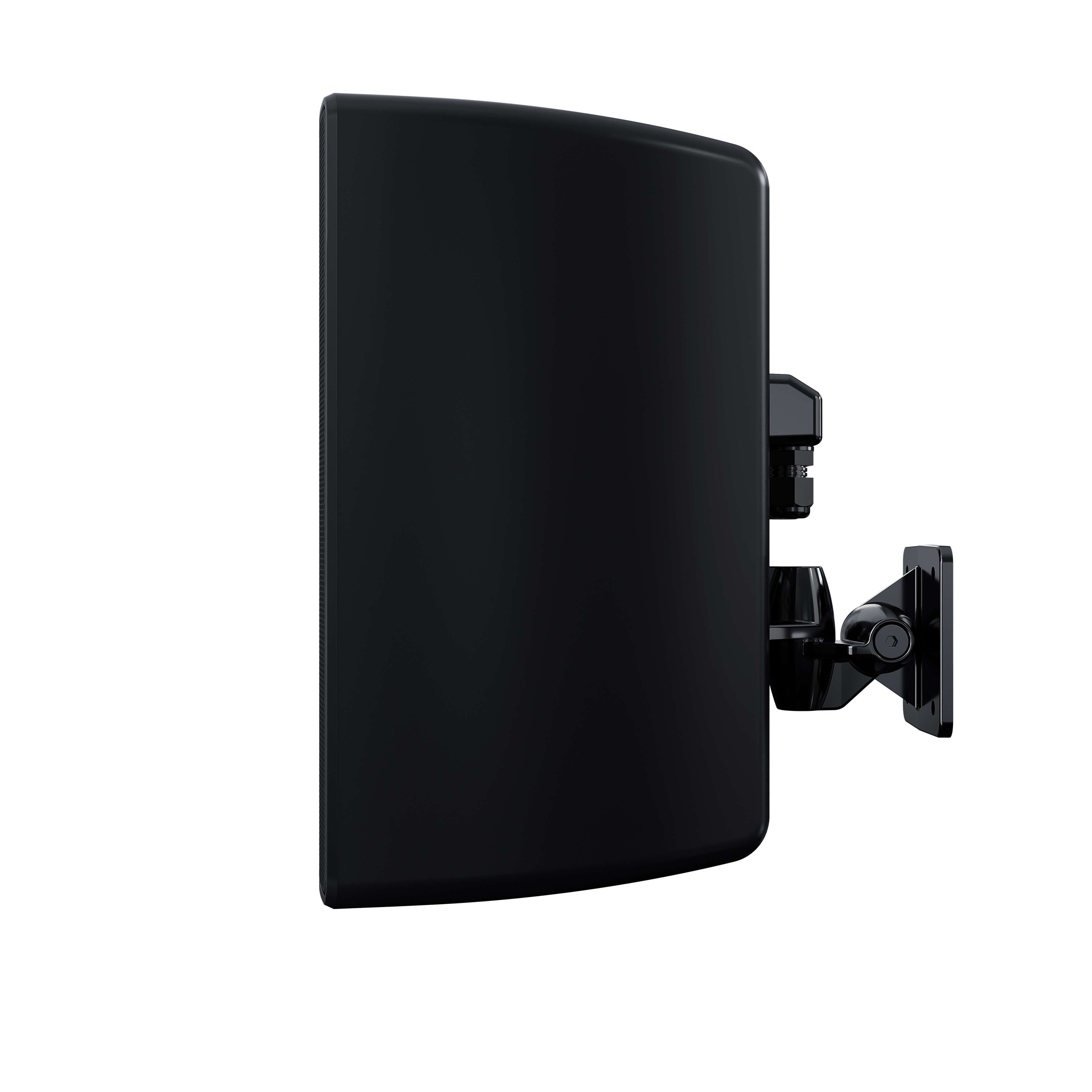

• Wall bracket included
• Max SPL 105dB (continuous) 111dB (peak)
• 130° horizontal x 120° vertical coverage
• IP54 for outdoor use with accessory terminal cover
• Universal wall bracket included
• 8 ohm or 70/100V line operation

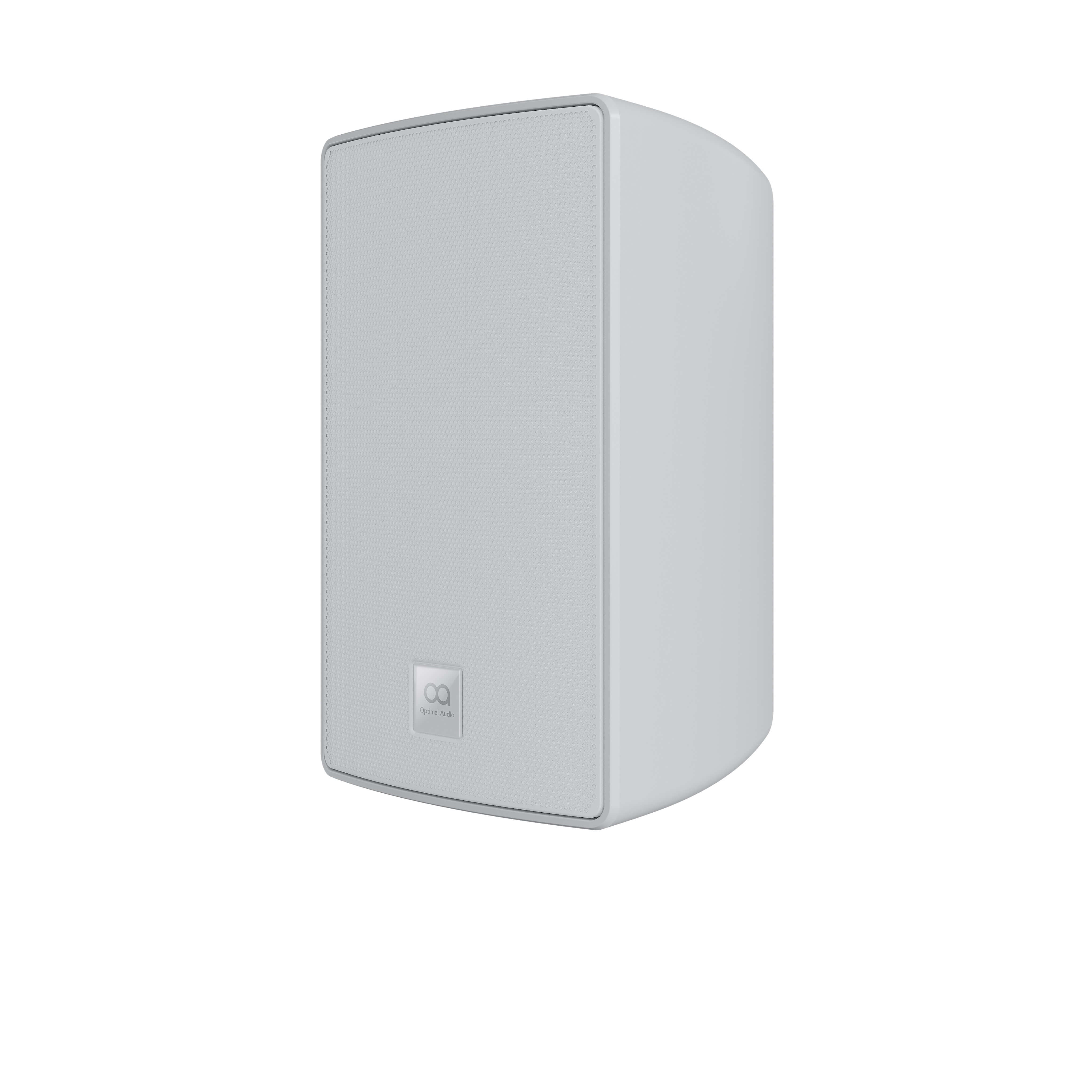

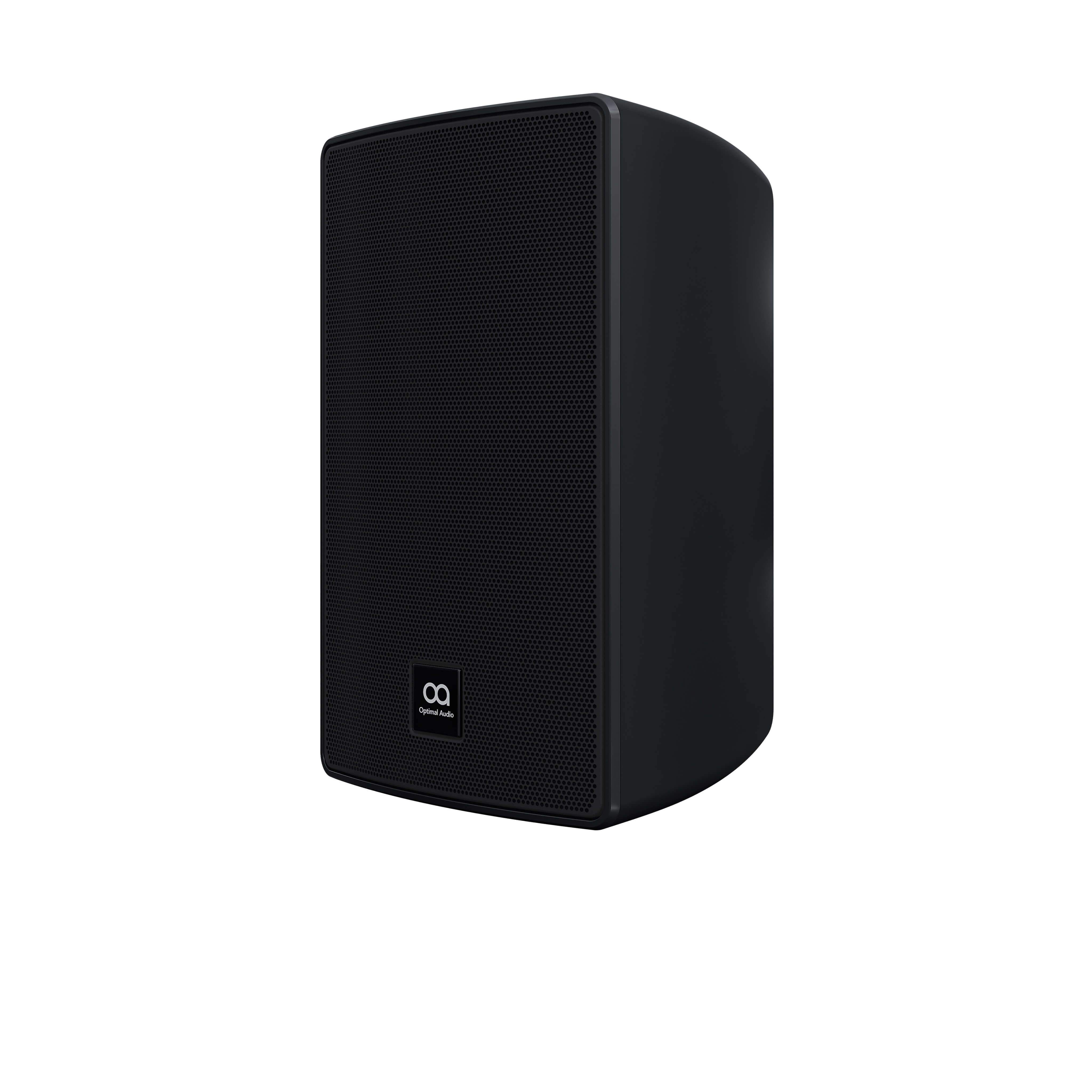

• Available in black or white
Optimal Audio benefits from years of engineering experience, global reach and support, being part of Focusrite PLC, one of Europe's largest pro audio manufacturers.
