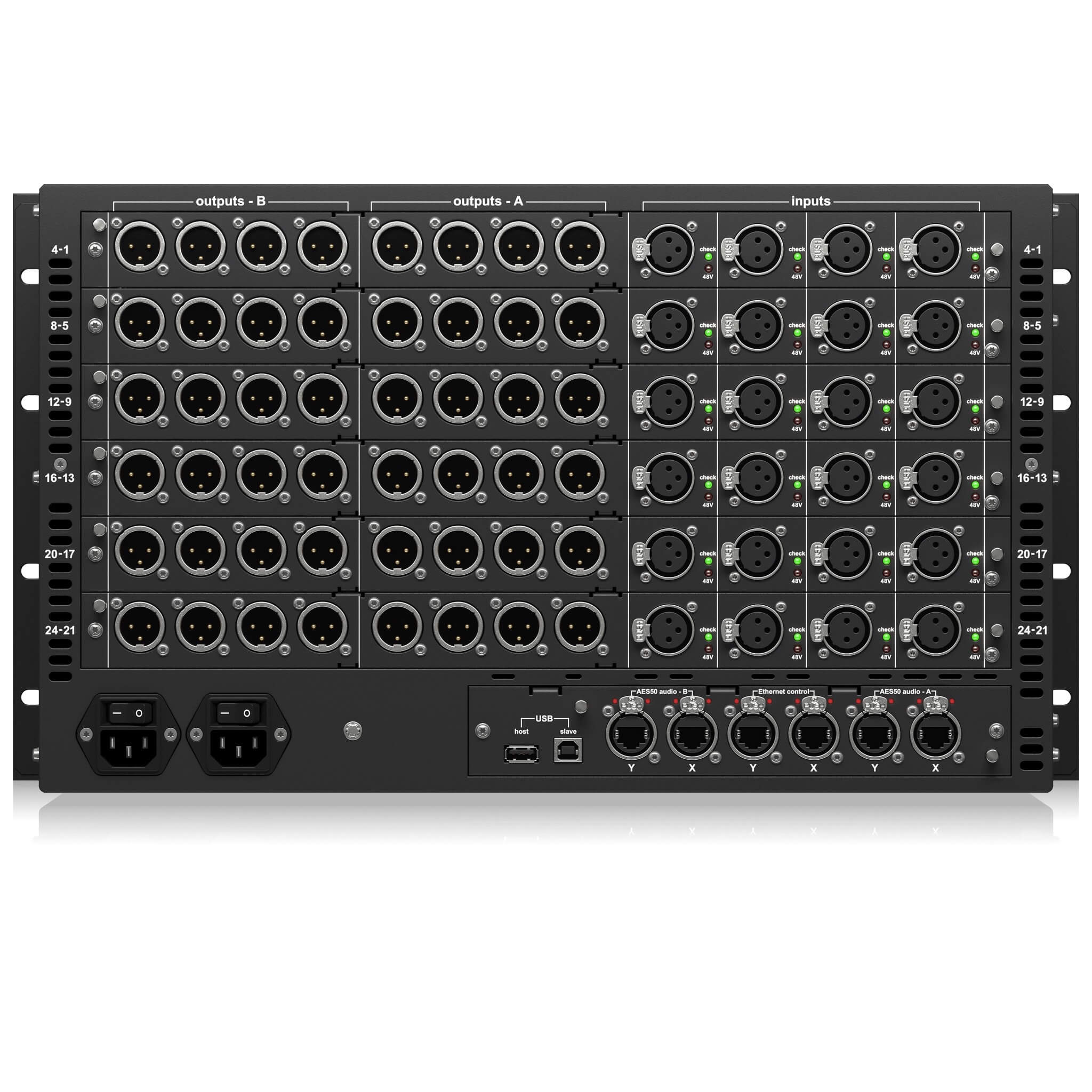

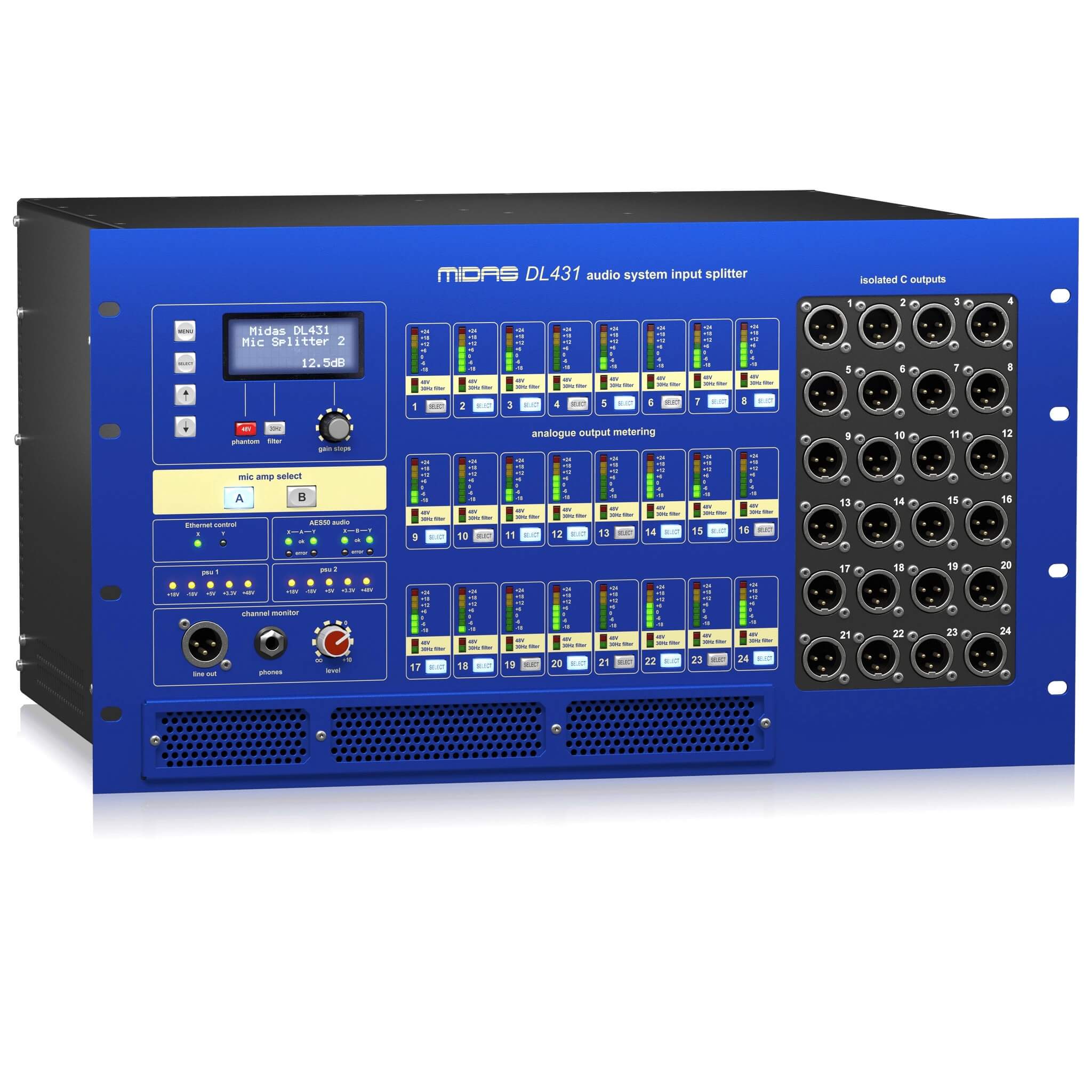

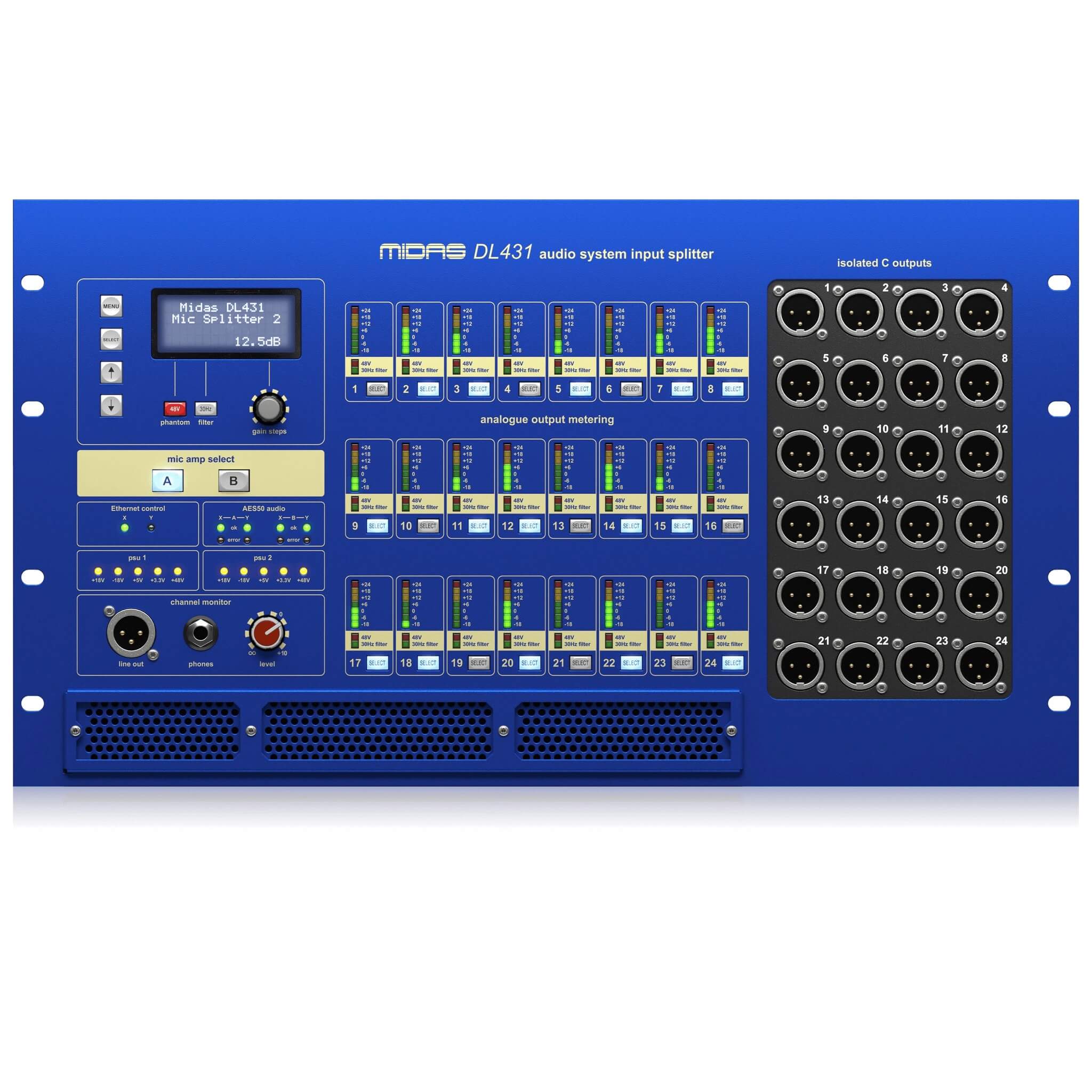

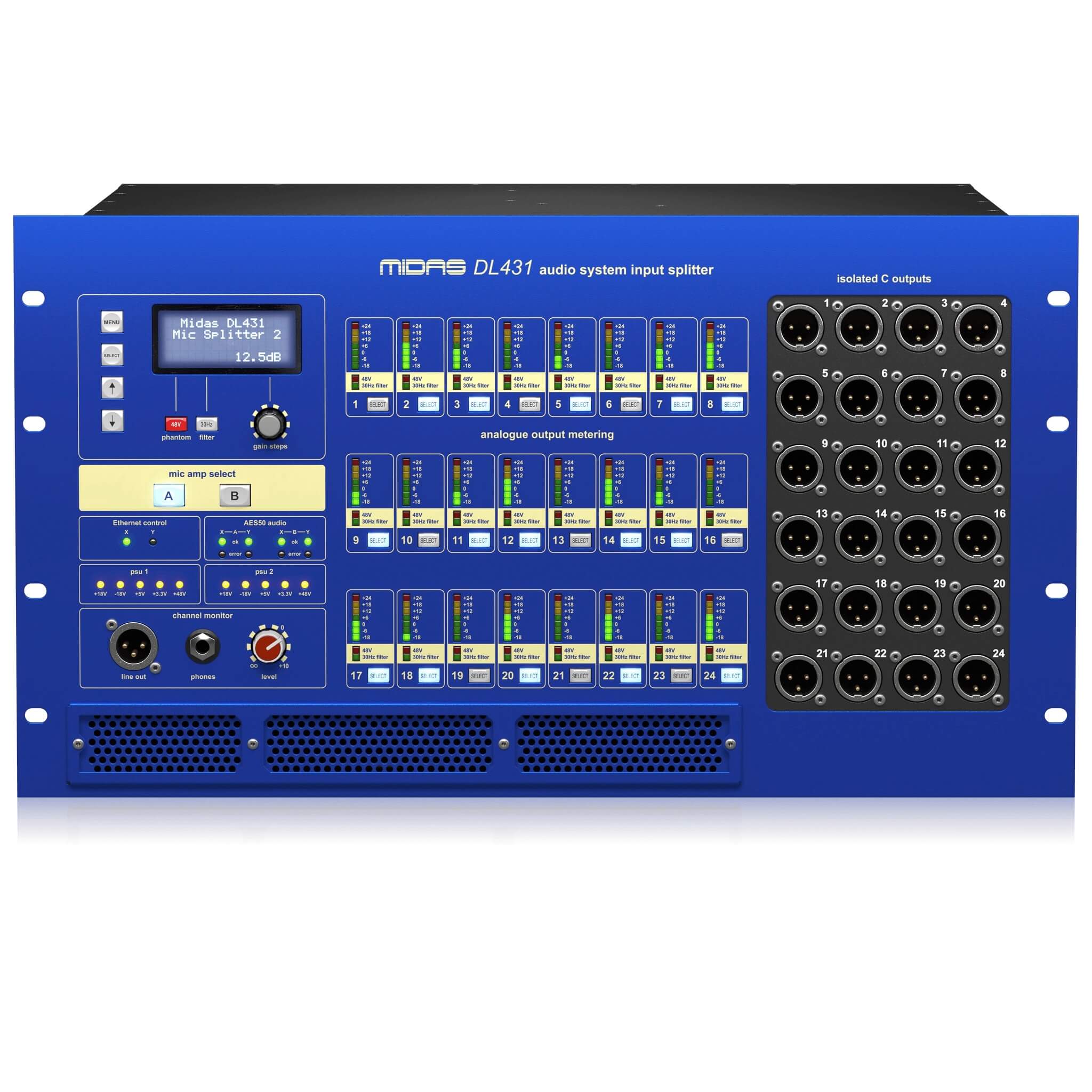

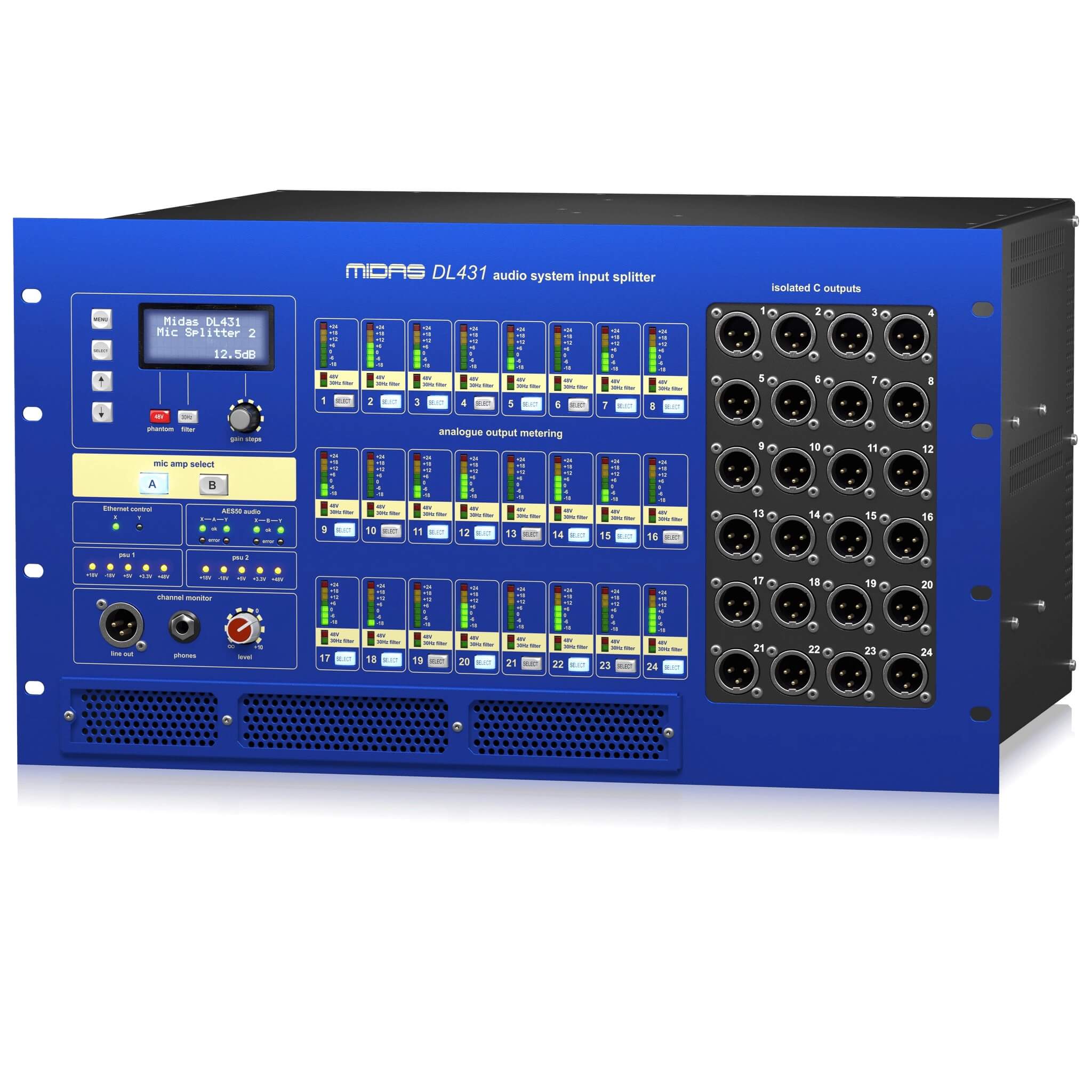

The Midas DL431 is a 6U 19" fixed-configuration rack I/O unit designed for microphone signal splitting applications with 24 mic/line level inputs and 72 line level outputs, and delivers legendary Midas sound quality utilizing time-tested and road-proven technologies. Featuring two independent Midas microphone preamplifiers with 2.5 dB gain steps plus a third fixed gain Midas Microphone preamplifier per input channel, two dual redundant AES50 network interfaces, dual redundant Ethernet control ports and a MIDI Interface (In, Out, Thru), the DL431 is the ideal partner to the Midas PRO3, PRO6, PRO9, XL8 and PRO X digital consoles, enabling a digital snake connection from Front of House to stage.
Features
• 3 Midas microphone preamplifiers per channel with switchable +48 V phantom power
• 2 independent dual redundant AES50 (X and Y) network ports
• Local channel monitoring with integrated headphone amplifier
• 24 bit audio operation with 96 kHz sample rate
• Remote operation up to 80 m via CAT5/5e cable
• All settings programmable from front panel controls or console
• PSU status indicator LEDs and configuration LCD display on front panel
• Features Neutrik etherCON AES50 network ports
• Rugged 6U rackmount chassis for durability in portable applications
• Dual redundant auto-ranging universal switch-mode power supplies
