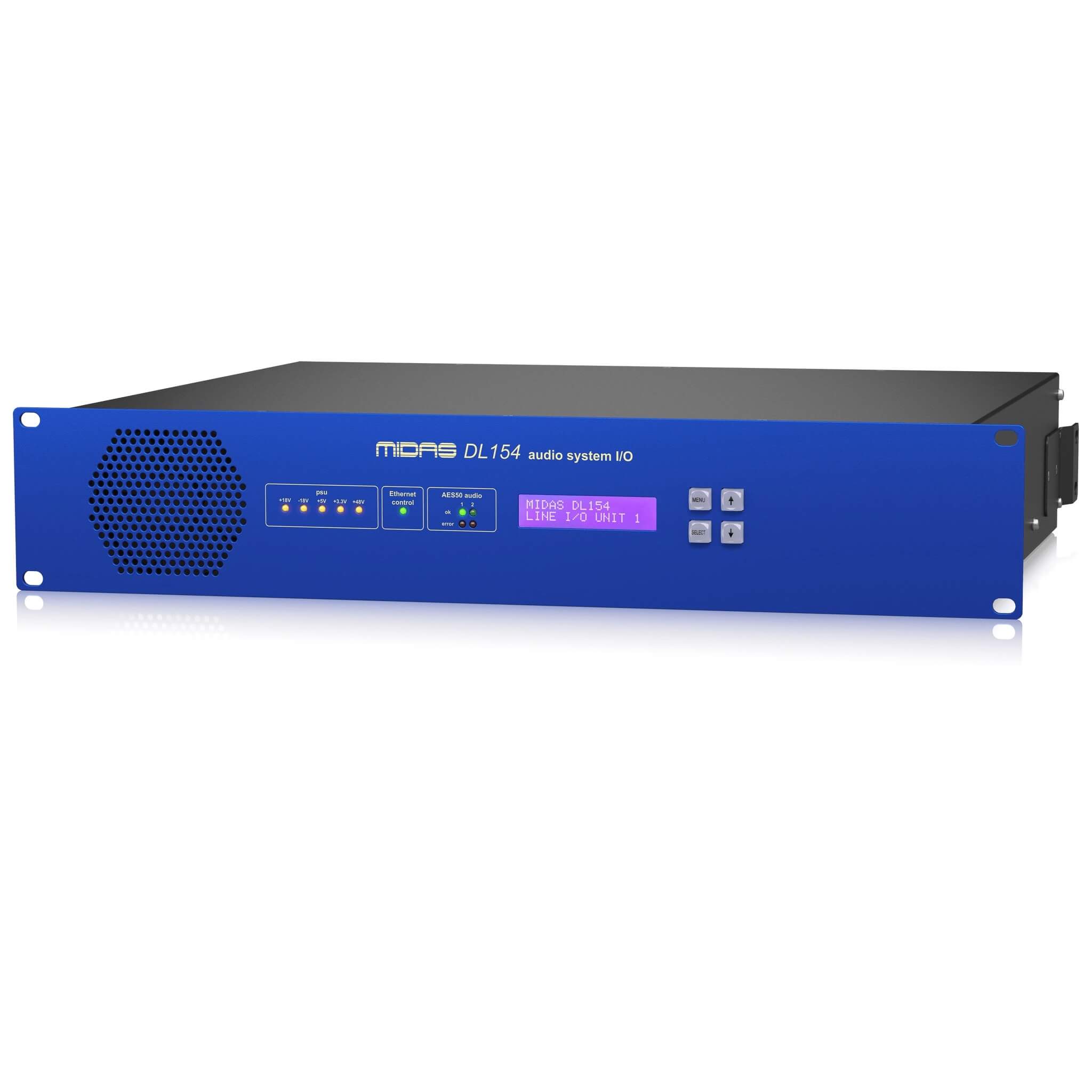

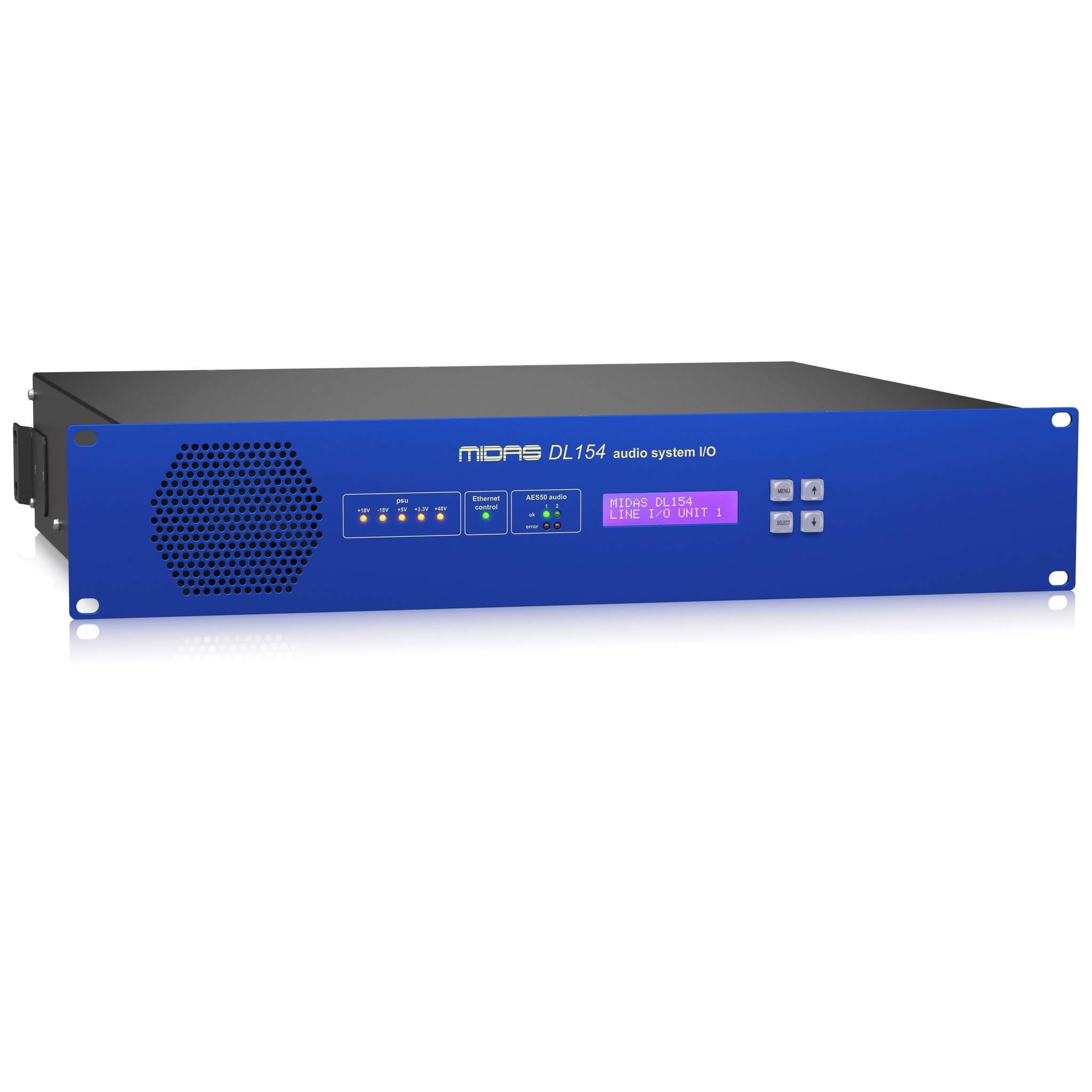

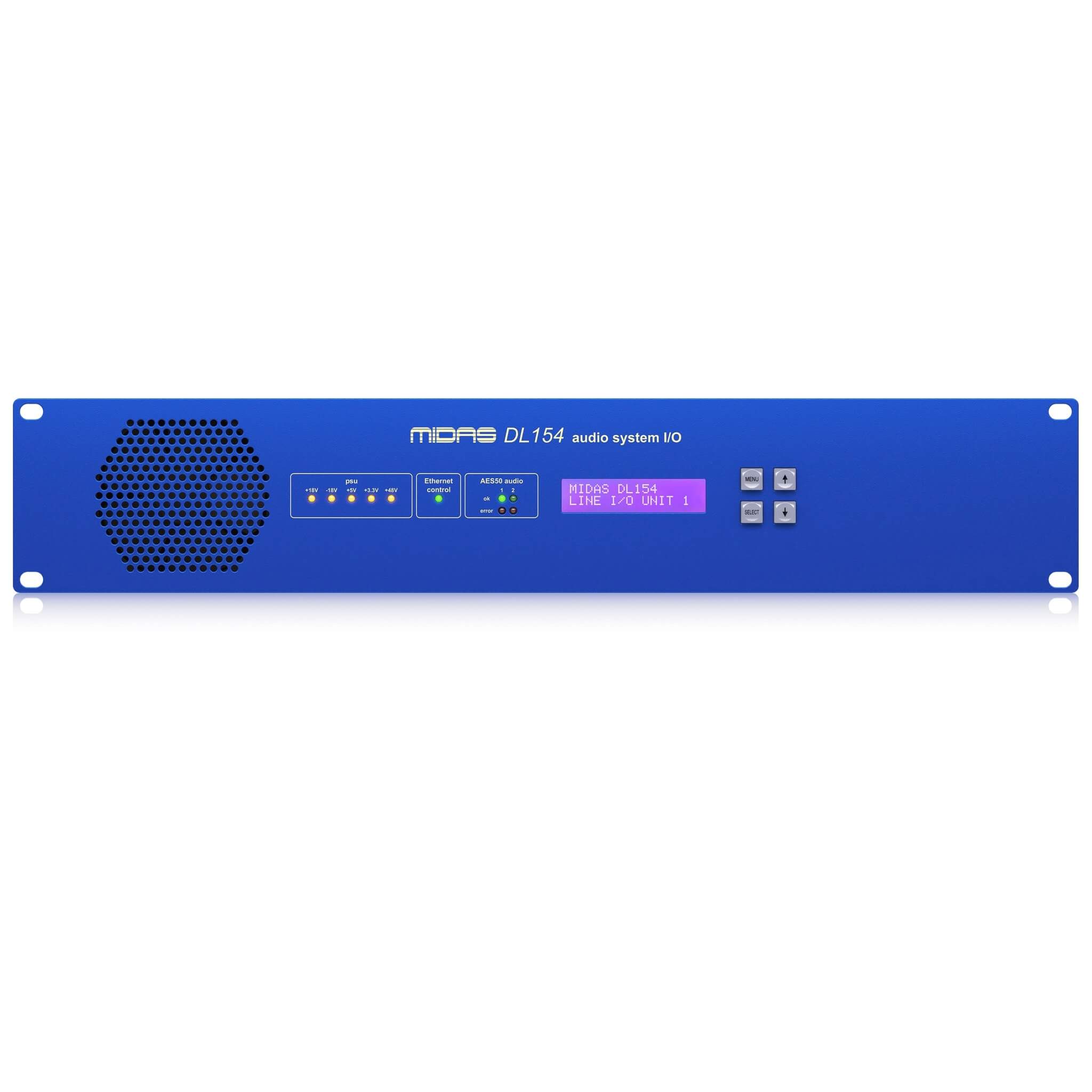

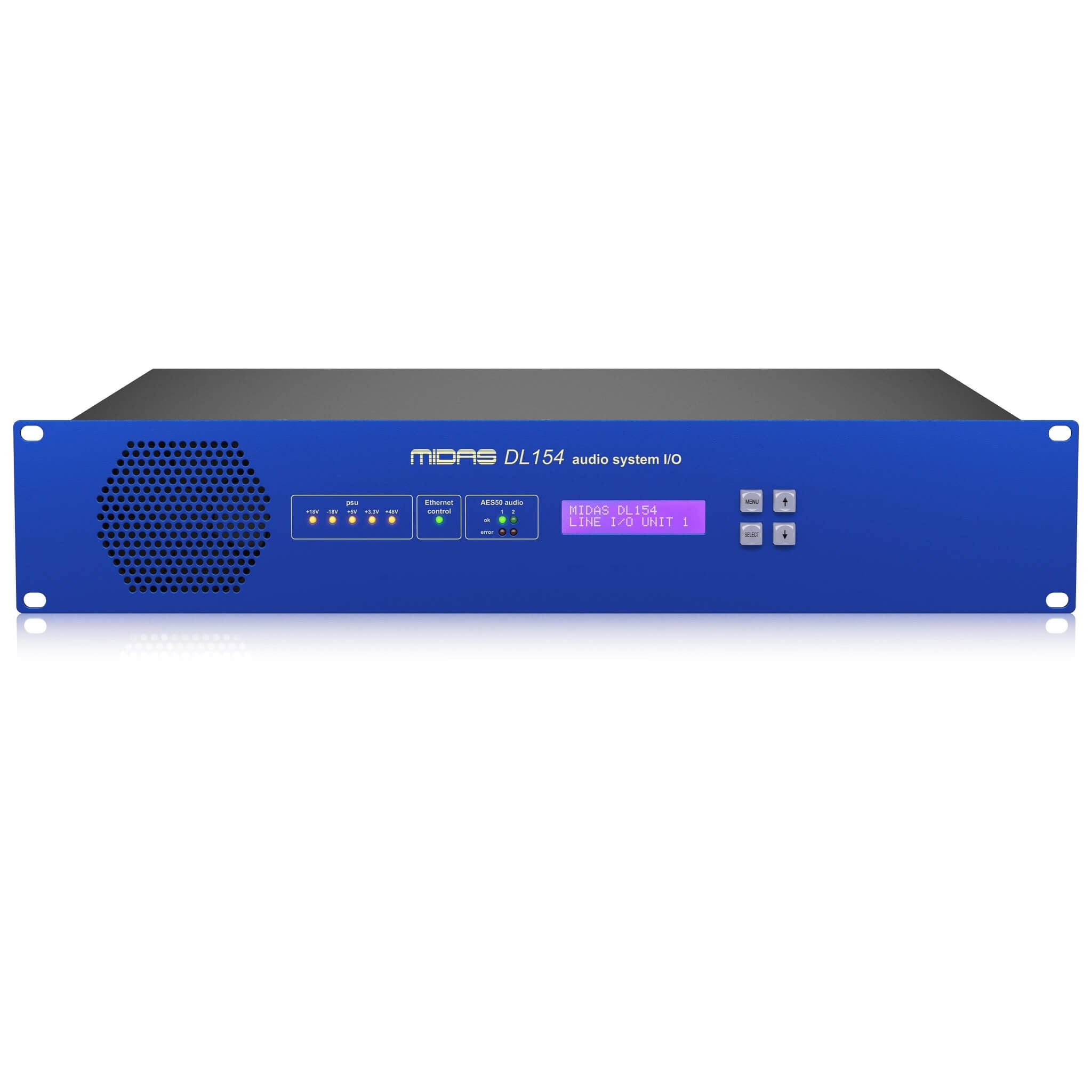

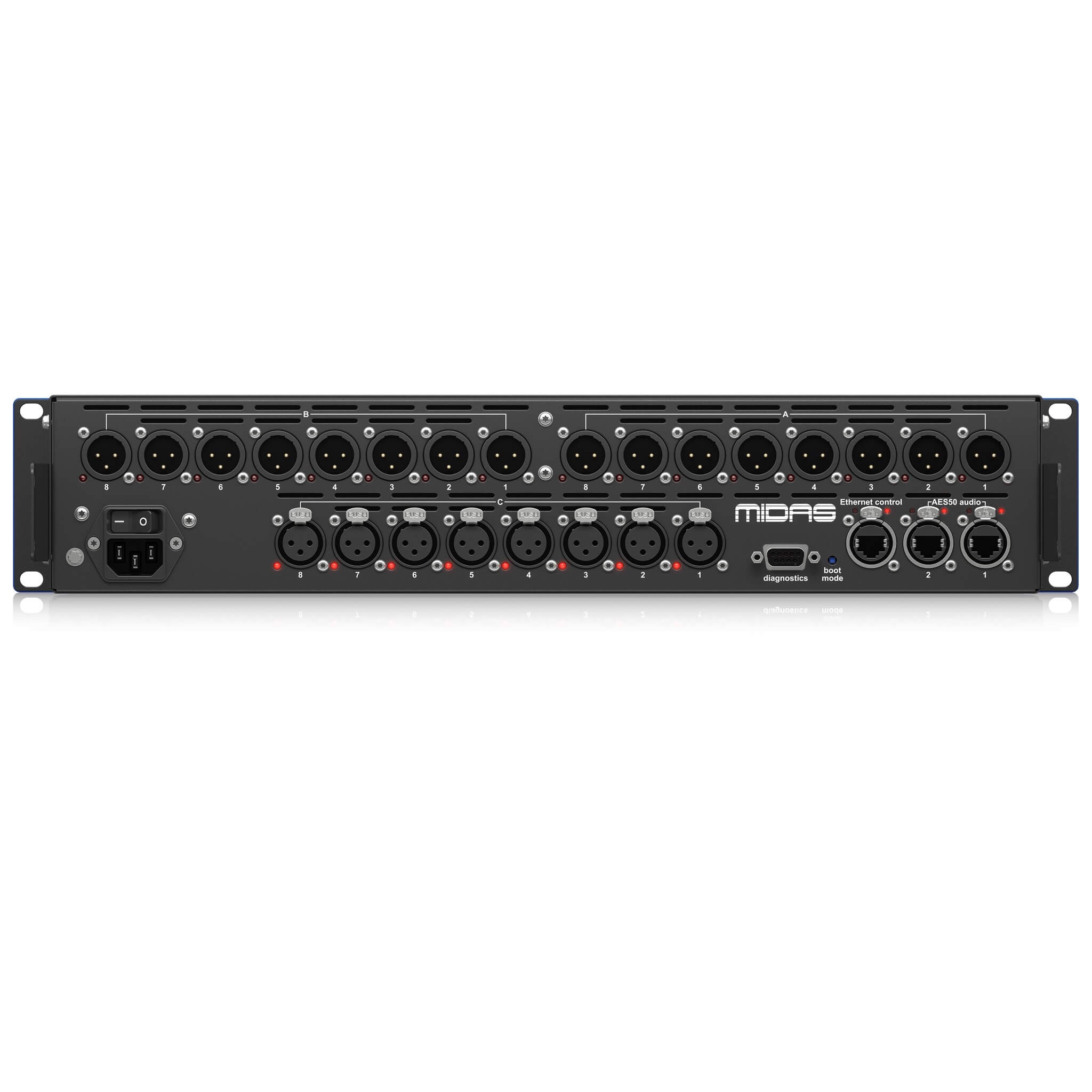

The Midas DL154 stage box is a 2U 19" fixed-configuration rack I/O unit with 8 mic/line level inputs and 16 line level outputs and delivers legendary Midas sound quality utilizing time-tested and road-proven technologies. Featuring award-winning Midas microphone preamplifiers with 2.5 dB analogue gain steps and two AES50 network ports providing dual redundancy, the DL154 is the ideal partner to all Midas PRO and M32 Series digital consoles, enabling a digital snake connection from Front of House to stage.
Features
• 8 Midas microphone preamplifiers with switchable +48 V phantom power
• 16 electronically balanced low impedance line level outputs
• Remote operation up to 100 m via CAT5/5e cable
• Selectable 96 kHz or 48 kHz sample rate operation
• All settings programmable from front panel controls or console
• PSU status indicator LEDs and configuration LCD display on front panel
• Supports dual redundant AES50 networks
• Features Neutrik etherCON AES50 network ports
• Rugged 2U rackmount chassis for durability in portable applications
• Auto-ranging universal switch-mode power supply
