Description

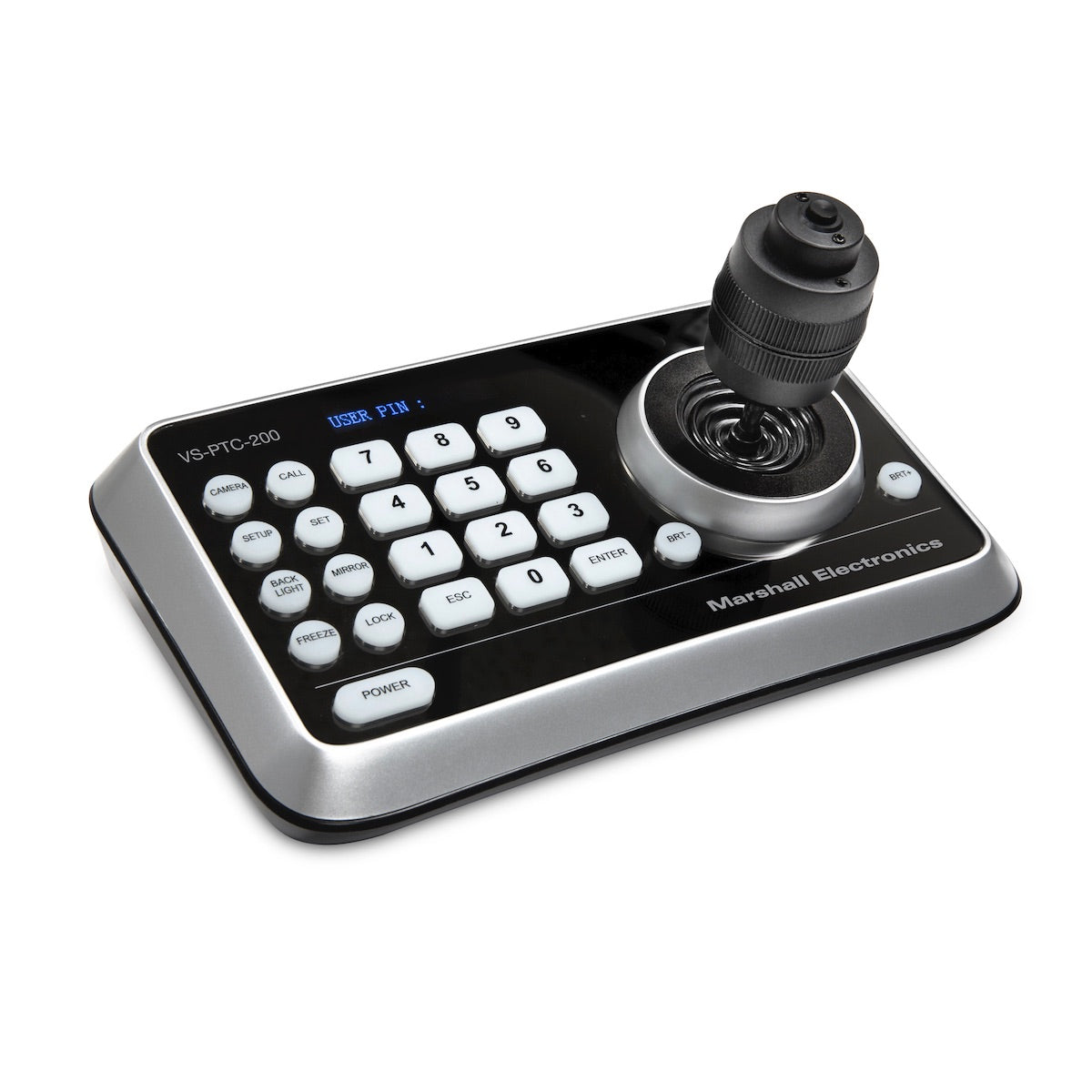

The Marshall VS-PTC-200 Compact PTZ Controller is designed and built to integrate seamlessly with Marshall CV605, CV610, CV612, CV620, CV630 and even the CV730 camera models. This PTZ controller will operate Pan, Tilt, Zoom, and Focus (4D) simultaneously with the joystick as well as adjustment control over Brightness, Preset/Recall locations, Flip and Mirror, Backlight Compensation, Freeze Frame, Manual Focus and other adjustments on the keypad buttons.
Features
• Joystick (4D) allows simultaneous control over Pan, Tilt, Zoom & Focus
• 128 Preset locations with smooth adjustable transition speeds
• One touch control over Brightness, Back Light, Mirror/Flip, Freeze Capture
• Full Duplex RS-232 & RS-422 Communication Interface
• VISCA or PELCO setup available via RS422/RS232
• Suitable for Marshall CV605, CV610, CV612, CV620, CV630
• Compact Design - Dims 7.87"(L) x 4.72"(W) x 4.06")
• 12V DC (less then 2W)
• 0.5kg (1.1lb)
