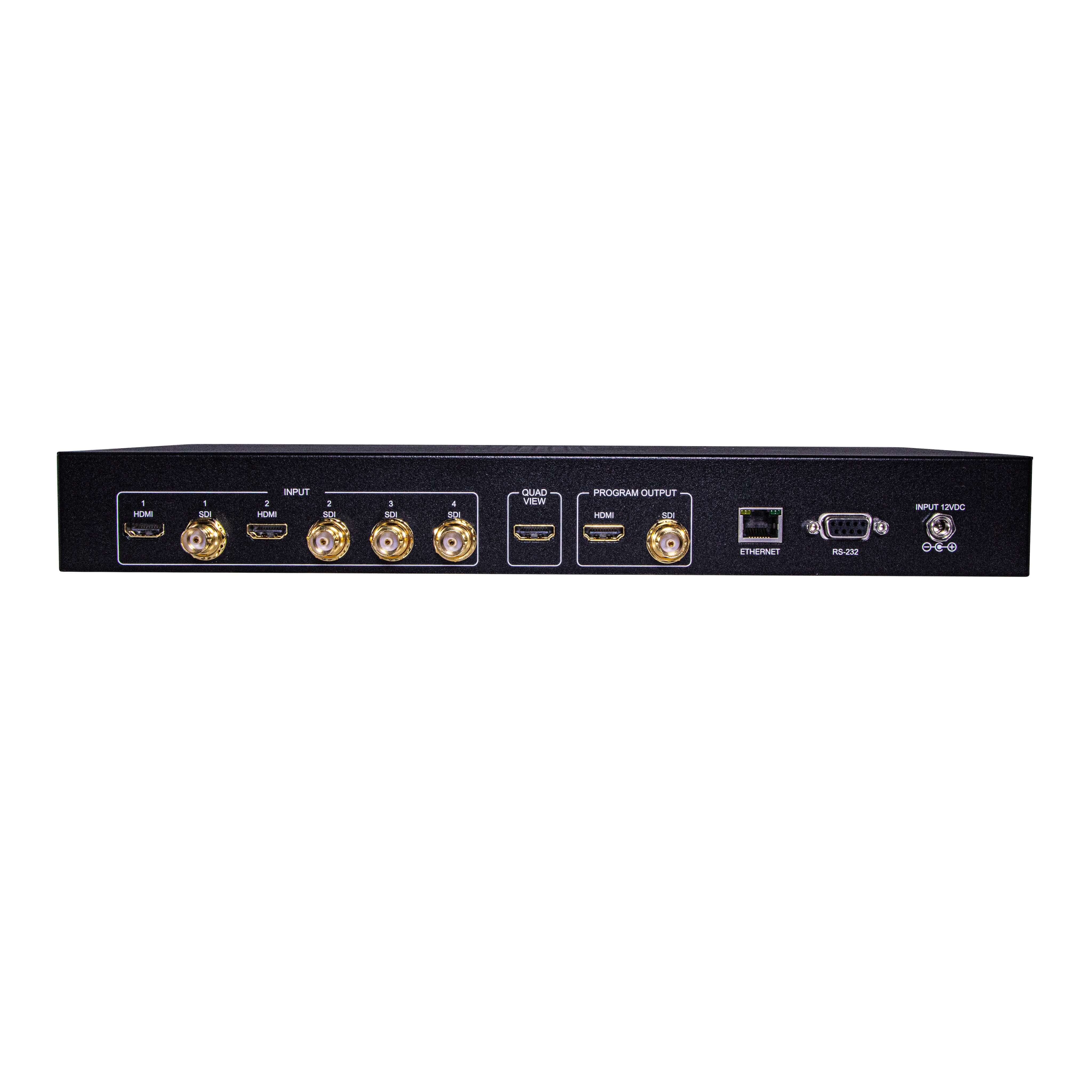

The Marshall VMV-402-3GSH can be used in remote news vehicles, edit rooms, AV boardrooms, lecture halls and even as an input expander for existing production switches. Simple command structure allows easy integration with Crestron and other control surfaces and automation systems via Ethernet or RS232. The switcher accepts four 3GSDI sources. Inputs 1 and 2 also accept HDMI.

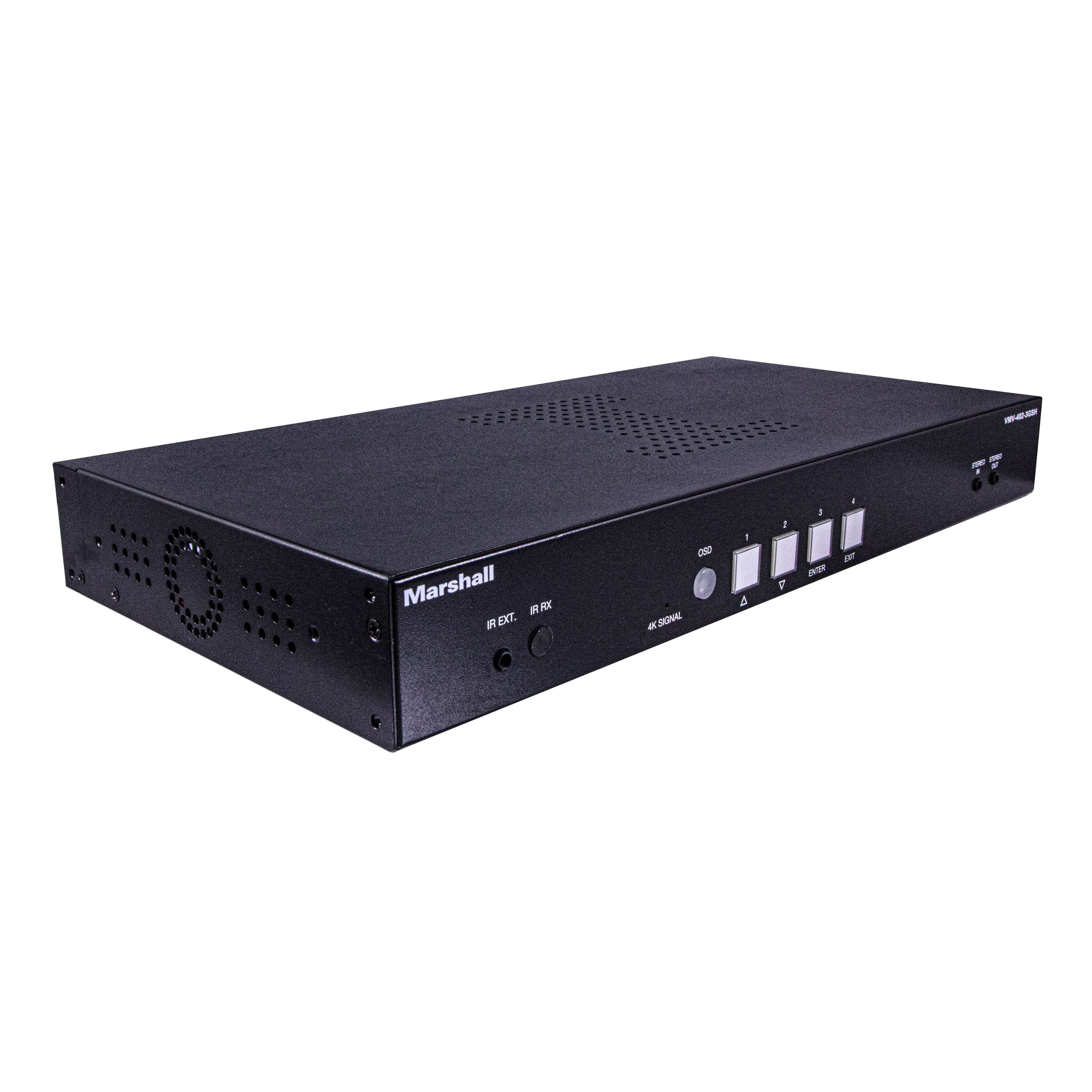

Switching fast and glitch-free, it accepts all common input formats/frame rates and converts to a single output format. Program out is available simultaneously as SDI and HDMI. A second HDMI output provides a full-time quad view. It is easily set up using convenient on-screen menus or a web GUI, without the need for special apps or cables. The unit is 1RU high and full rack width.
Features
• 4x 3GSDI inputs, inputs 1 & 2 also support HDMI
• Full-time Quadview via HDMI
• UP and DOWN resolution/frame rate scaling
• Waveform and Vector scope overlay selectable
• All system setups via front panel or Ethernet browser (no separate app required)
• Input selection, quad labels via Ethernet or RS232
