Description

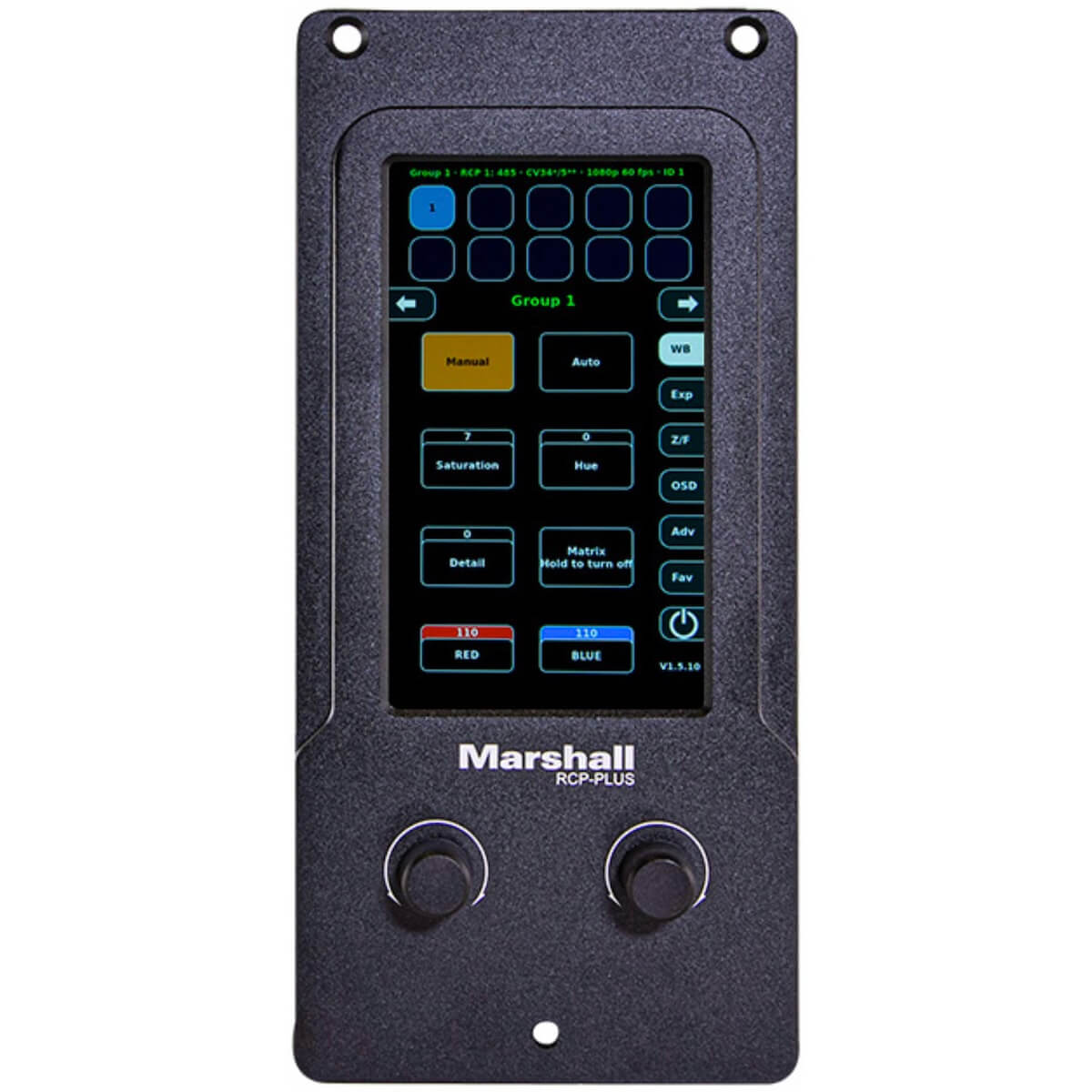

The Marshall RCP-PLUS is an intuitive 5-inch touchscreen multi-camera controller that allows for remote operation of seven broadcast cameras, up to 300m (1000 ft) distance over common XLR cable. It can connect VISCA over IP, Visca over RS485, and is powered by PoE or 12VDC. This unit can also have favorites settings and save features for easy usability. The fine-tuned finger dials enable precise adjustments for white balance, red/blue gain, gamma, black level, brightness, exposure, iris, shutter, resolution, frame rate, and more, and they can be adjusted simultaneously or one at a time. The RCP-PLUS comes pre-programmed with control protocols for all Marshall Cameras, including Marshall's POV cameras, varifocal cameras, zoom cameras, PTZ cameras, and other popular non-Marshall branded cameras on the market.
Features
• Large 5-inch TFT LCD Touchscreen (800x480) with fine-tune adjustment knobs
• Supports up to 7 cameras via VISCA RS485, 63 VISCA over IP, or 70 combined
• Remotely control up to seven cameras from a control truck or control booth

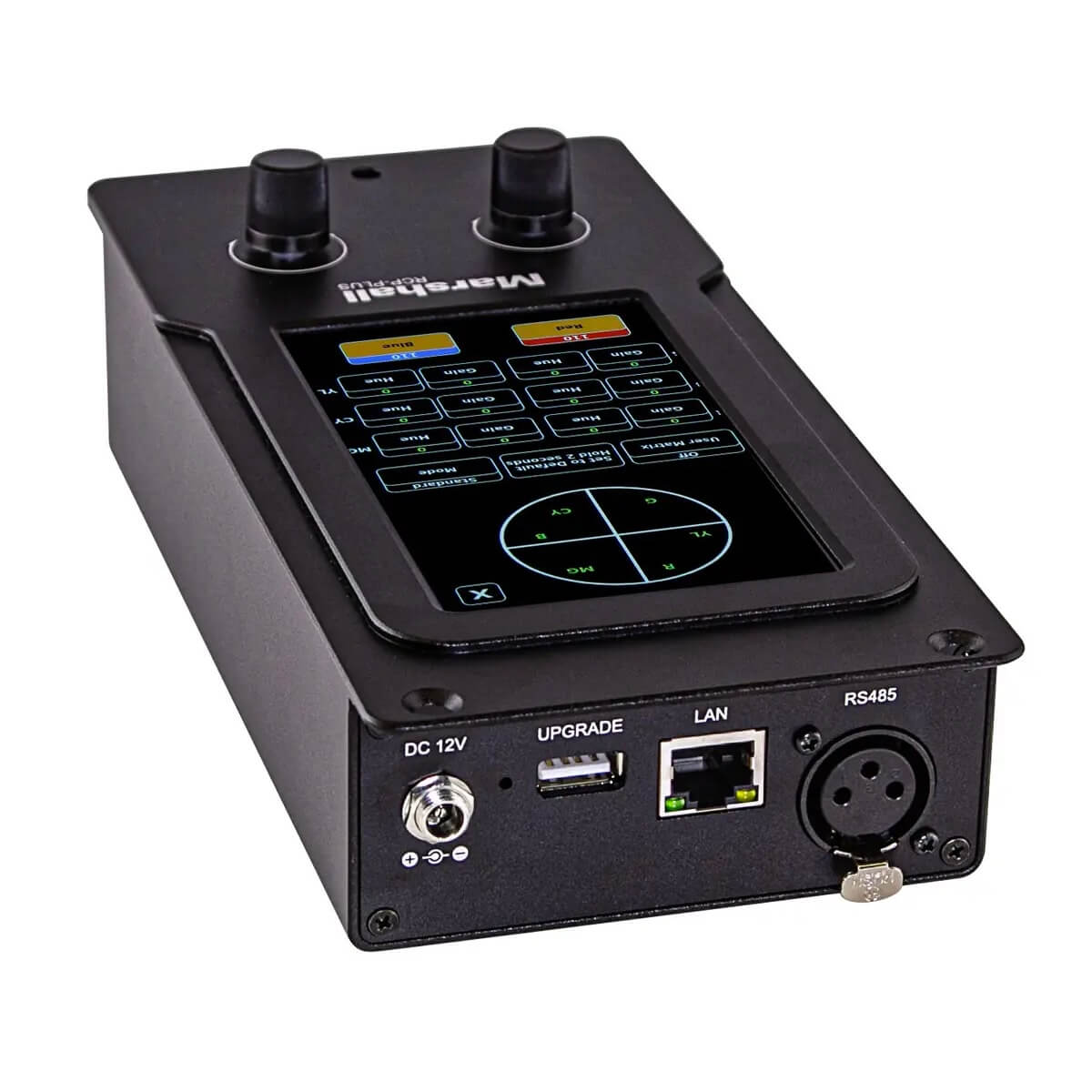

• Common 3-pin XLR cable connection allows for cable-runs up to 300m (1000 ft)
• Adjustments made on camera without OSD Menu appearing on video stream

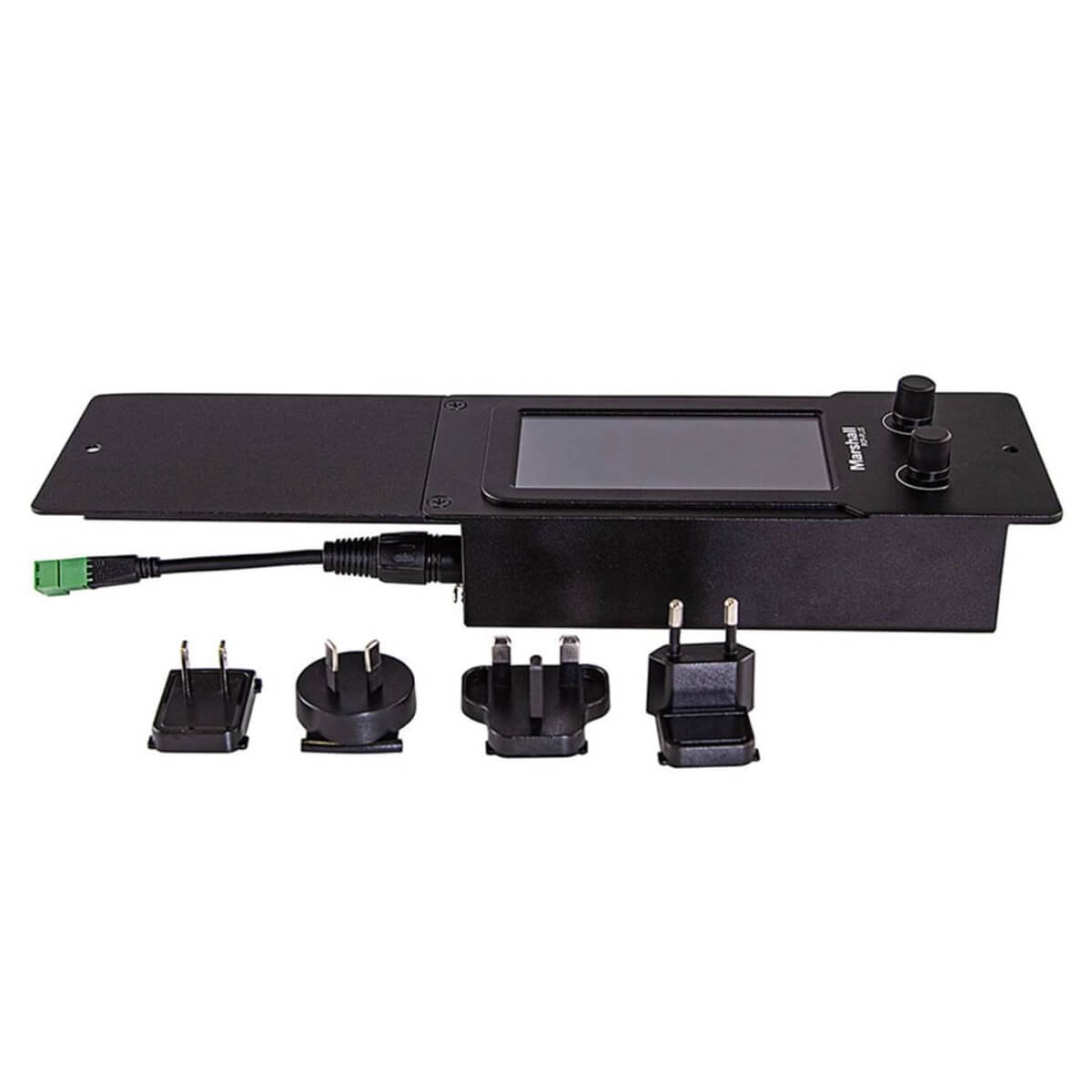

• Top Rack Mount Bracket for mounting onto CCU control boards for remote adjust

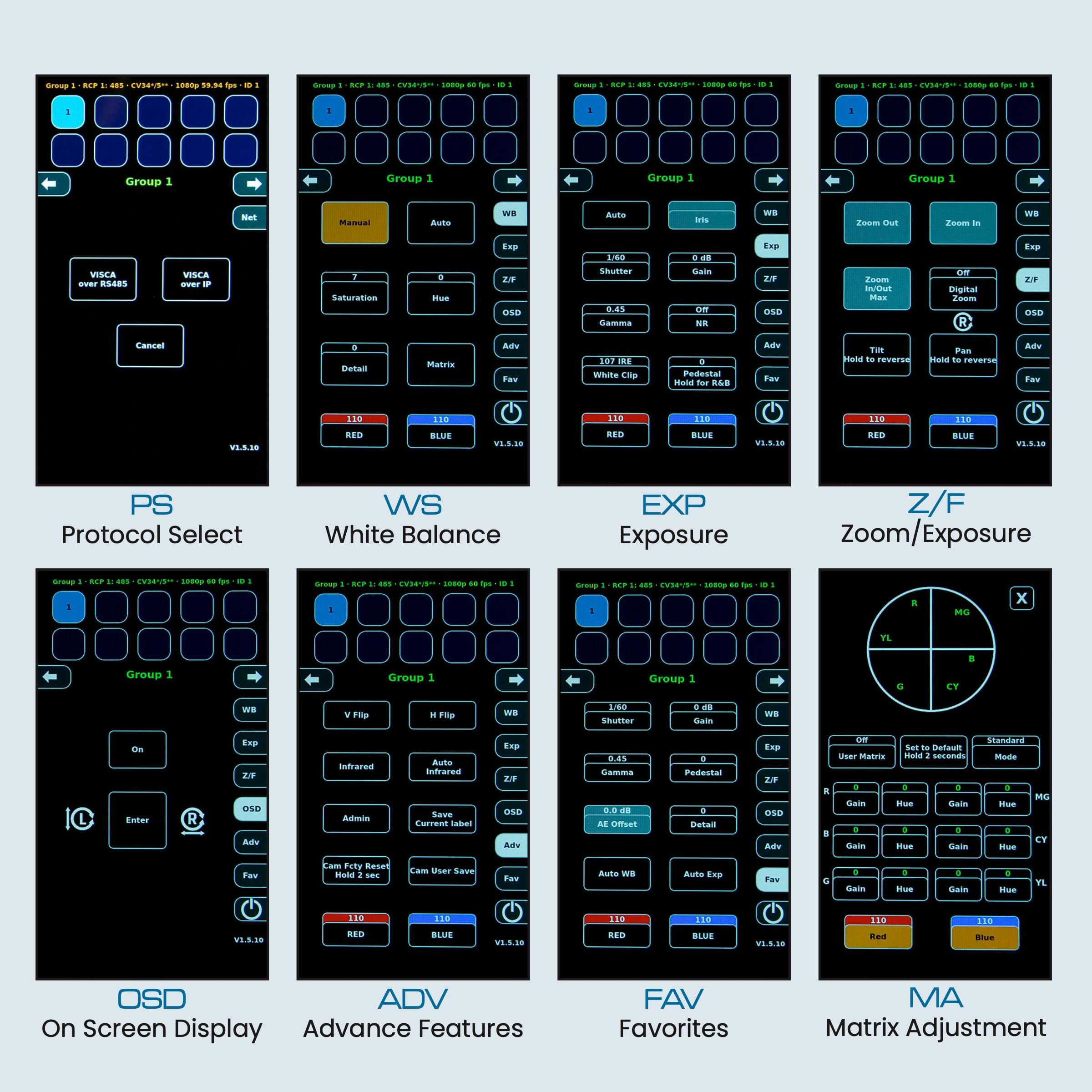

• Seven cameras are selectable from ALL screen menus with intuitive navigation layout
• All or individual camera adjustment without OSD Menu appearing on video stream
• Rugged machined aluminum enclosure provides durability
• Easy access USB port for field up-gradable firmware
• Low power consumption requires 12V power at less than 12W (AC or battery packs)
• Adjust Red/Blue, Pedestal (Black-levels), Brightness (AE Offset), Gain, Gamma, Iris, Shutter, Saturation, Hue, Optical/Digital Zoom, Pan-Tilt, Focus, and more.
• Red and Blue adjustment follows every screen menu with optional Favorites Menu to save important controls to specific events for easy access.
