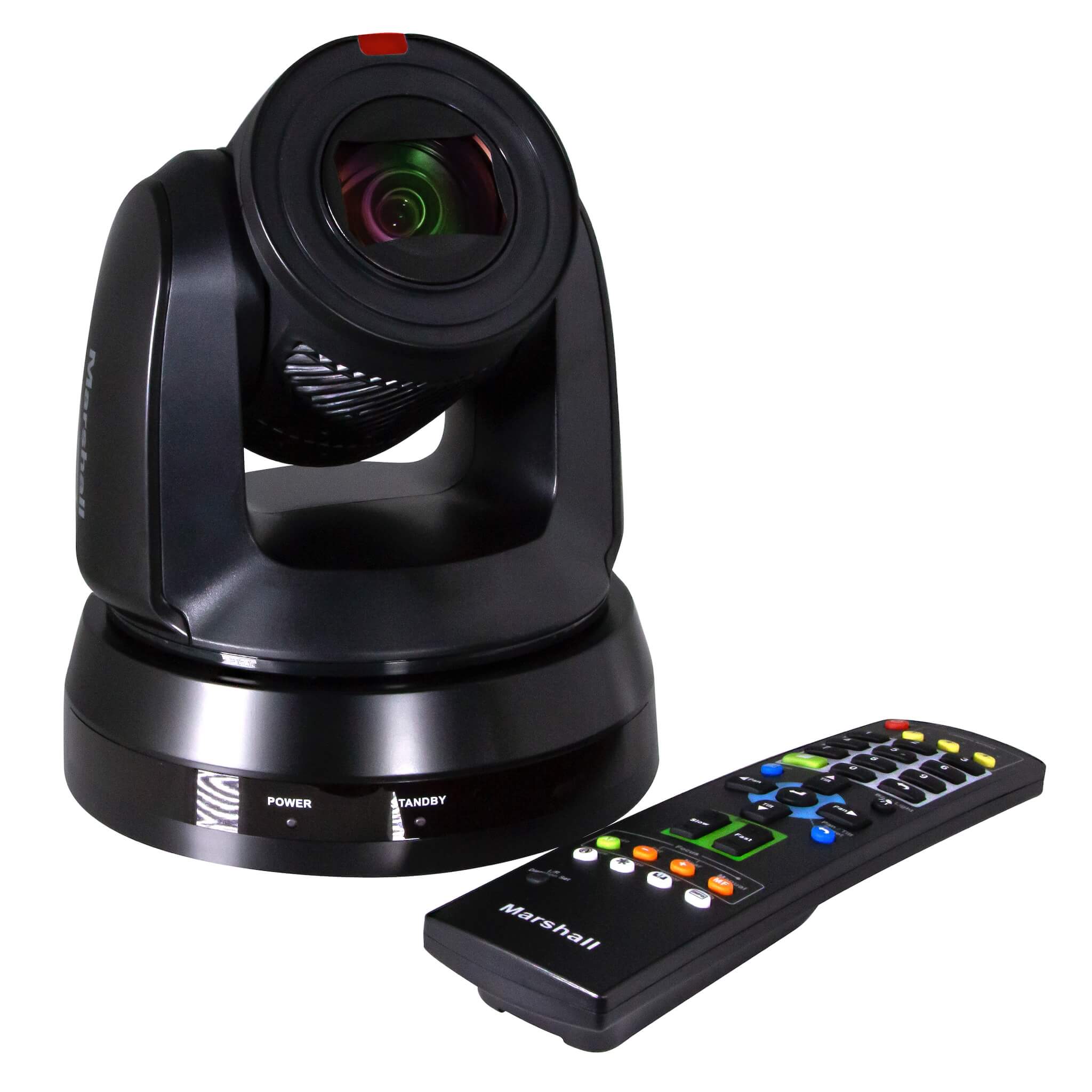

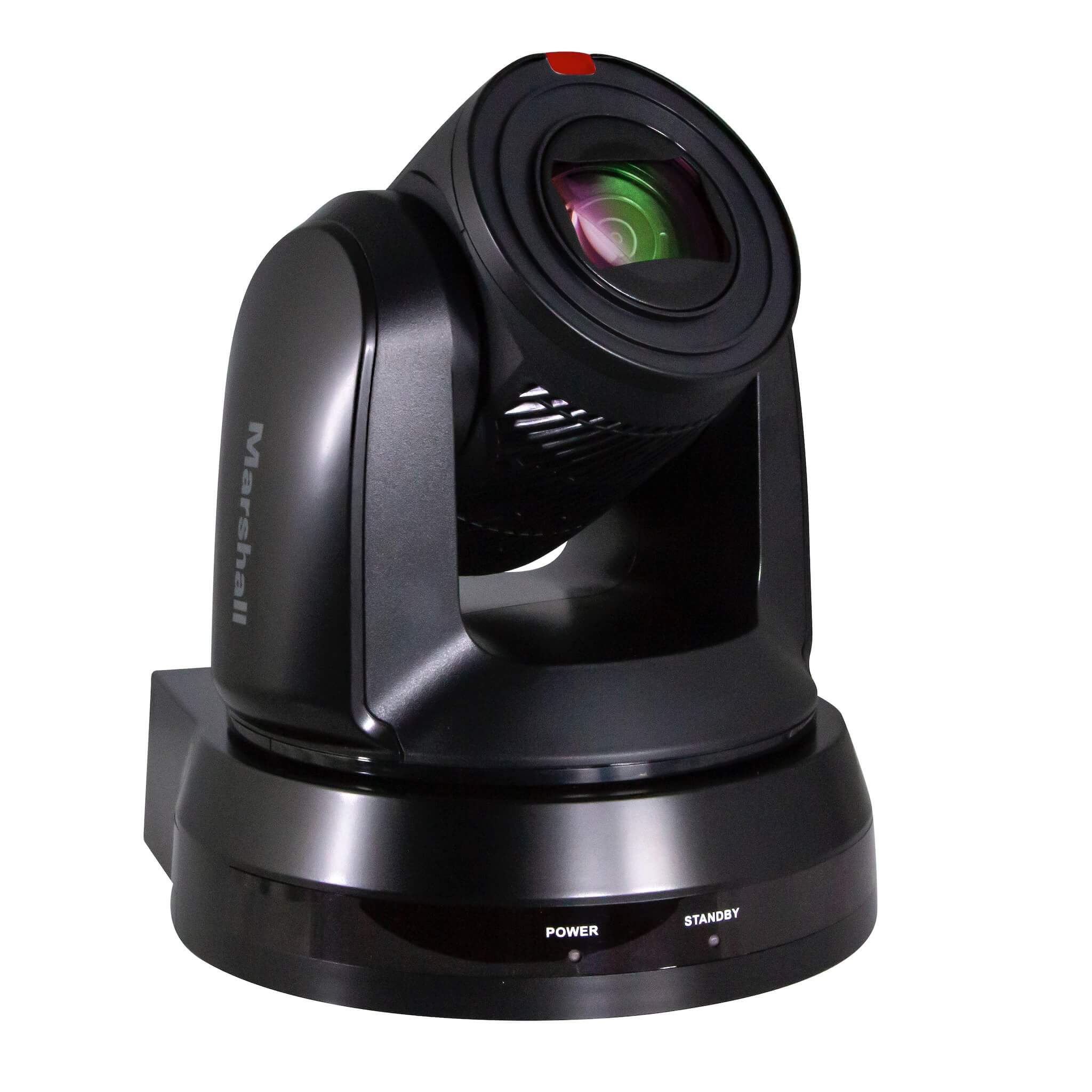

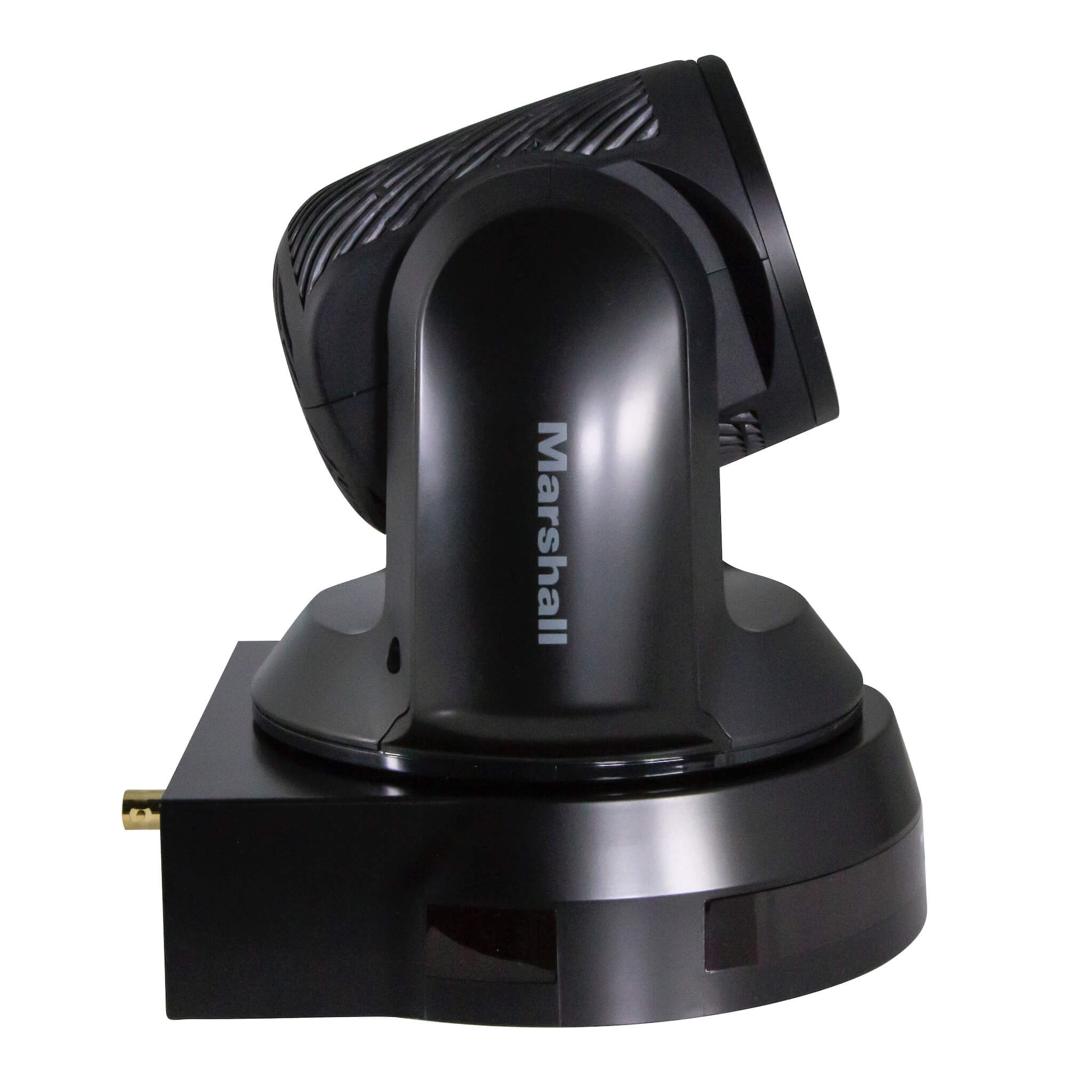

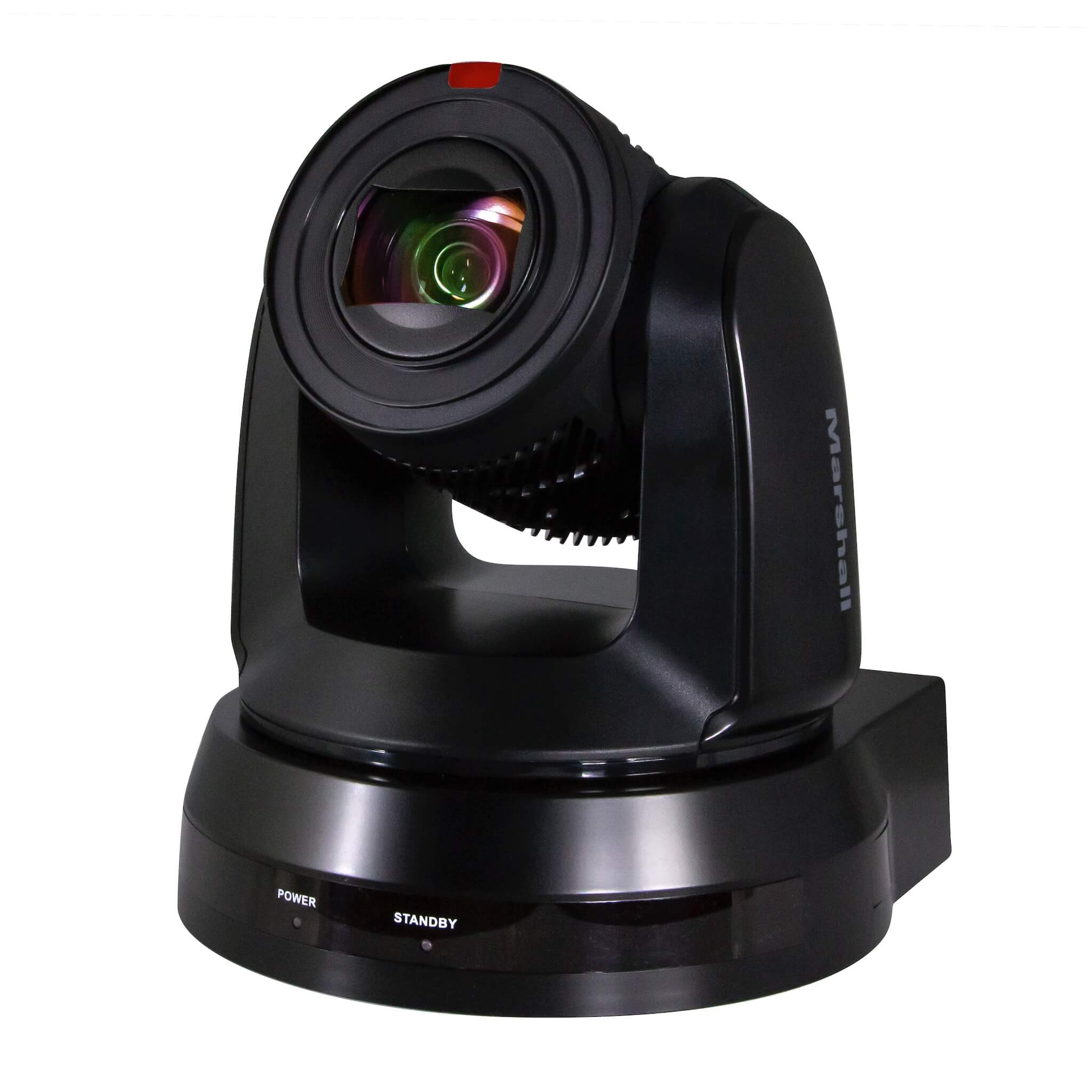

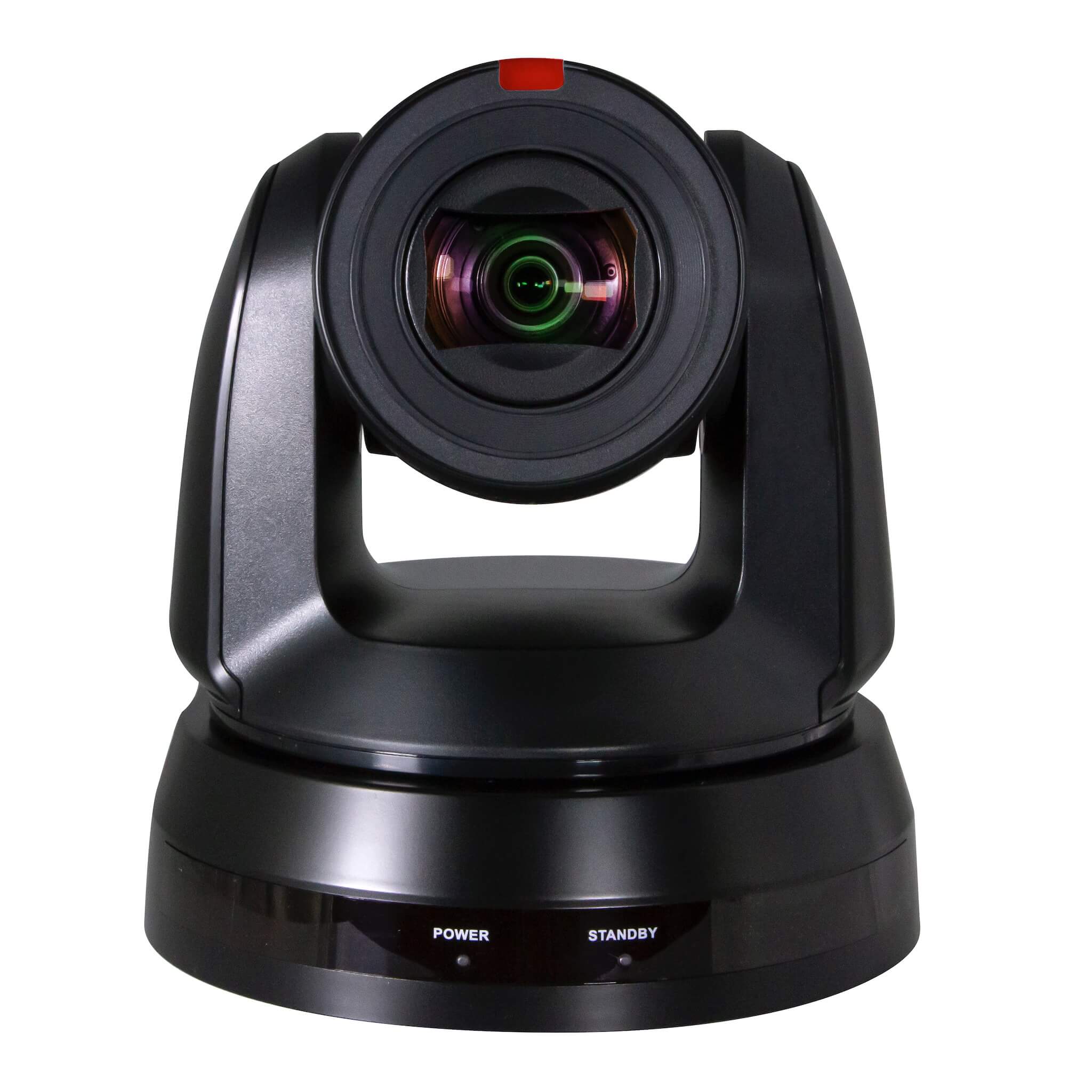

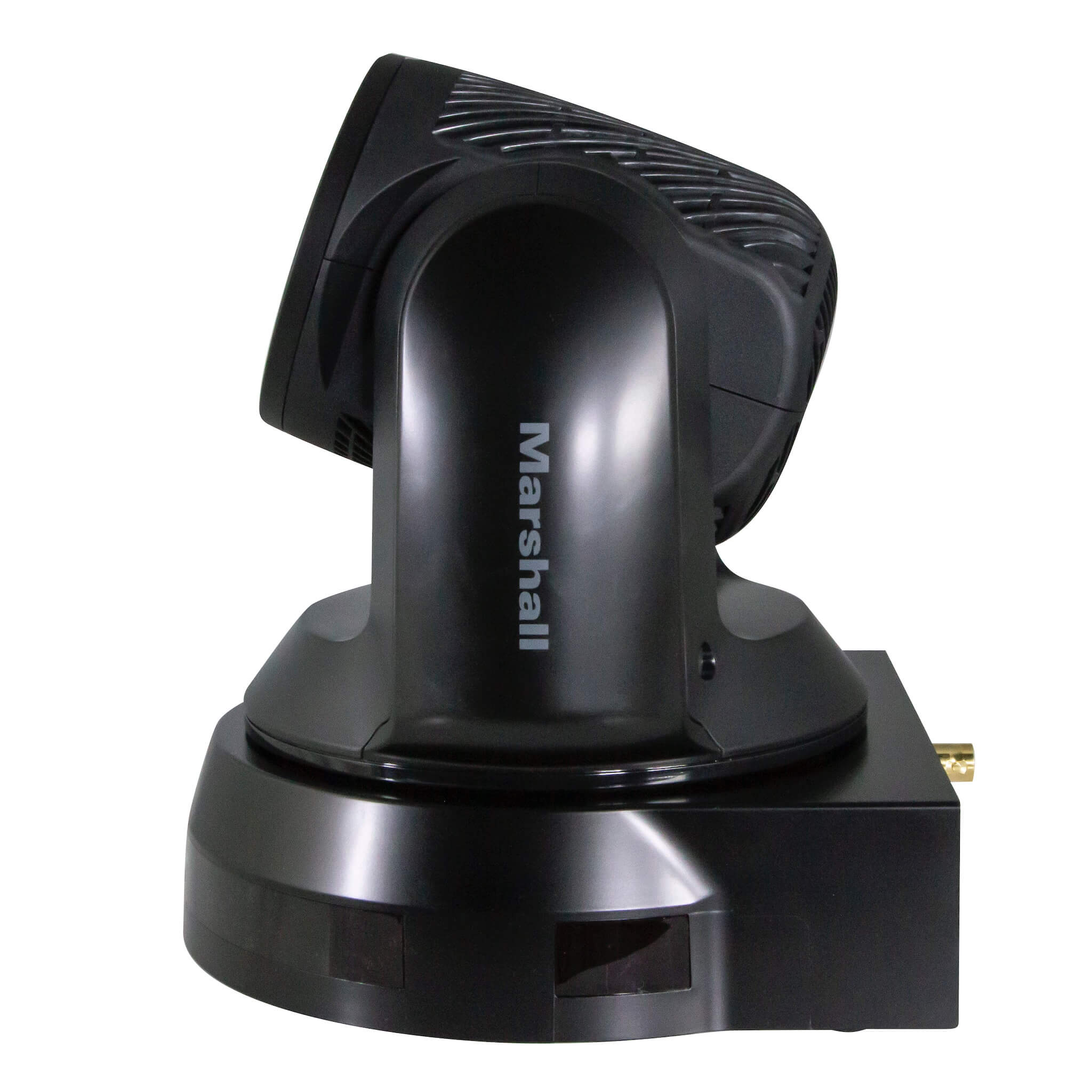

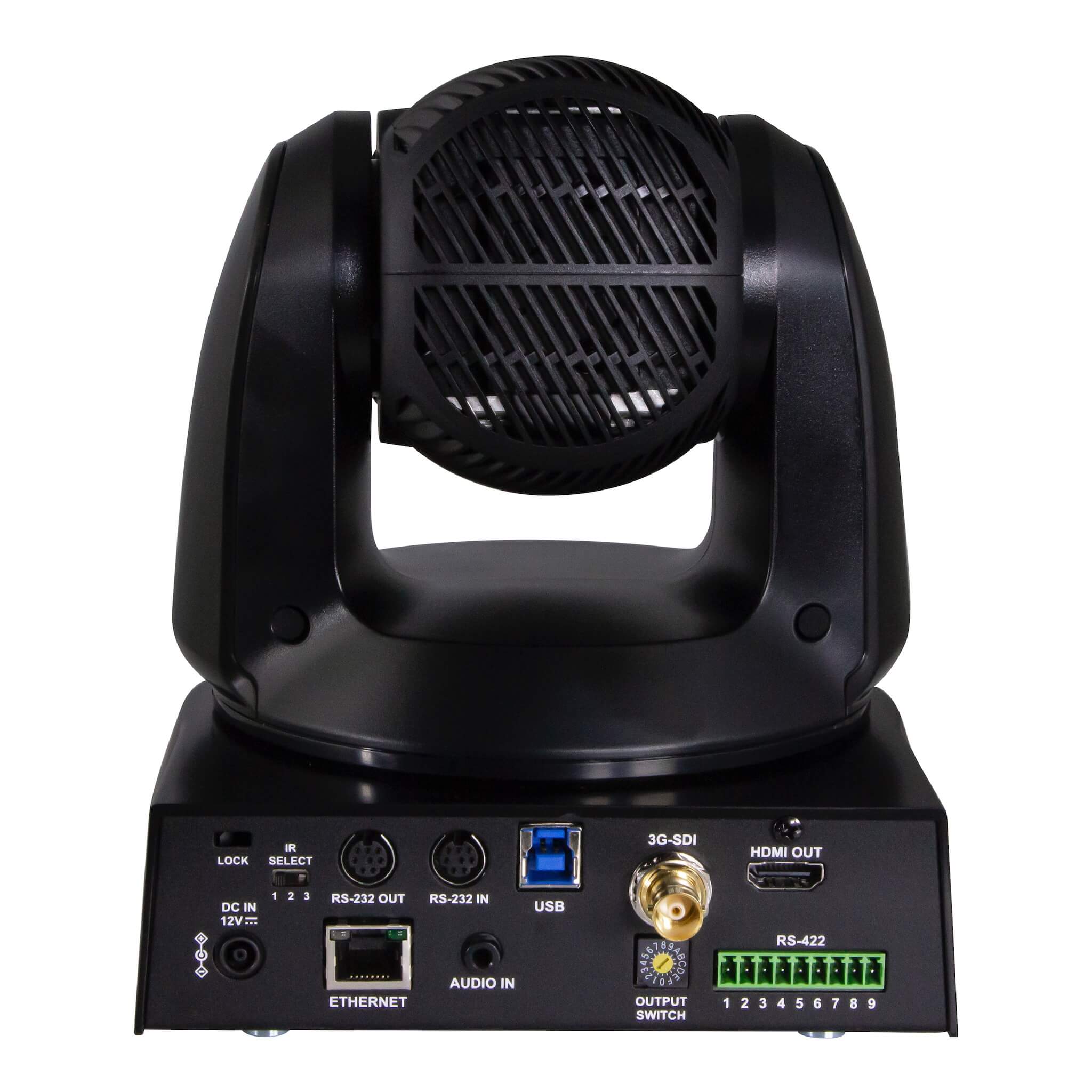

The Marshall CV630-BI PTZ Camera captures crisp UHD video combined with smooth camera positioning and 25x optical zoom for a versatile networked video solution.
Features
• 8 Megapixel 1/2.5" CMOS sensor
• 25x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest
• 3G-SDI, HDMI, and IP simultaneous outputs
• Simultaneous pan, tilt, and zoom
• H.265 (HEVC) and H.264 (triple-stream) networked outputs
• IP formats: SRT, UDP, DHCP, MPEG-TS, RTSP, RTP, RTMP, RTMPS, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
• 3840x2160p, 1920x1080p, and 1280x720p
• Stereo audio input (mic or line level) embedding
• PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
• 340° pan, 120° tilt, and 25X zoom range
• Front tally light
• Free-D protocol support and CGI protocol commands
High Performance Video Output
At its core, the CV630-BI and CV630-WI both pack a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.
Versatile Camera Positioning
The CV630-BI and CV630-WI are equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 25X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.
Simultaneous Networked and Streaming Outputs
Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.
Flexible Control Options
The CV630-BI and CV630-WI offer easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms. Additionally, the CV630-BI and CV630-WI are compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.
