The Marshall CV504 POV camera is built around a next generation Sony sensor with over 2 million pixels and larger pixel size. The micro CV504 delivers exceptional 10 bit 4:2:2 video performance (BT.709) from a durable aluminum alloy body through 3GSDI (BNC) output and flexible interchangeable lenses. The new Sony sensors offer rich color accurate video with improved low light sensitivity and refined remote adjust and match capability.
Features
• 2.2 Megapixel Sony sensor with square pixel array and larger pixels
• Interchangeable M12 lens mount; comes with a 4.0mm - 85° Horizontal AOV

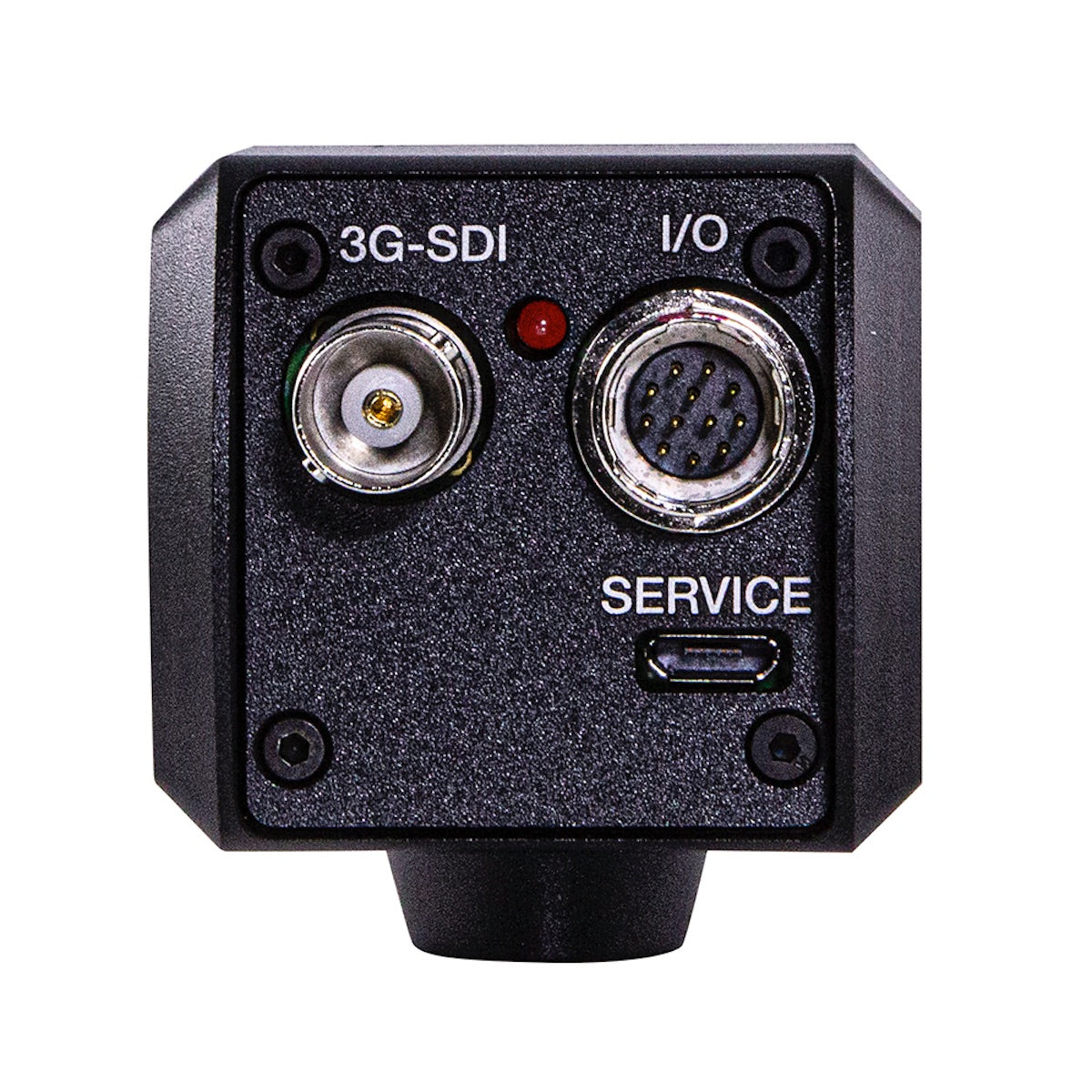

• 3GSDI (BNC) 10bit, 4:2:2, BT.709 with remote adjust and match capability
• 1920x1080p, 1920x1080i, and 1280x720p resolutions selectable
• Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
• Control via CV-RCP-V2, Camera Control Software, and/or 3rd party sources
• Micro-USB port for field upgradeable firmware via PC
• Locking Hirose cable (included) for OSD menu joystick, RS485, AUDIO and power
• Weight: 0.3lbs (0.136kg); approx. dims: 40mm x 44mm x 55mm
• Power: 12V+/-10% drawing 2.64W (max 6W)
