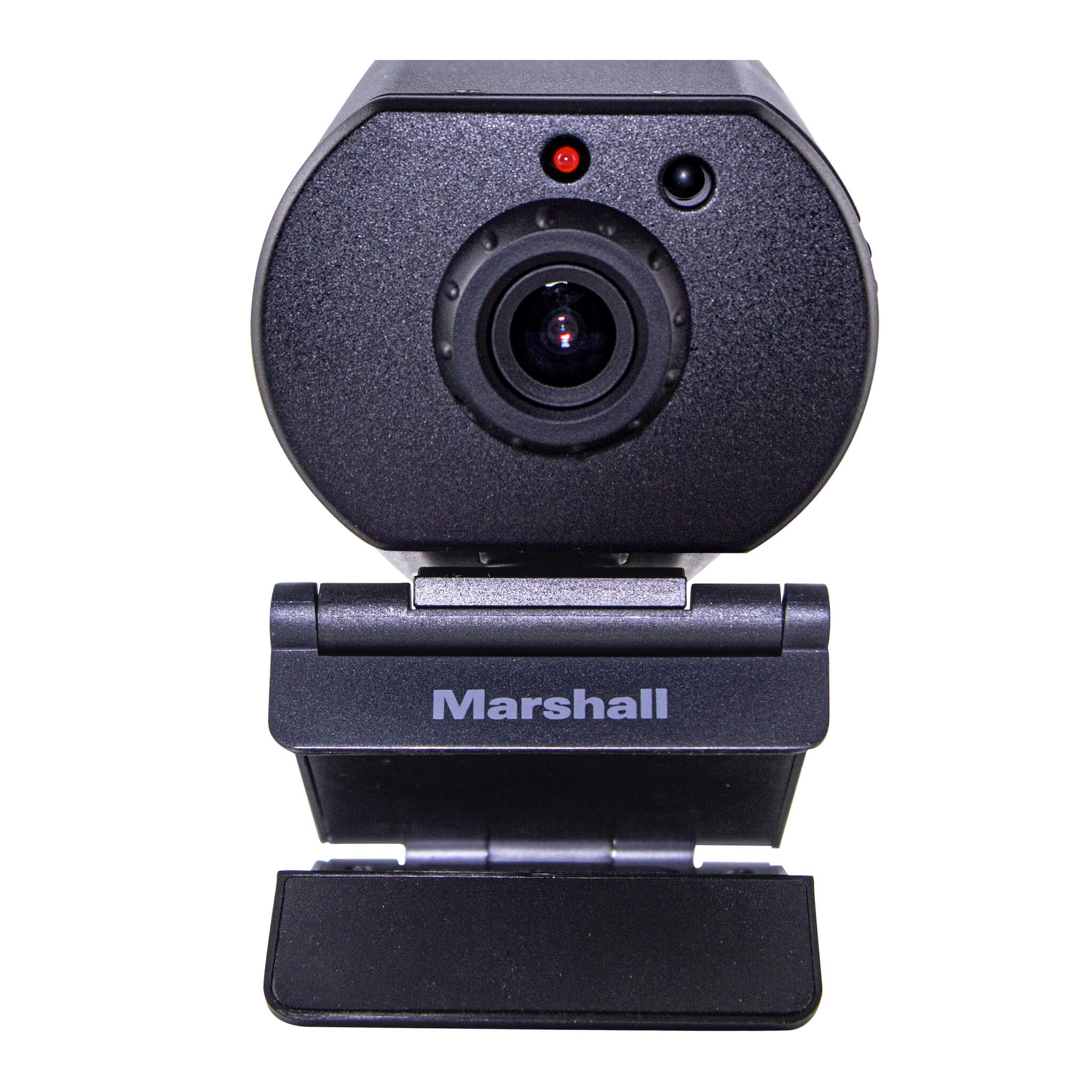

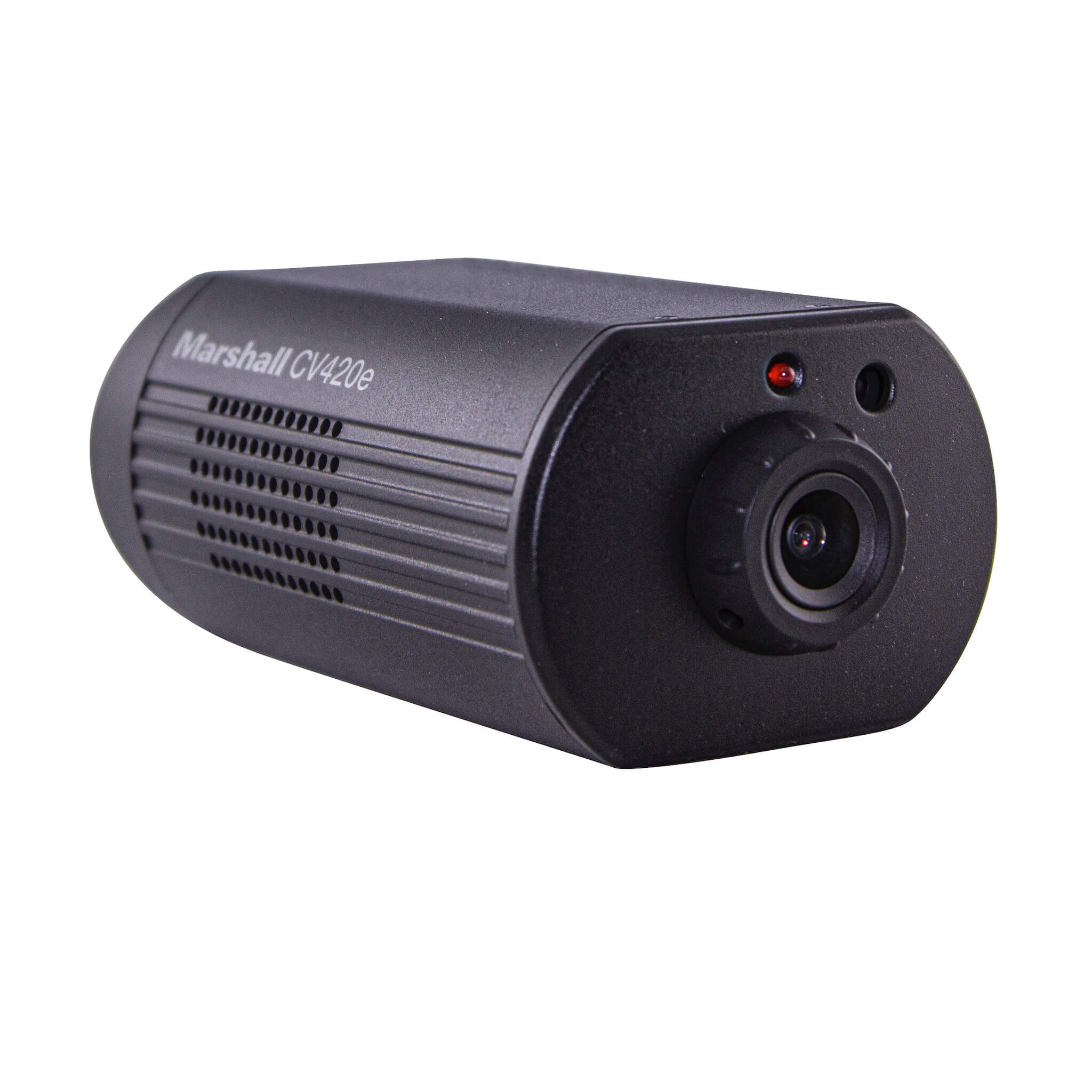

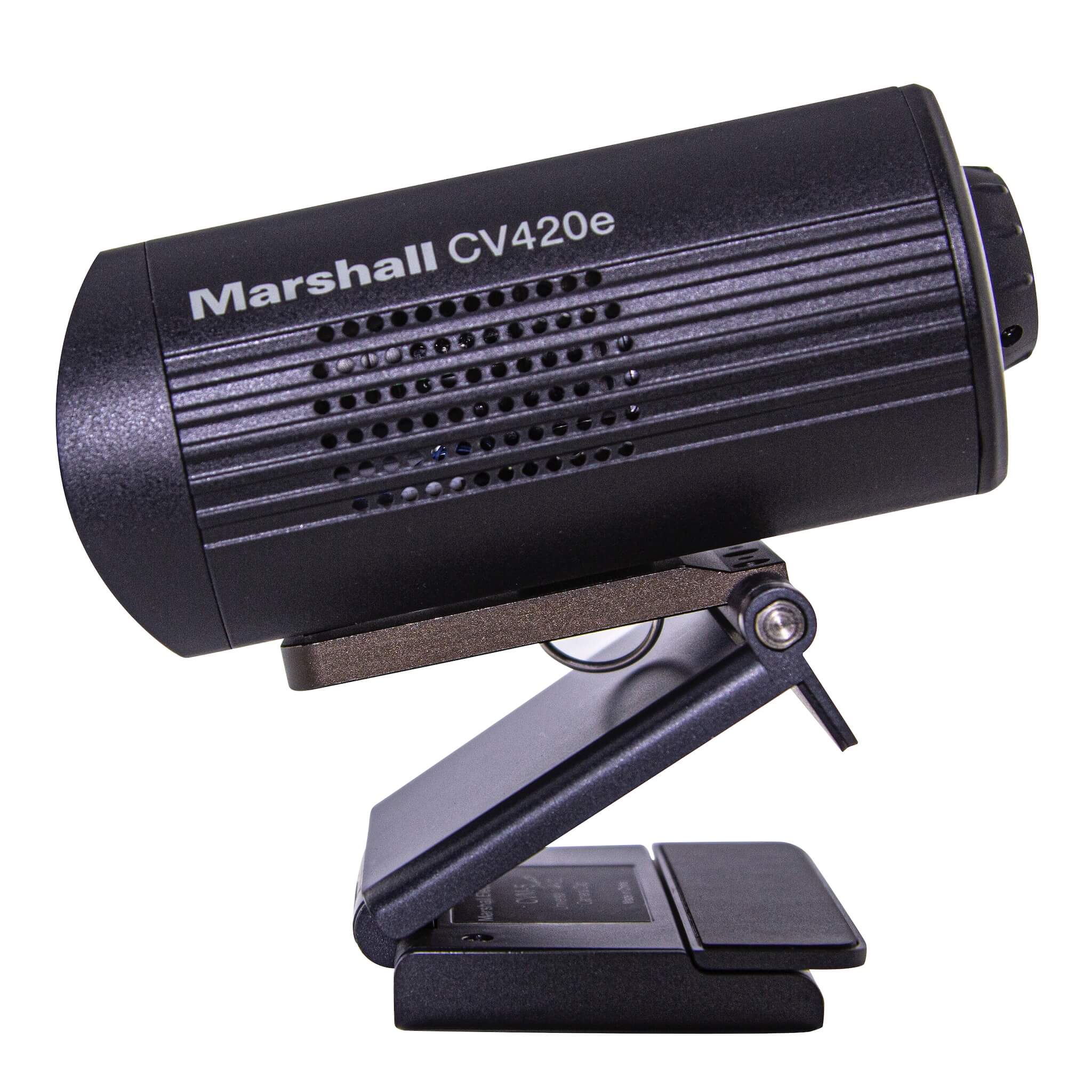

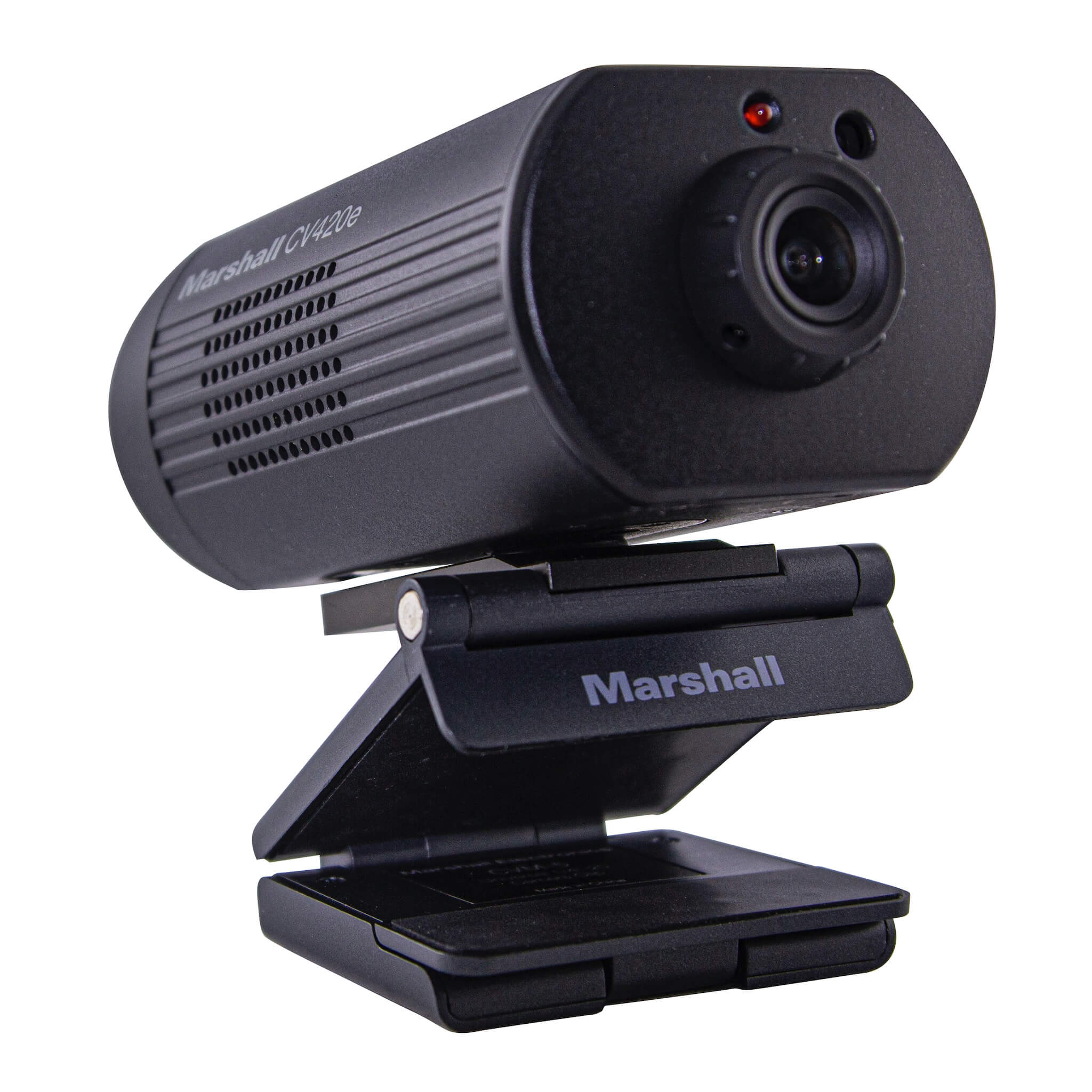

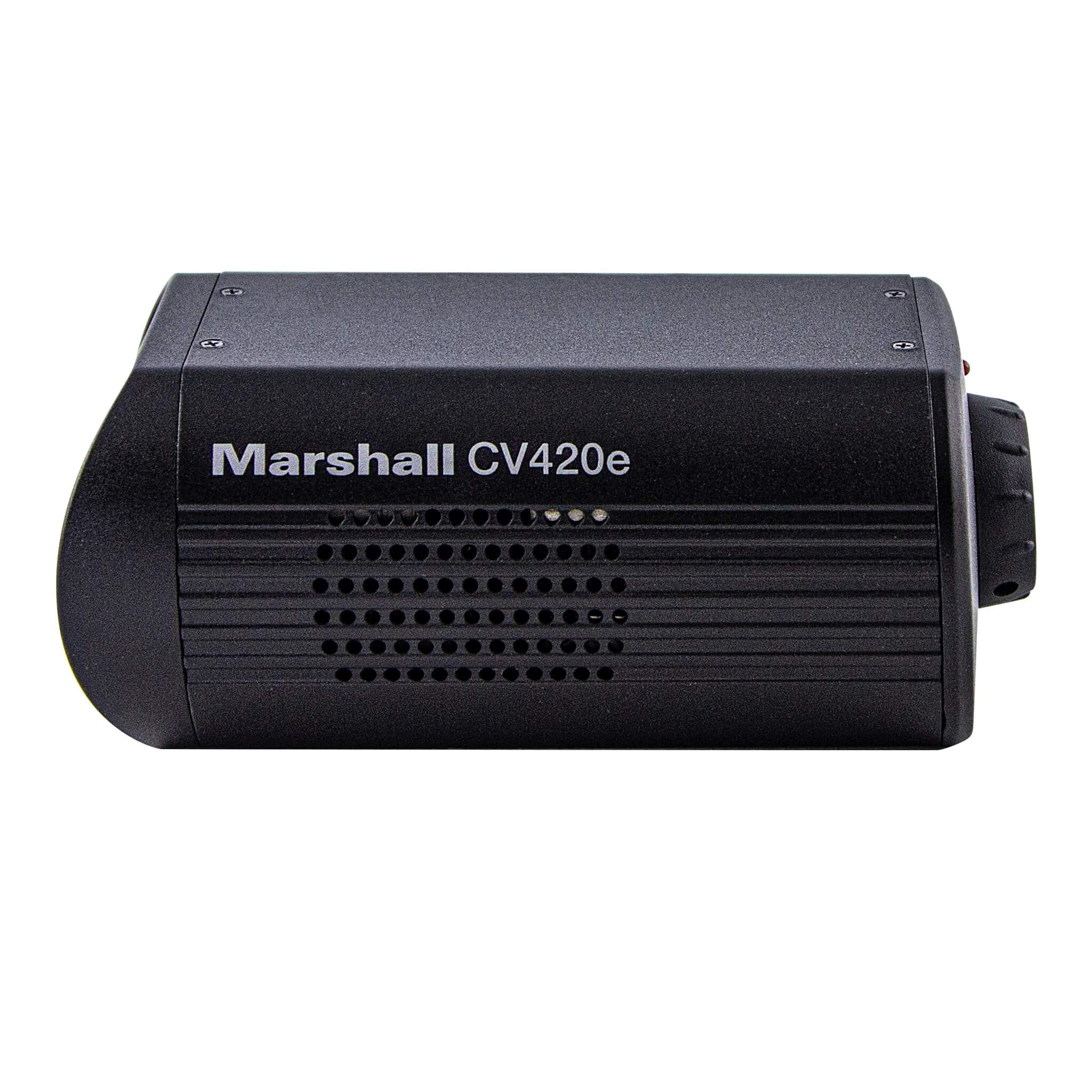

The Marshall CV420e is a compact and durable streaming camera with a large 9.2 megapixel 1/1.8" sensor size and ultra-wide 100 degree angle-of-view lens with zero curvature. CV420e comes with a CVM-5 monitor mount, however, can be installed on any 1/4"-20 camera mount including tripods, fixed mounts, and many others. Crystal clear UHD and HD images through IP (HEVC) or USB outputs and HDMI for traditional workflows.
Features
• Sony 1/1.8" 4K sensor
• 9.2 million pixels with large pixel size

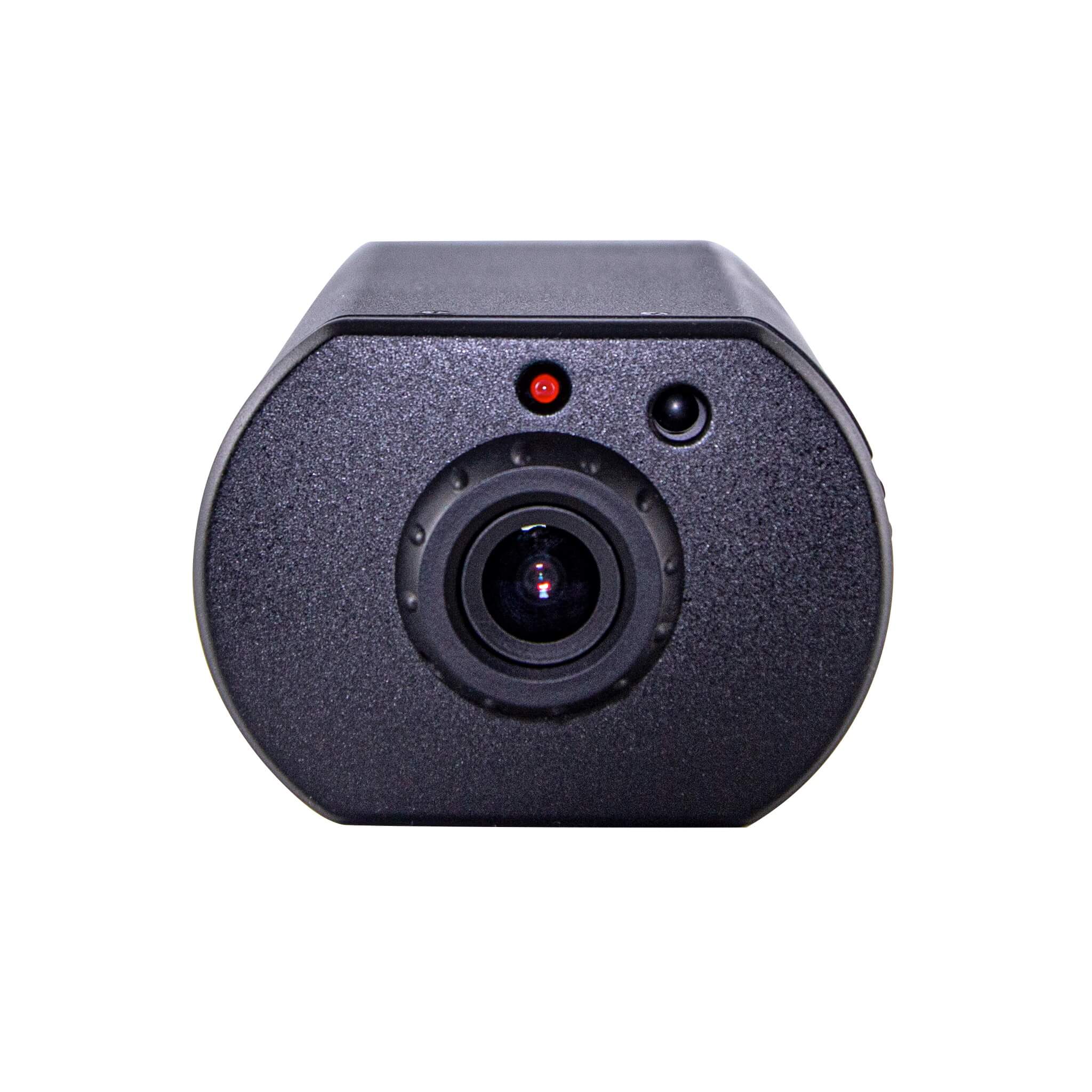

• 4.5mm lens with 100° H.AOV (no curvature) + 12x clear digital zoom
• ePTZ maneuverable with HD images within UHD sensor for FOV adjustment

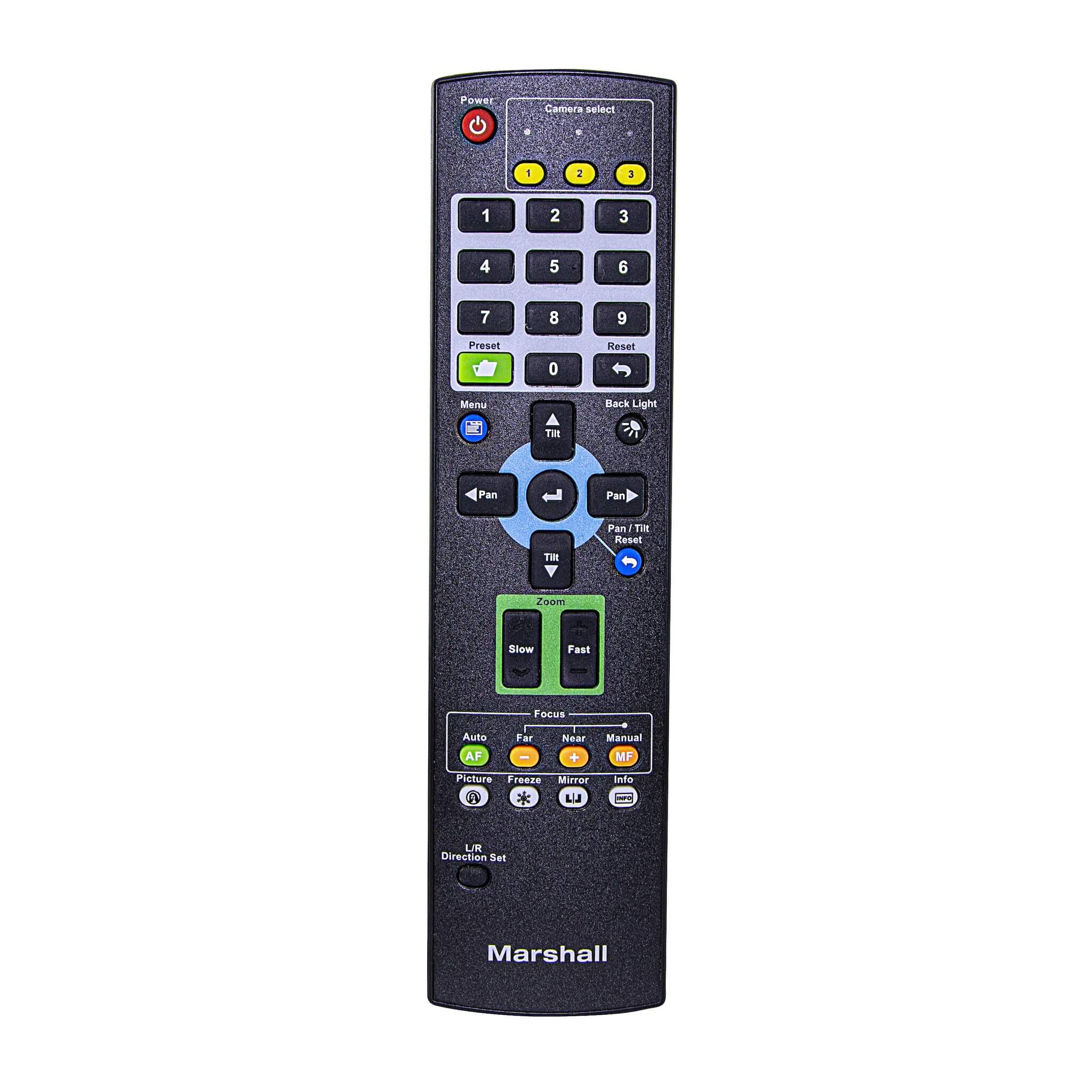

• Control options: IR remote included, CGI commands, Visca over IP, UVC and ONVIF
• Video output up to 3840x2160p at 60fps, 1080p, 1080i and 720p

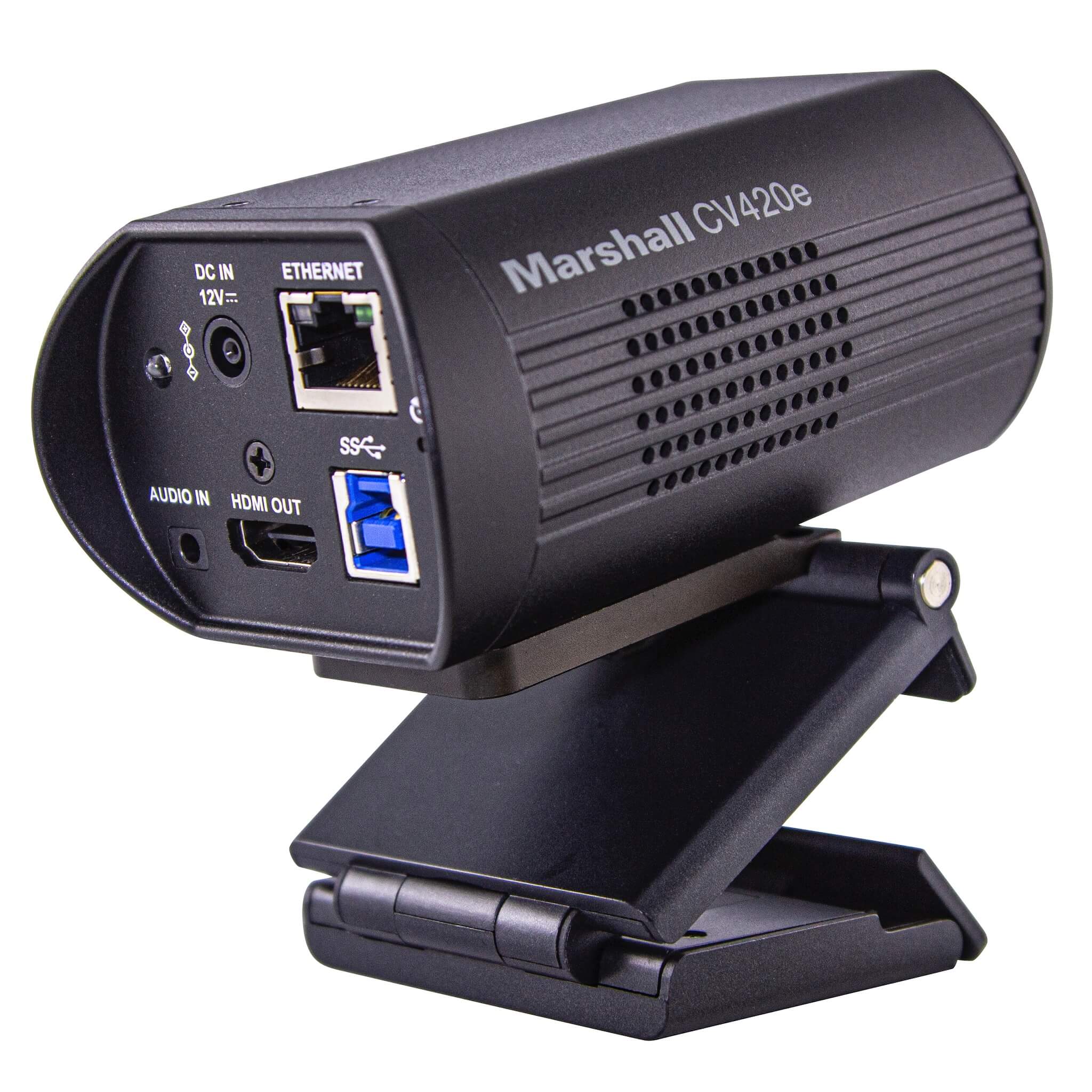

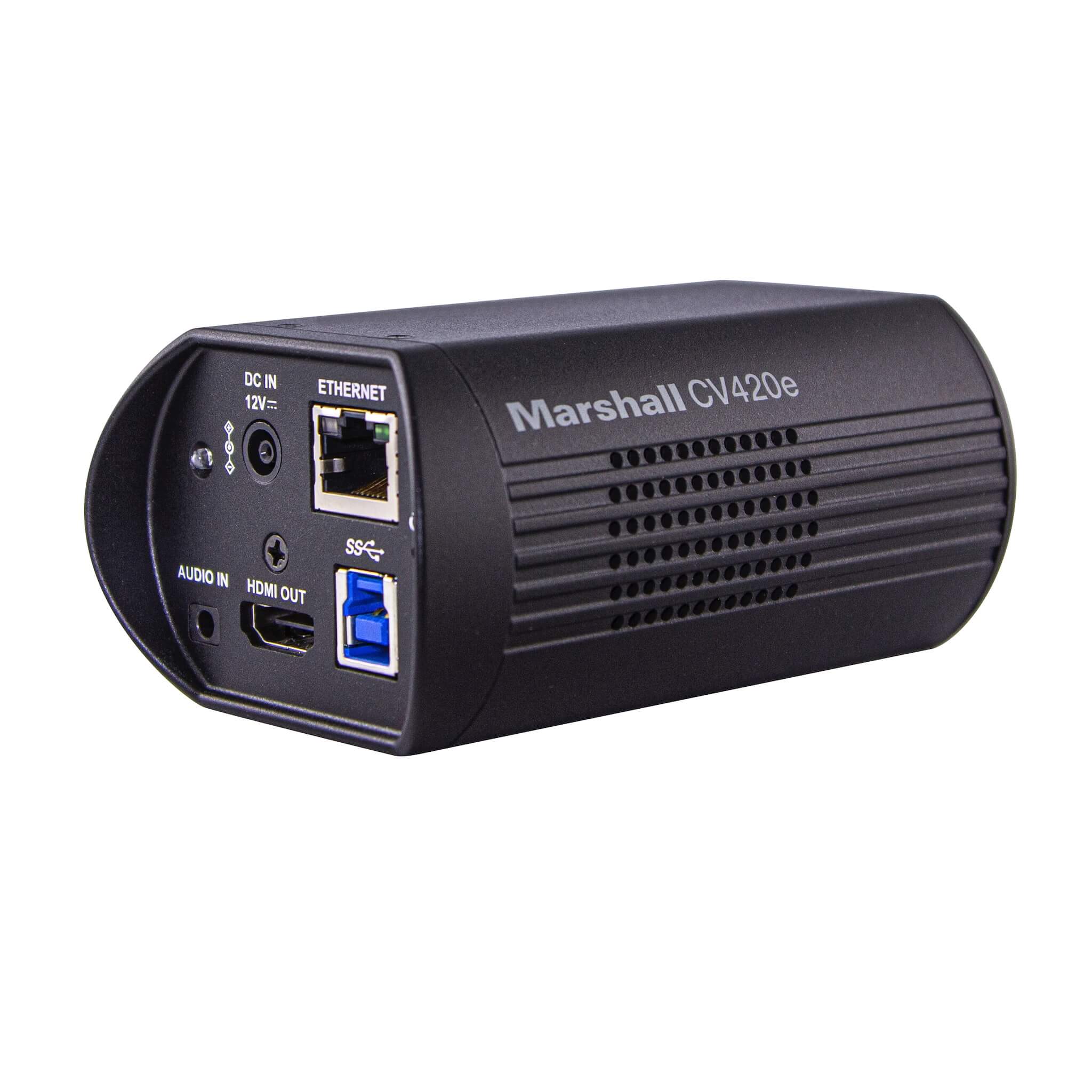

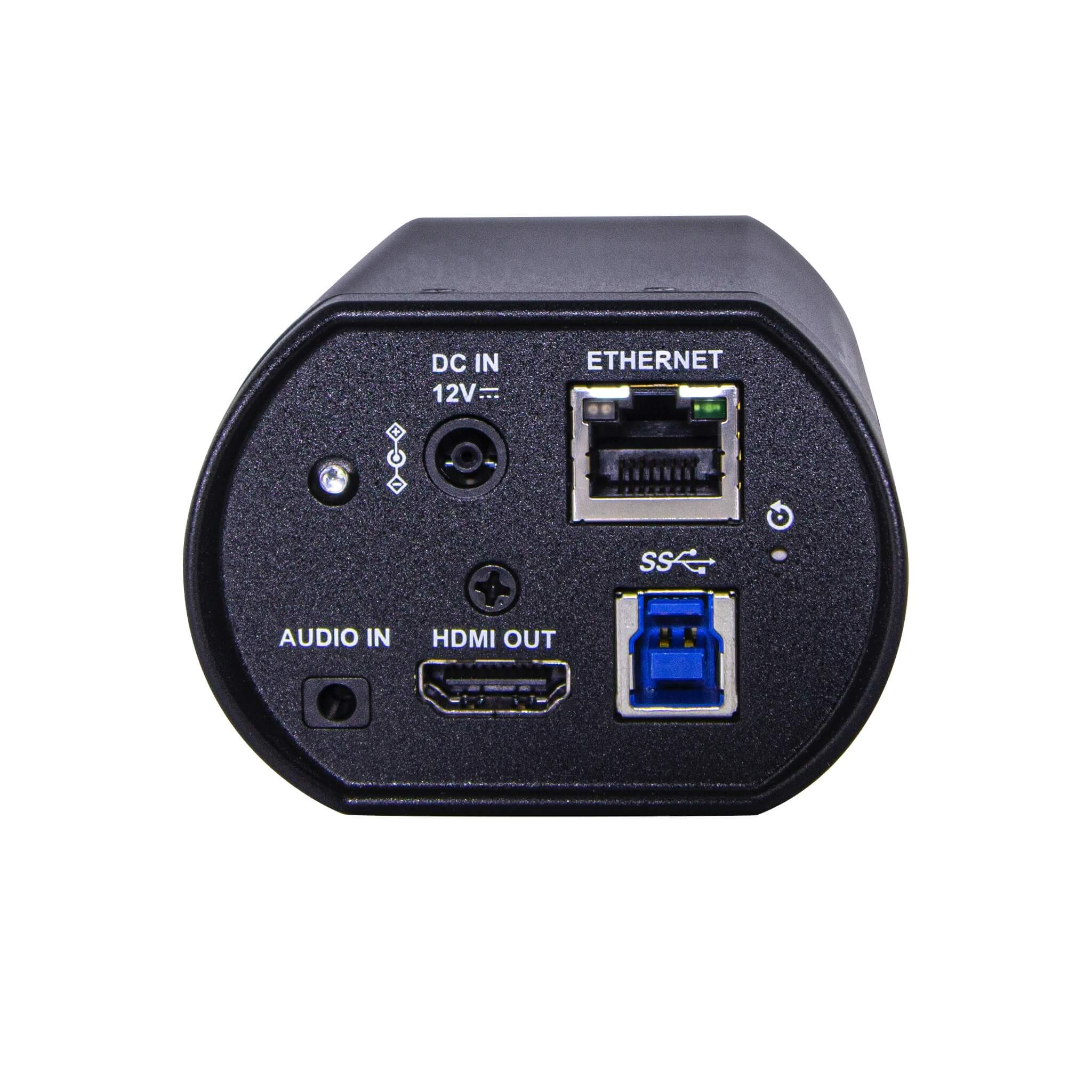

• Video output options of USB + HDMI or IP + HDMI
• Multiple IP simultaneous streams (HEVC + 2x H.264)
• Low Light sensitivity (0.05 Lux) and Wide Dynamic Range
• 3.5mm Microphone and Line Level audio input for IP and HDMI streams
• Environmental: operating 0°C ~ 40°C, storage -20°C ~ 60°C
• Power Consumption: 11W via PoE, and 10W via DC (12V)
• Minimum Object Distance (M.O.D.) – 30cm
