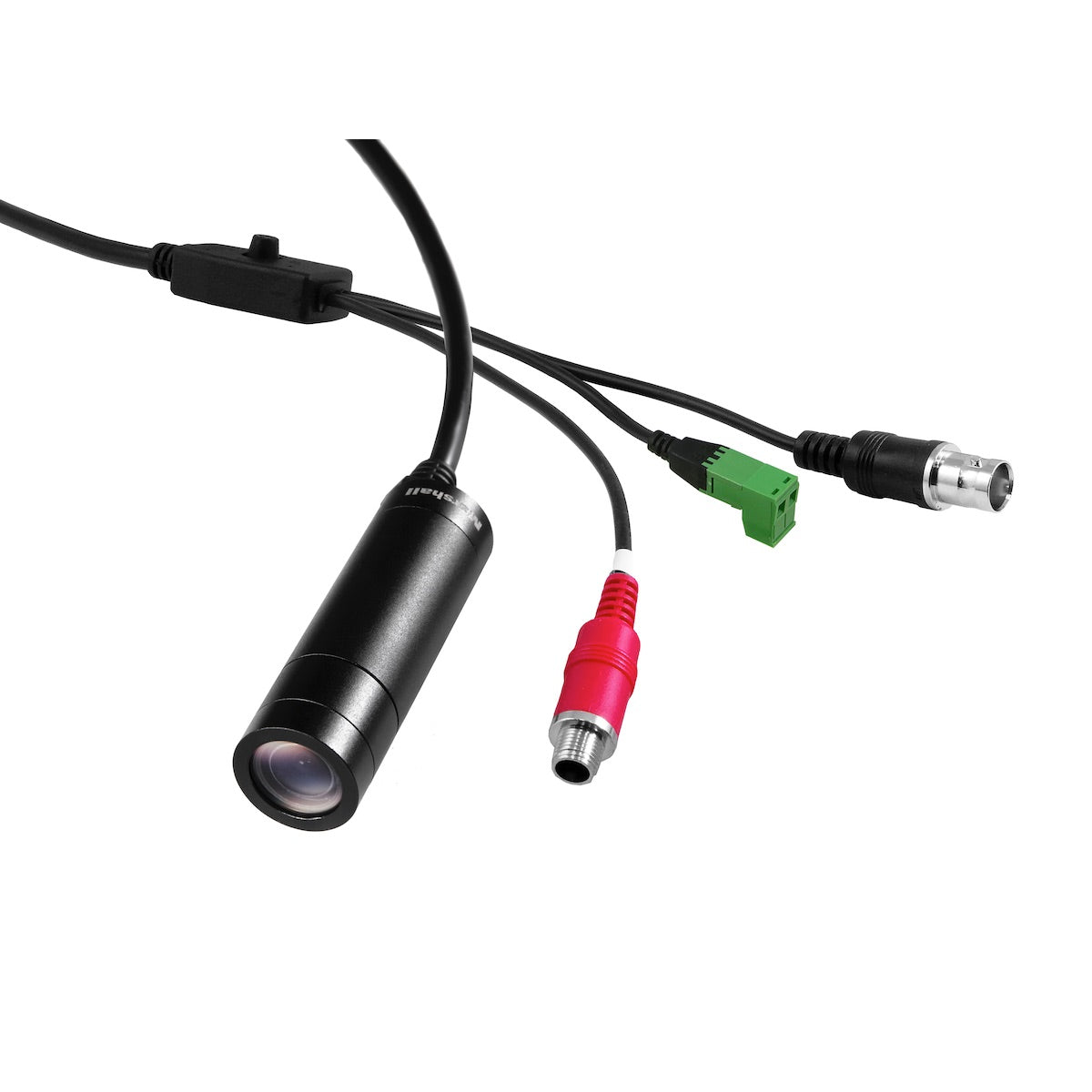

The Marshall CV228 weatherproof lipstick camera captures crisp, color accurate HD video from a next generation Sony sensor, wide 4.0mm (85°) lens, and efficient precision processors. The feature rich CV228 is built into a durable all-weather cylinder-shaped body only 19.5mm in diameter and 3-meter breakout cable including 3GSDI, remote RS485 and 12V power. CV228 is built for rugged outdoor or dirty environments where dust, dirt, water, mud, and snow become a factor.
Features
• Full-sized 3G/HDSDI (BNC) video output
• 2.5 Megapixel (1/2.8") sensor (4:2:2 color)
• Interchangeable 4.0mm lens with 85° Horizontal AOV

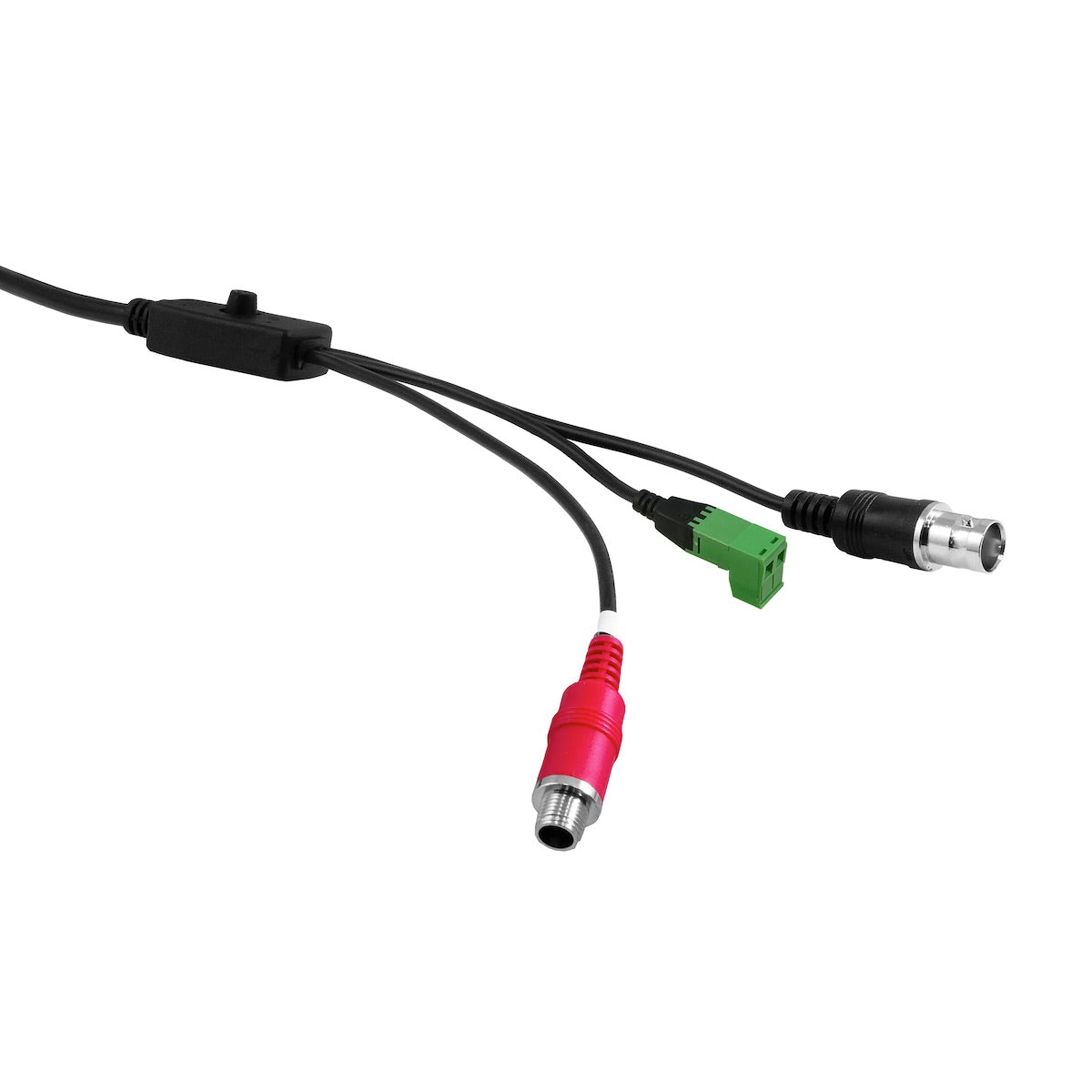

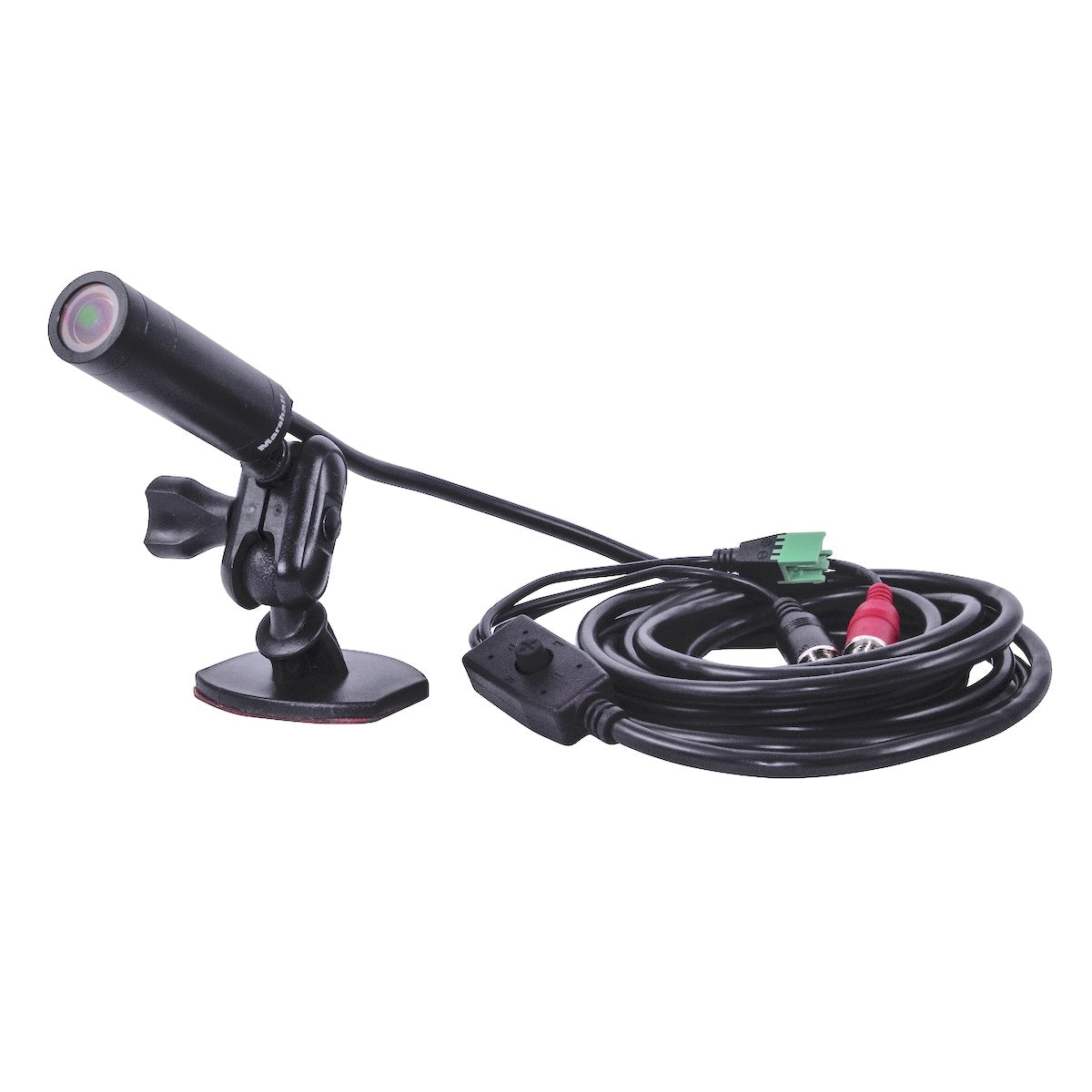

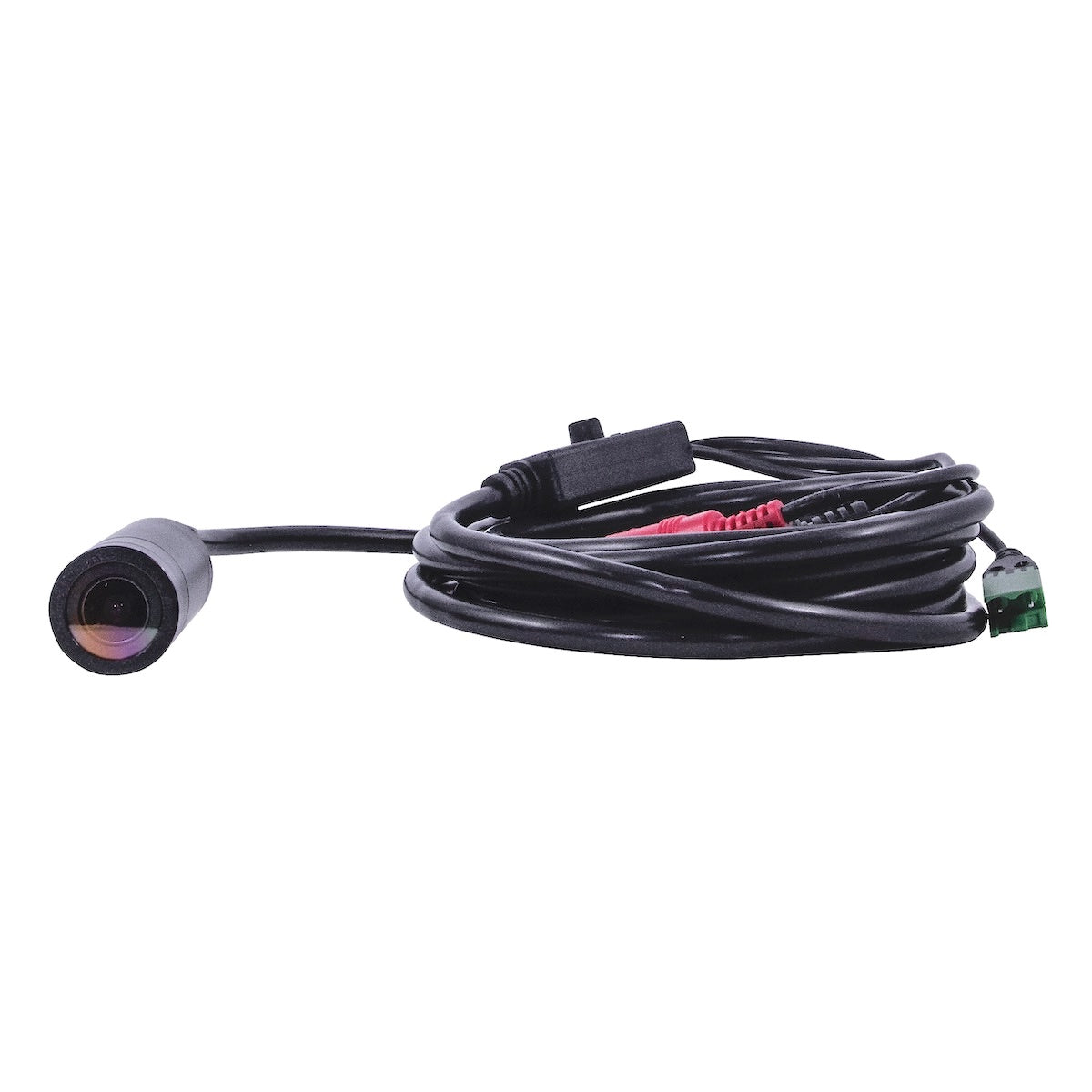

• 10-foot (3 meter) breakout cable with BNC (3GSDI), RS485, and locking 12V power
• Interchangeable M12 lens with IP67 cap includes stock 4mm lens (85°H. AOV)
• IP67-rated weatherproof housing; submerge in water up to 10 ft. for several hours
• Full-HD resolutions: 1920x1080p, 1920x1080i and 1280x720p
• Frame rates: 60, 59.94, 50, 30, 29.97, 25 fps
• Remote adjustable through RS485 (Visca) or OSD menu joystick
• CV-RCP-V2 Touchscreen RCP compatible and free Camera Control Software option
• Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more
