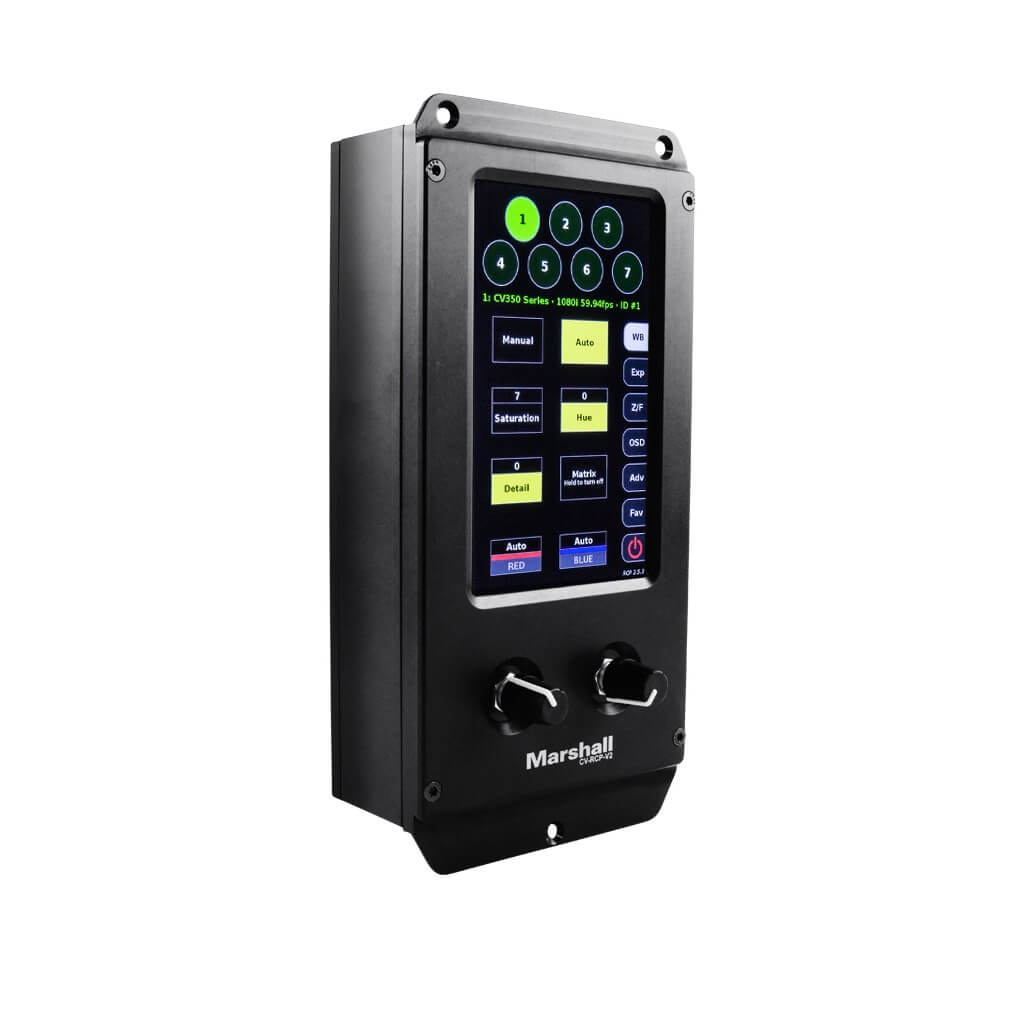

Marshall has teamed up with a five-time Sports Emmy award winner to develop a standalone remote RCP solution to adjust, paint, and match Marshall broadcast cameras. The new 5-inch Touchscreen RCP Camera Control unit allows for remote operation of up to seven broadcast cameras at up to 300m (1,000 foot) distance over common XLR cable, and it features a new intuitive touchscreen control with user-friendly, fine-tune adjustment dials for quick changes on the fly.

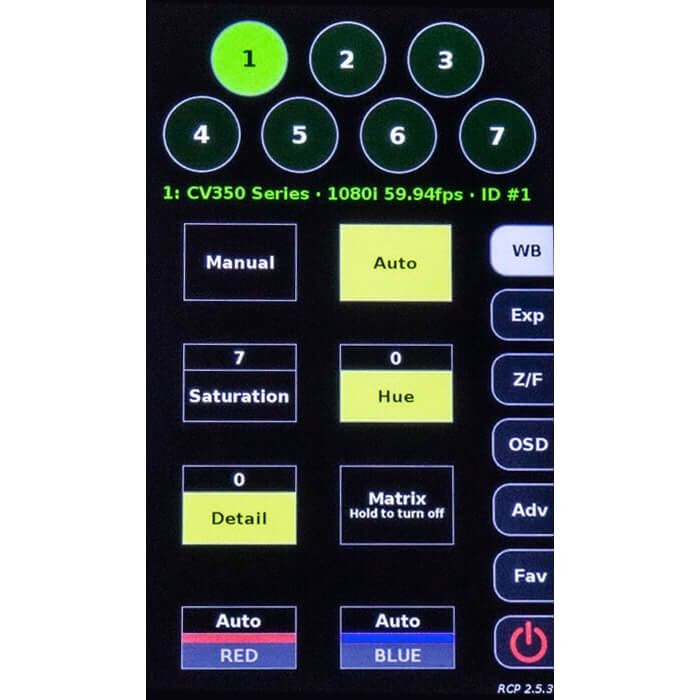

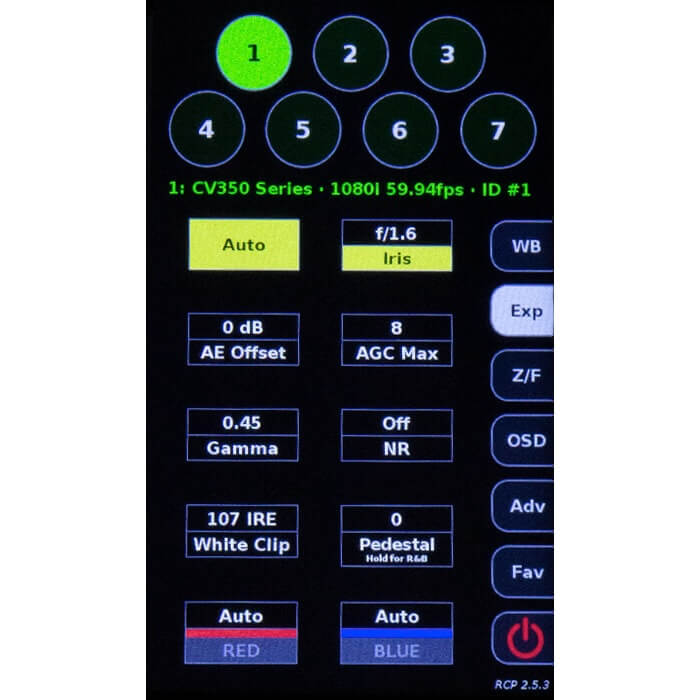

The touchscreen interface offers self-help dialogs, favorites settings, save features, and intelligent menu and sub-menu layouts. The fine-tune finger dials enable precise adjustments for white balance, red/blue gain, gamma, black level, brightness, exposure, iris, shutter, resolution, frame-rate, and more, and they can be adjusted simultaneously or one at a time. The CV-RCP-V2 comes pre-programmed with control protocols for all Marshall Cameras, including Marshall's POV cameras, varifocal cameras, zoom cameras, PTZ cameras, as well as other popular non-Marshall branded cameras on the market.
Features
• Large 5-inch TFT LCD Touchscreen (800x480) with fine-tune adjustment knobs
• 7 cameras are select-able from ALL screen menus with intuitive navigation layout

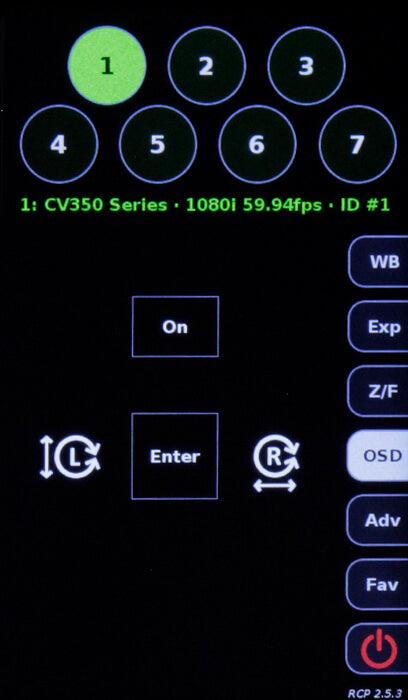

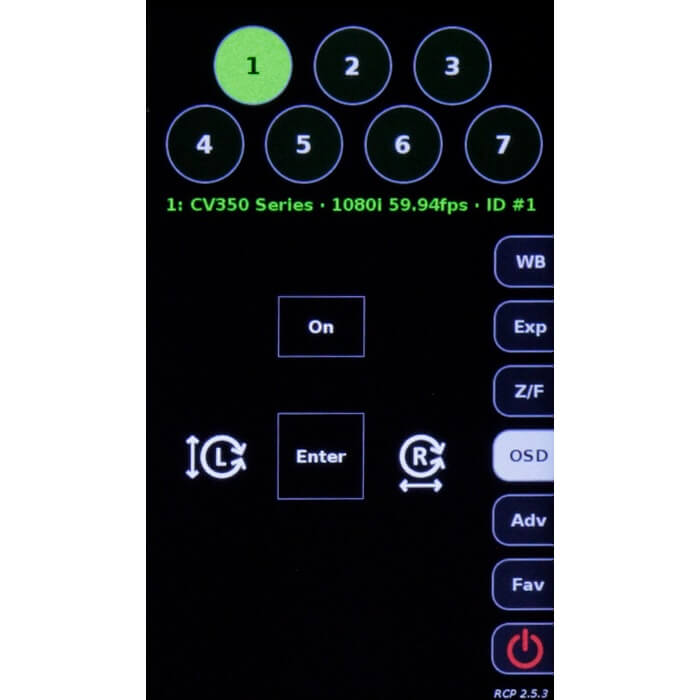

• Adjustments made on camera without OSD Menu appearing on video stream

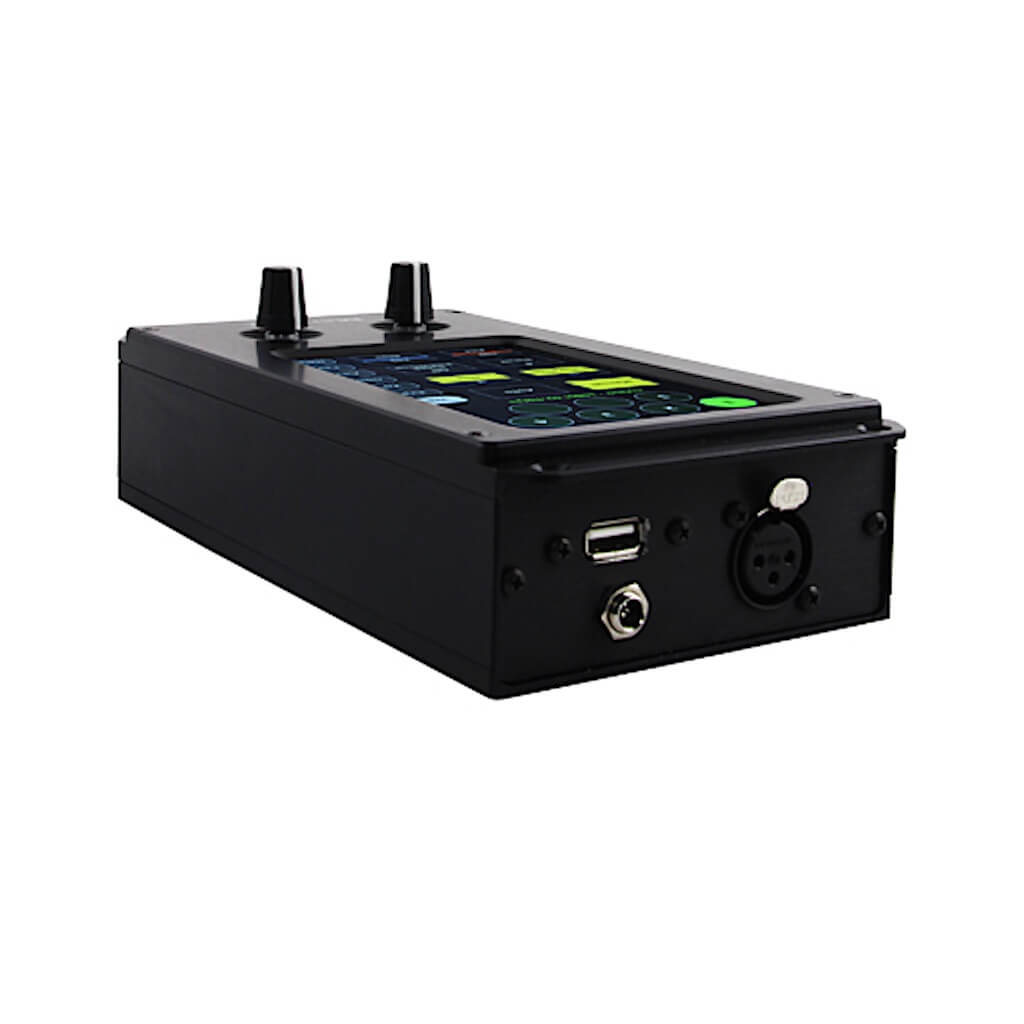

• 3-pin XLR cable connection allows for cable-runs up to 300 meters (1,000 ft)
• Easily convert to fiber using common media converters for much longer distances
• Rugged machined aluminum enclosure provides durability
• Easy access USB port for field up-gradable firmware and memory

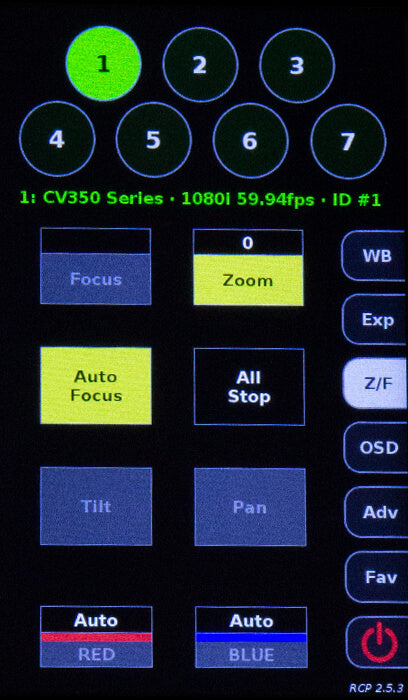

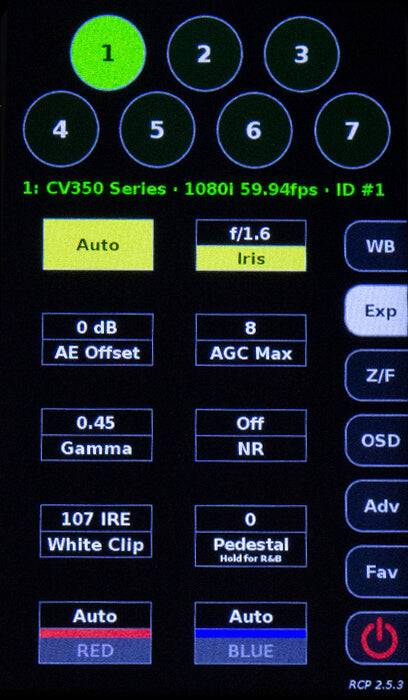

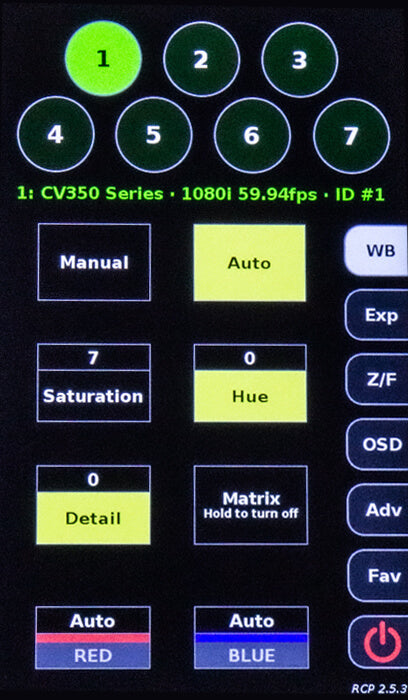

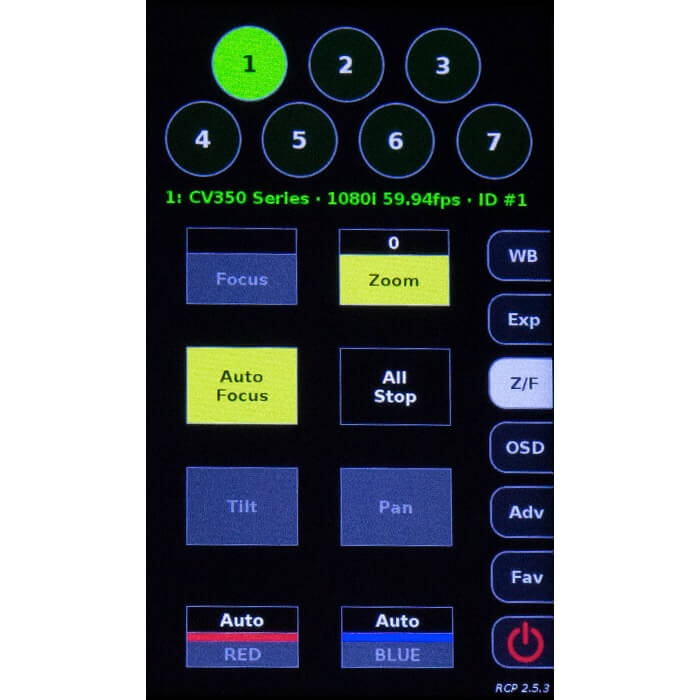

• Adjust Red/Blue, Pedestal (Black-levels), Brightness (AE Offset), Gain, Gamma, Iris, Shutter, Saturation, Hue, Optical/Digital Zoom, Pan-Tilt, Focus, and more.

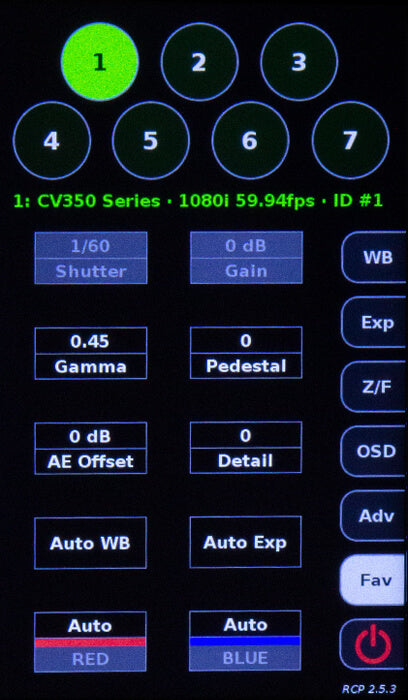

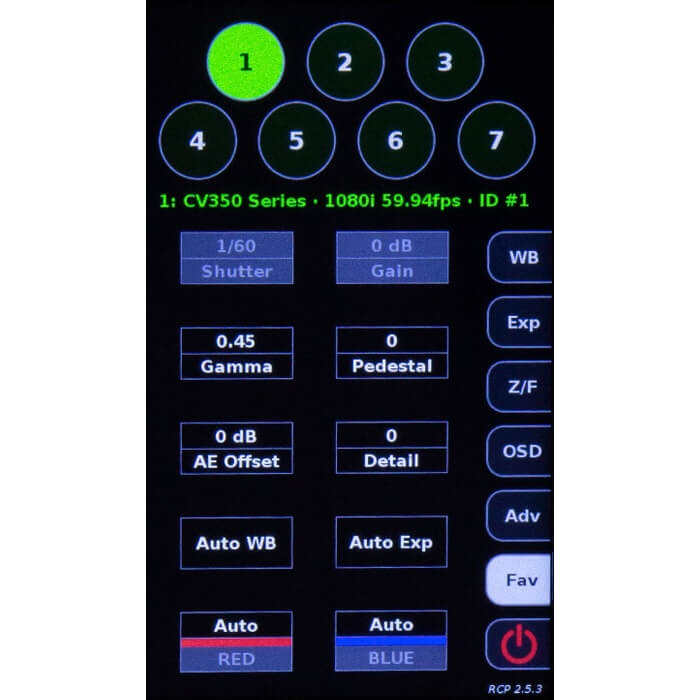

• Red and Blue adjustment follows every screen menu with optional Favorites Menu to save important controls to specific events for easy access.
• Set up multiple cameras with one global preset or multiple presets that are savable on-board the RCP unit or external USB memory sticks.
• Low power consumption requires 12V power at less than 12W (AC or battery packs).
