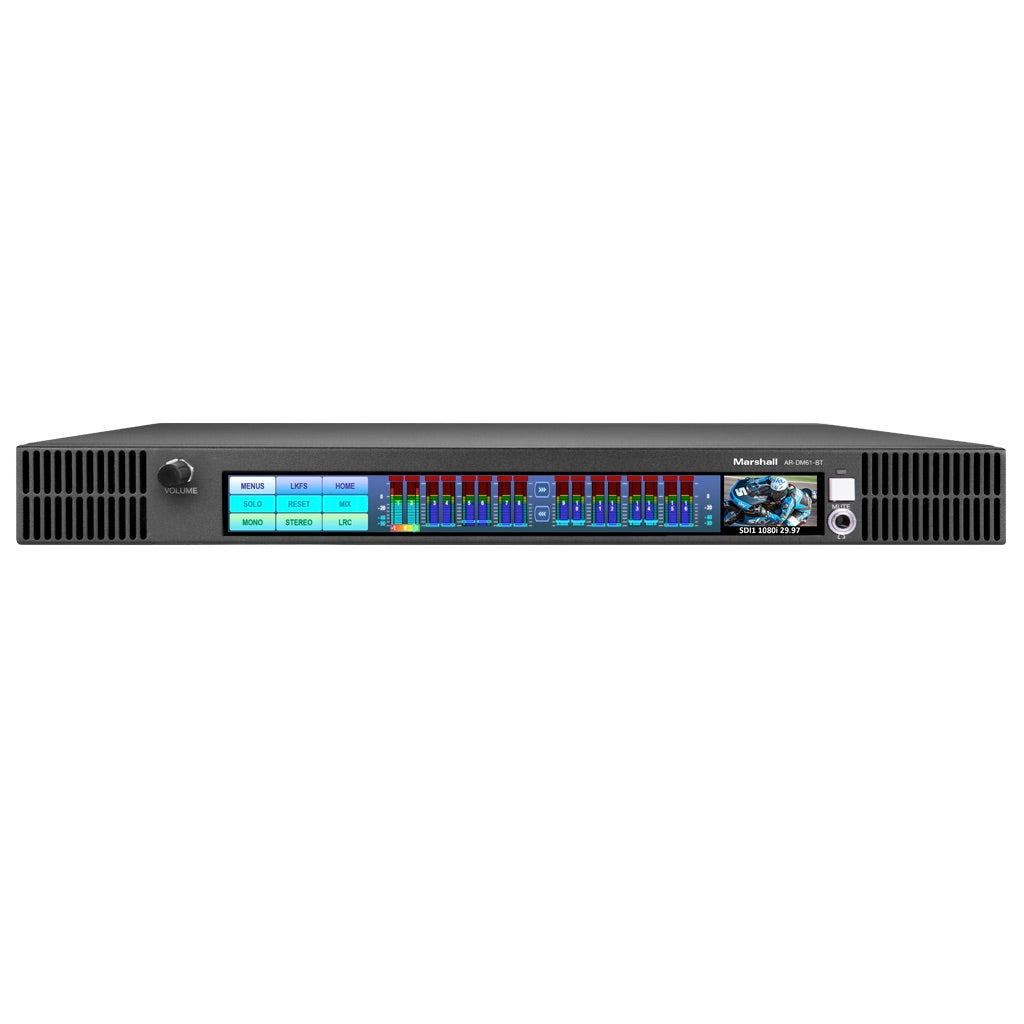

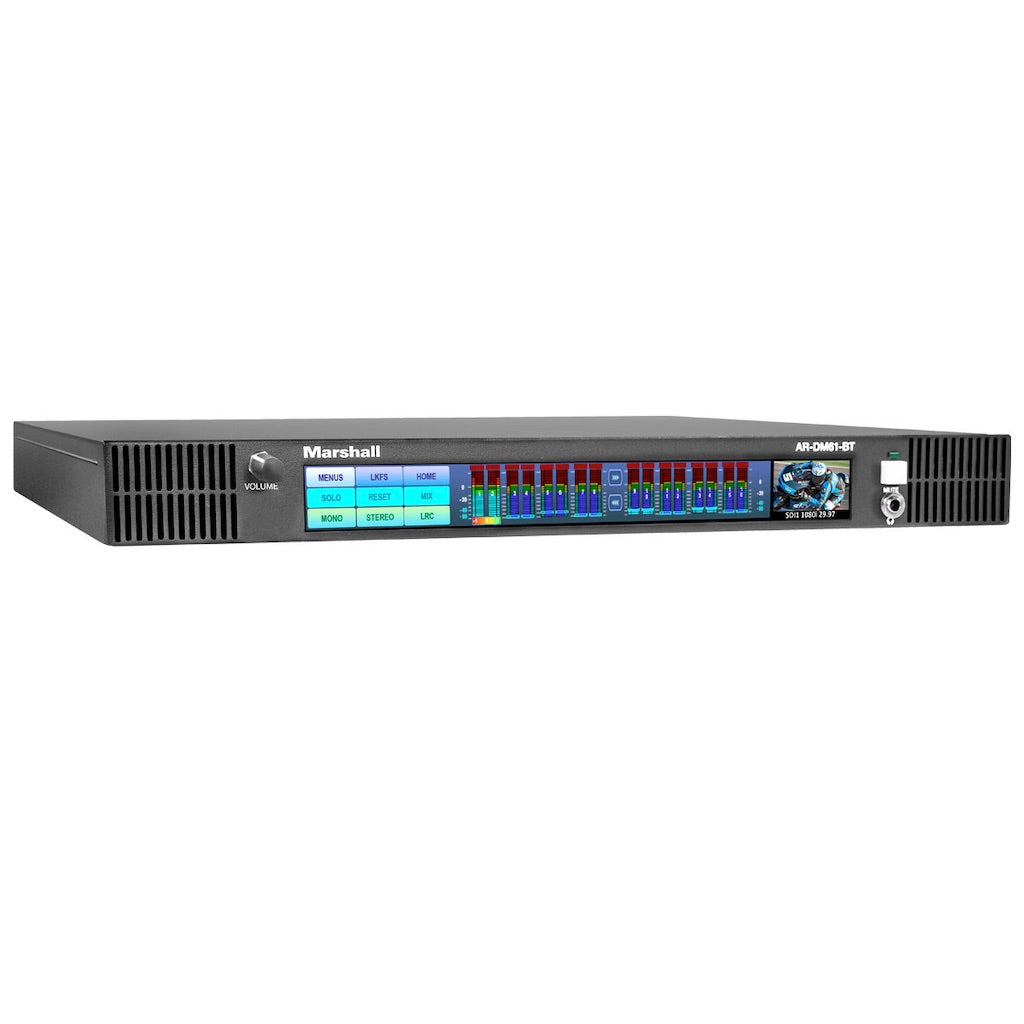

The Marshall AR-DM61-BT Multi-Channel Digital Audio Monitor features versatile audio analysis functions, flexible matrix routing, format conversion tools, and a pair of high-powered speakers packed into 1 RU. The AR-DM61-BT is a robust audio/video QC solution designed specifically for TV stations, broadcast trucks, transfer stations and house of worship facilities.
Planned software upgrades and optional hardware extension ports enable the AR-DM61-BT to serve as a future-proof solution that will evolve with the ever-changing requirements of the broadcast A/V industry. A built-in web server makes it convenient to setup channel mixes, system settings, and install updates. Optional features include support for the latest Dolby™ formats or Dante™ networked audio technology.
Features

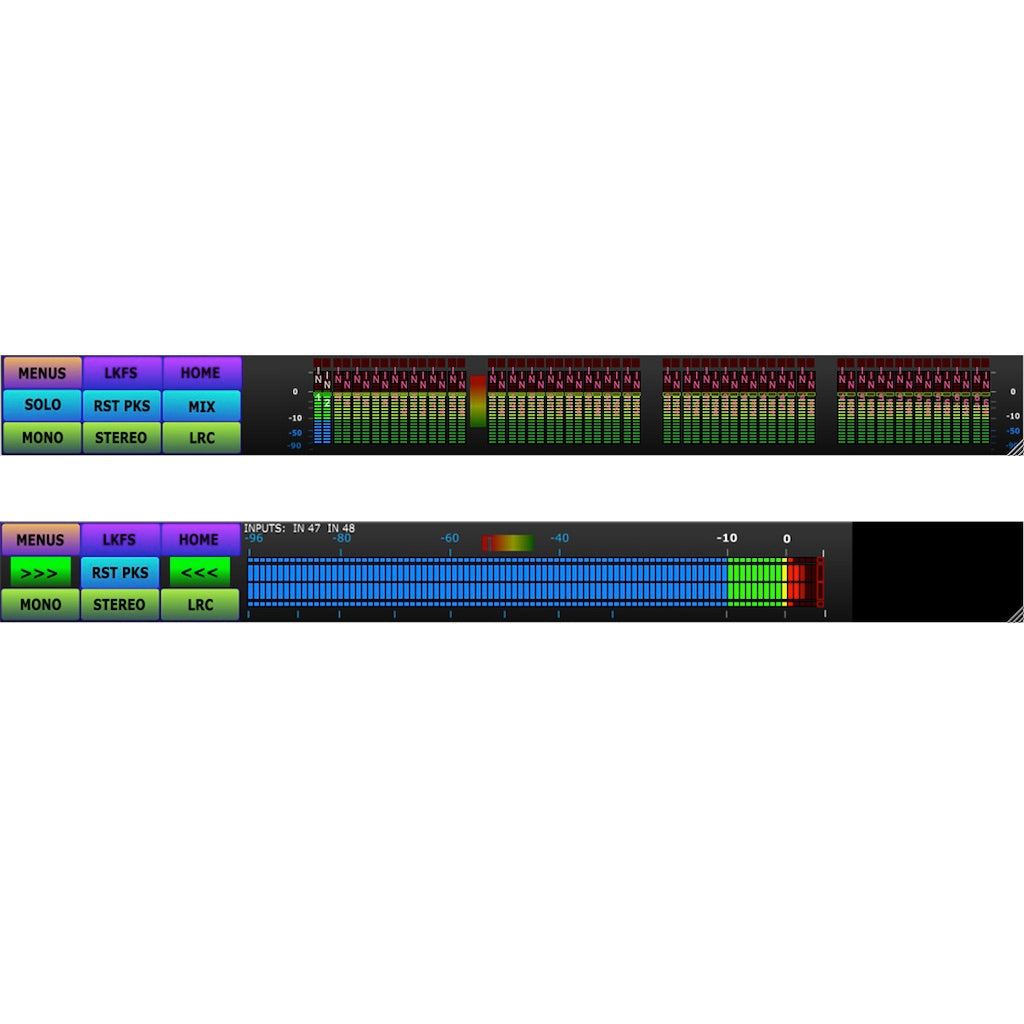

• 10-inch LCD Intuitive Touchscreen Panel that displays up to 64 channels
• Special LKFS bars provides weighted display for group of channels
• Built-in live video preview monitor
• Accepts multiple signal type input
• High-powered stereo speakers (up to 100 dB output)
• Dedicated push-to-mute button
• Slim 1 RU Design
• Built-in web server makes it convenient to setup and customize
• Software upgradeable future-proof platform
• Optional Dante™ Networked Audio module with support for AES 67
• Optional Dolby™ module supports AC-3, Dolby-E and more

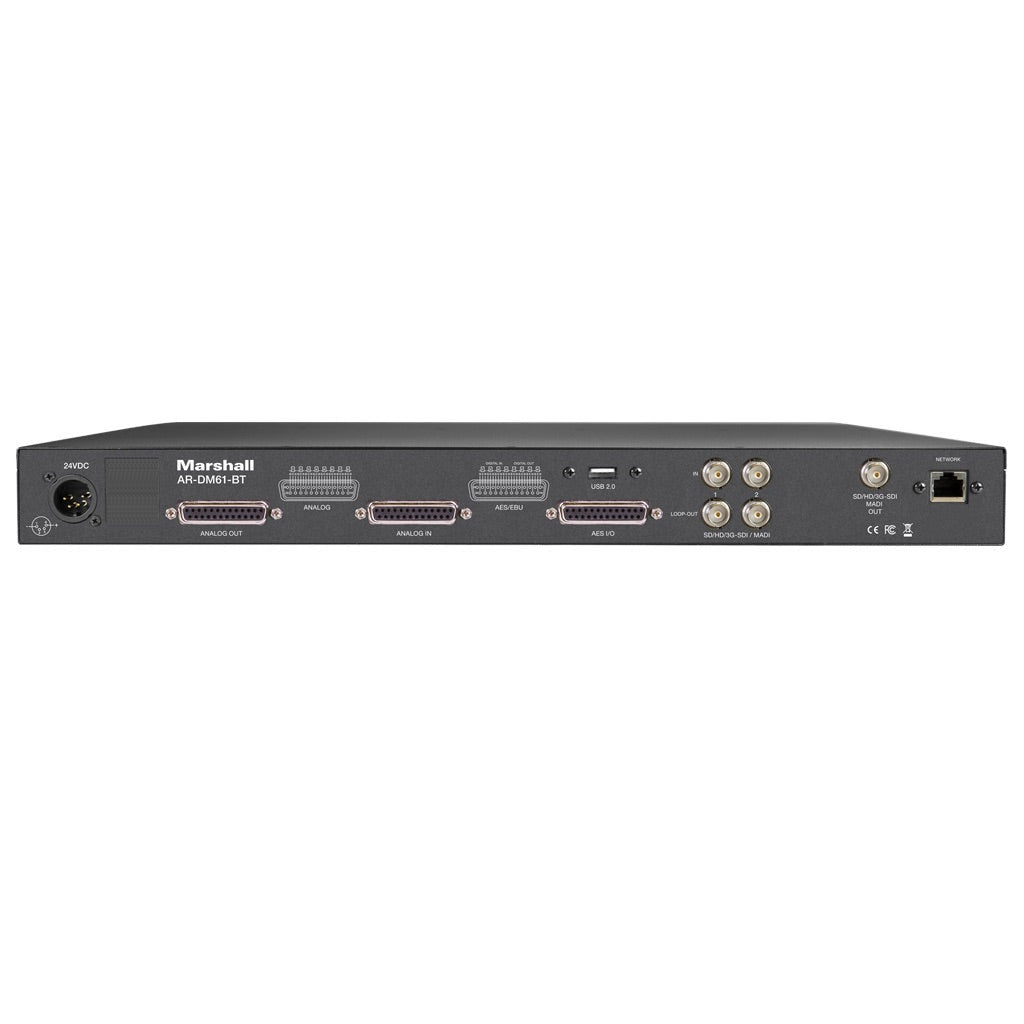

Inputs & Outputs
• Two dedicated 3GSDI inputs with loop-through (MADI compatible)
• 4 AES stereo inputs (8 channels) and outputs on 25-pin DSub connectors
• 8 Analog inputs and outputs on 25-pin DSub connectors
• Ethernet (RJ45) with IP addressing
• Front-facing headphone 1/4" jack
• SDI output follows SDI input or selectable to MADI created from current source
• Dolby™/Dante™ options
