The Lumantek ez-Pro VS10 is a customizable video switcher perfect for live events. It works in harmony with the ez-CGER mini for live titling and graphics.
All ez-Pro VS10 SDI inputs can take in Fill & Key signals.
Connect Lumantek's ez-CGER mini with the ez-Pro VS10 and broadcast your video with Live Titling and Graphics.

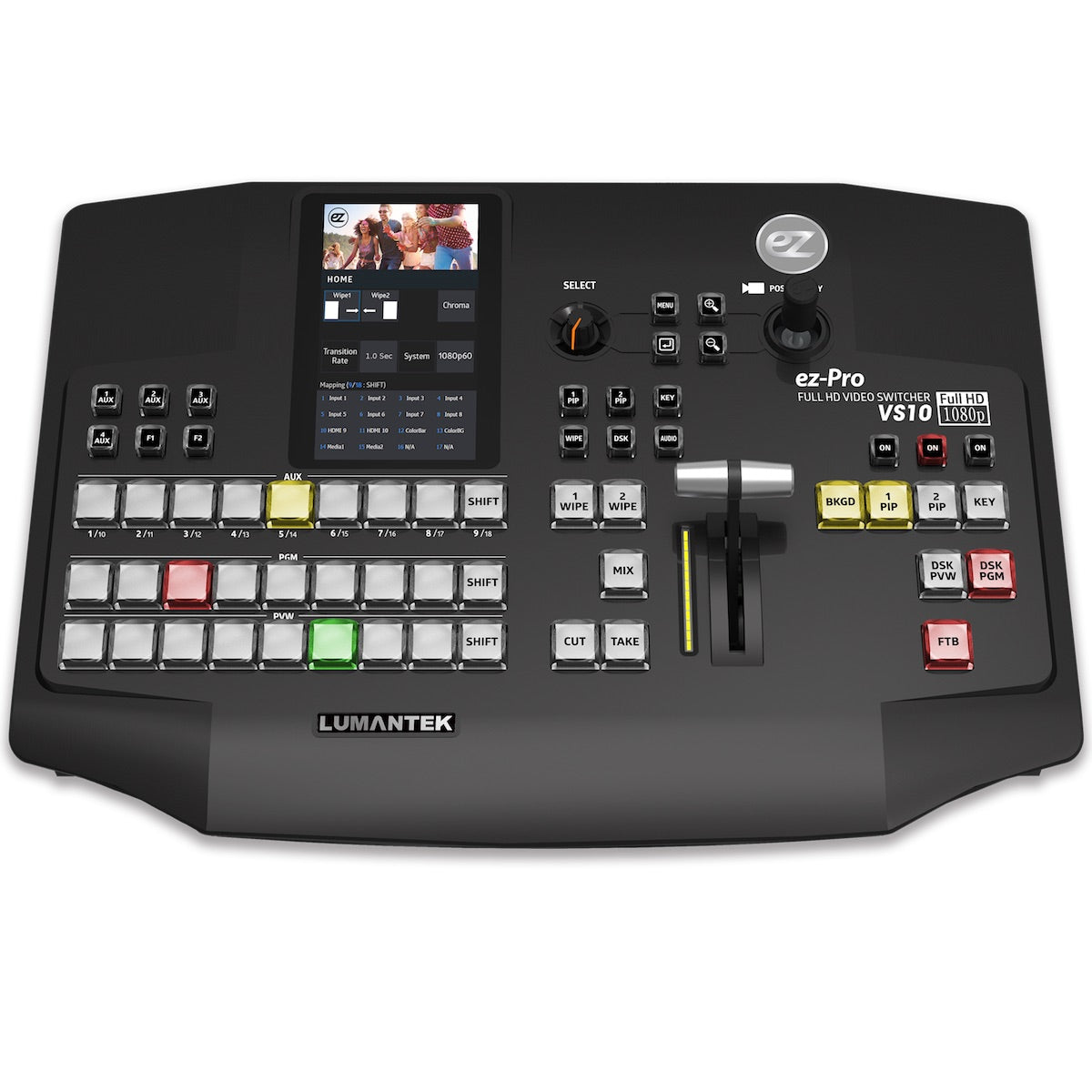

Intuitive LCD Touchscreen and PTZ control through joystick control
All key menu or functions can be adjusted with touchscreen smoothly and extremely easily operated with rotary switch or joystick.
All 10 inputs built in Scaler
ez-Pro VS10 comes with internal scalers in all input ports. Adjust freely using our touch screen menu.
Twice the Basic Features
ez-Pro VS10 has 2 Picture in Picture (PIP) capabilities, 2 Still Image which covers the whole screen, and Luma and Chroma Keyer. You can mix both features and key out the PIP and assimilate a hand language translator PIP.
Quiet Fan for your comfort
Lumantek carefully calibrated the fan noise to provide more comfort to its users while enabling the switcher to operate at its maximum performance.
Any ports are Fill & Key
VS10 allows to set any SDI & HDMI input ports as Fill or Key.
Transfer with USB disk
It is easy to transfer your settings to VS10. Use the VS10 Utility software to save settings into your USB disk. Then plug the USB into VS10 to transfer settings, media, and new firmware.
Program/Multiview display at LCD screen
LCD screen is able to display Program and Multiview when you touch the screen.

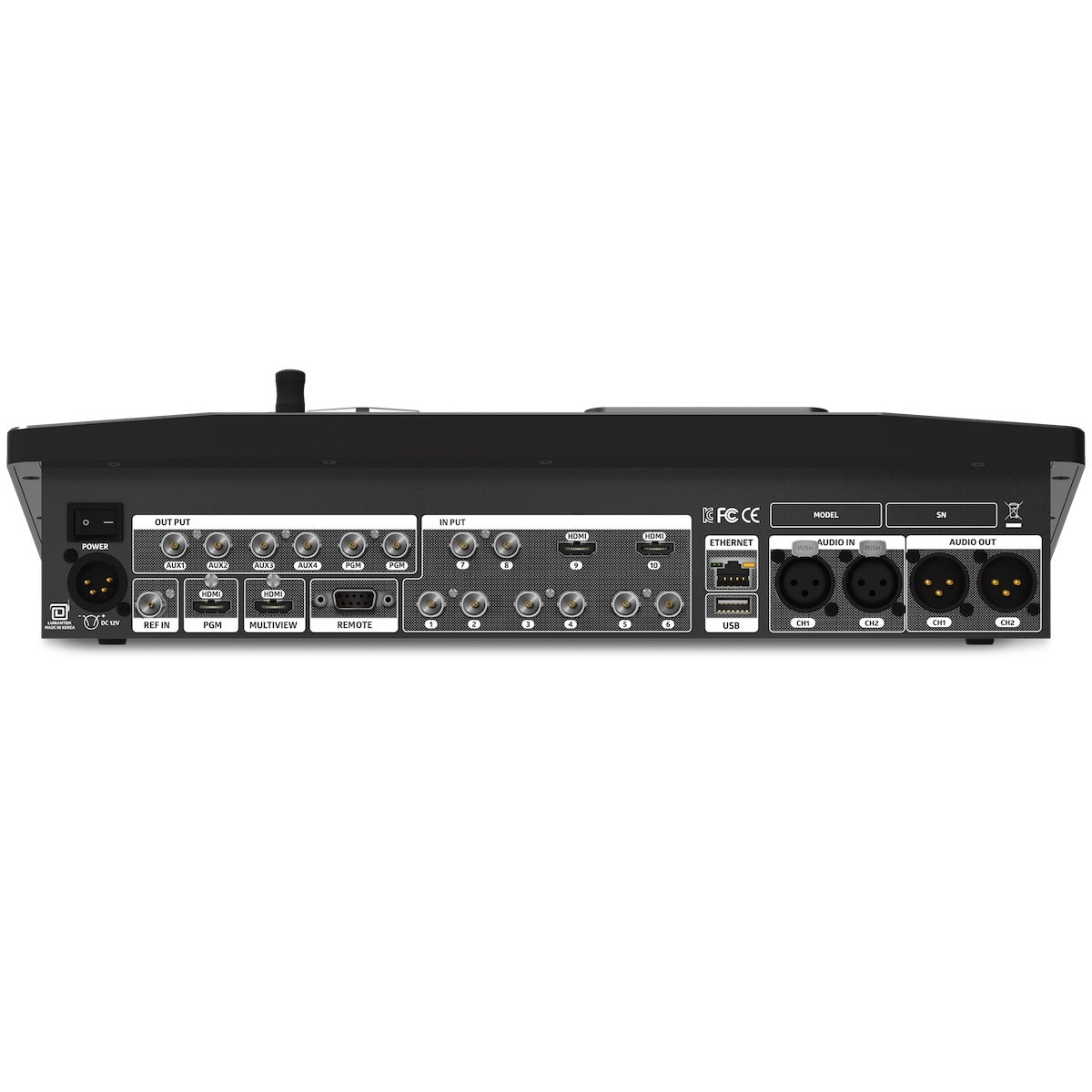

Input Ports
8 x SDI
2 x HDMI
1 pair x XLR
Output Ports
4 x SDI (AUX 1~4)
2 x SDI (Program)
1 x HDMI (Program)
1 x HDMI (Multiview)
1 pair x XLR
