Description

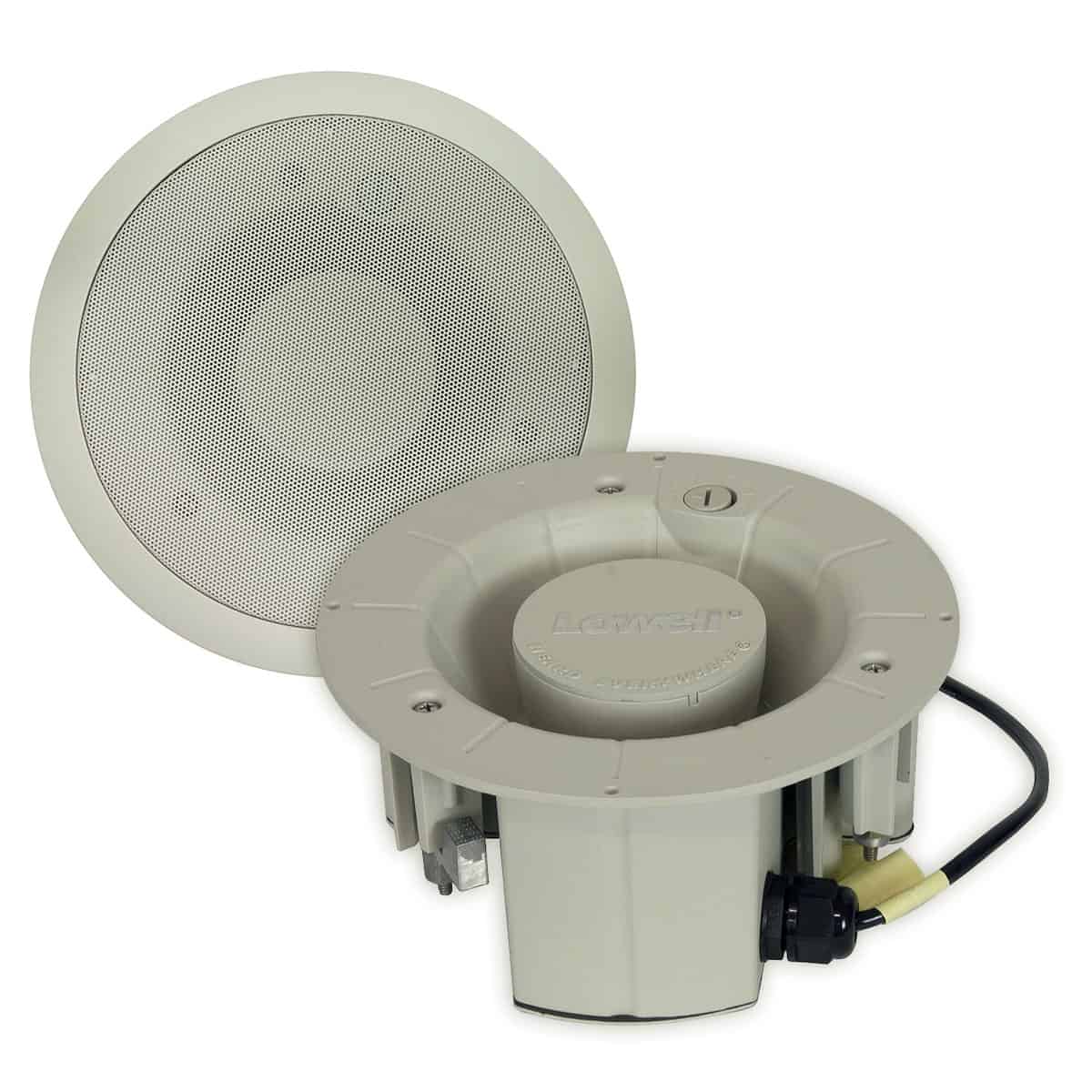

The Lowell LUH-15TA is a ruggedized speaker horn for paging and general voice communications (25V, 70V, 100V, 8ohm). The ready-to-install paging re-entrant horn with weather-resistant housing is engineered for versatile labor-saving installation in brick, concrete block, plaster, drywall, acoustic tile—indoors, outdoors—recessed, surface-mount—new, or retrofit applications.
Features
• 15W driver
• Screwdriver-adjustable transformer (25V/70V/100V) plus 8ohm bypass input
• Aluminum housing with moisture-seal cover
• Simple 2-wire hook-up to the pigtail or through rain proof gland-type cable fitting

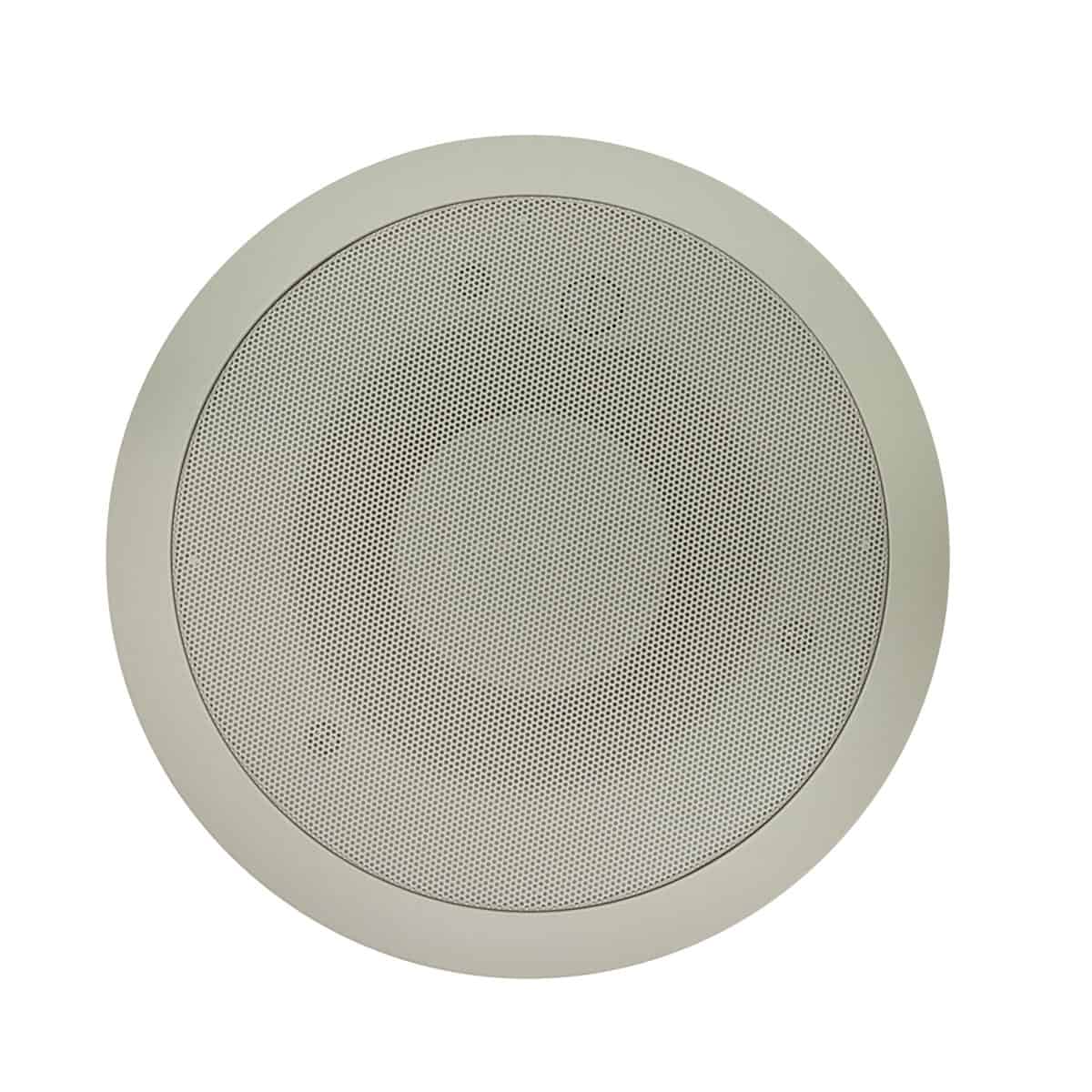

• Fine perforation, aluminum grille fits snugly for a hardware-free appearance
• Trim ring
• Network Gray finish
• Average Sensitivity 105dB (1W/1M)
• For retrofit applications, this model will accept an EIA standard grille for 8 in. speaker and the UL Listing will remain valid.
Compliance & Certification
• UL1480A general signaling (USA)
• UL2043 suitable for use in return air plenum space (USA)
• CSA C22.2 No. 205-12 general signaling (Canada)
Options (Order Separately)
LUH-VRG: Vandal-resistant grille
LUH-BOX: Backbox (Indoor/outdoor)
LUH-BOX-INT: Backbox (indoor only)
LUH-TP: Trim plate
LUH-TBAR: Tile bridge
LUH-RIB: Rough-in bridge
LUH-TP: Trim plate
LUH-BRKT: U-bracket
