Description

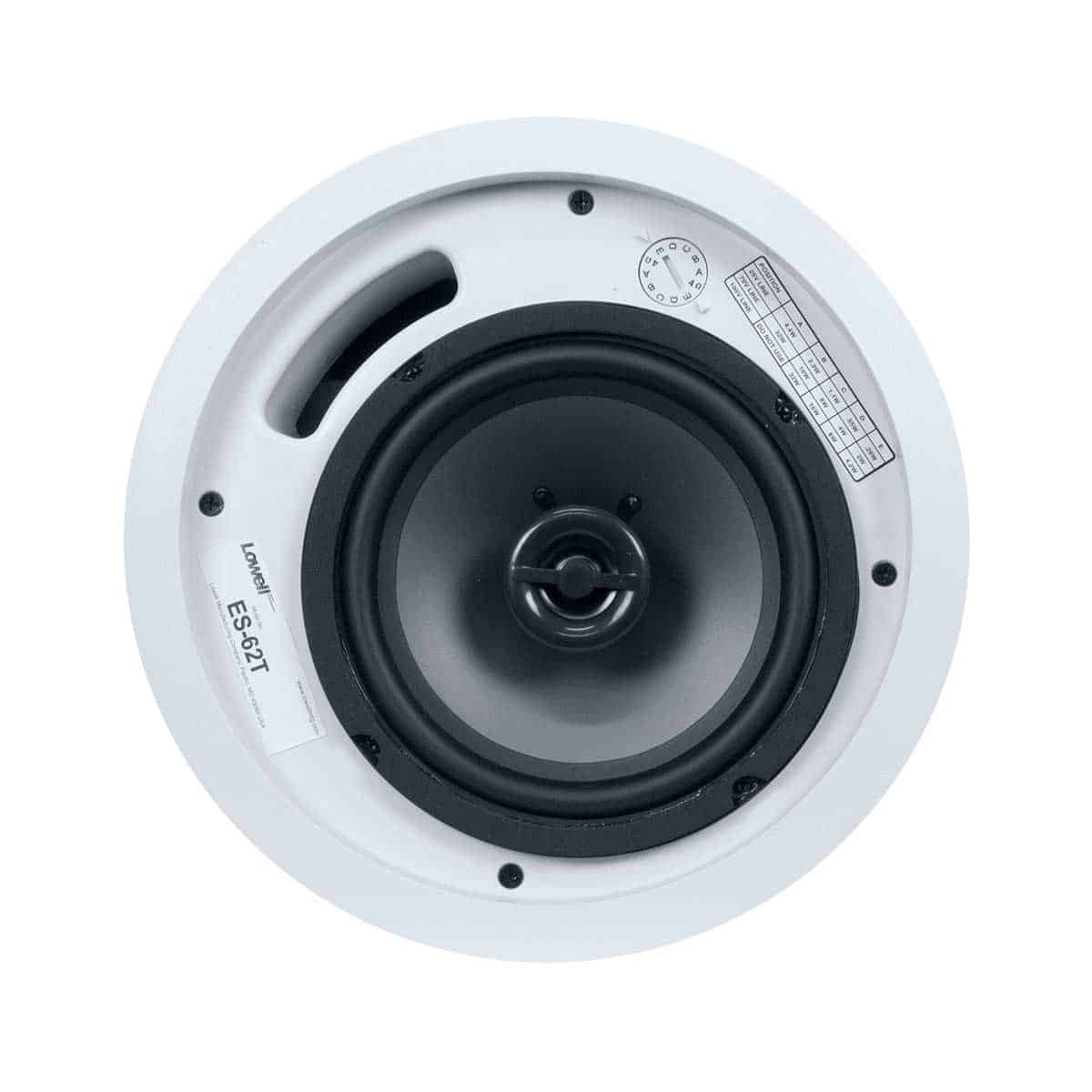

The Lowell ES-62T is a self-contained, ready-to-install ceiling speaker (6-1/2 inch coaxial driver) that produces excellent intelligibility for speech and full-frequency response for music. Ideal for commercial or residential use of foreground or background music.
Features
• Driver: 6.5 in. coaxial driver with high-frequency PEI tweeter/acoustic lens

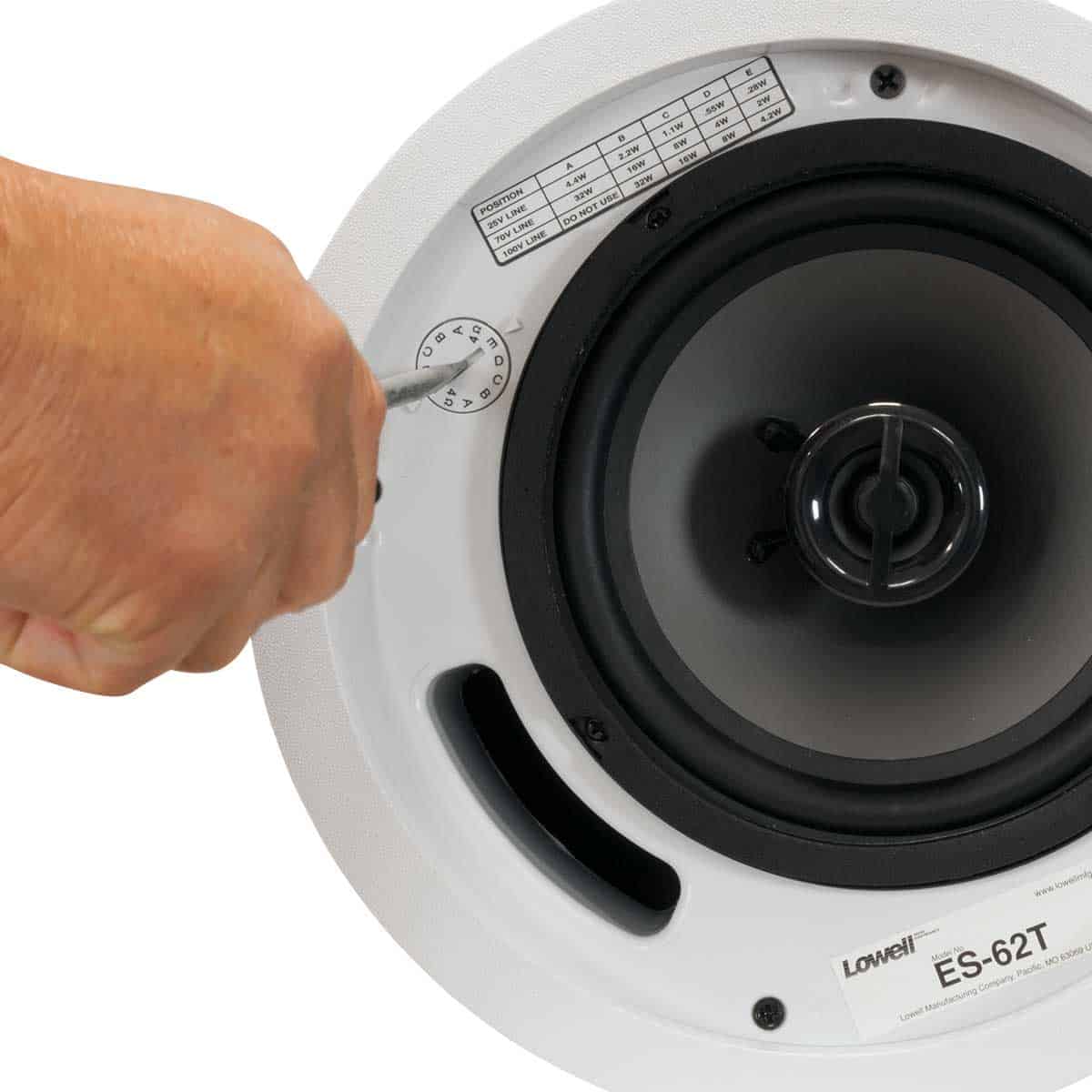

• Transformer: 32W (tap selector behind grille). Taps for 25V, 70V or 100V speaker systems, and 4 ohm (UL min.) transformer bypass position.

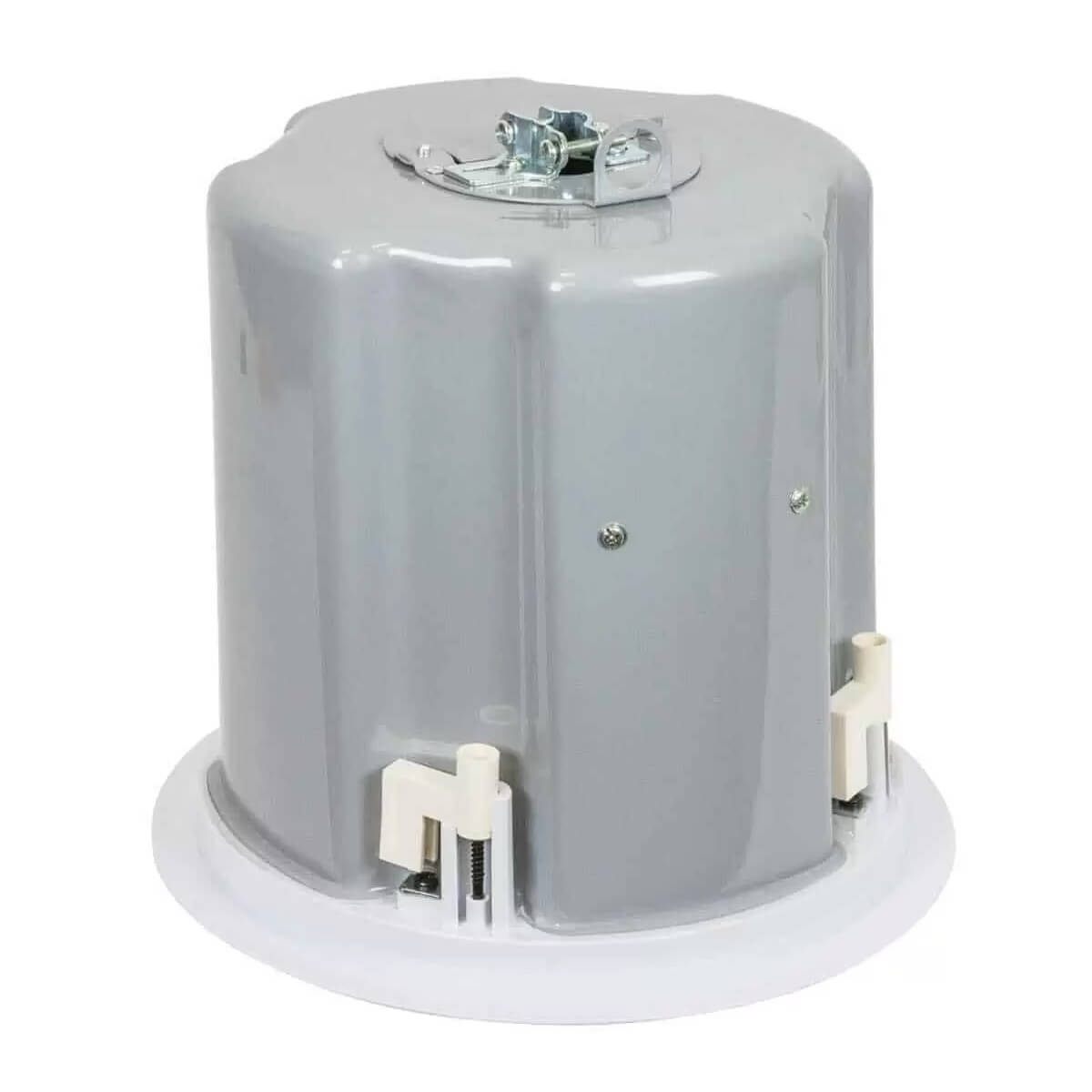

• Enclosure: Painted (gray) steel back-can with reversible mounting dogs

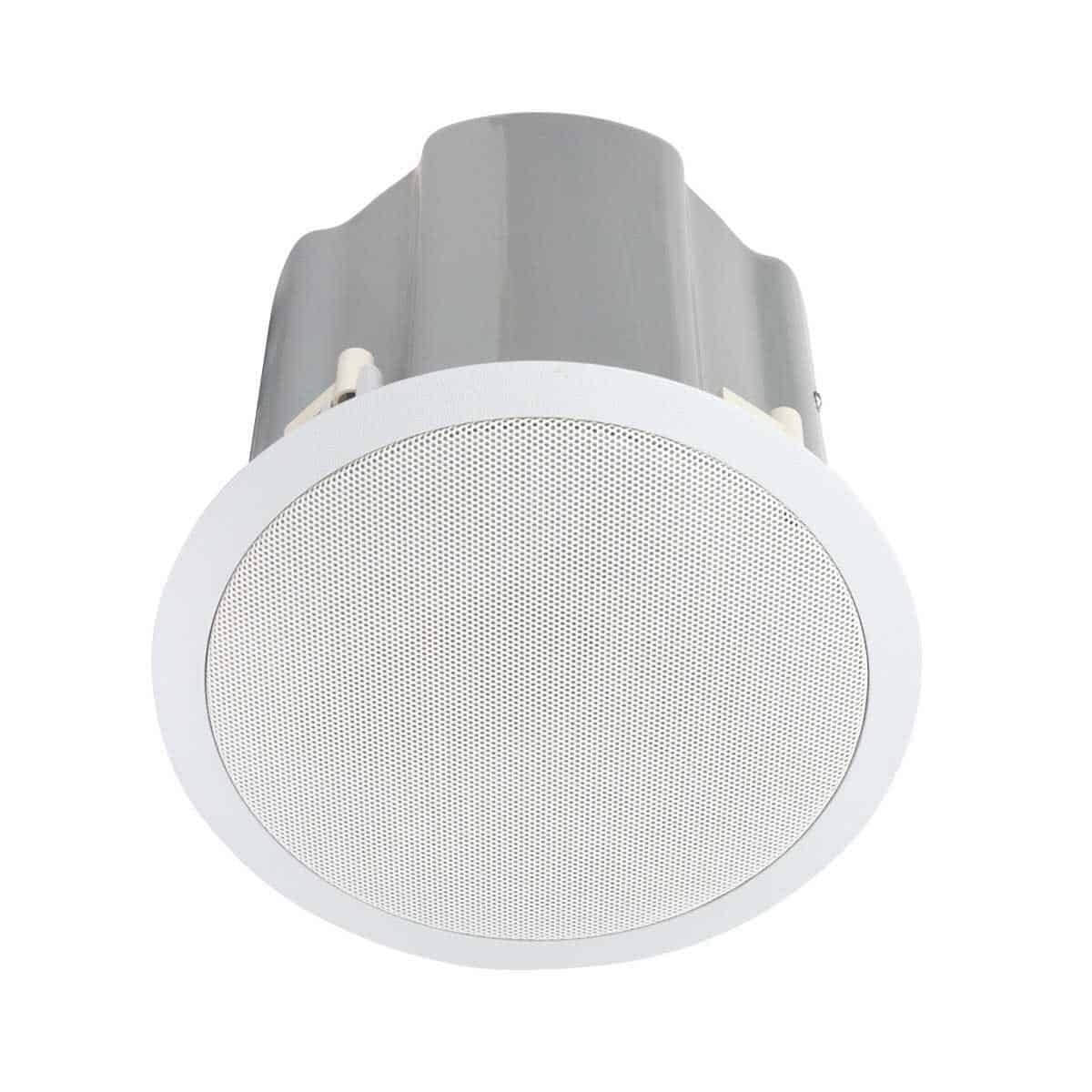

• Grille: Press-fit grille with scrim, pull-tool

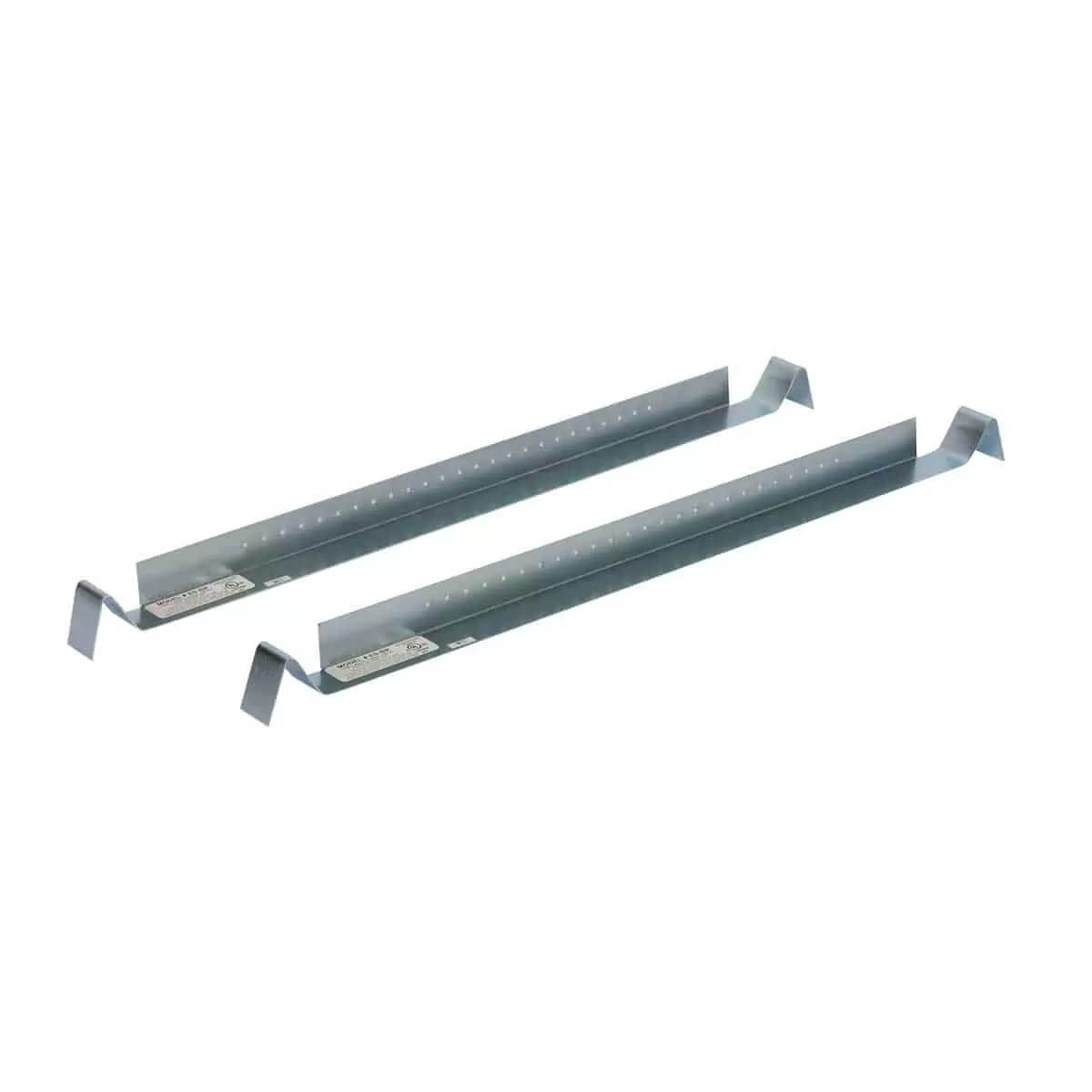

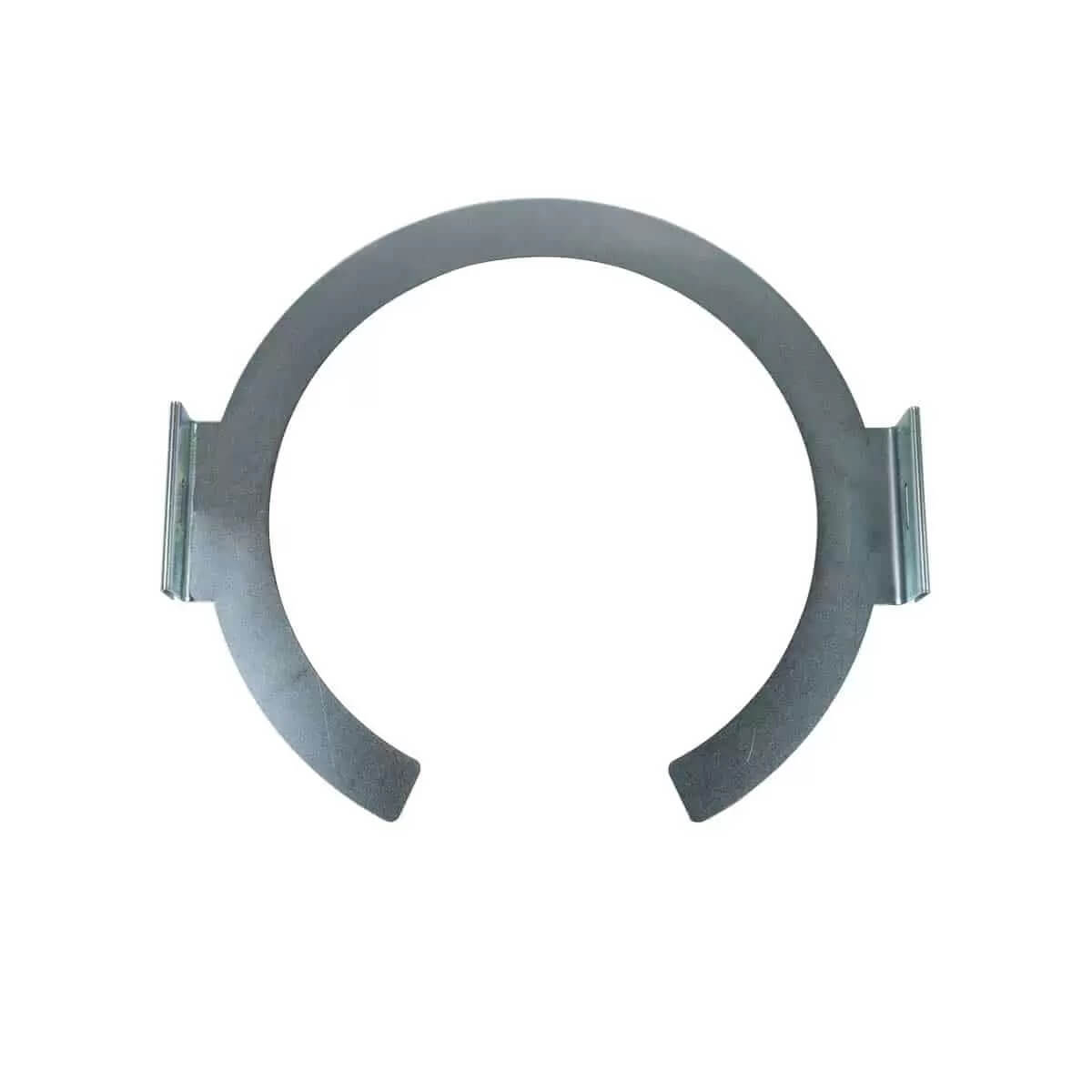

• Mounting Aids: Plastic paint shield to protect driver, C-ring and support rails
• Installs in drywall, wood, tile or almost any ceiling with thickness up to 2-1/8 inches.
Compliance & Certification
• UL 1480A (General signaling, US)
• UL 2043 (Return air plenum space)
• CSA C22.2 No. 205-12 (General signaling, Canada)
Options (Order Separately)
• ES-6-RIB: Rough-in bridge
• ES-6-RTR: Retrofit trim ring
