Description

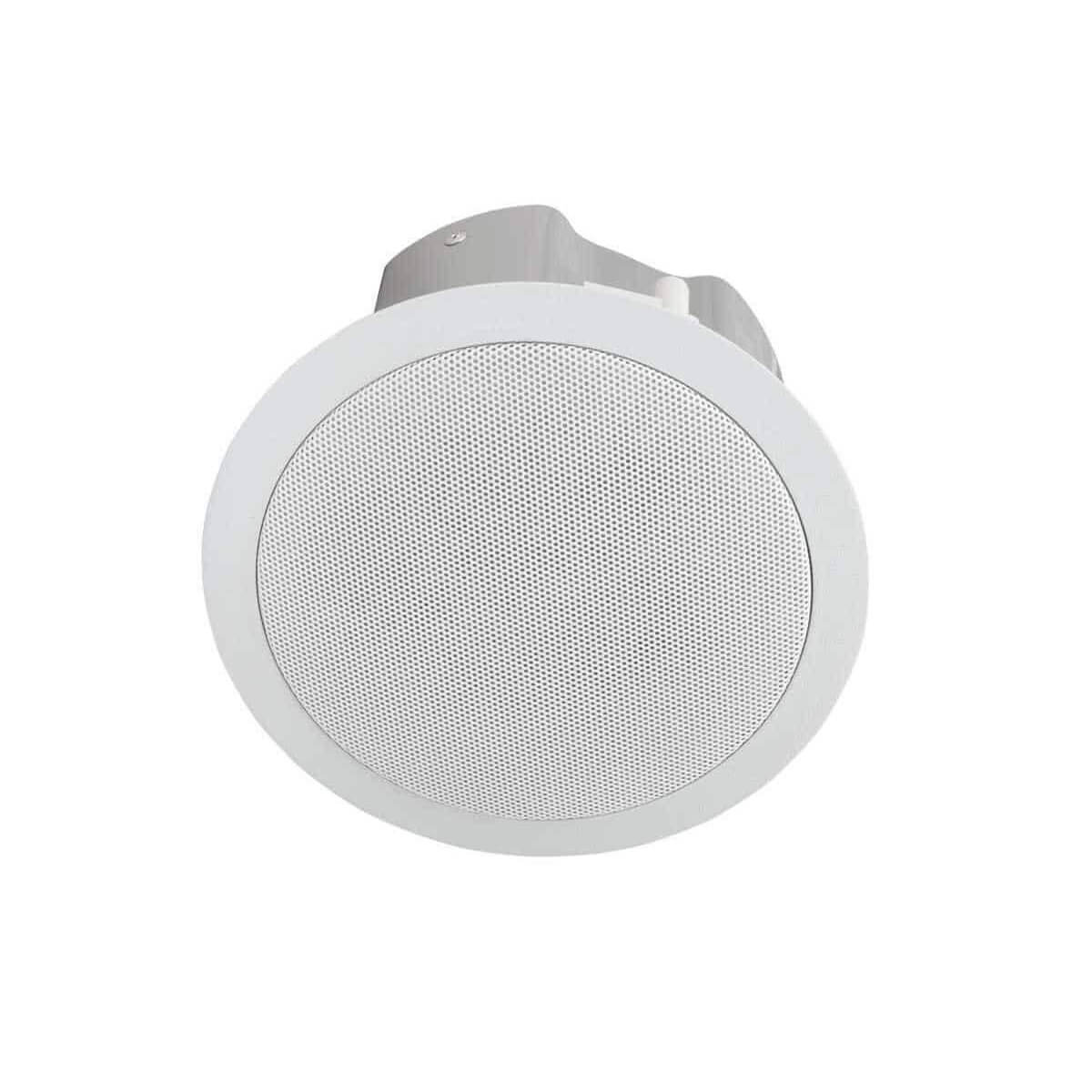

The Lowell ES-4T is a 4-in 16W Dual Cone Ceiling Speaker that produces excellent intelligibility for speech and full frequency response for music. It is ideal for retail, commercial, industrial, institutional and residential applications. This self-contained speaker is for in-ceiling or in-wall installations.
Features
• Driver: 4-inch dual cone driver with high-frequency whizzer cone

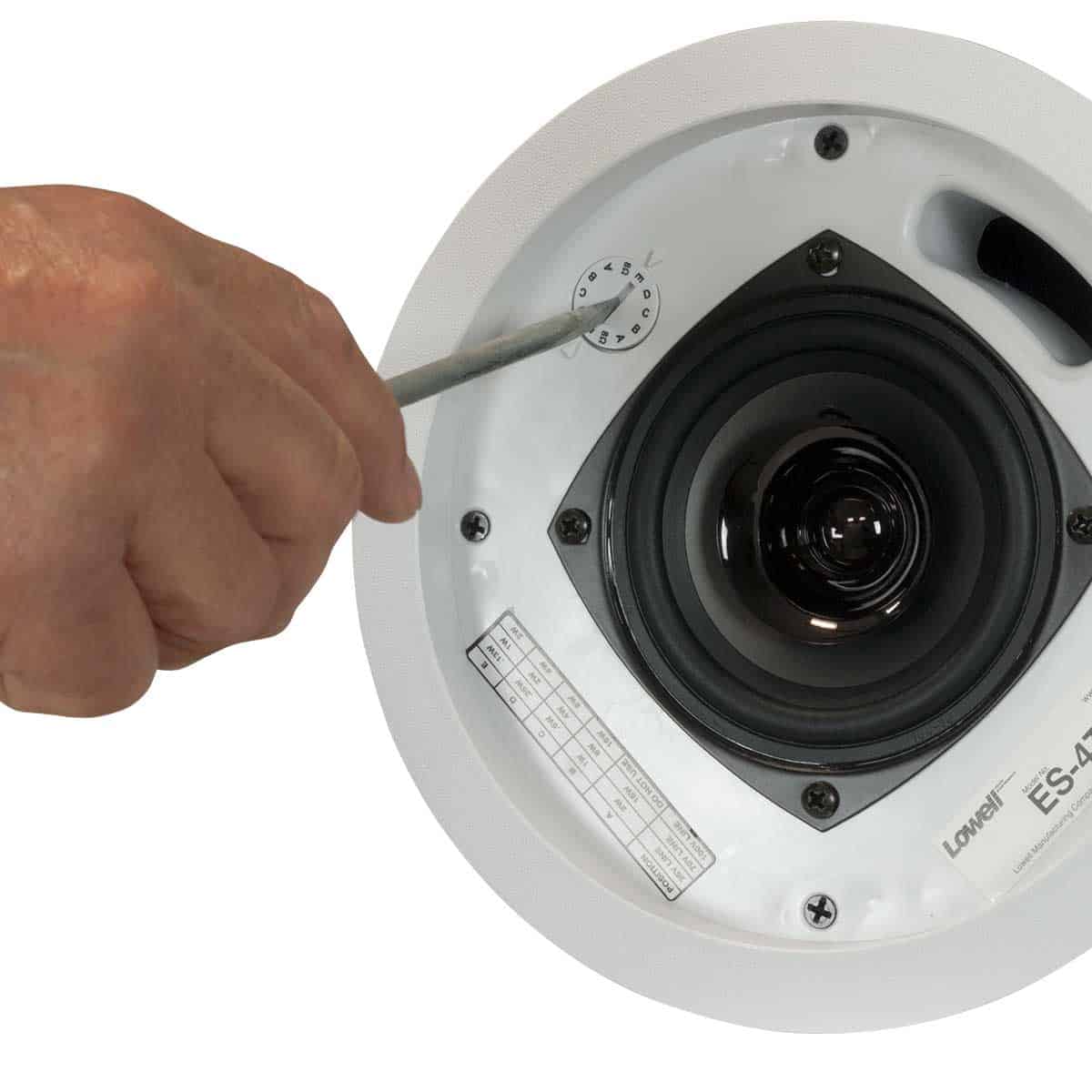

• Transformer: 16W with tap selections for 25V, 70V or 100V speaker systems

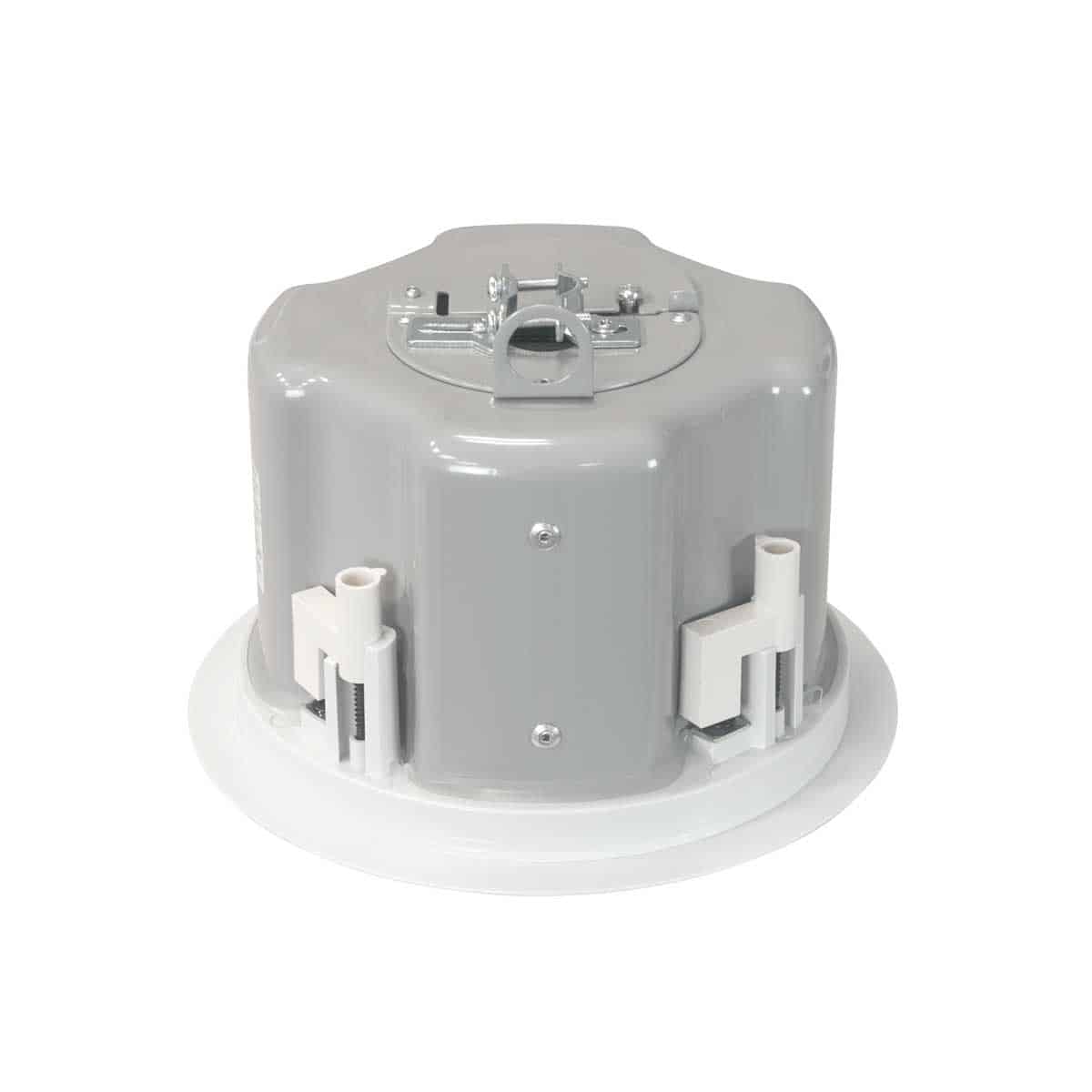

• Enclosure: Painted (gray) steel back-can with built-in mounting dogs
• Grille: Press-fit steel grille with scrim and pull-tool
• Included Mounting Aids: Plastic paint shield, C-ring, and support rails
• Installs in drywall, wood, tile or almost any ceiling thickness up to 1.4 inches
Compliance and Certification
• UL 1480A (General signaling, US)
• UL 2043 (Return air plenum space)
• CSA C22.2 No. 205-12 (General signaling, Canada)
Options (Order Separately)
• ES-4-RIB: Rough-in bridge
• ES-4-RTR: Retrofit trim ring
