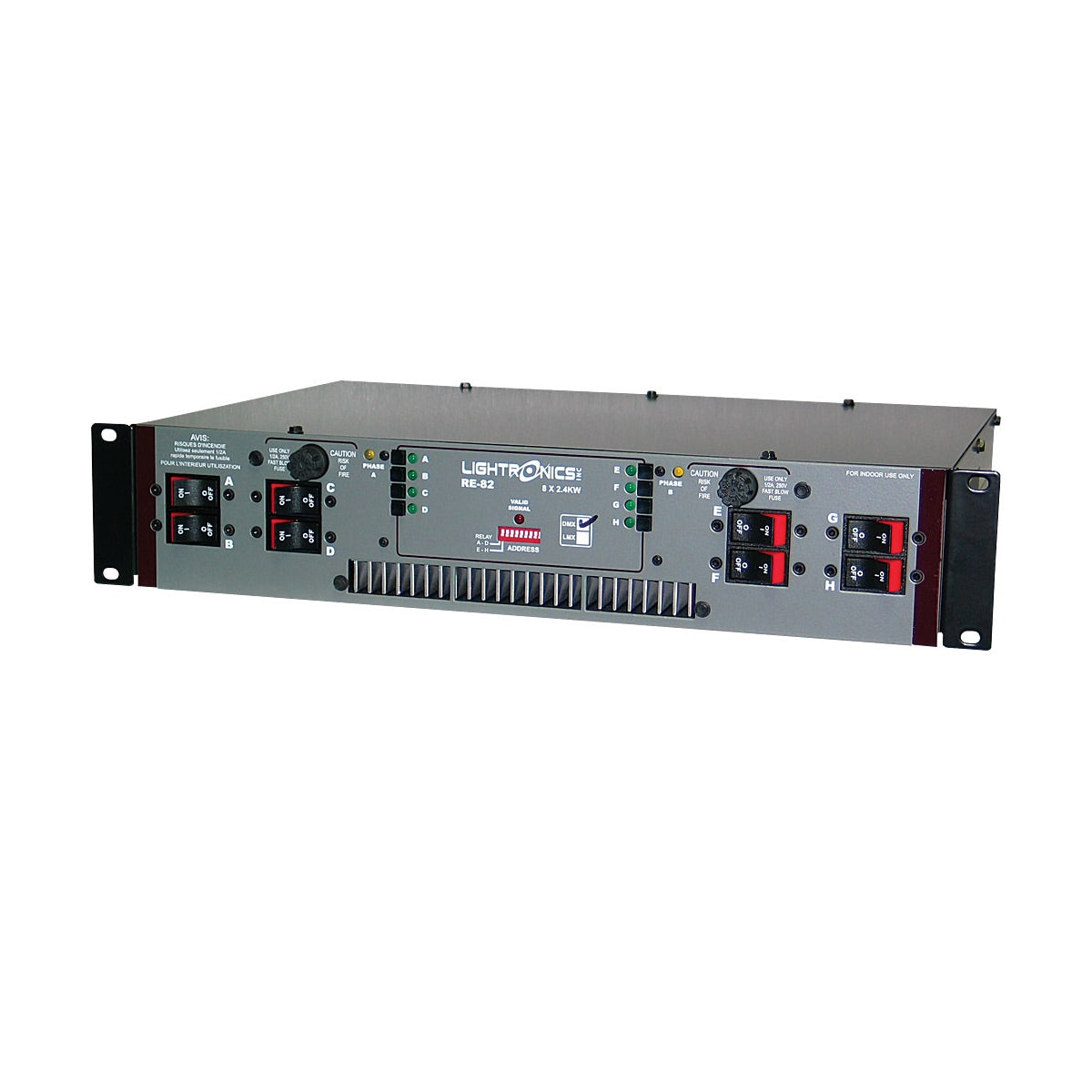

The Lightronics RE82D is an 8 channel rack mount dimmer with a maximum capacity of 2,400 watts per channel giving a total of 19,200 watts. It is suitable for church, stage, theater, school, night club, live performances and other event and artistic applications.
The RE82D is controlled by a lighting console. The unit uses the DMX-512 control protocol. Channels A - D and/or channels E - H may be switched to operate in"relay" mode. In relay mode channels are either full on or full off (non-dim) depending on console fader position. The unit is over-current and over-temperature protected. A fan is used to ensure proper cooling. Dimming channels may be reassigned in multiples of 4 channels via switches in the front panel.
Features
• 8 Channels
• 2400W per Channel
• Fast Acting Magnetic Circuit Breakers
• Dim/Non-Dim Mode by Channel
• 120/240V 80 Amp
• DMX-512 Protocol
• UL-508 Compliant
Channel Output Connection Panel Options

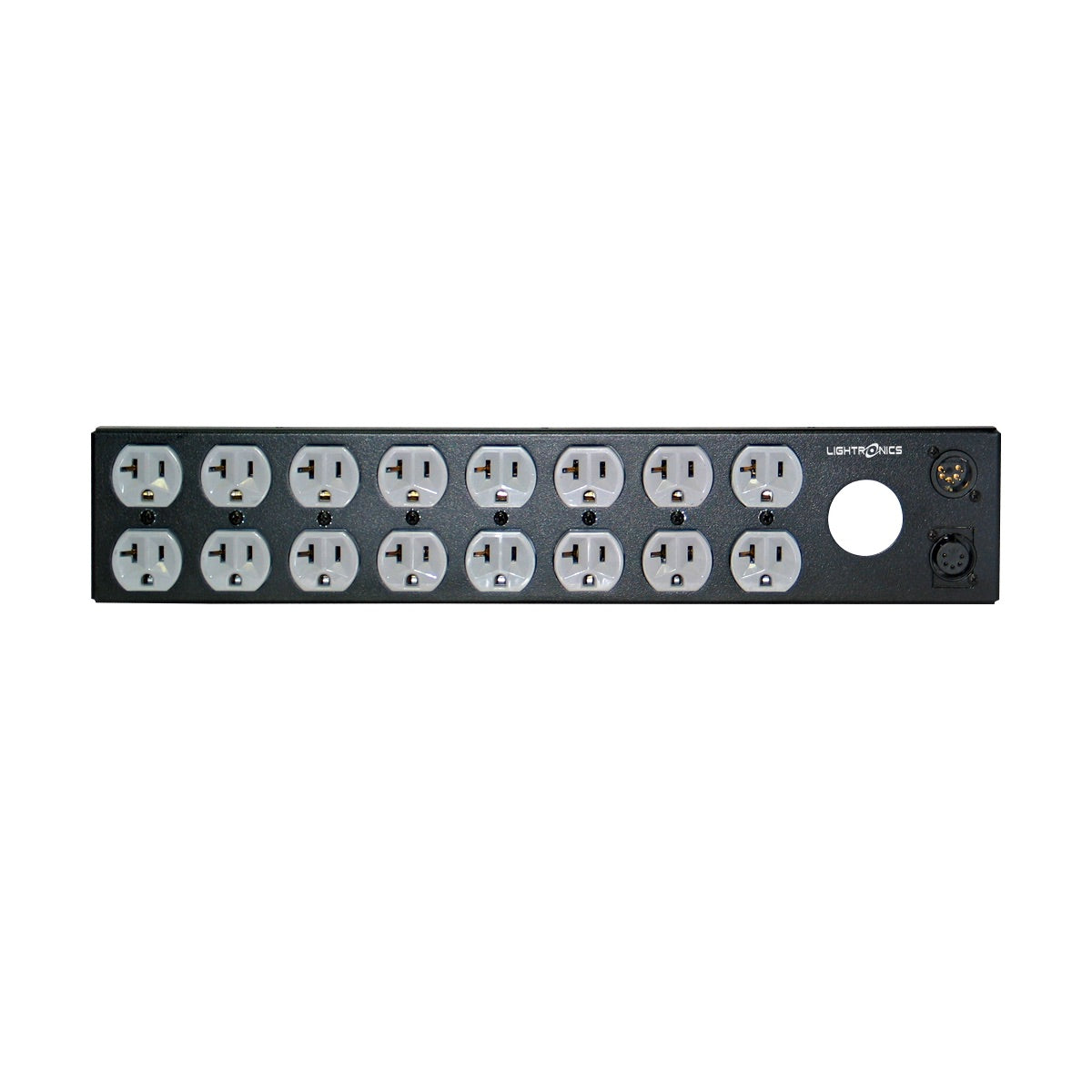

DP - Edison Duplex Outlet Panel

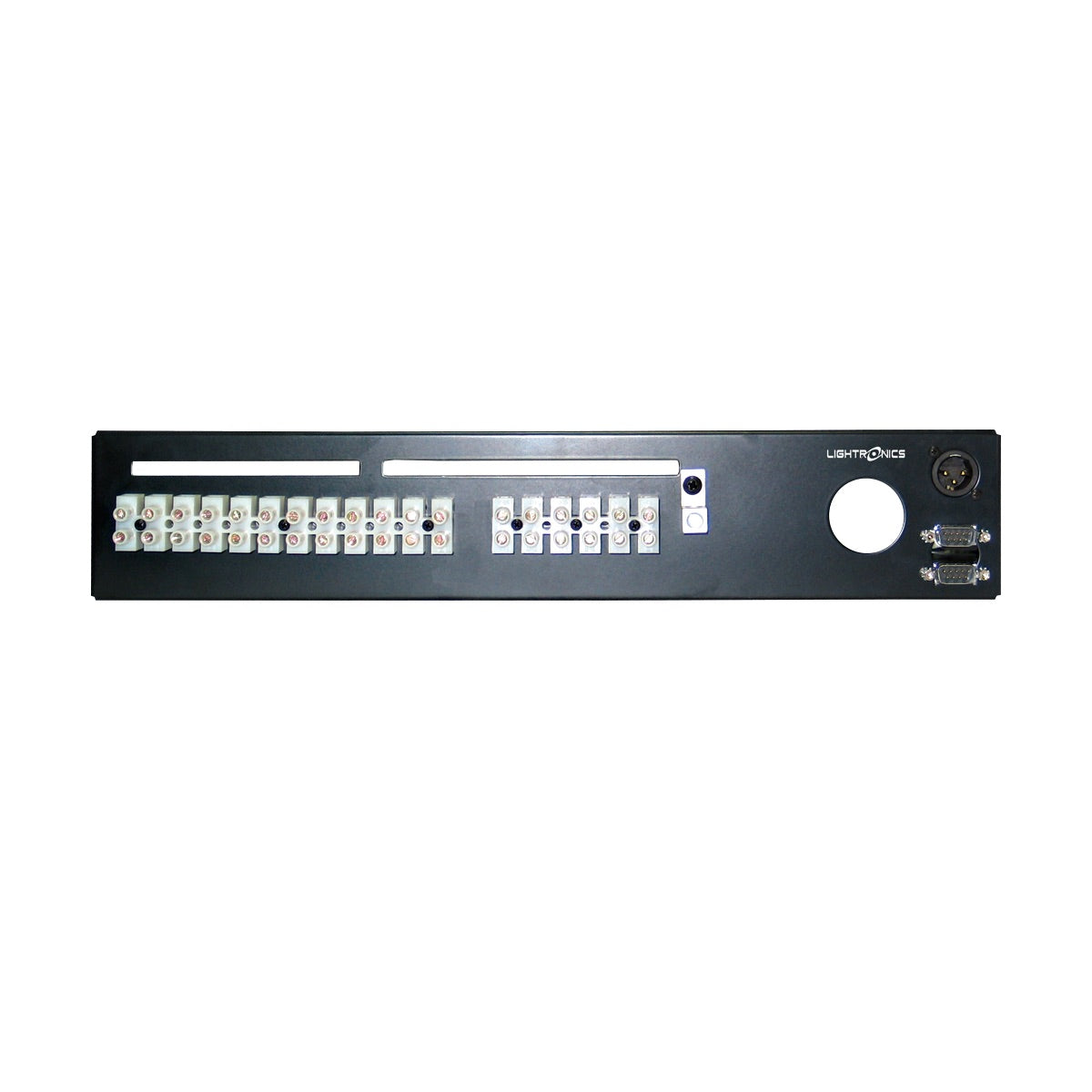

XT - Terminal/Barrier Connector Strip with Knockout Cover
SO - Socapex Outlet Panel (Non UL-508 Compliant)
PL - Powerlock Outlet Panel (Non UL-508 Compliant)

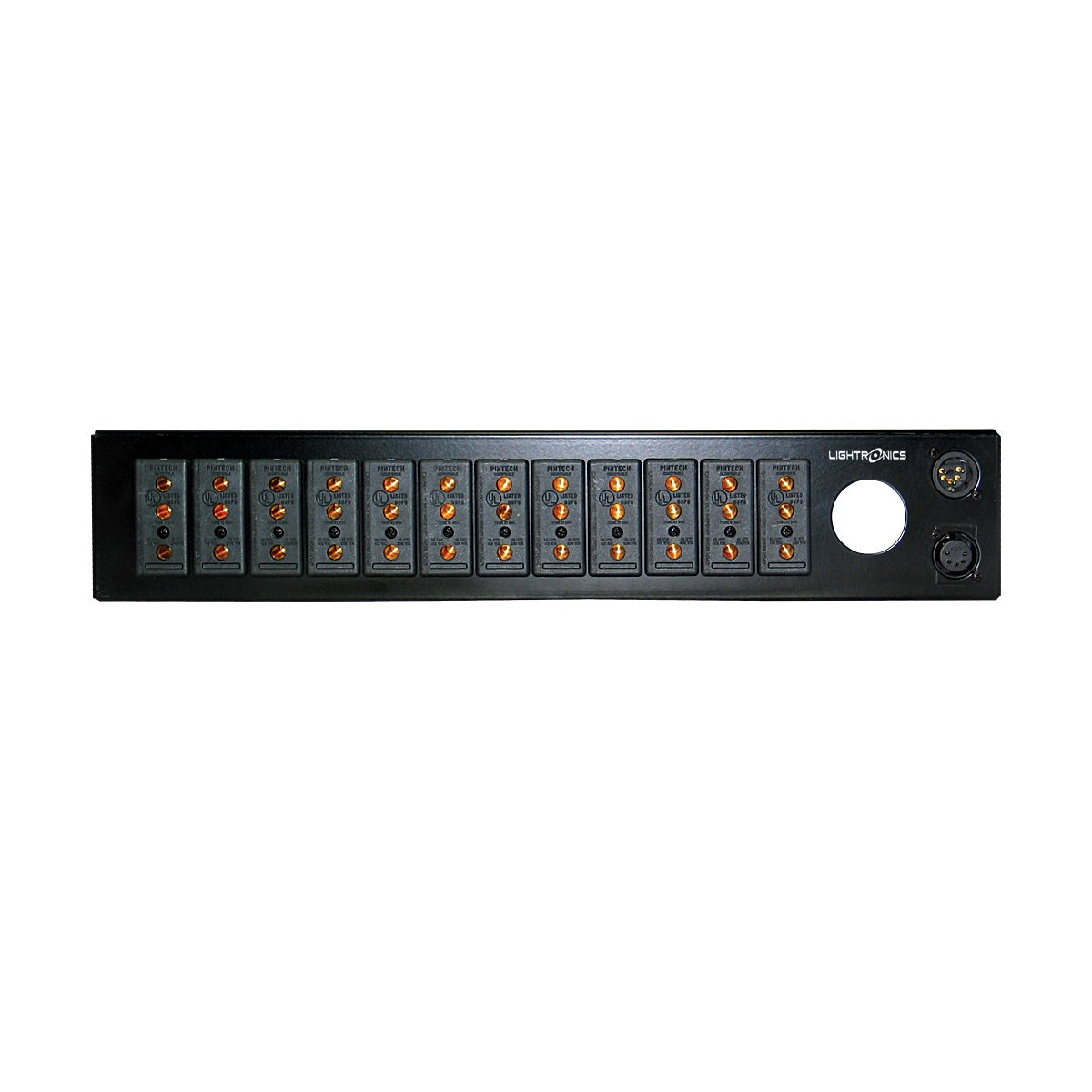

ST - Stagepin Outlet Panel (Non UL-508 Compliant)
