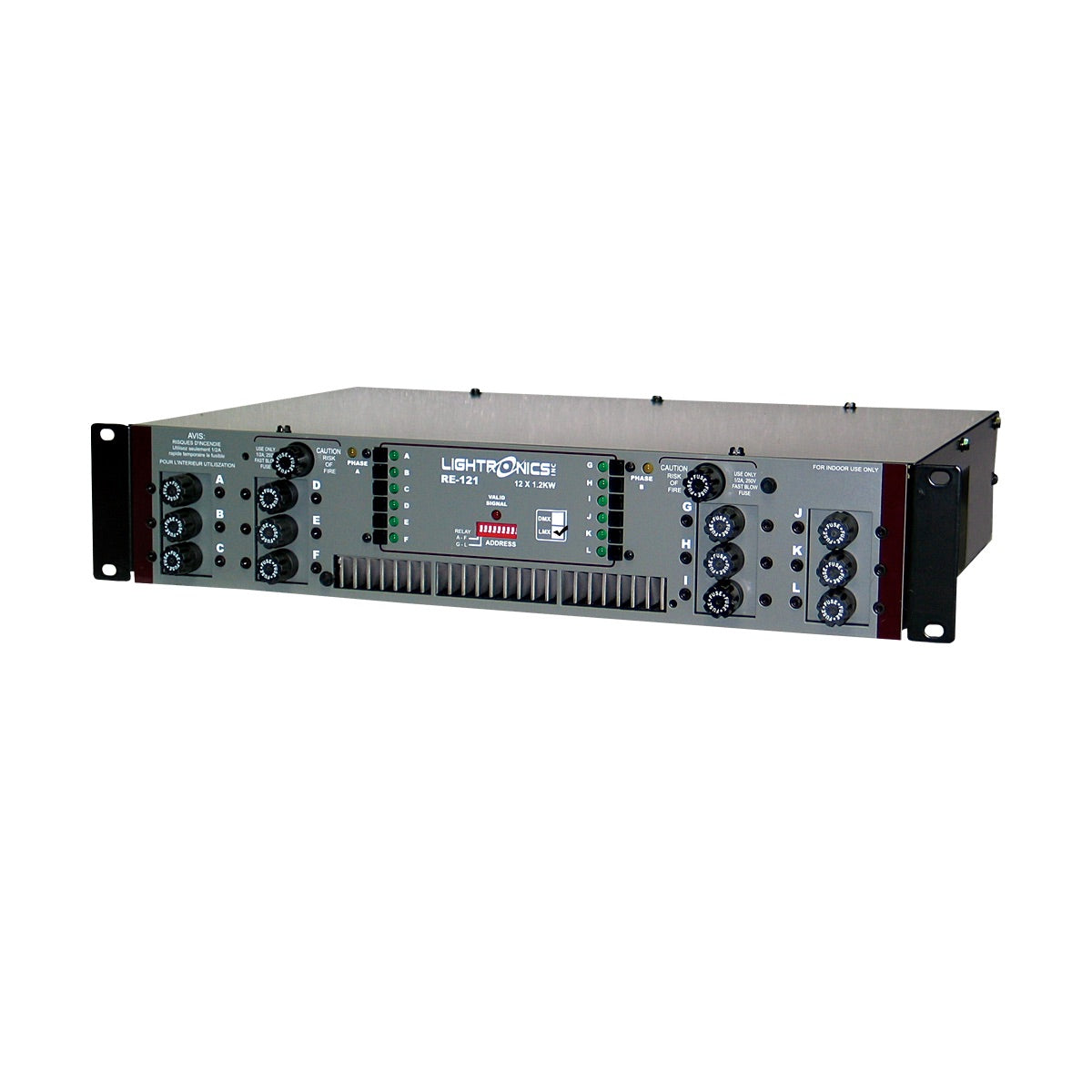

The Lightronics RE121L is a 12 channel rack mount dimmer with a capacity of 1,200 watts per channel giving a total of 14,400 watts. It is suitable for church, stage, theater, school, night club, live performances and other event and artistic applications.
The RE121L is controlled by a lighting control console. The unit uses the LMX-128 control protocol. Channels A - F and/or channels G - L may be switched to operate in "relay" mode. In relay mode, channels may be switched only to either to full on or full off depending on fader position.
Features
• 12 Channels
• 1200W per Channel
• 10 Amp Fast Acting Fuses
• Dim/Relay Mode per 6 Channel groups
• 120/240V 60 Amp
• LMX-128 Protocol
• UL-508 Compliant
• Optional Circuit Breakers
Channel Output Connection Panel Options

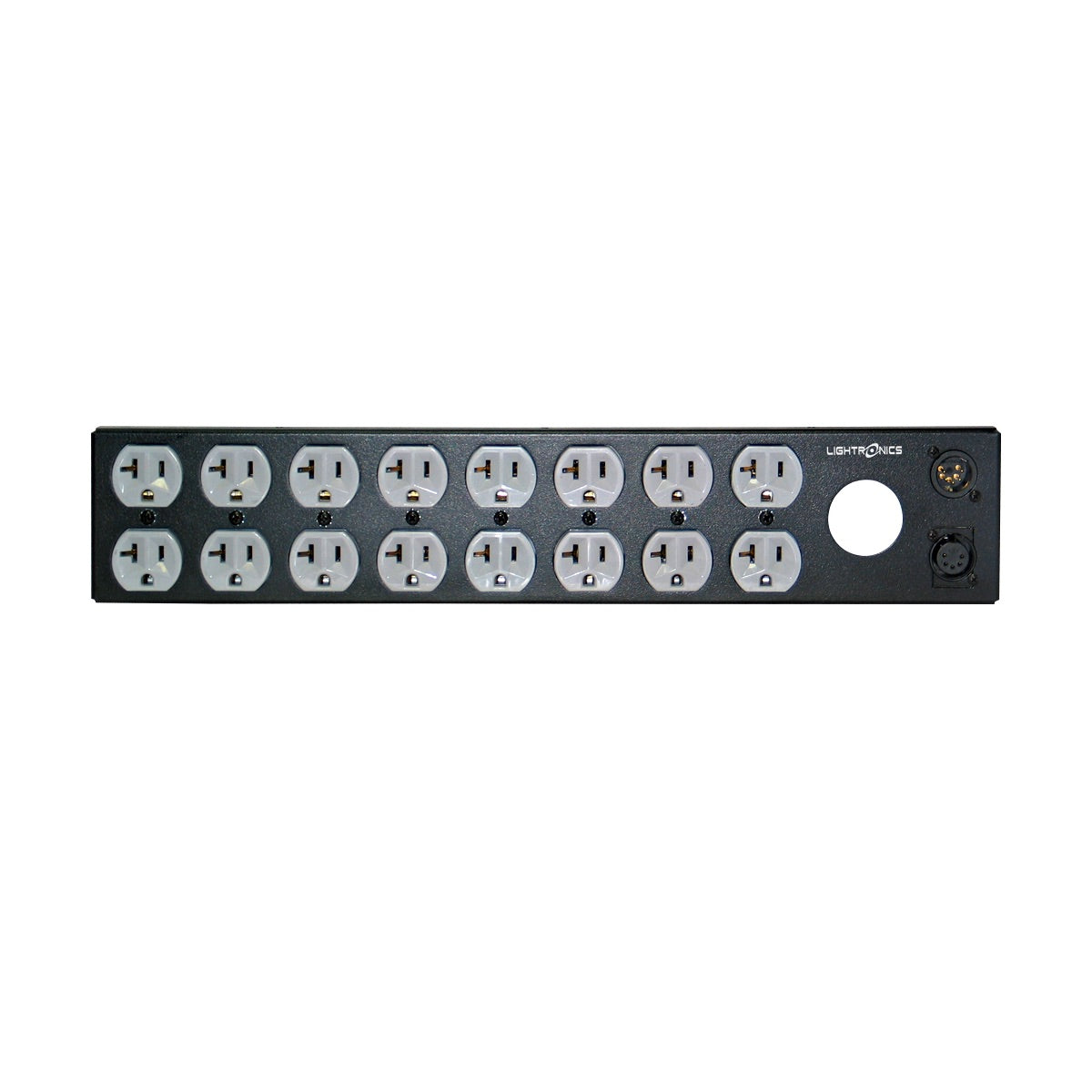

DP - Edison Duplex Outlet Panel

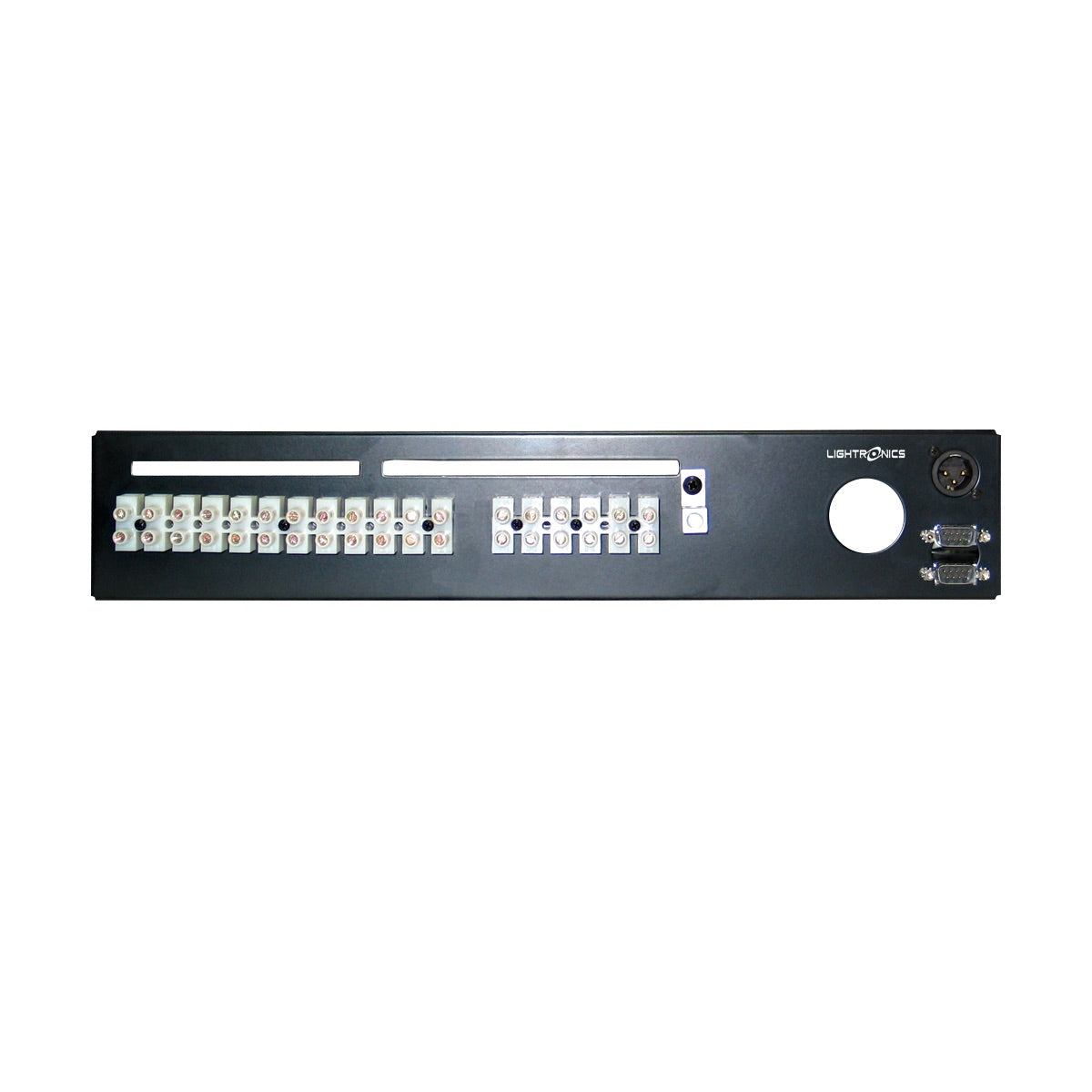

XT - Terminal/Barrier Connector Strip with Knockout Cover

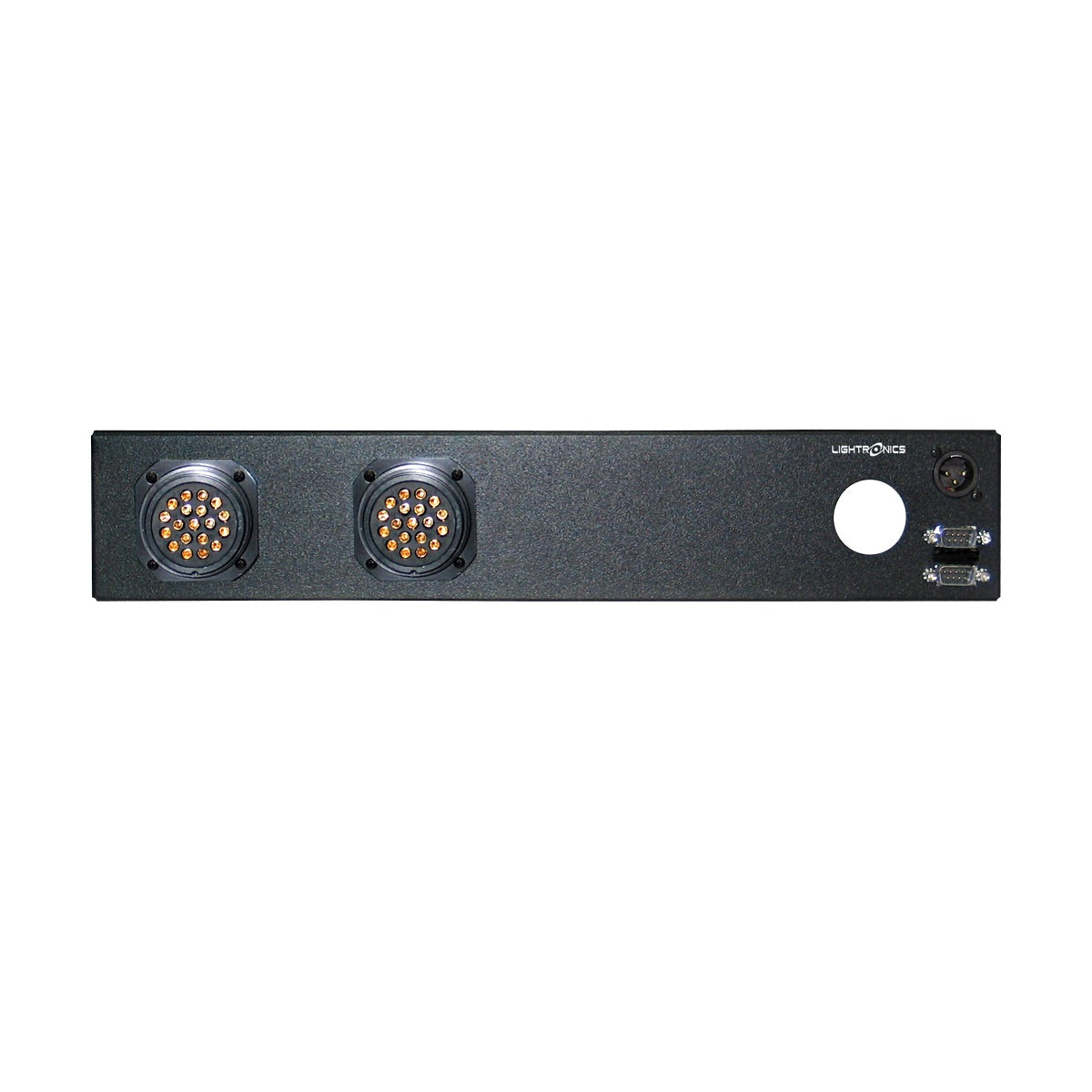

SO - Socapex Outlet Panel (Non UL-508 Compliant)

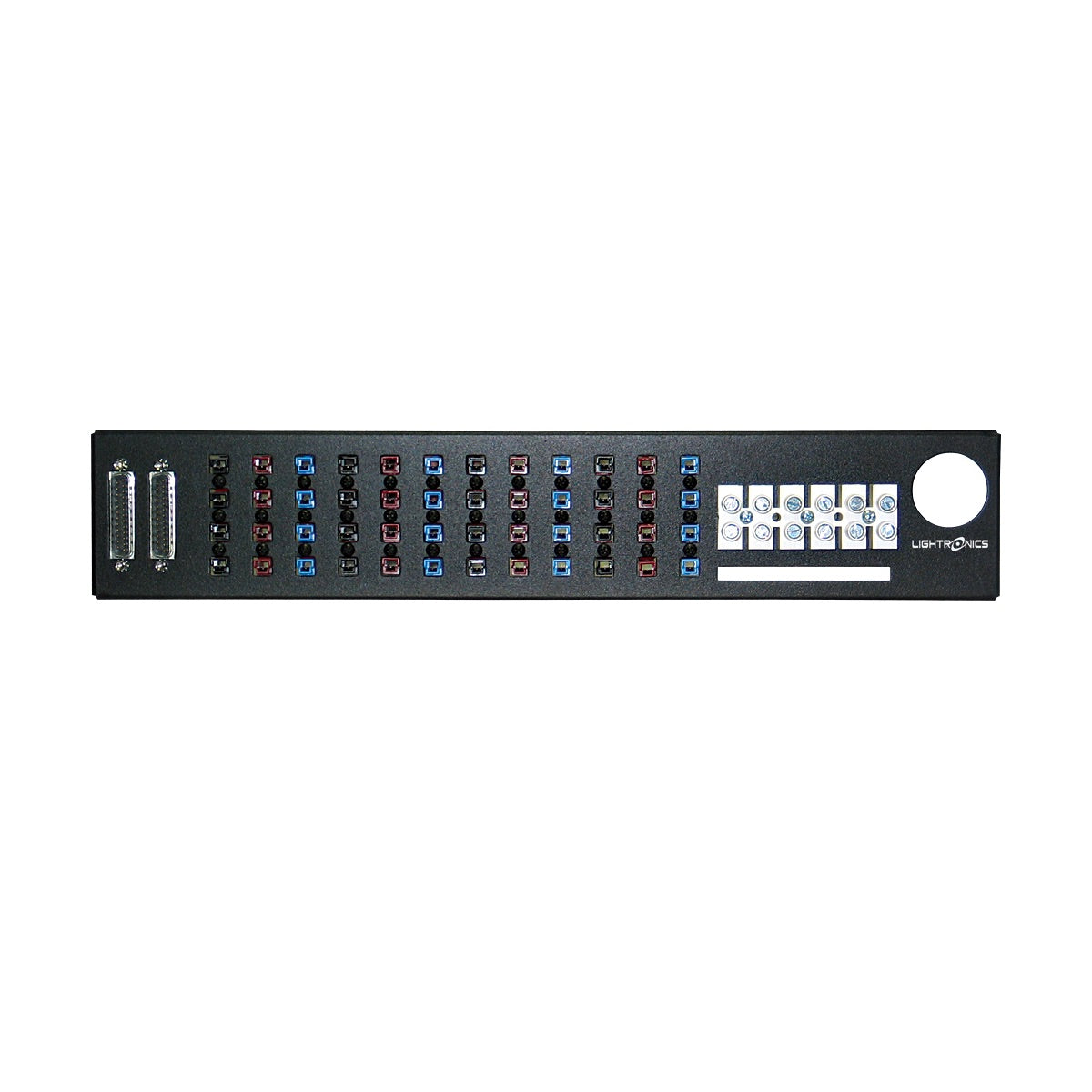

PL - Powerlock Outlet Panel (Non UL-508 Compliant)

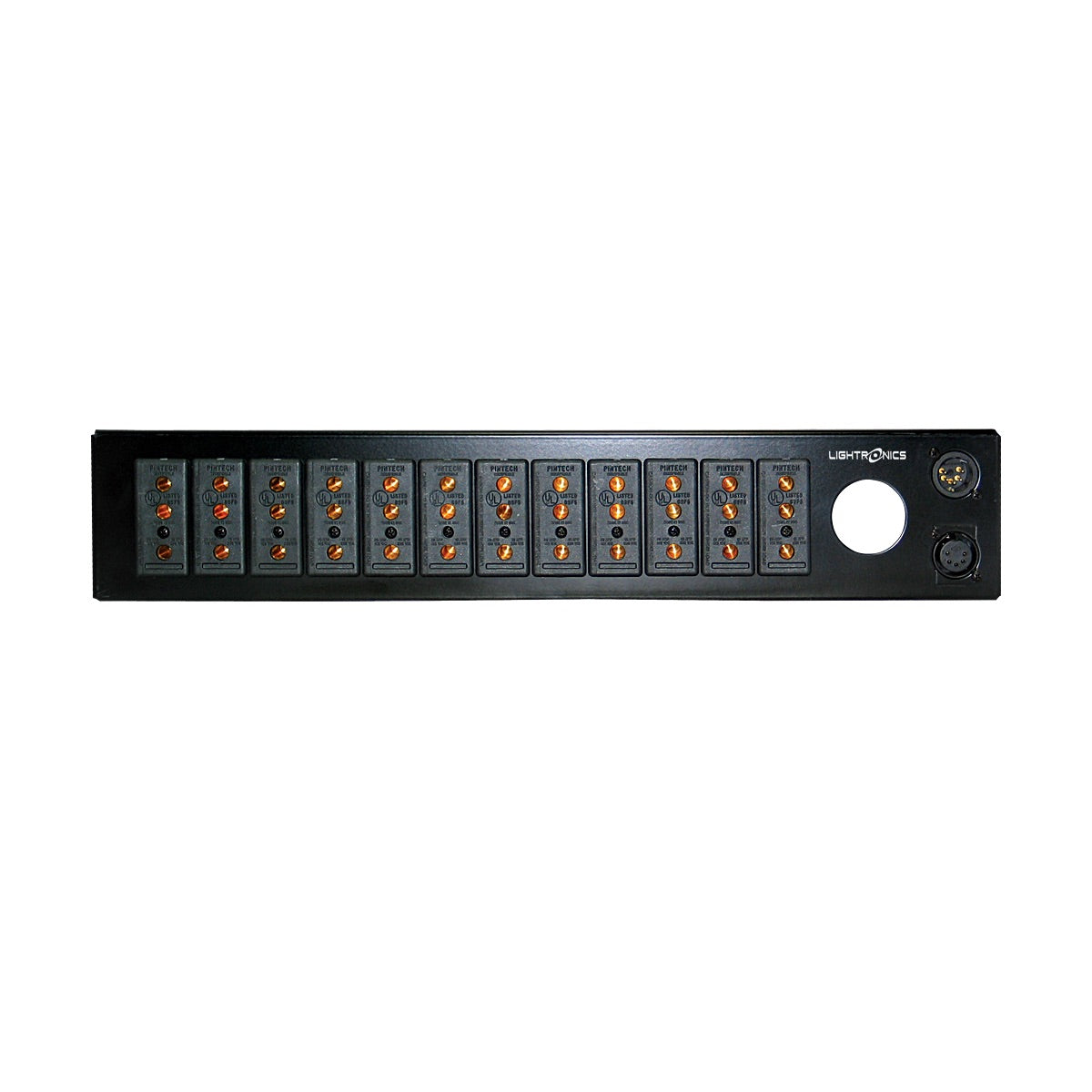

ST - Stagepin Outlet Panel (Non UL-508 Compliant)
