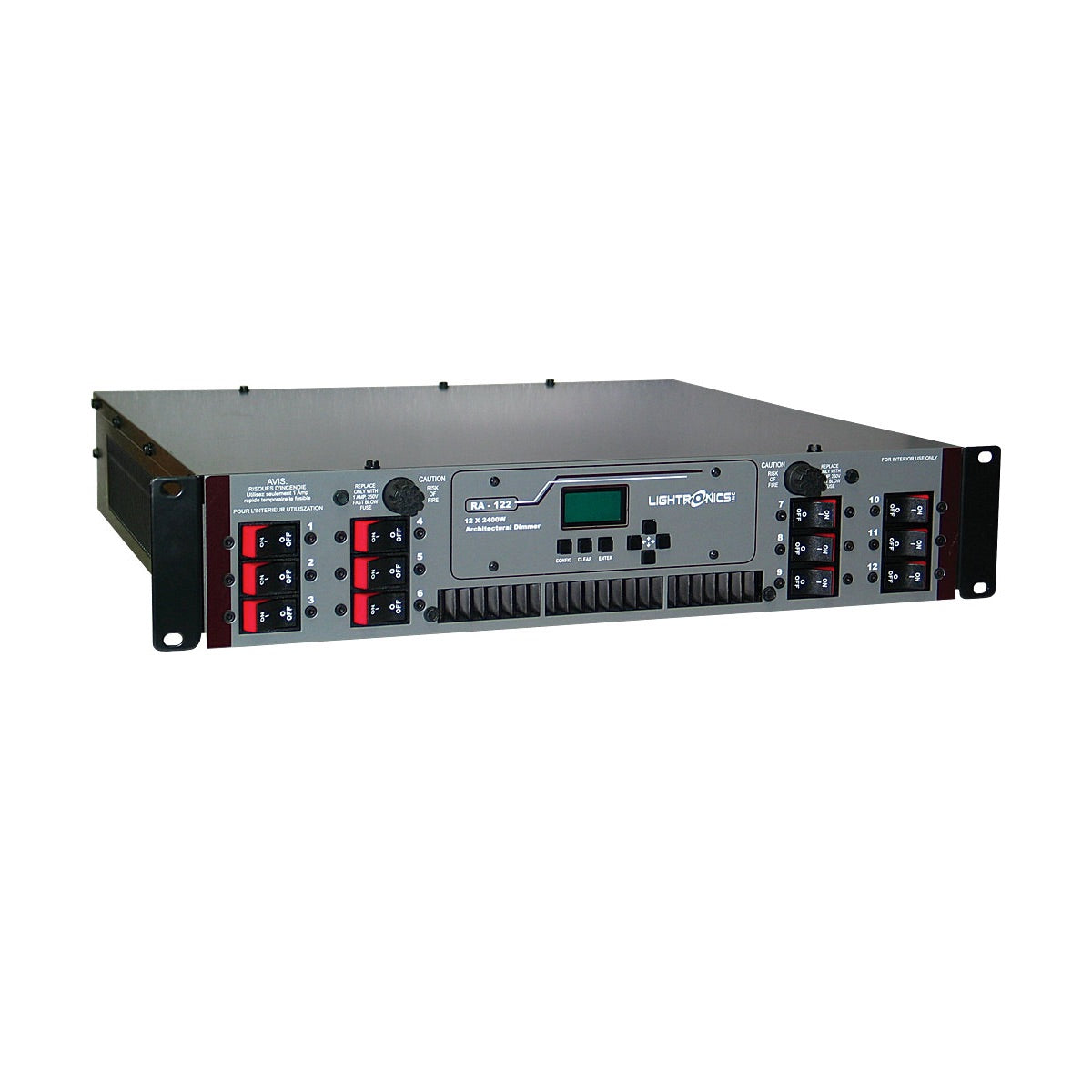

The Lightronics RA122 rack mount dimmer is suitable for church, stage, theater, school, night club, live performances and other event and artistic applications.
The RA122 consists of a processor and 12 dimmer channels of 2.4KW each. Each dimmer channel is protected by a 20 Amp circuit breaker. The RA122 accepts either single or three phase power. Heavy duty filtering chokes are used to reduce noise. Dimmer channel semiconductors exceed a 200% load carrying capacity overhead allowance. The RA122 may be controlled via DMX, any of our Unity smart remote stations, or momentary contact closure from switches, timeclocks, or motion sensor devices.
Features
• 12 Channels
• 2400W per Channel
• DMX-512
• RS-485
• Contact Closures
• 100 Scene Memory
• Fast Acting Magnetic Circuit Breakers
• 19" Rack Mount
• UL-508 Compliant
Channel Output Connection Panel Option

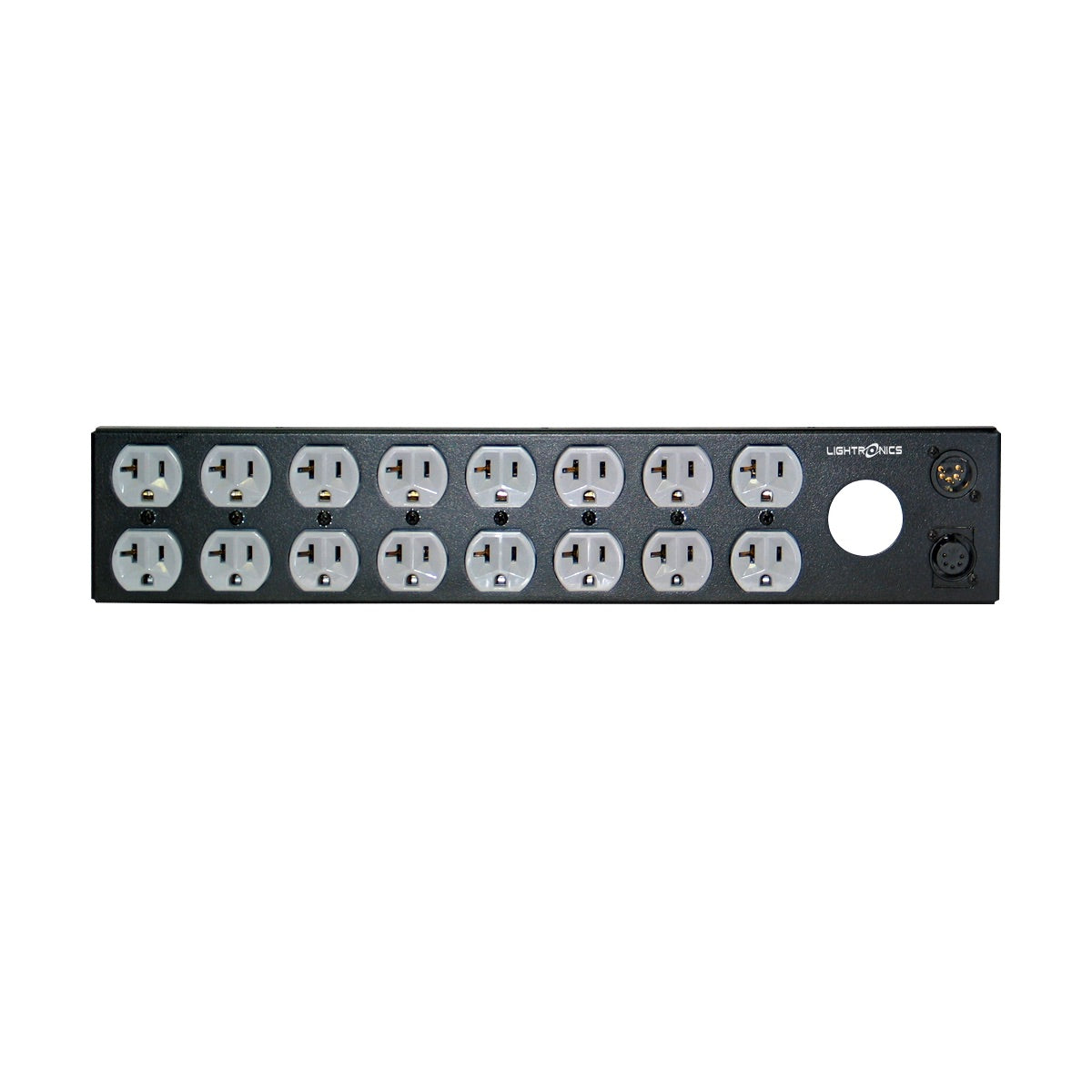

DP - Edison Duplex Outlet Panel

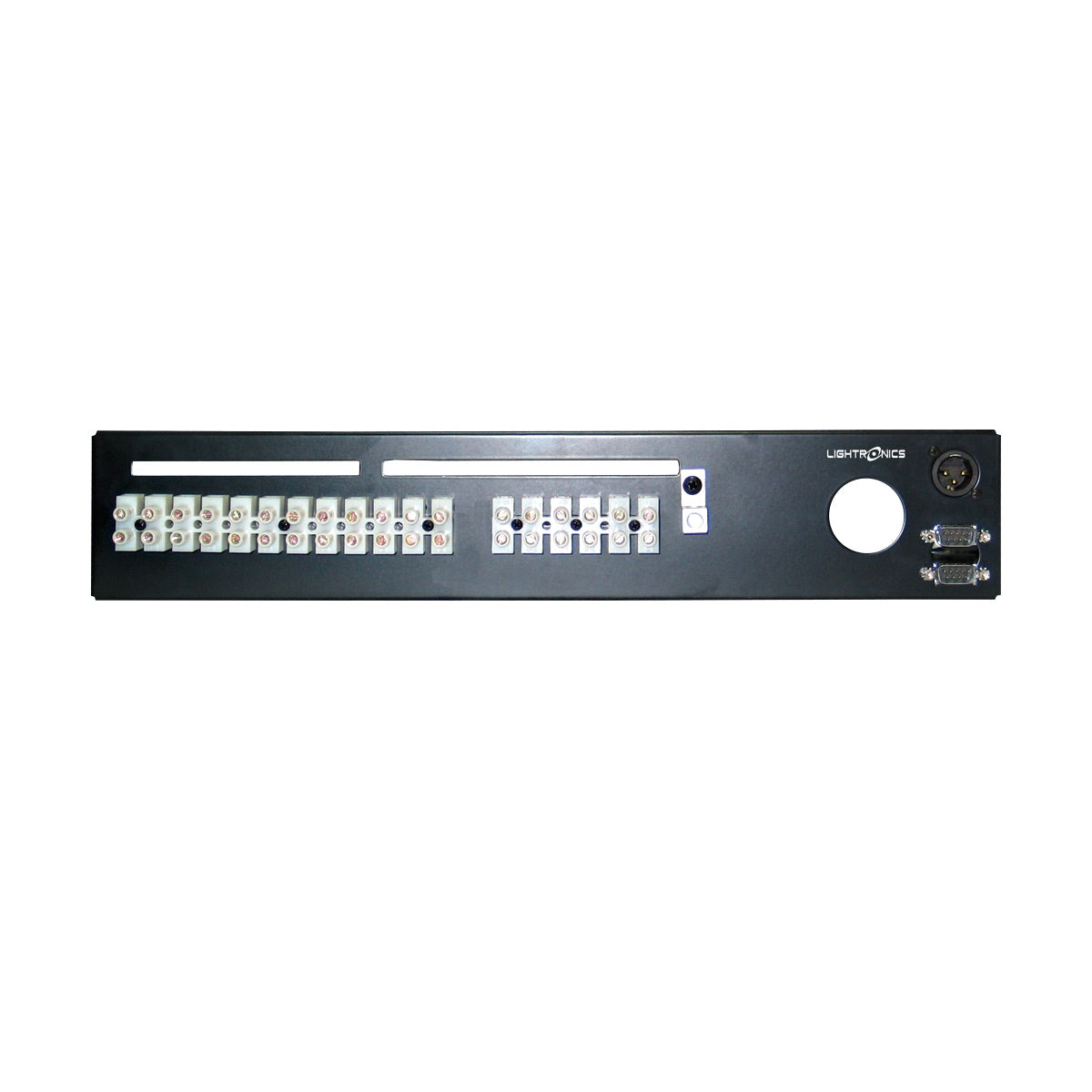

XT - Terminal/Barrier Connector Strip with Knockout Cover

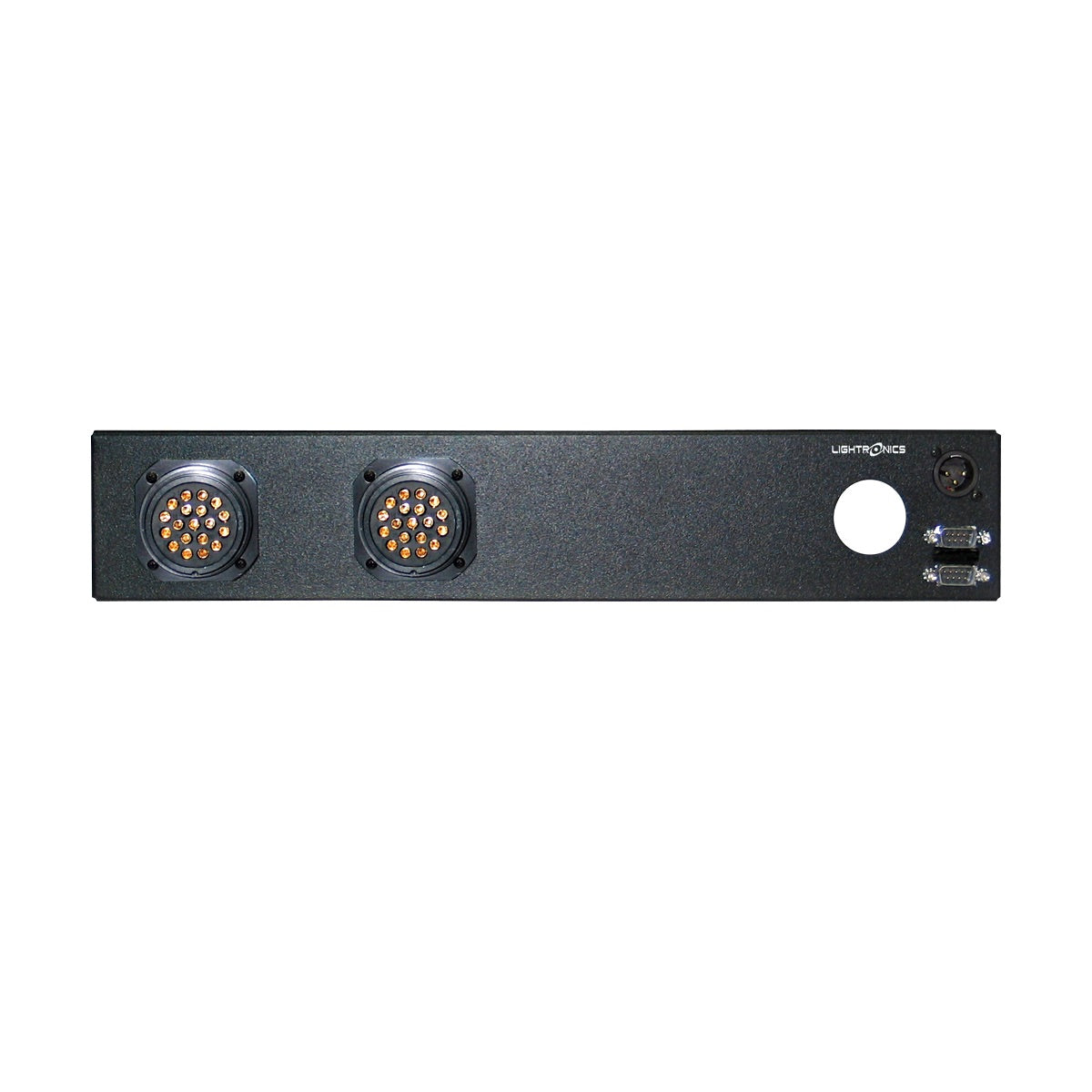

SO - Socapex Outlet Panel (Non UL-508 Compliant)
PL - Powerlock Outlet Panel (Non UL-508 Compliant)
