Description

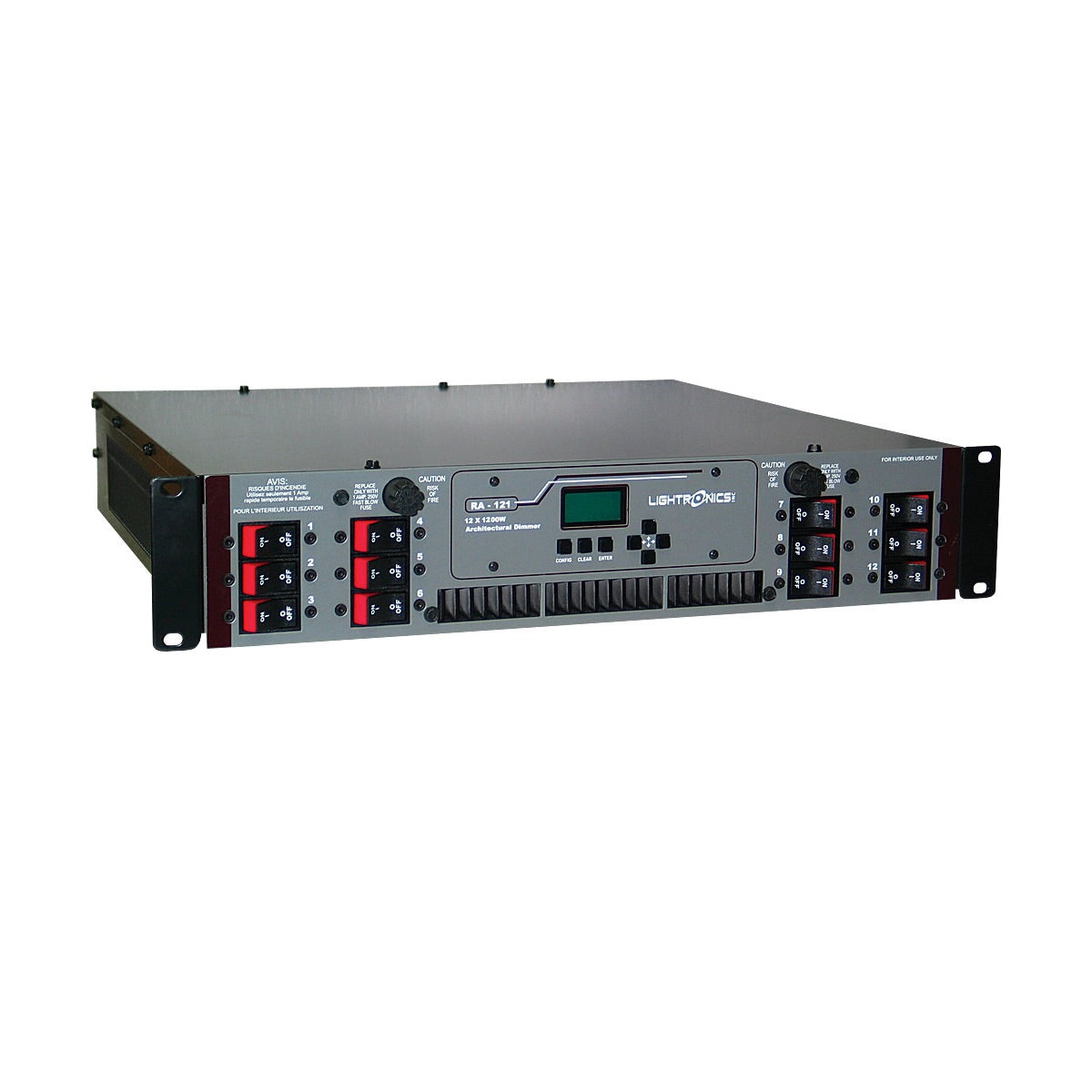

The Lightronics RA121 rack mount dimmer is suitable for church, stage, theater, school, night club, live performances and other event and artistic applications.
The RA121 consists of a processor and 12 dimmer channels of 1.2KW each. Each dimmer channel is protected by a 10 Amp circuit breaker. Heavy duty filtering chokes are used to reduce noise. Dimmer channel semiconductors exceed a 200% load carrying capacity overhead allowance. The RA121 may be controlled by DMX controllers and several types of wall remote stations.
Features
• 12 Channels
• 1200W per Channel
• DMX-512
• RS-485
• Contact Closures
• 100 Scene Memory
• Fast Acting Magnetic Circuit Breakers
• 19" Rack Mount
Channel Output Connection Panel Options
DP - Edison Duplex Outlet Panel

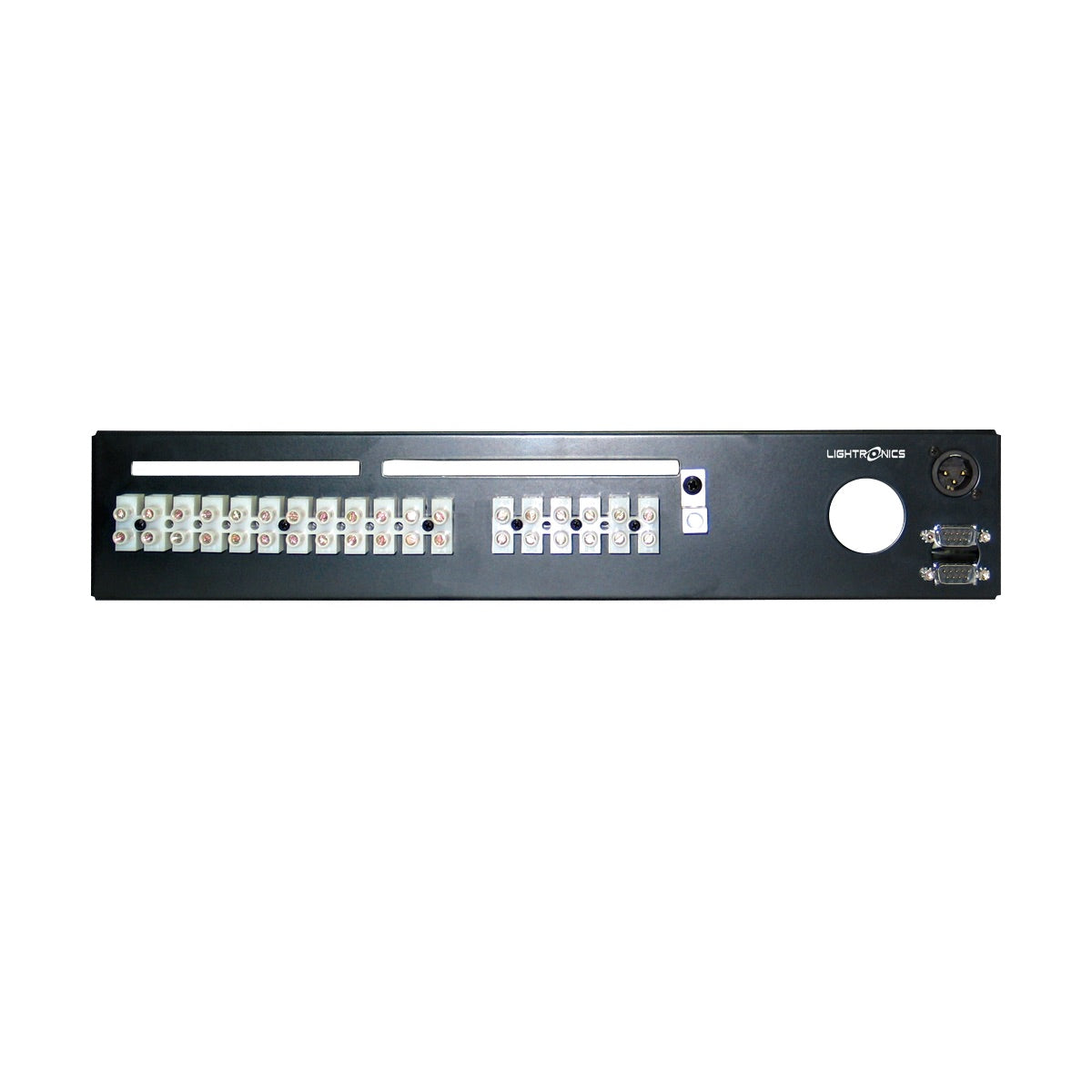

XT - Terminal/Barrier Connector Strip with Knockout Cover

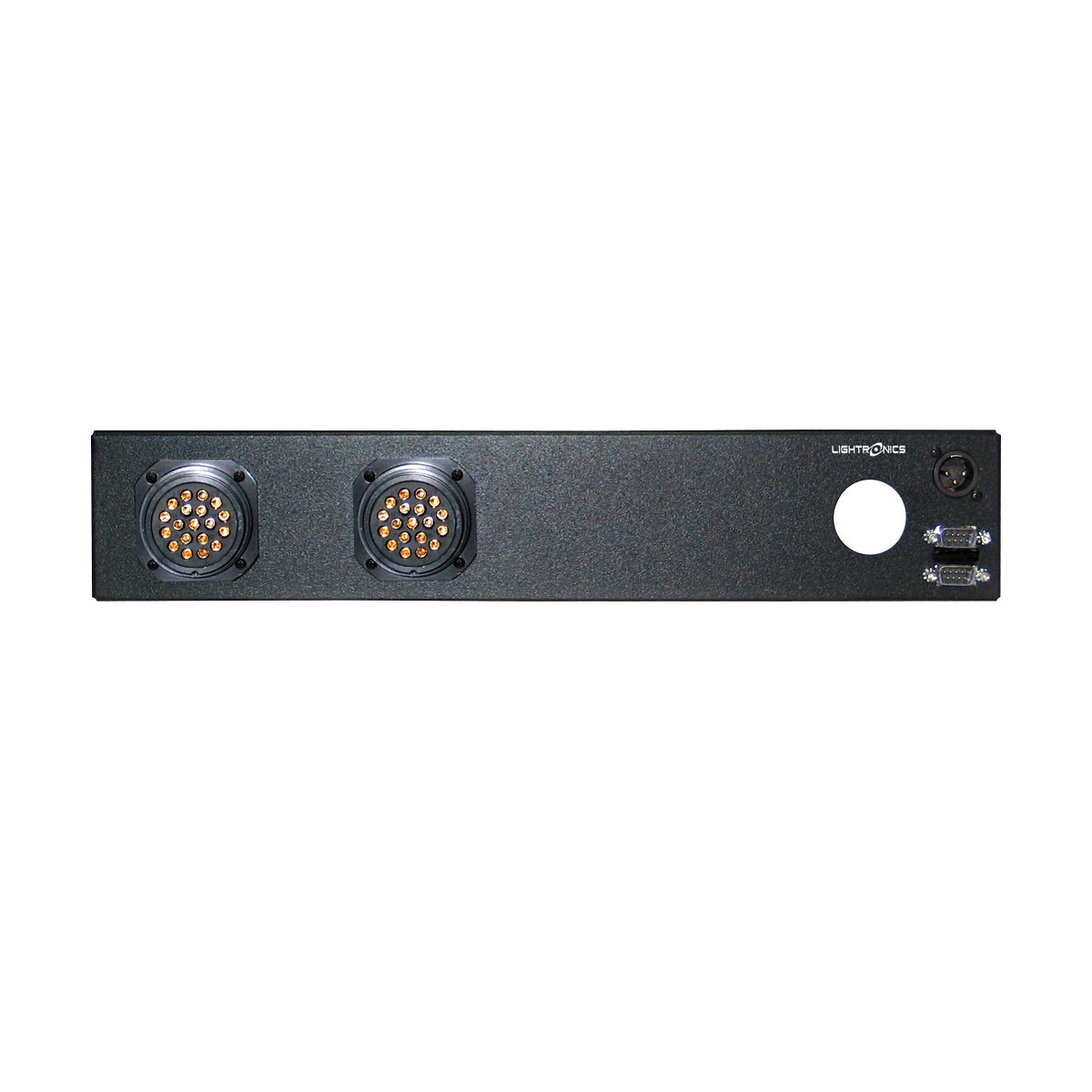

SO - Socapex Outlet Panel (Non UL-508 Compliant)

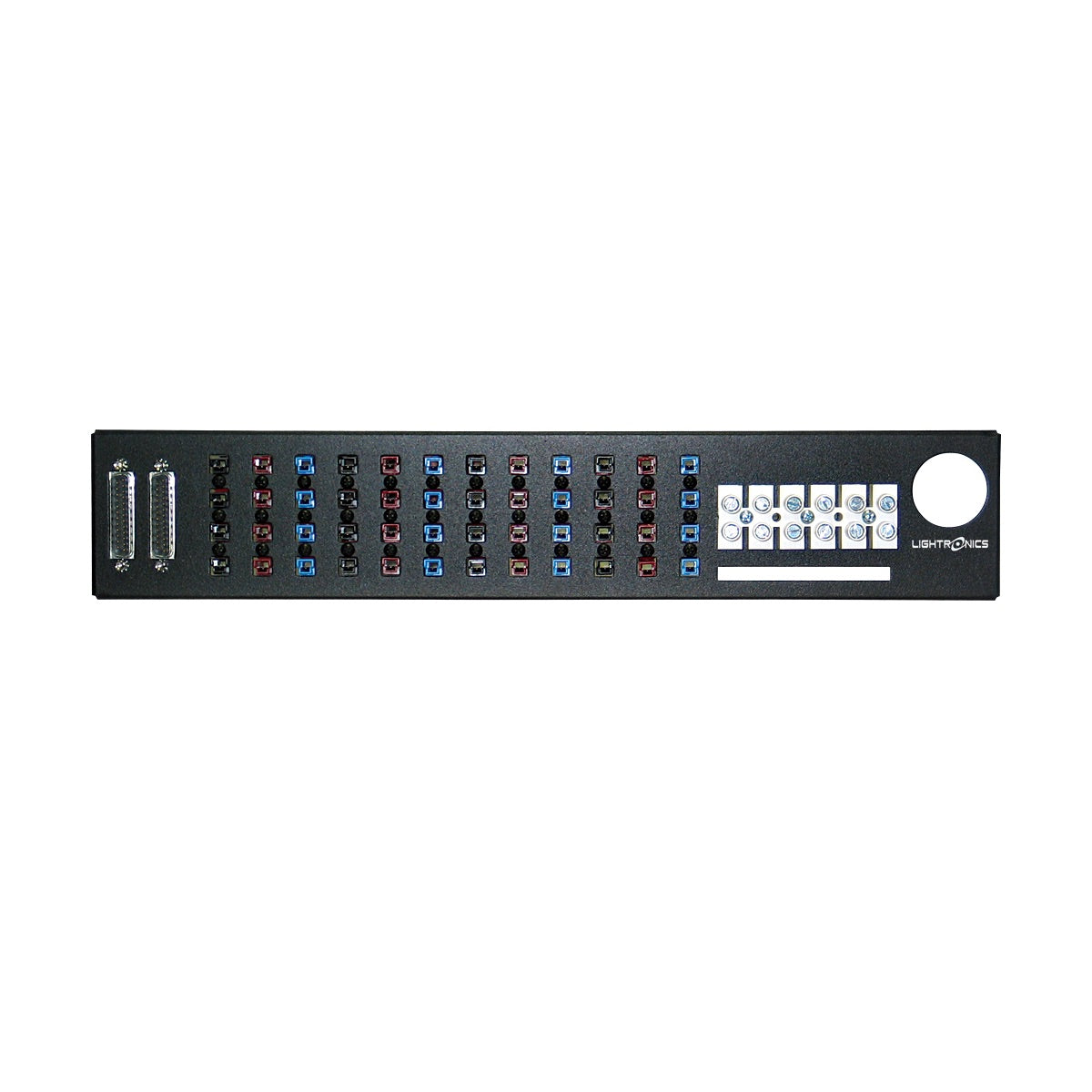

PL - Powerlock Outlet Panel (Non UL-508 Compliant)
