The Lightronics AK Series remote units are wall mounted, multiscene remotes for use with the Lightronics AR1202 architectural dimmer and certain other Lightronics products. Each button activates a complete lighting scene. LED indicators show which scene active. There are currently three models available: AK1005 5 Scenes, AK1003 3 Scenes and AK1002 2 Scenes.
AK Series units fit into standard single gang wall switch boxes. They communicate with the AR1202 via a 4 wire bus which will accommodate several remotes and other controls. All wiring is low voltage. The units generally operate in an exclusive mode where only one scene can be active at a time. Each scene may be toggled on and off. When a scene is selected, the AR1202 circuits fade, at a user controlled rate, to the setting for that scene. Scenes activated by these remotes are actually set up and stored in the AR1202 dimmer. The remotes only tell the AR1202 which scene(s) to activate.

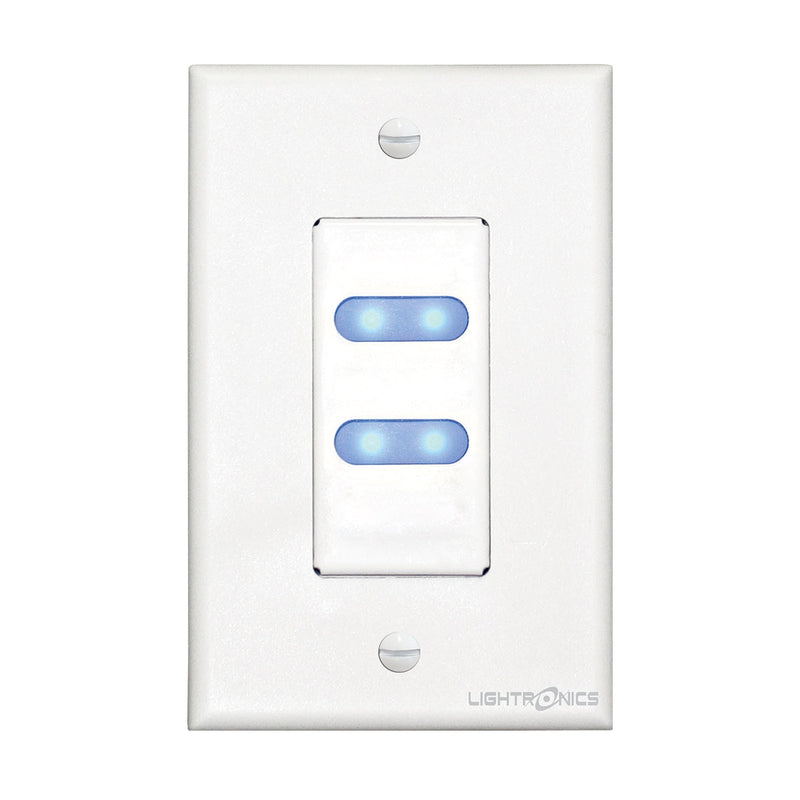

AK1002 Features
• 2 Scene Push Button
• Toggle Scene Control
• Blue LED Backlit Buttons
• Fits Single Gang Wall Box
• All Low Voltage Wiring
• Button Engraving Available
