Description

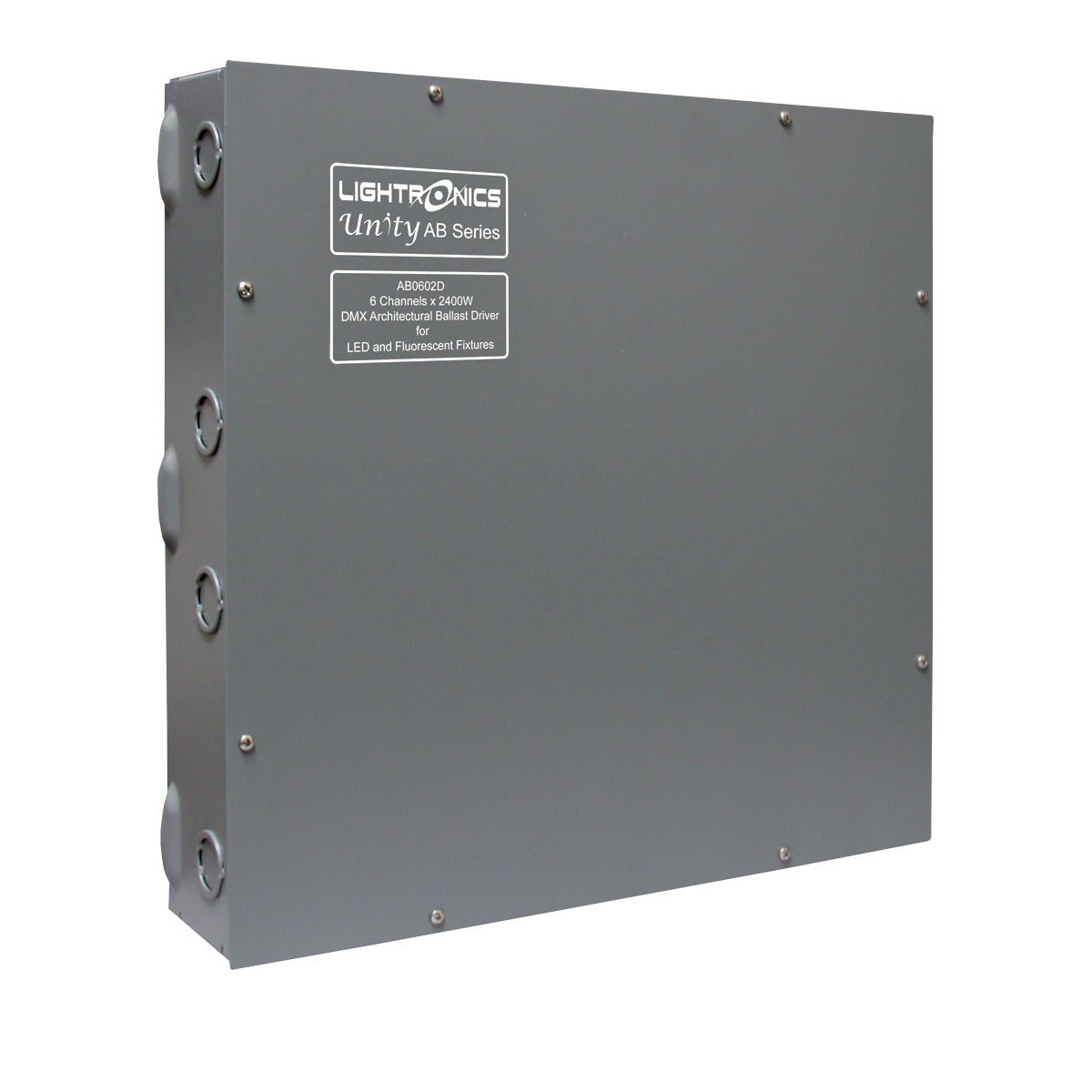

The Lightronics AB0602D is a 6 circuit, 2400 Watts per circuit ballast driver intended for dimmable fluorescent and LED fixtures which use a switched 120VAC hot feed and a 0-10 VDC analog control signal to operate them. A three circuit version (AB0302D) is also available and operates identically. The AB0602D can also be used as a conventional relay pack by using only the switched hot feed controls without the 0-10 VDC analog signal.
Features
• 6 Channels
• 2400 Watts Each
• 14,400 Total Wattage
• DMX Input
• Soft-patching per Channel
• Contact Closure Controls
• Unity Architectural Remote Station Port
• Stores 64 Programmable Scenes
• "Snapshot" Recording of Scenes
• "ON" and "OFF" Threshold Adjustment for Each Channel
• UL-508 Compliant
• DC Dimmed - Switched HOT, 0-10V DC Dimmed Class II output
