Description

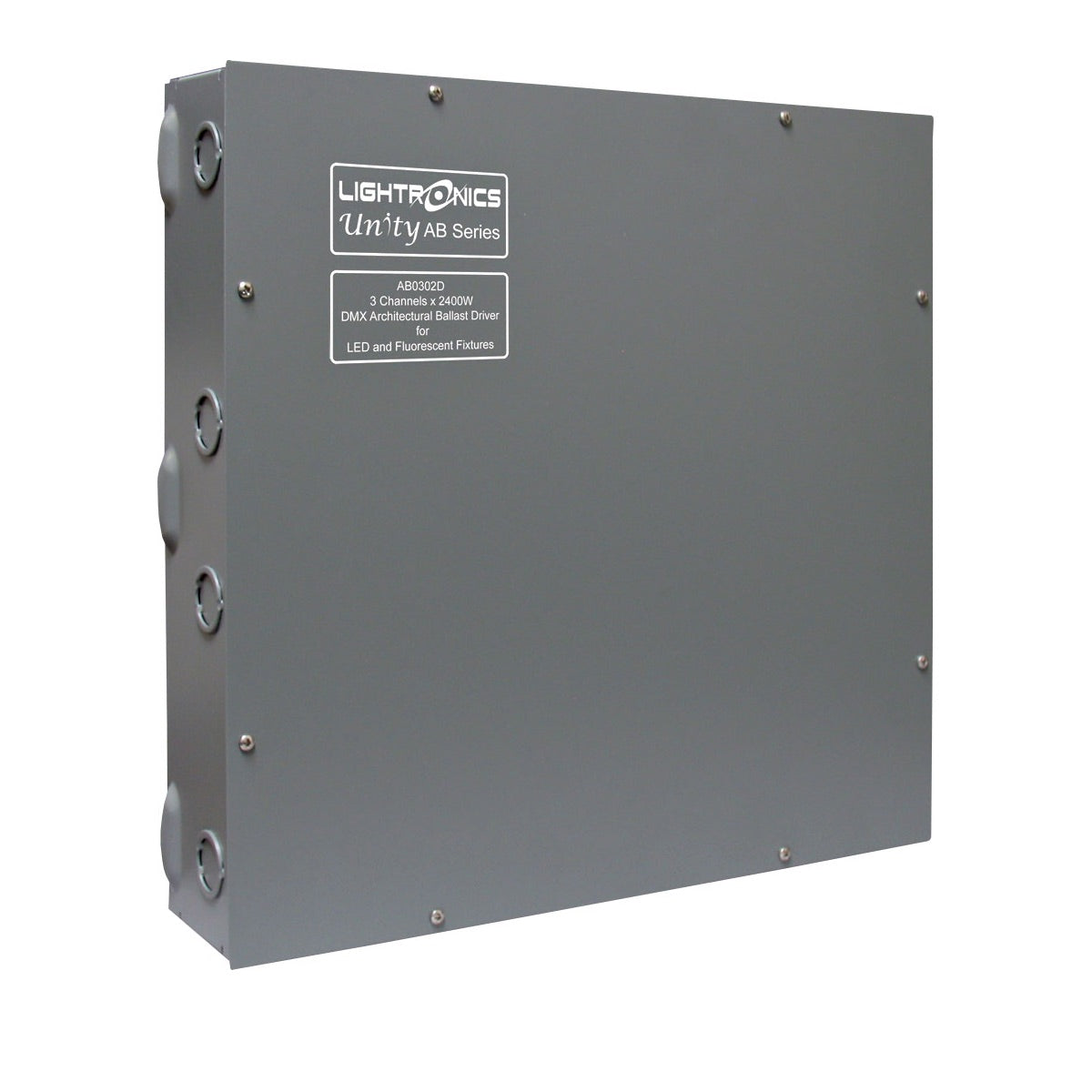

The Lightronics AB0302D is a 3 circuit, 2400 Watts per circuit ballast driver intended for dimmable fluorescent and LED fixtures which use a switched 120VAC hot feed and a 0-10VDC analog control signal to operate them. The AB0302D can also be used as a conventional relay pack by using only the switched hot feed controls without the 0 - 10VDC analog signal.
Features
• 3 Channels
• 2400 Watts Each
• 7200 Total Wattage
• DMX Input
• Soft-patching per Channel
• Contact Closure Controls
• Unity Architectural Remote Station Port
• Stores 64 Programmable Scenes
• "Snapshot" Recording of Scenes
• "ON" and "OFF" Threshold Adjustment for Each Channel
• UL-508 Compliant
• DC Dimmed - Switched HOT, 0-10V DC Dimmed Class II output
