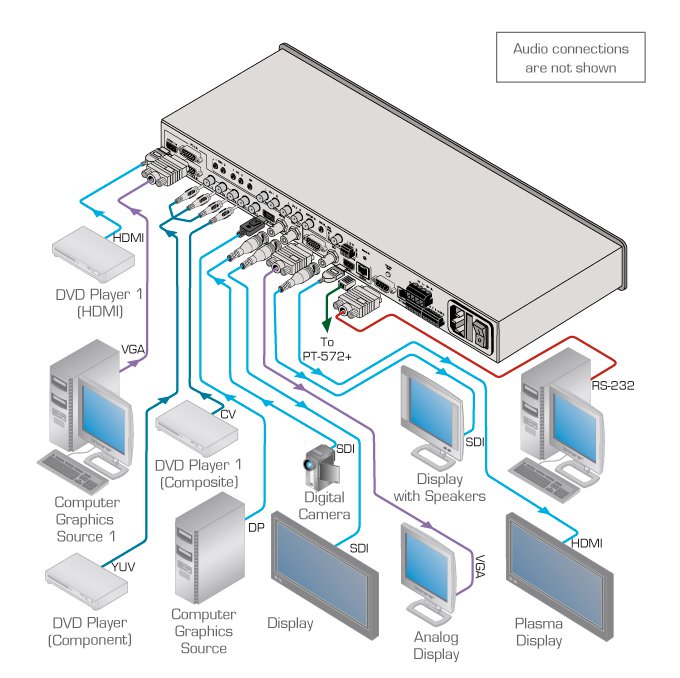

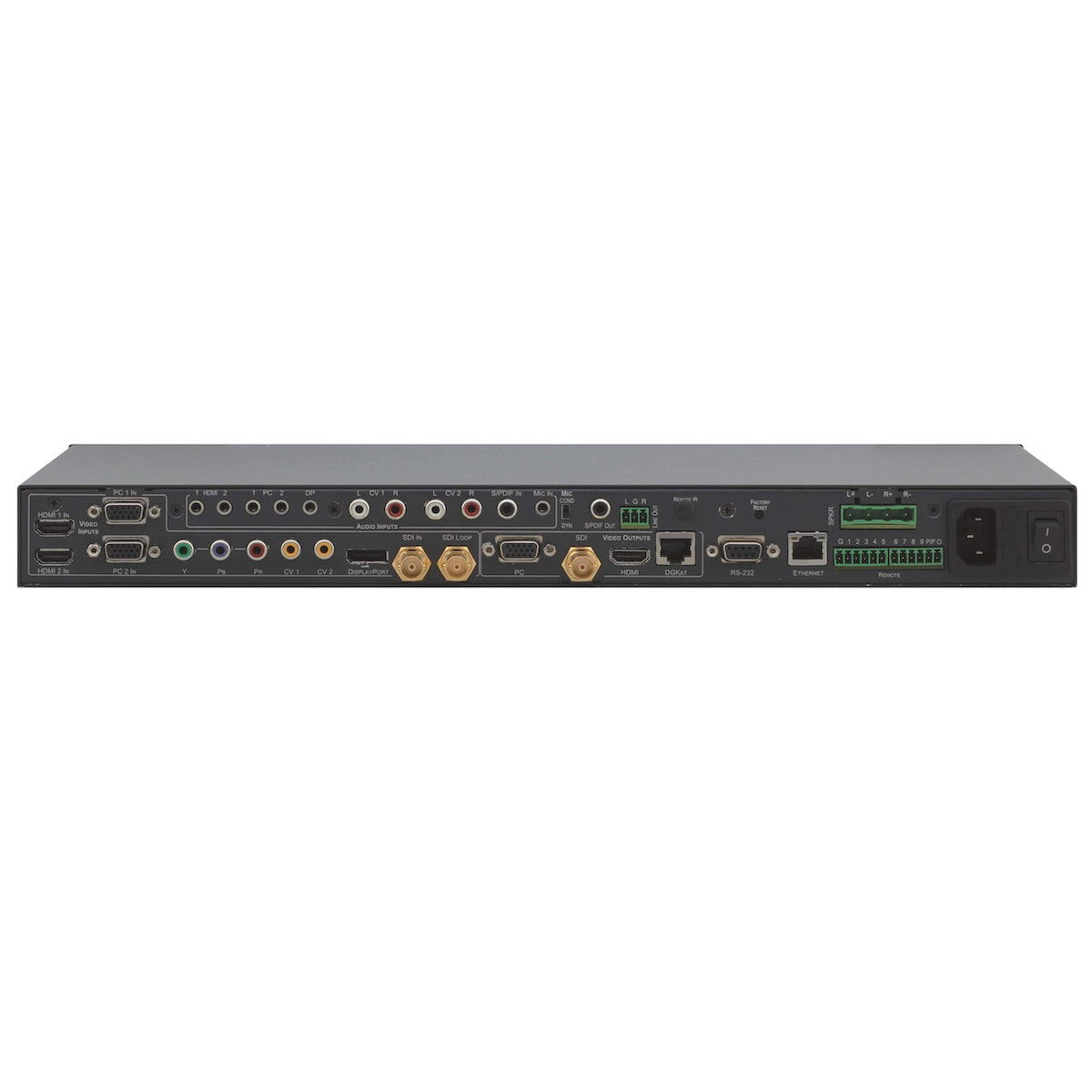

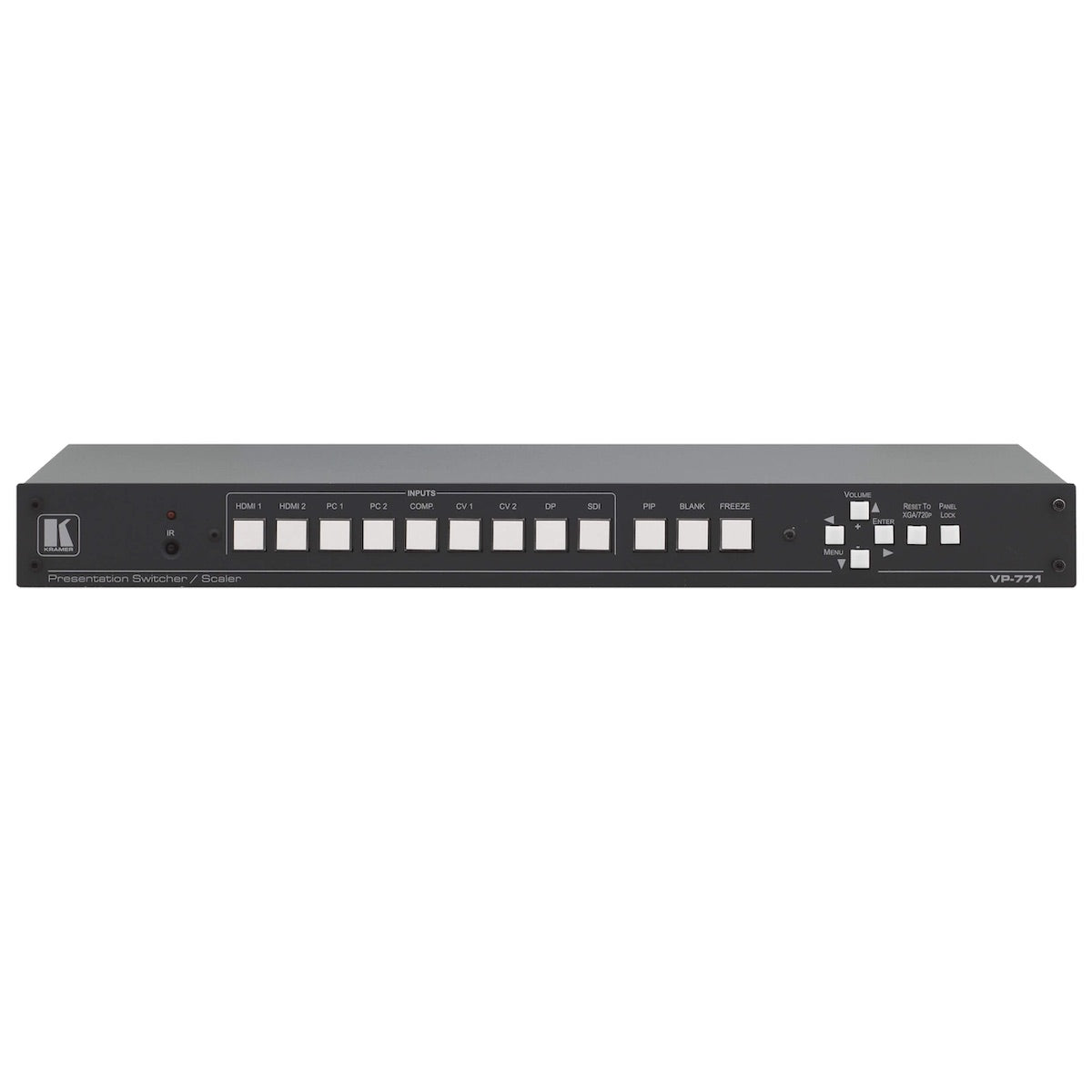

The Kramer VP-771 is a high-quality presentation switcher and scaler for a variety of signals. It accepts one of nine inputs: component video, DisplayPort (DP), 3G HD-SDI, two computer graphics, two composite video and two HDMI signals. It scales the video, embeds the audio, and outputs the signal to one HDMI, one computer graphics, one 3G HD-SDI and one DGKat TP, together with digital audio, unbalanced stereo and a 2x10-watt amplified balanced stereo speaker output.
Features
• PixPerfect Scaling Technology
• Fade-Thru-Black Clean Ultra Fast Switching
• Mass Notification Emergency System
• K-IIT XL Picture-in-Picture
• Luma Keying via PiP Window
• Output Resolutions - Up to 2K and 1080p
• Speaker Outputs - 2x10W Power Amplifier
• Control - RS-232, IR & Ethernet
• Size - Standard 19" (1U). Rack "ears" included.
• Audio - U/B/D/E
