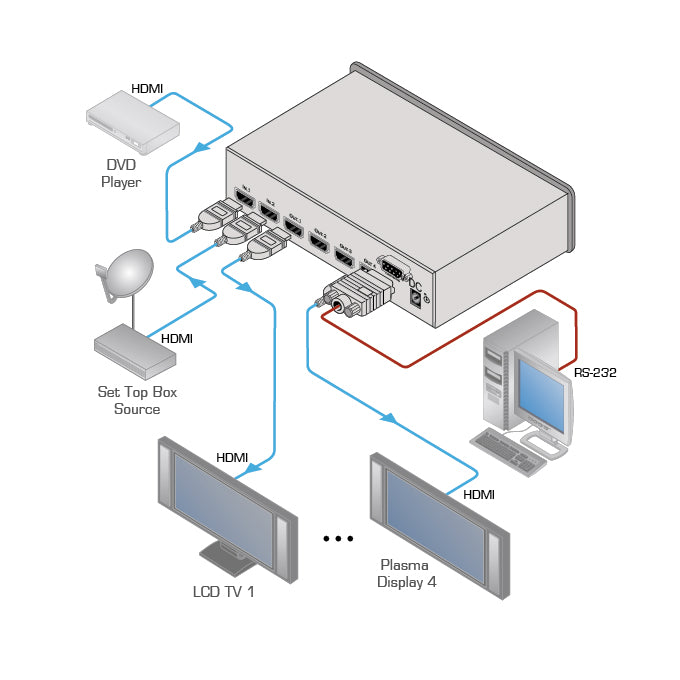

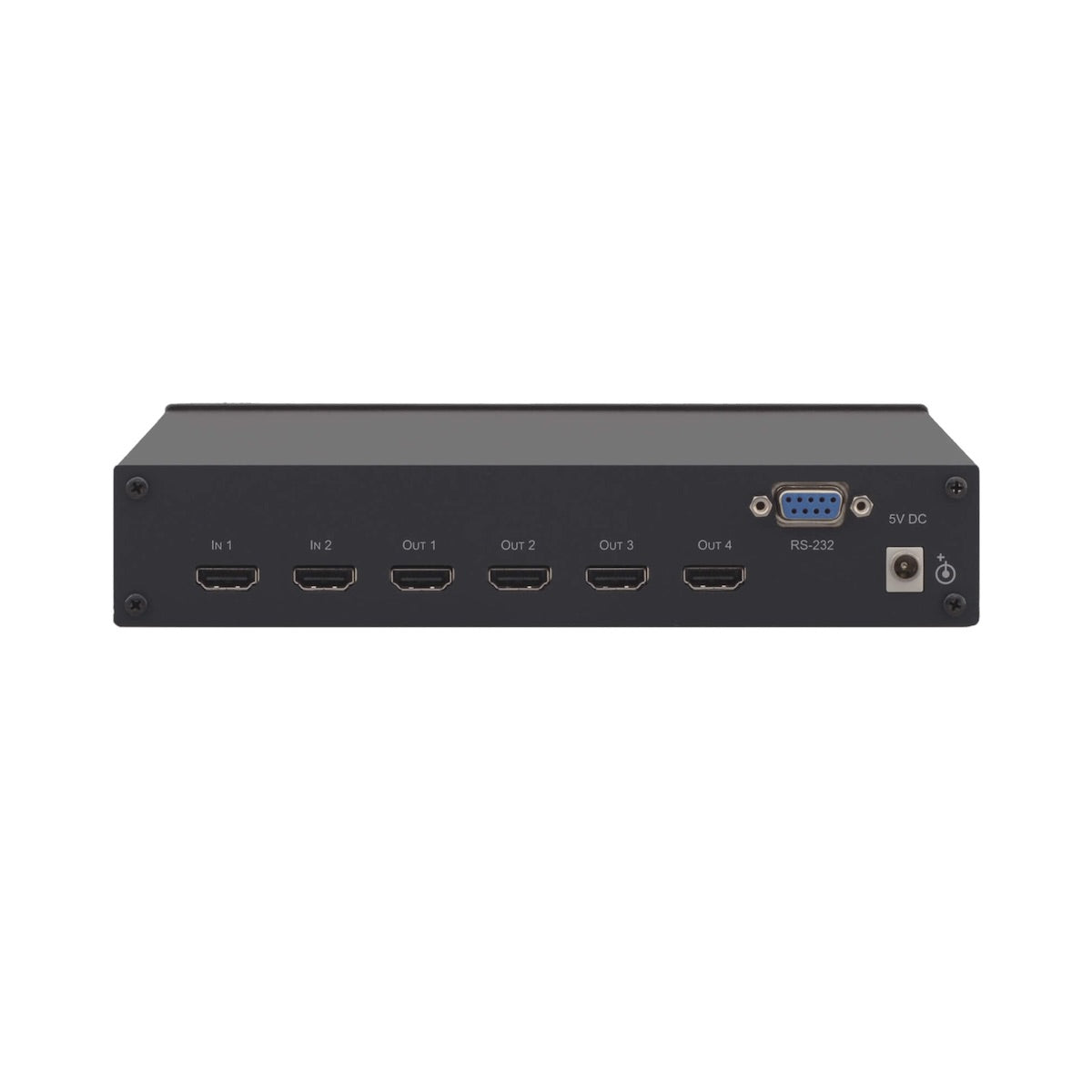

The Kramer VM-24HC is a high-performance switcher and distribution amplifier for HDMI signals. The unit accepts one of two HDMI inputs and distributes the selected signal to four HDMI outputs.
Features
• Max. Data Rate - 6.75Gbps (2.25Gbps per graphics channel)
• HDTV Compatible
• HDCP Compliant
• I-EDIDPro Kramer Intelligent EDID Processing - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
• EDID Handling - Acquires the EDID from one output, from all connected outputs (auto-mix) or uses a default EDID
• Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances
• HDMI Support - With Deep Color, x.v.Color, up to 7.1 Uncompressed Audio Channels
• 3D Pass-Through

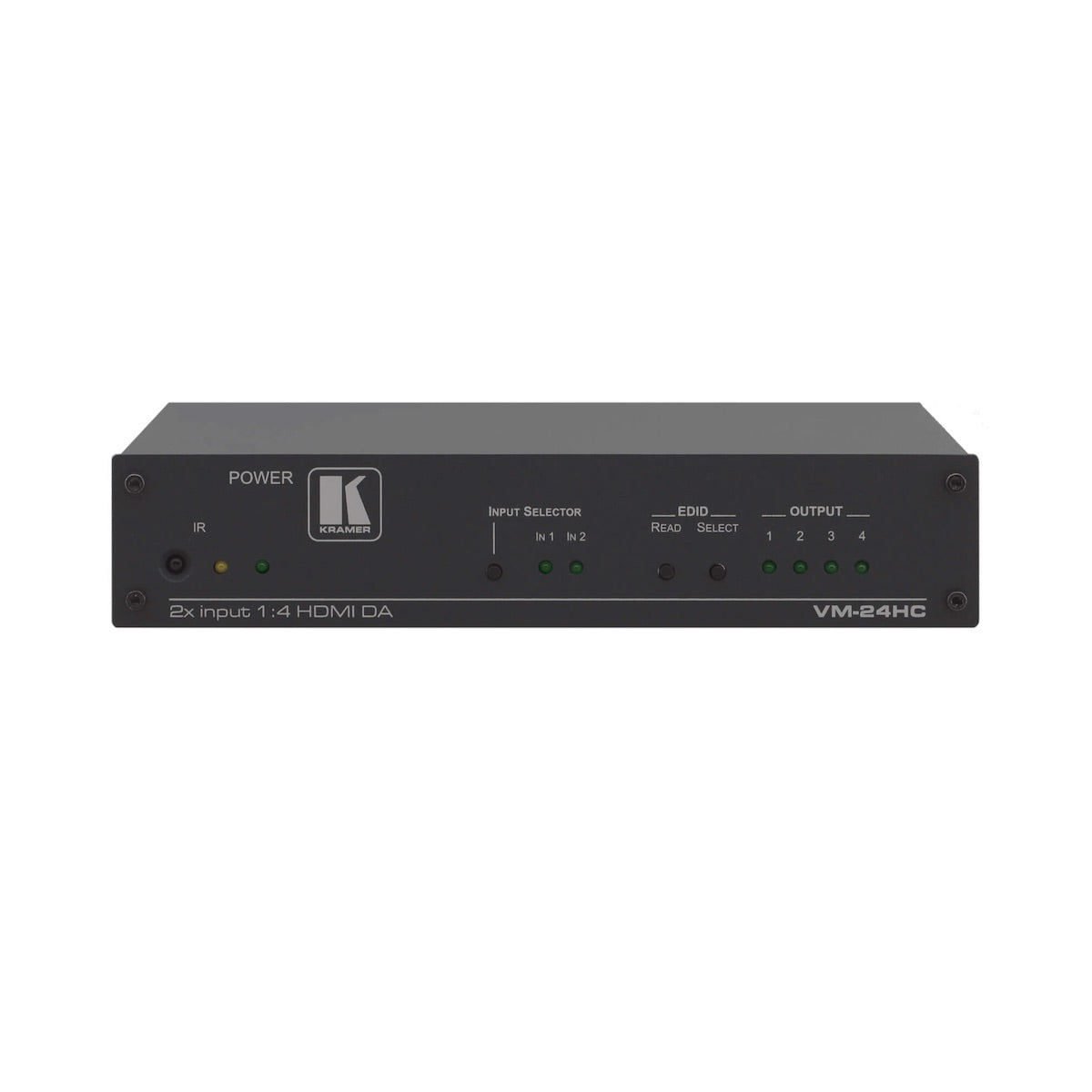

• Flexible Control Options - Front panel, IR remote & RS-232
• Desktop Size - Compact size. 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter
Applications
• Home theater, presentation and multimedia applications
• Rental and staging
