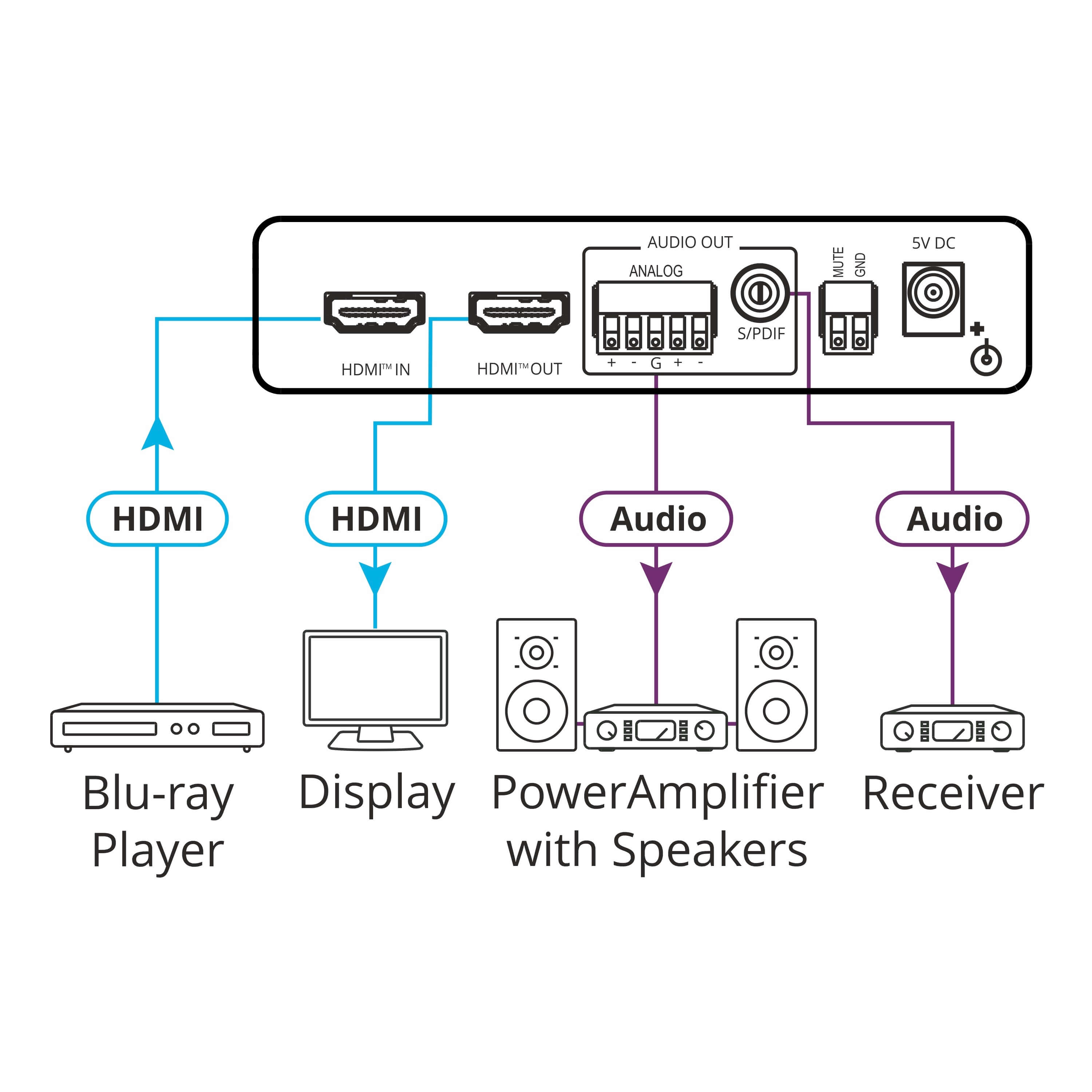

The Kramer FC−46H2 is a professional 4K HDR HDMI audio de−embedder for HDMI signals up to 4K@60Hz (4:4:4) resolution. The unit de−embeds the audio signal from the HDMI input or from the HDMI output ARC (Audio Return Channel) and simultaneously outputs it to the S/PDIF and 5−pin balanced audio outputs.
Features
• 18Gbps max. data rate
• Deep Color up to 12–bit
• De–embed from the HDMI output or ARC
• Output to digital or analog audio
• Smart EDID management
Professional HDMI Audio De–embedder
De–embeds the audio from HDMI signals with resolution up to 4K@60Hz (4:4:4) and data rate up to 18Gbps (6Gbps per graphic channel), deep color up to 12–bit, supporting HDR and HDCP 2.2/1.4.
Flexible De–embedding
De–embed the audio from the HDMI input or from the HDMI output ARC (Audio Return Channel).
Varied Output Options
De–embedded audio is simultaneously output to an S/PDIF and 5–pin balanced audio outputs.
Smart EDID Management
Select one of the EDID management modes using the DIP–switches: pass–through, lock or force 2 channel LPCM.
Kramer re–Klocking™ and Equalization Technology
Rebuilds the digital signal to travel longer distances.

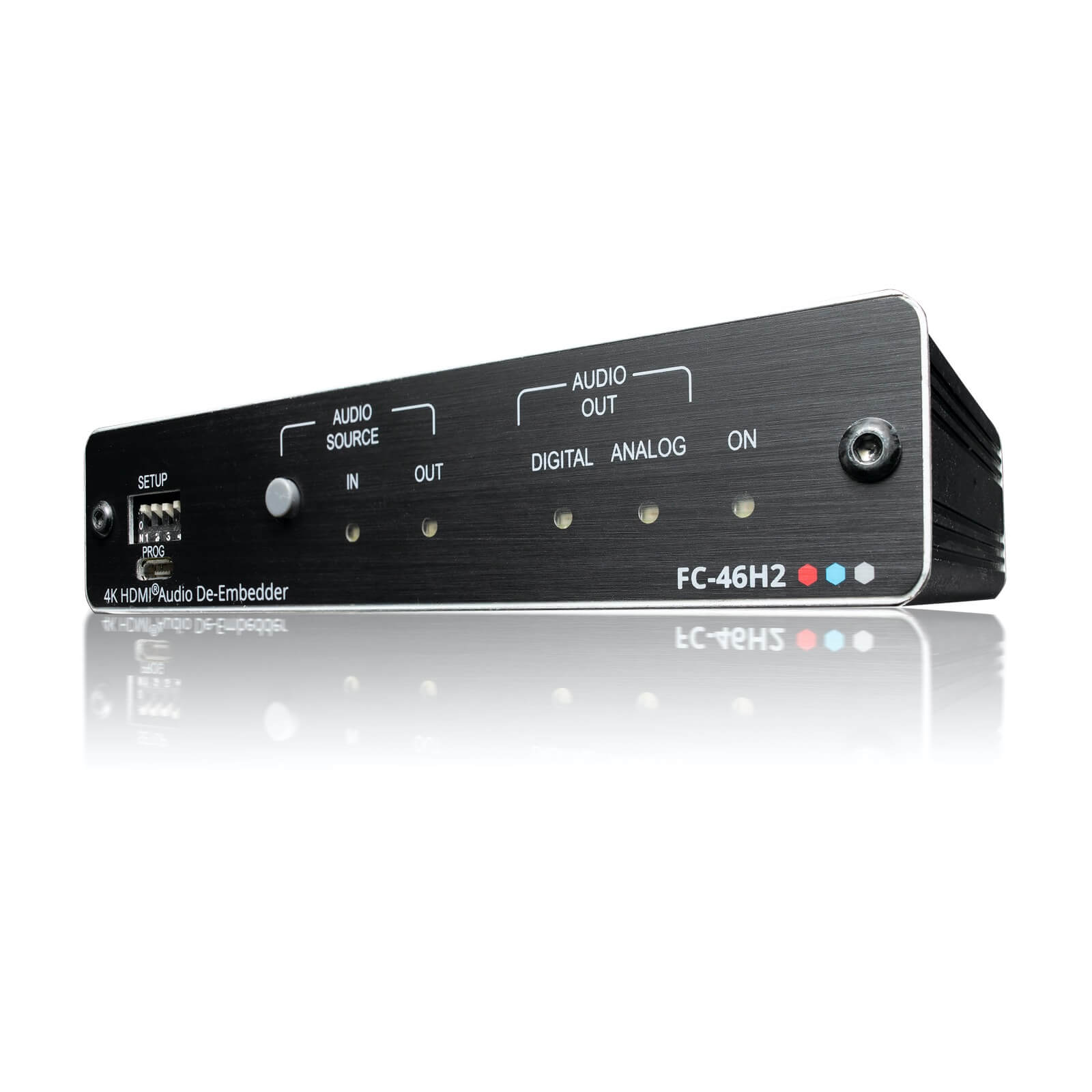

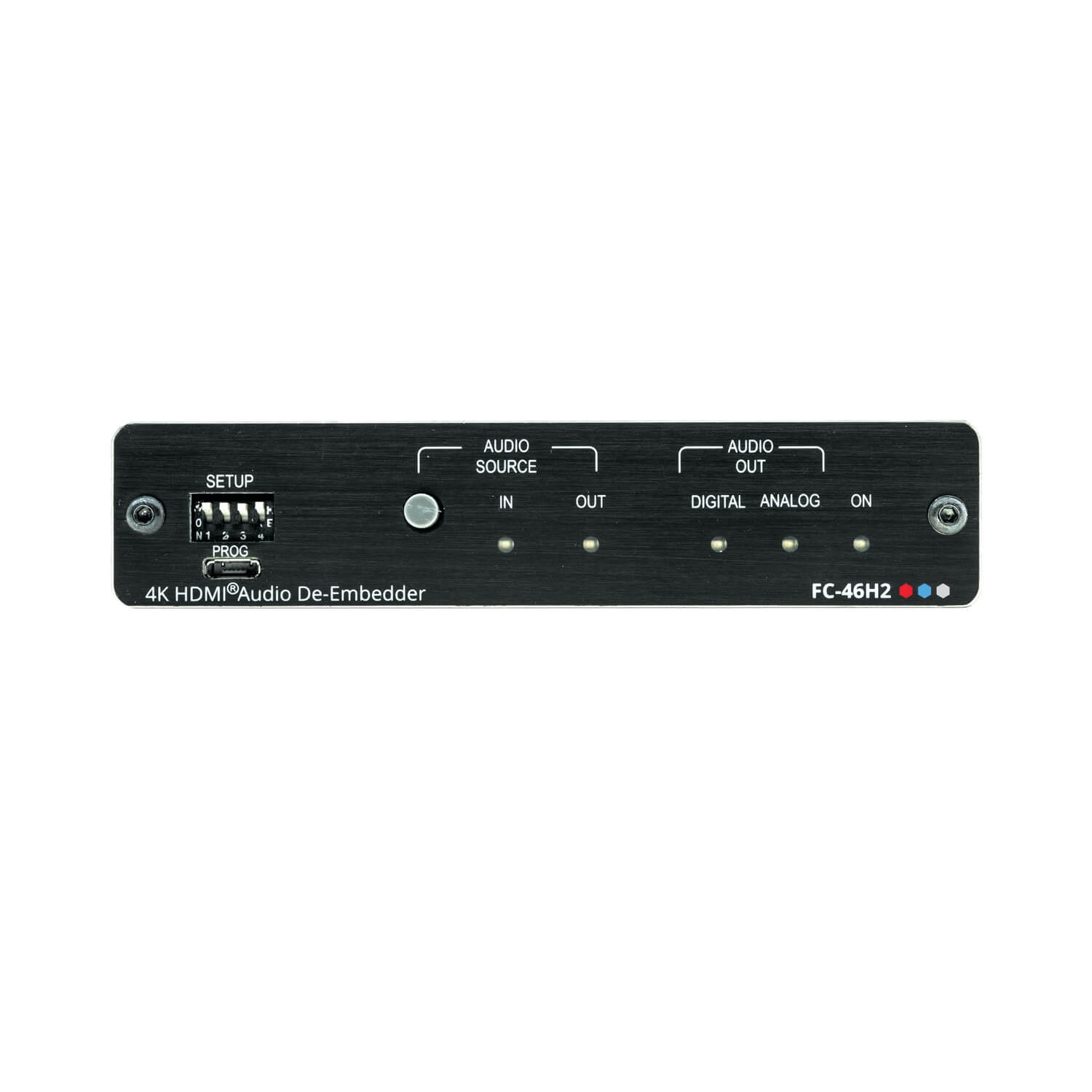

Convenient Control and Maintenance
Audio Source front panel button enables local switching to either the HDMI input audio or the HDMI output ARC. Audio source, audio output, and power LED indicators enable easy local maintenance and troubleshooting. Local firmware upgrade via the mini USB port ensures lasting, field–proven deployment.
Easy Installation
Compact DigTOOLS fan–less enclosure for surface mounting or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
