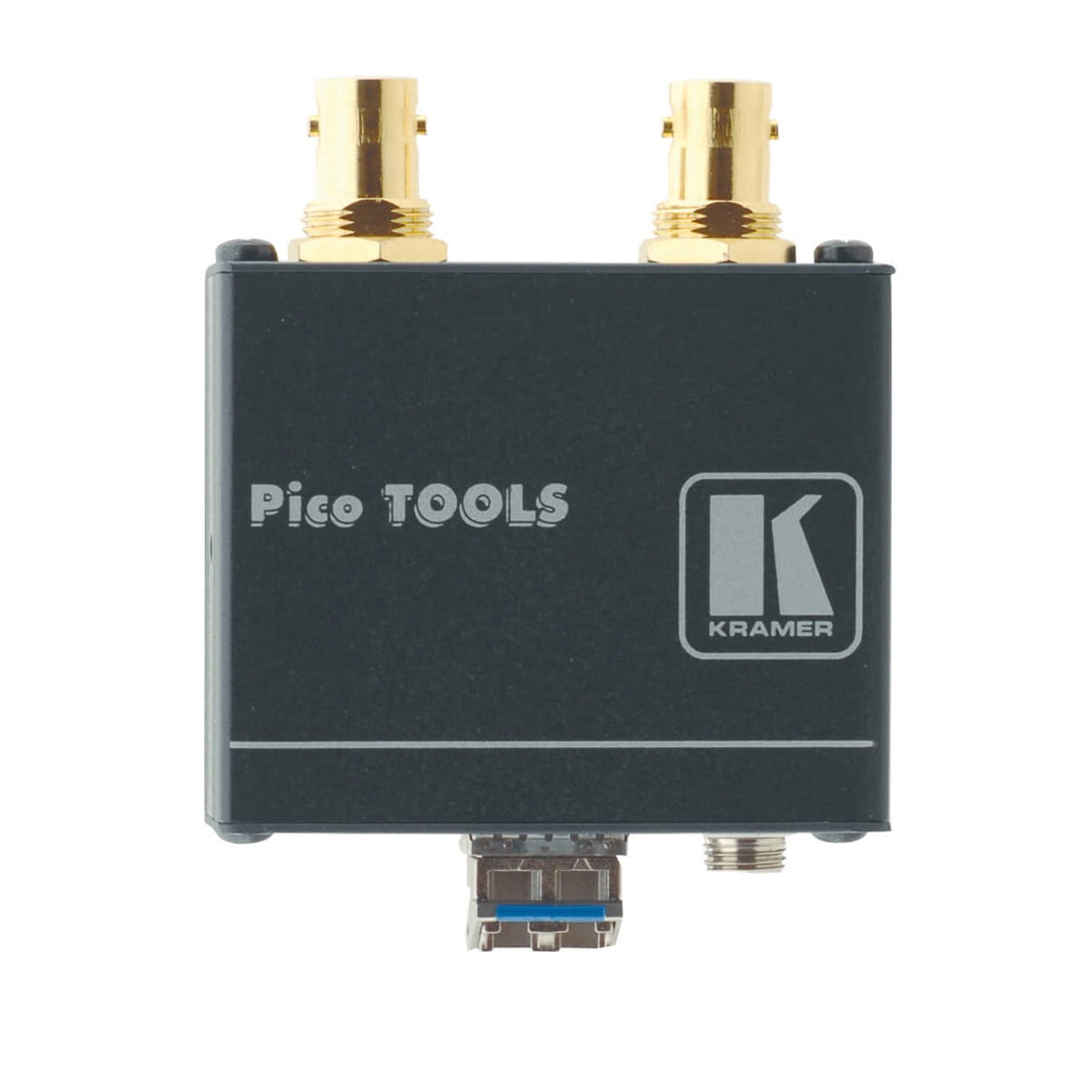

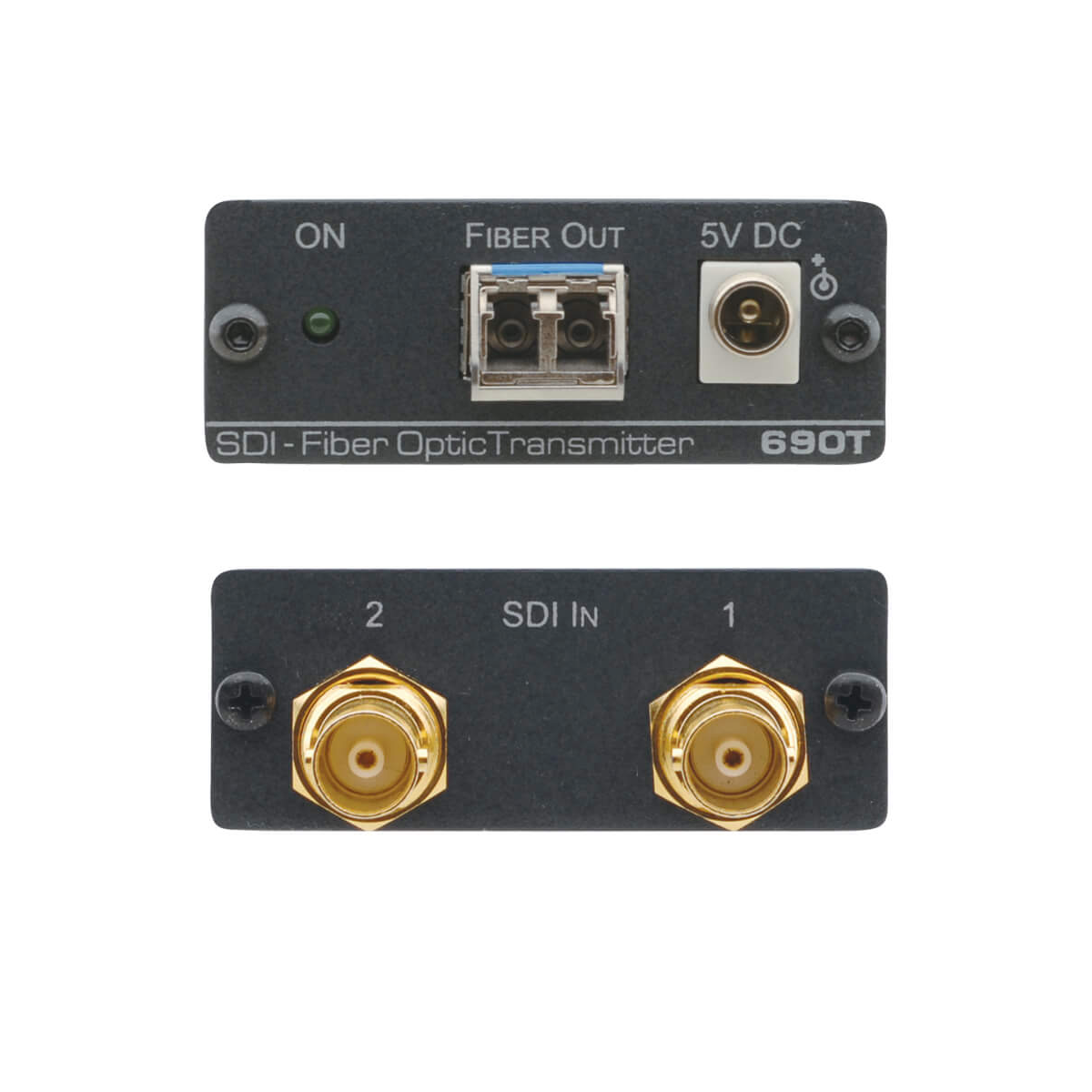

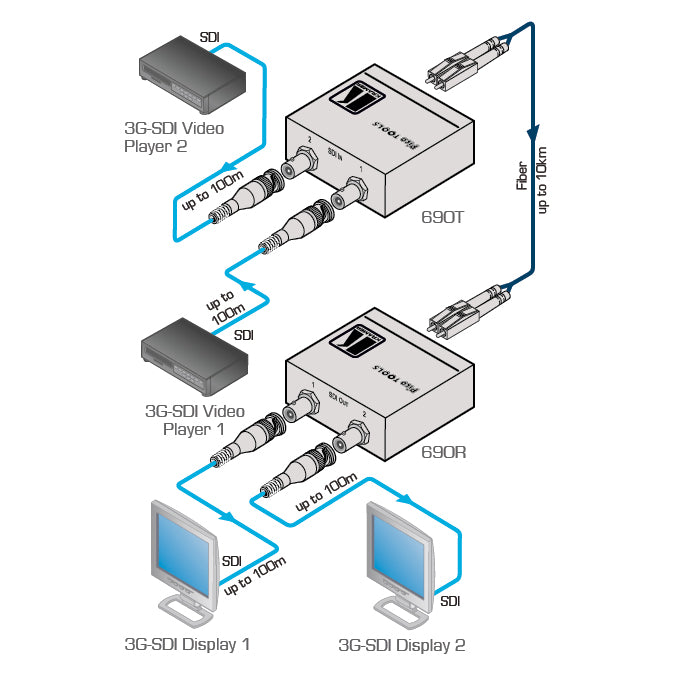

The Kramer 690T is a high-performance fiber optic transmitter for SDI video signals up to 3G HD-SDI. The 690T converts two 3G HD-SDI signals to single-mode fiber optic and the 690R receiver converts them back to the two original SDI formats. Compatible with the fiber optic matrix VS-88FO.
Features
• Max. Data Rate - 3Gbps.
• Inputs - 2 SDI on BNC connectors.
• Outputs - 2 single-mode fiber optic on LC connectors.
• HDTV Compatible.
• Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M).
• Laser Standards Compliance - IEC 60825-1, FDA 21CFR1040; Laser Class 1: Safety of laser products.
• Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances on the coax cable, 200m (HD-SDI) & 100m (3G HD-SDI).
• System Range - Up to 10km (6.2mi).
• Size - Ultra-Compact Pico TOOLS - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.
Applications
• Home theater, presentation and multimedia applications.
• Long range multimedia distribution for cinemas, stores, and entertainment centers.
• Video production and broadcast facilities.
• Retail stores and other point-of-sale systems.
• Digital signage.
