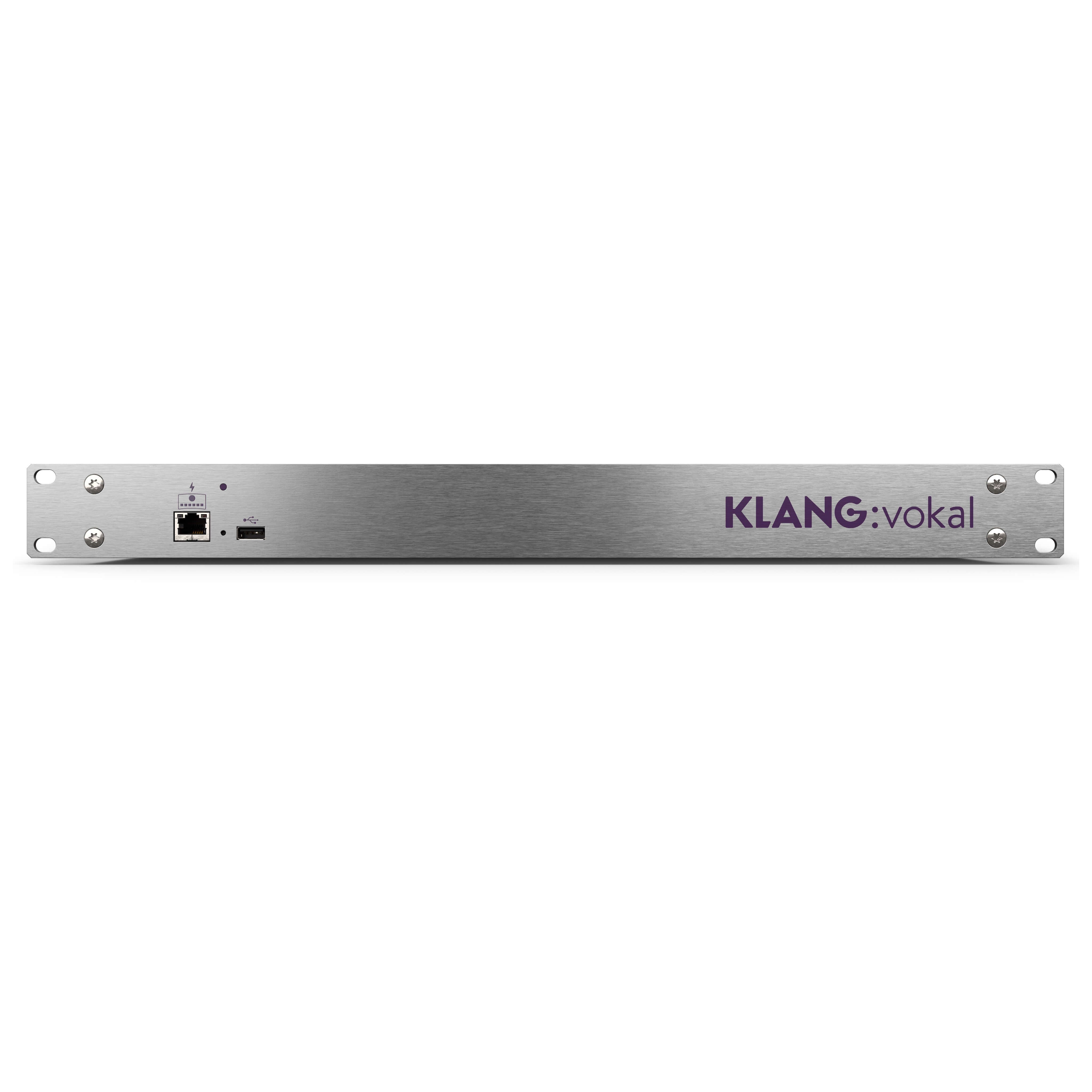

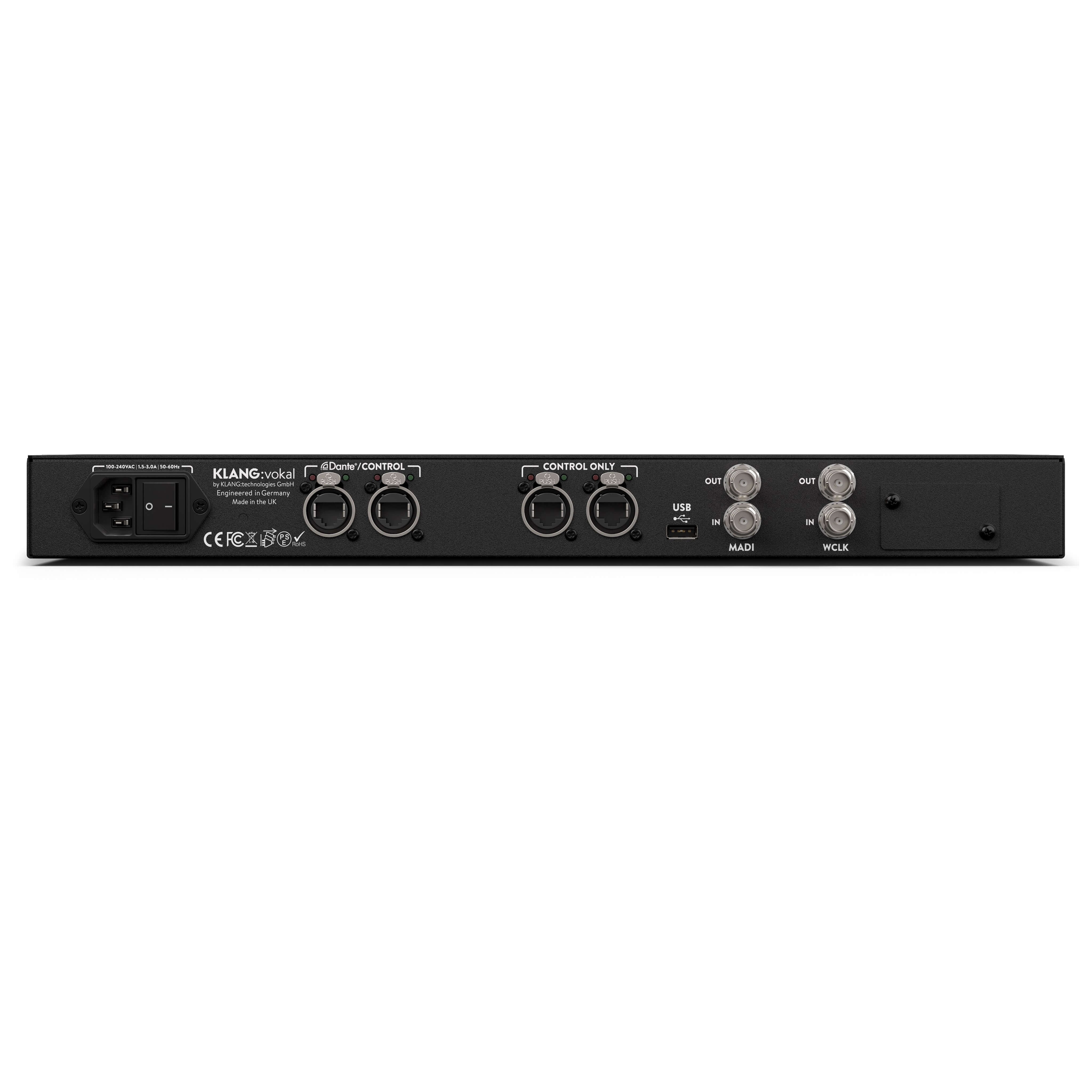

The KLANG:vokal is designed to match the feature set of the KLANG:kontroller but can also work as a stand alone immersive processor. Based on KLANG’s powerful, new generation, ultra-low latency FPGA core, KLANG:vokal offers 12 mixes of 24 mono or stereo inputs at 48kHz and 96kHz, including the revolutionary Root-Intensity EQs. The musicians can pick up to 24 mono or stereo channels out of 64 Dante and MADI inputs. Mixes are sent via Dante to KLANG:kontroller or can also be sent back via MADI or Dante to a mixing console.

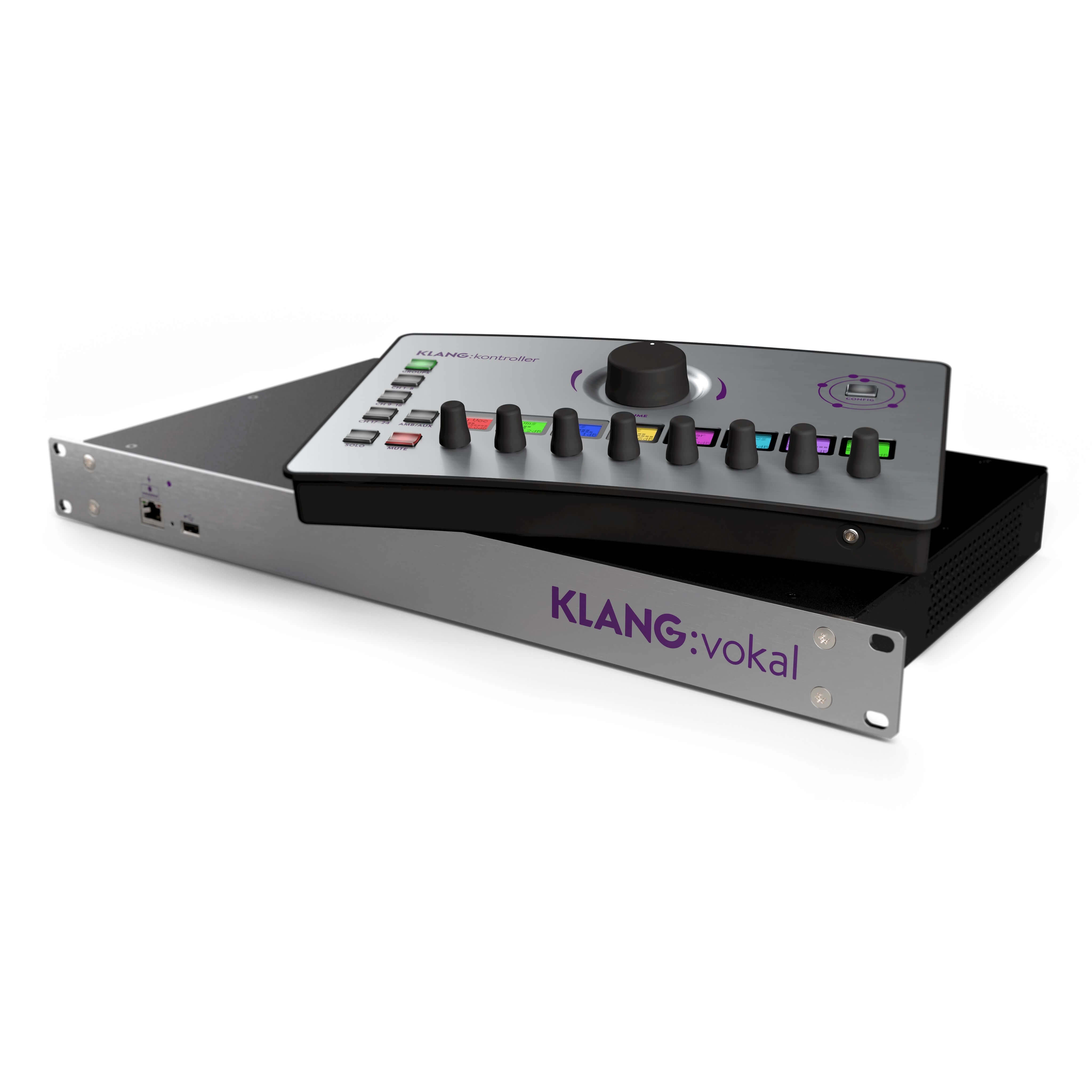

Maximum Flexibility and user friendliness make KLANG:vokal and KLANG:kontroller the perfect match for any House of Worship or Theater application.
Features
• 12 immersive in-ear mixes
• 24 mono or stereo inputs, chosen per mix from up to 64 mono inputs
• High end personal monitoring system
• Natural immersive sound through binaural technology
• KLANG Root Intensity EQs for all 64 mono inputs and all 12 mixes

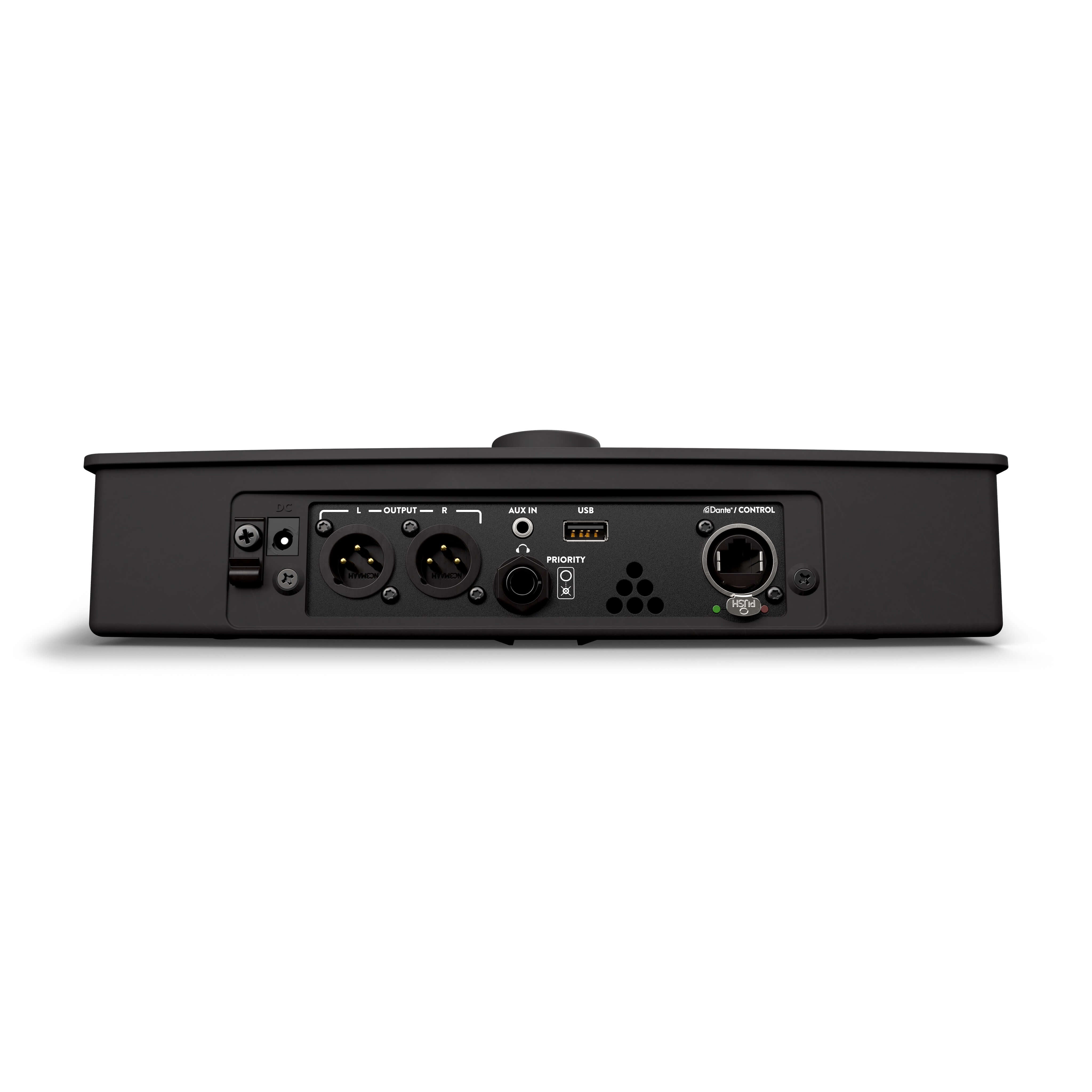

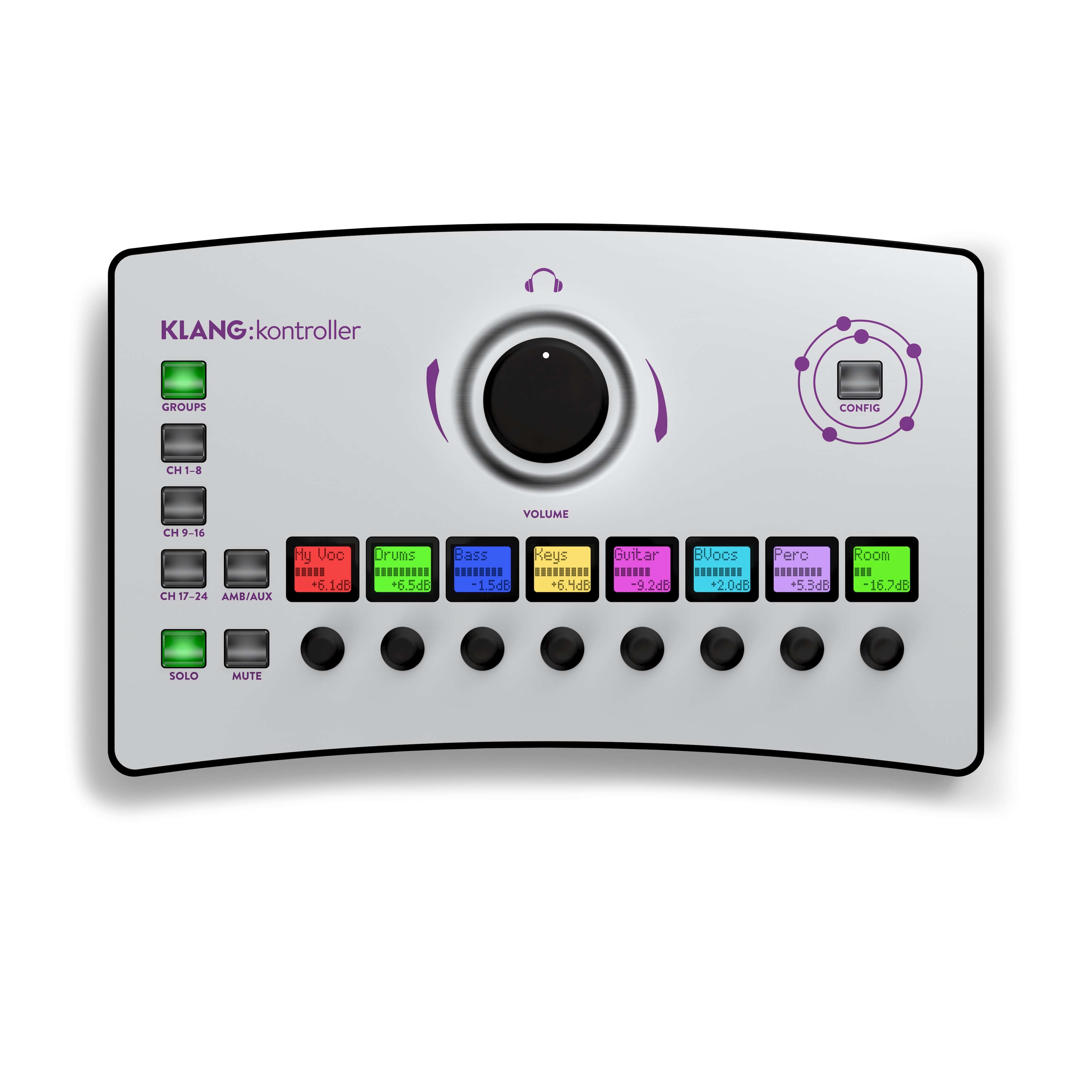

The KLANG:kontroller is a personal monitor mix controller and Dante Headphone amp for all Klang immersive in-ear monitor processors, featuring built-in binaural True Ambient microphones. It delivers fast tactile user control of channels, groups and immersive mixing via an intuitive interface. 8 button displays provide clear channel names and color coding.

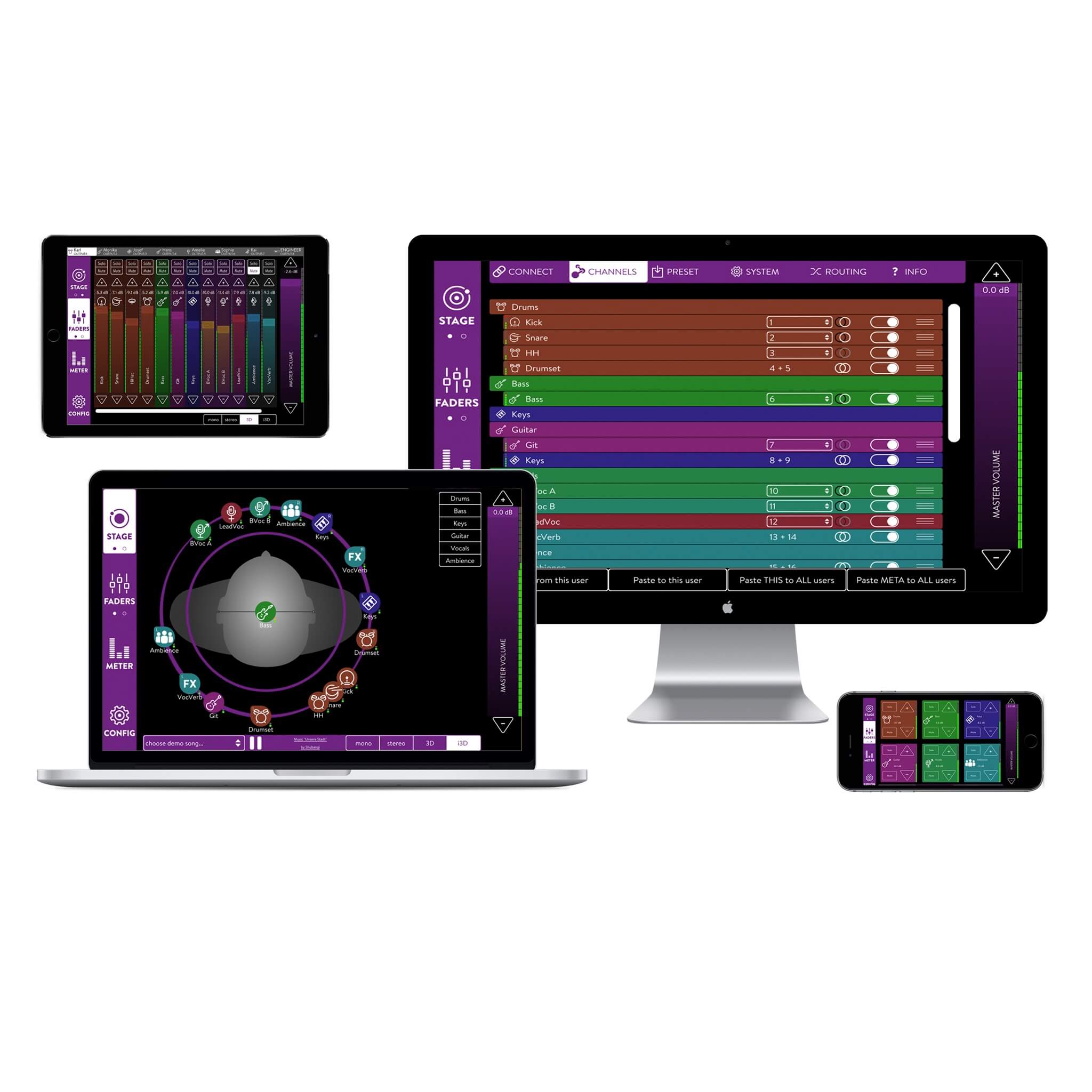

Relative DCA group mixing and full single channel control via eight push rotary encoders provides important, fast access. The studio grade headphone amplifier delivers crystal clear audio for in-ear monitors and high impedance headphones, with both 3.5mm (1/8”) as well as 6.3mm (1/4”) stereo TRS connectors. KLANG:kontroller gives musicians full control of all relevant functions, while the engineer can still overview and control all mixes via the KLANG:app or DiGiCo SD or Q series consoles.
To perfect the immersive experience, binaural True Ambient microphones are built into the unit. These can be blended into the immersive in-ear mix, along with a local stereo aux input for, for example, a click track or playback from a phone. The mix can be sent back to the Dante network or, alternatively, the ambient microphones or aux input can be shared with other musicians.
Features
• Compatible with all KLANG immersive in-ear monitor processors
• Fast tactile user control of Groups, Channel and Immersive mixing
• Displays for Channel labels with color coding, status, metering
• Binaural TrueAmbient Microphones
• High-Power headphone output with fast level control
• Stand alone or mic stand mounted
• Dante audio connectivity
• Robust physical KLANG control surface
• Dedicated balanced audio outputs for monitor outputs or butt kickers
• Local aux input can be sent back to the processor for distribution and sharing
