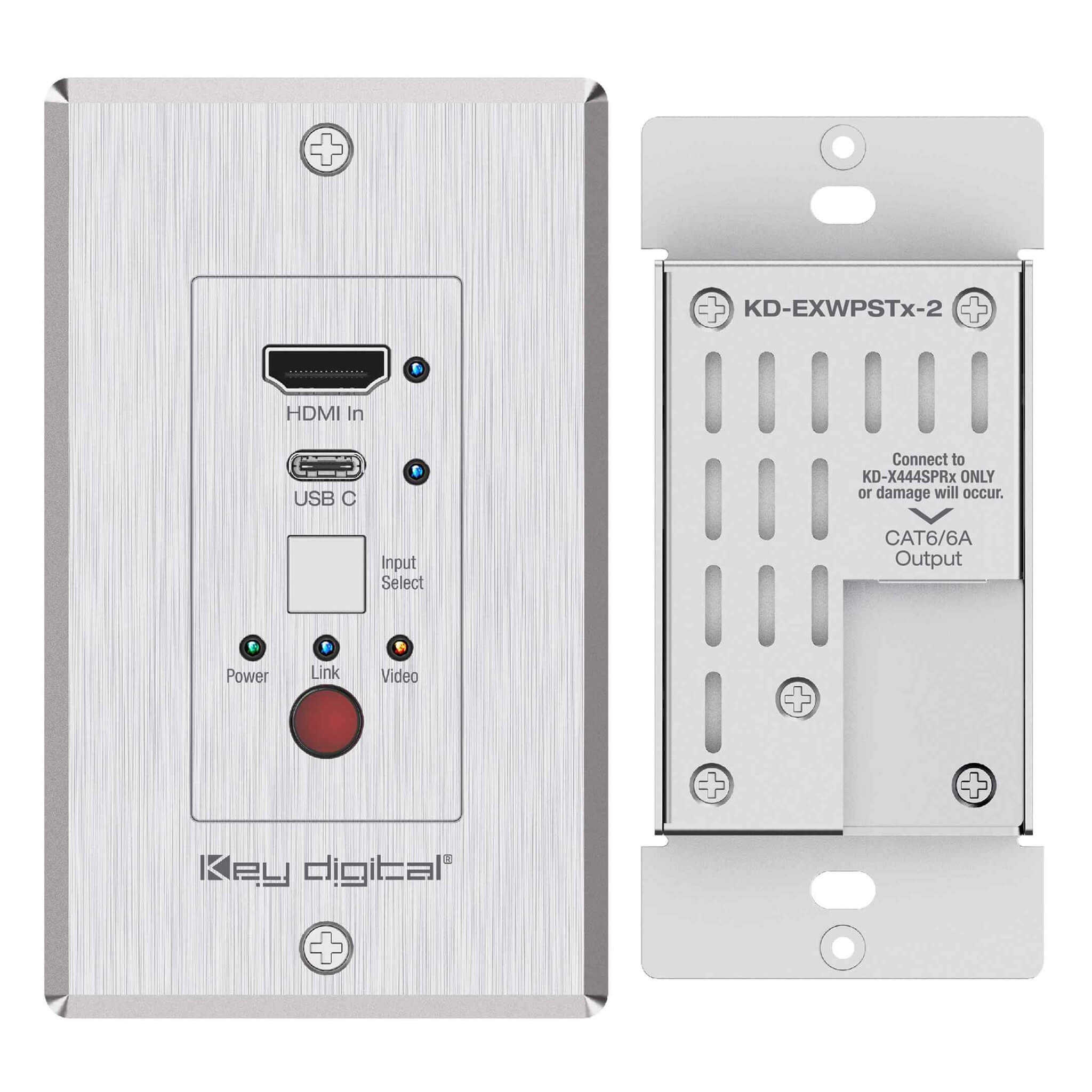

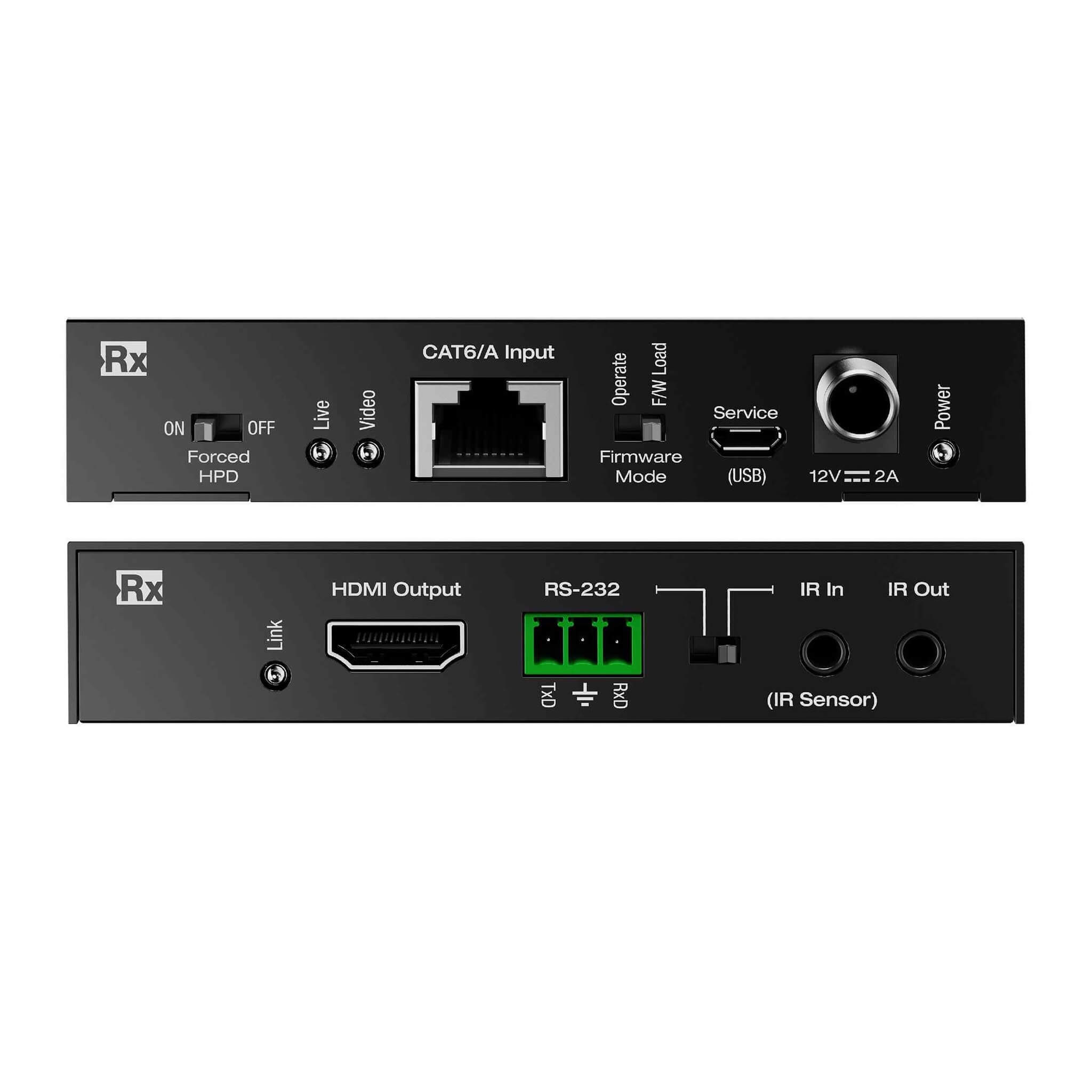

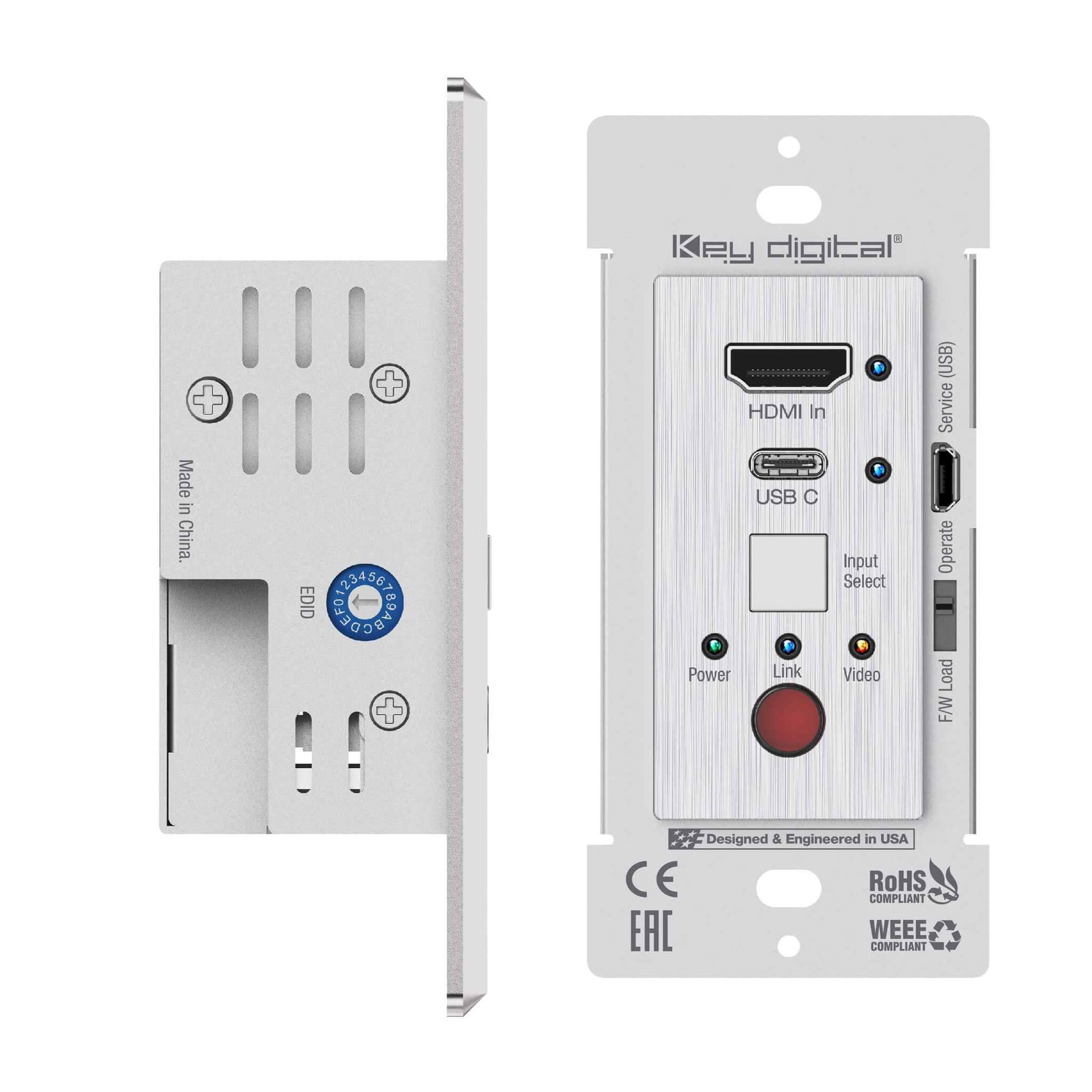

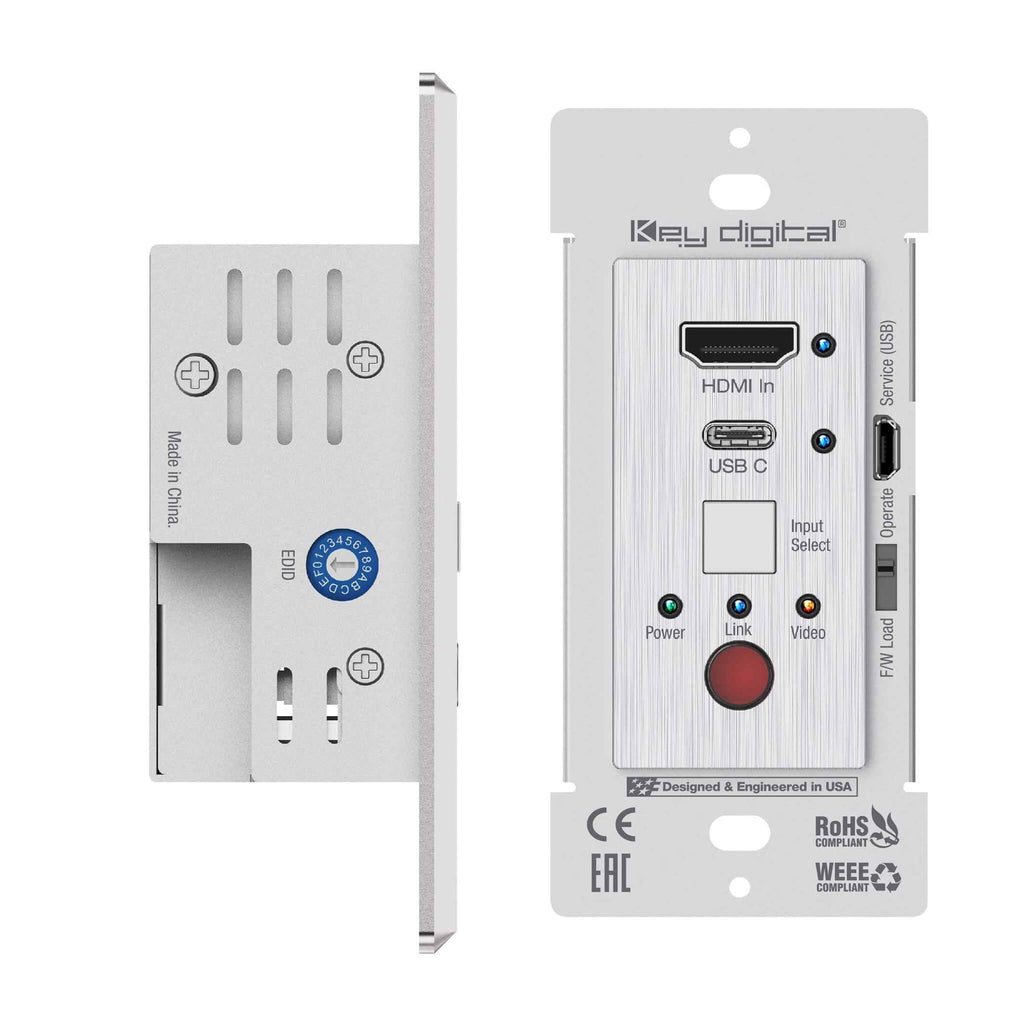

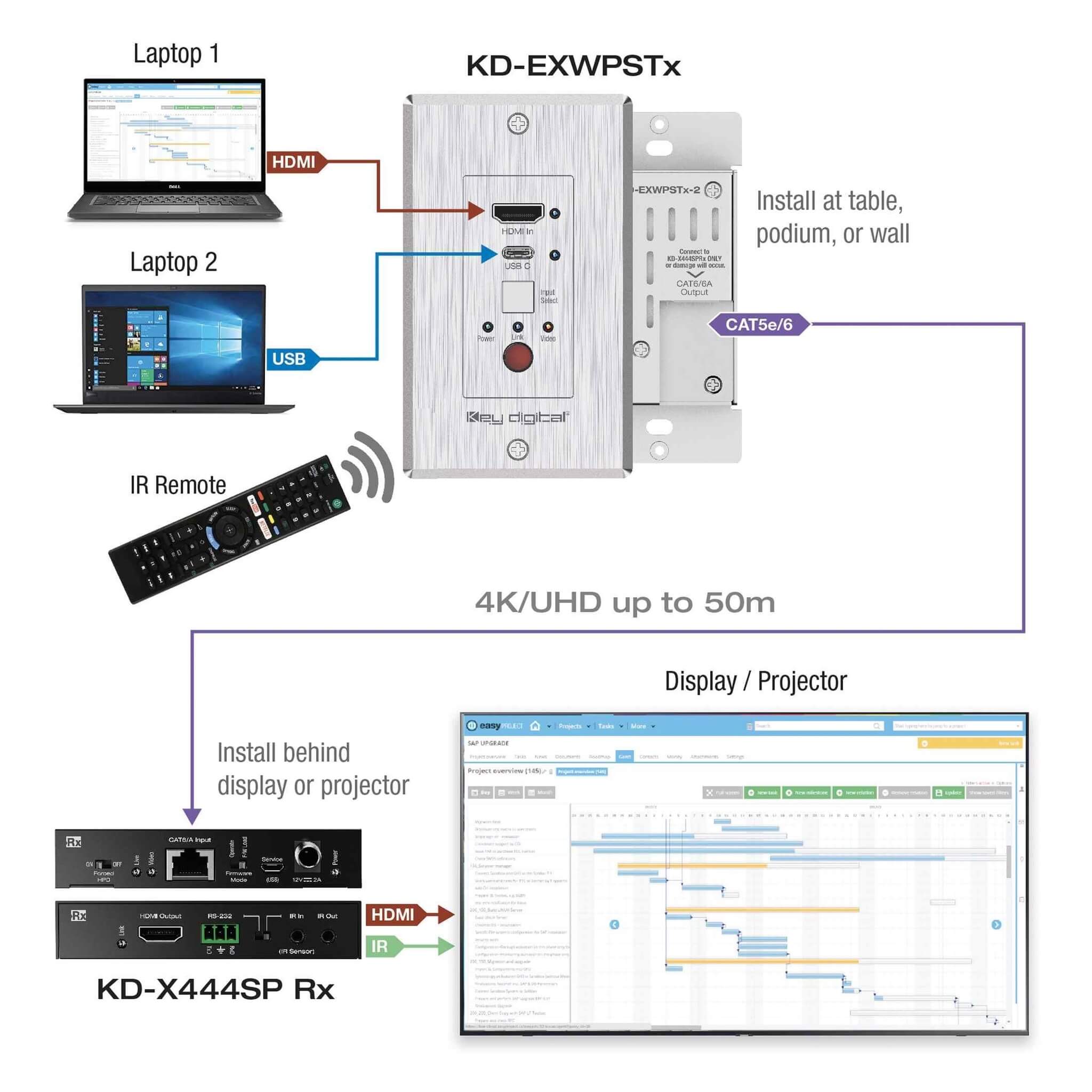

The Key Digital KD-XWPS is a single-gang wall-plate switcher transmitter and receiver kit with one HDMI and one USB-C input ideal for professional AV systems installations in conference rooms, huddle spaces, classrooms, and more. KD-XWPS supports 4K/UHD resolution with bandwidth up to 18Gbps and HDCP2.2 compliancy and extends video resolutions up to 4096x2160 at 60hz with 4:4:4 chroma sub-sampling over a single CAT6/6A cable up to 164ft (50m). In addition to HDMI video and audio signals, KD-XWPS features an IR sensor on the faceplate to control remotely located equipment. KD-XWPS features EDID handshake control and hot plug detection for overcoming common systems integration obstacles. The wall-plate unit fits in a standard US single-gang box and is powered by the Rx unit for convenient installation.
Features
• Auto Switching transmitter with HDMI and USB-C inputs

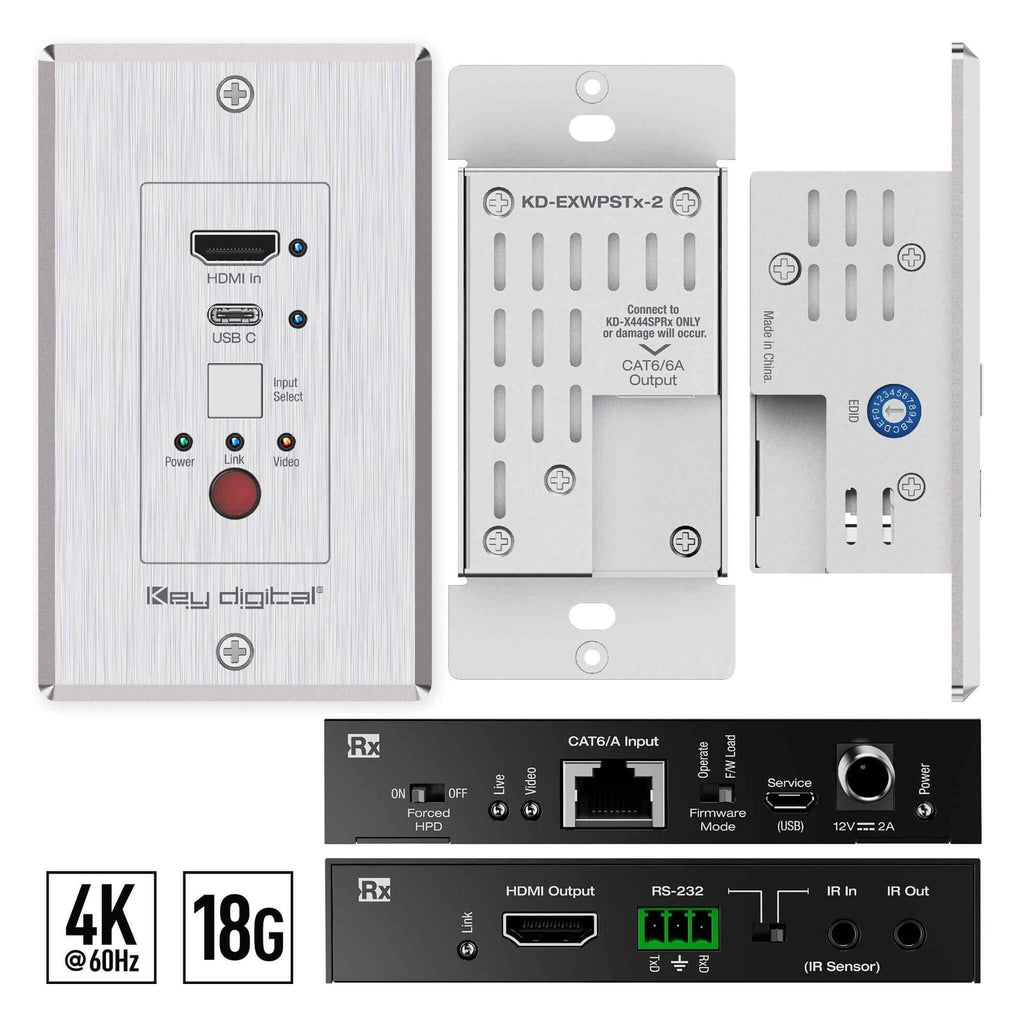

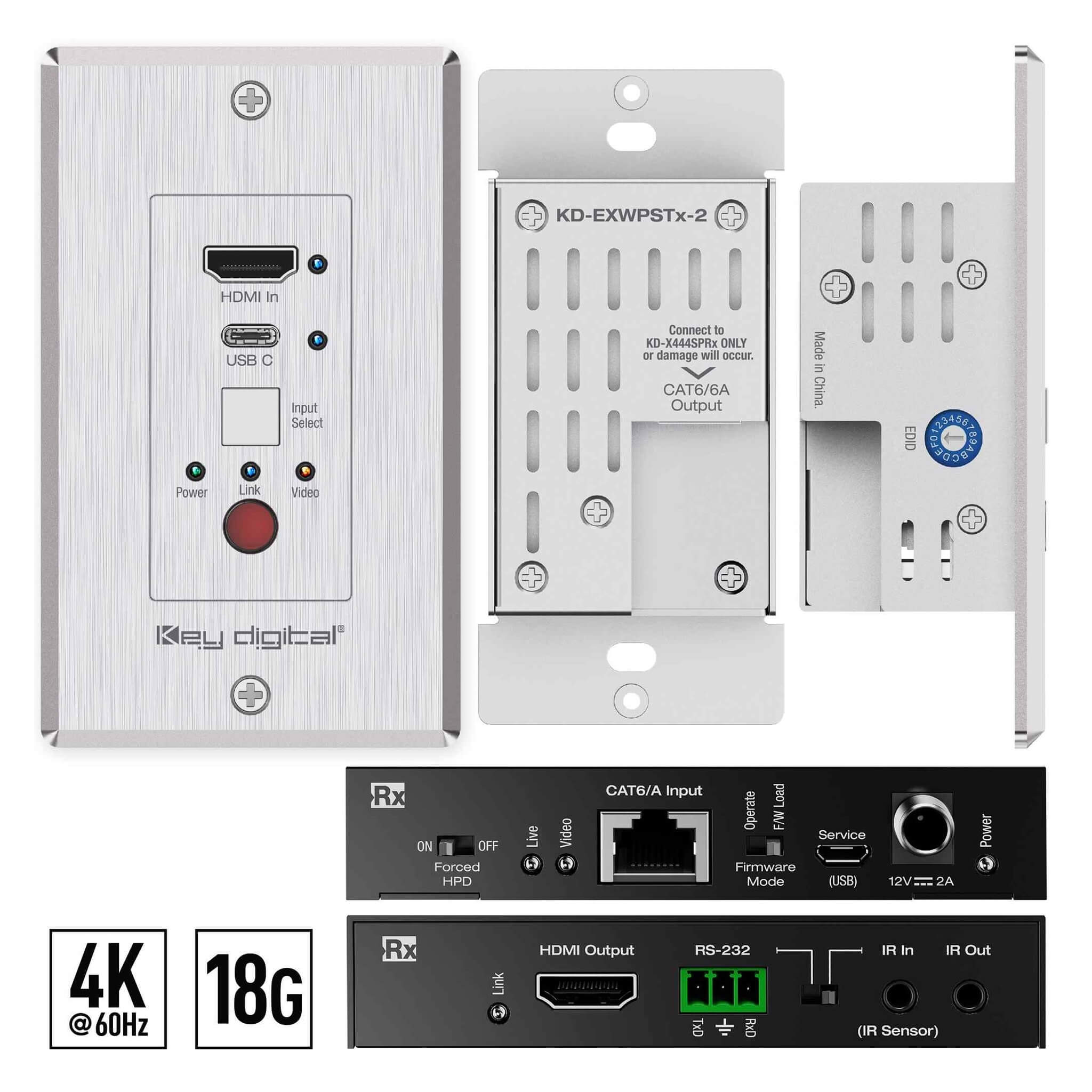

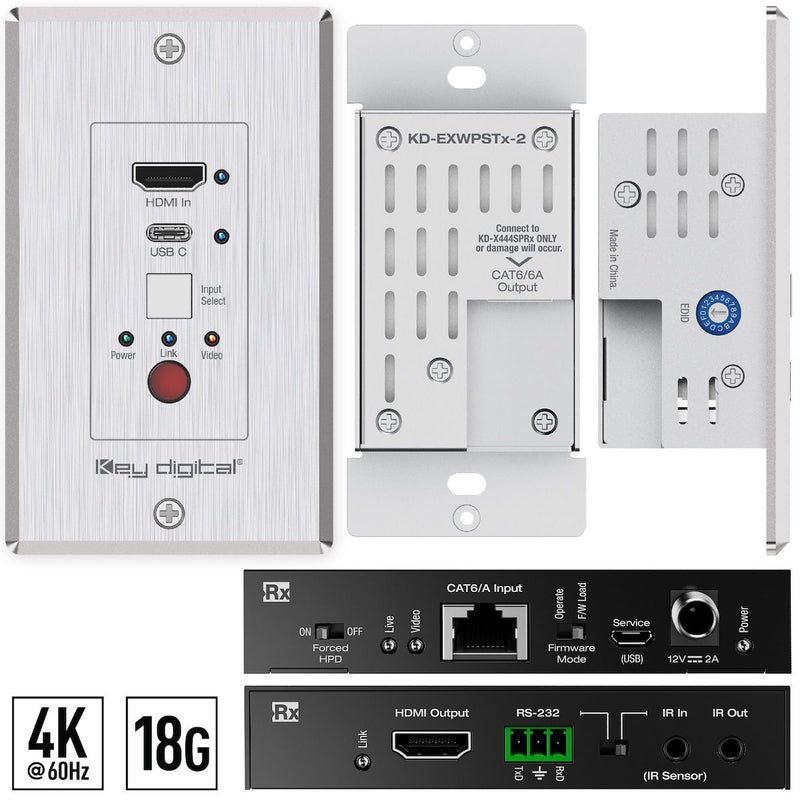

• Kit includes transmitter, receiver, power supply, Decora plate, and IR emitter
• Only requires power supply on the Rx unit
• Extends 4K 18Gbps signals with HDR up to 164ft/50m
