Description

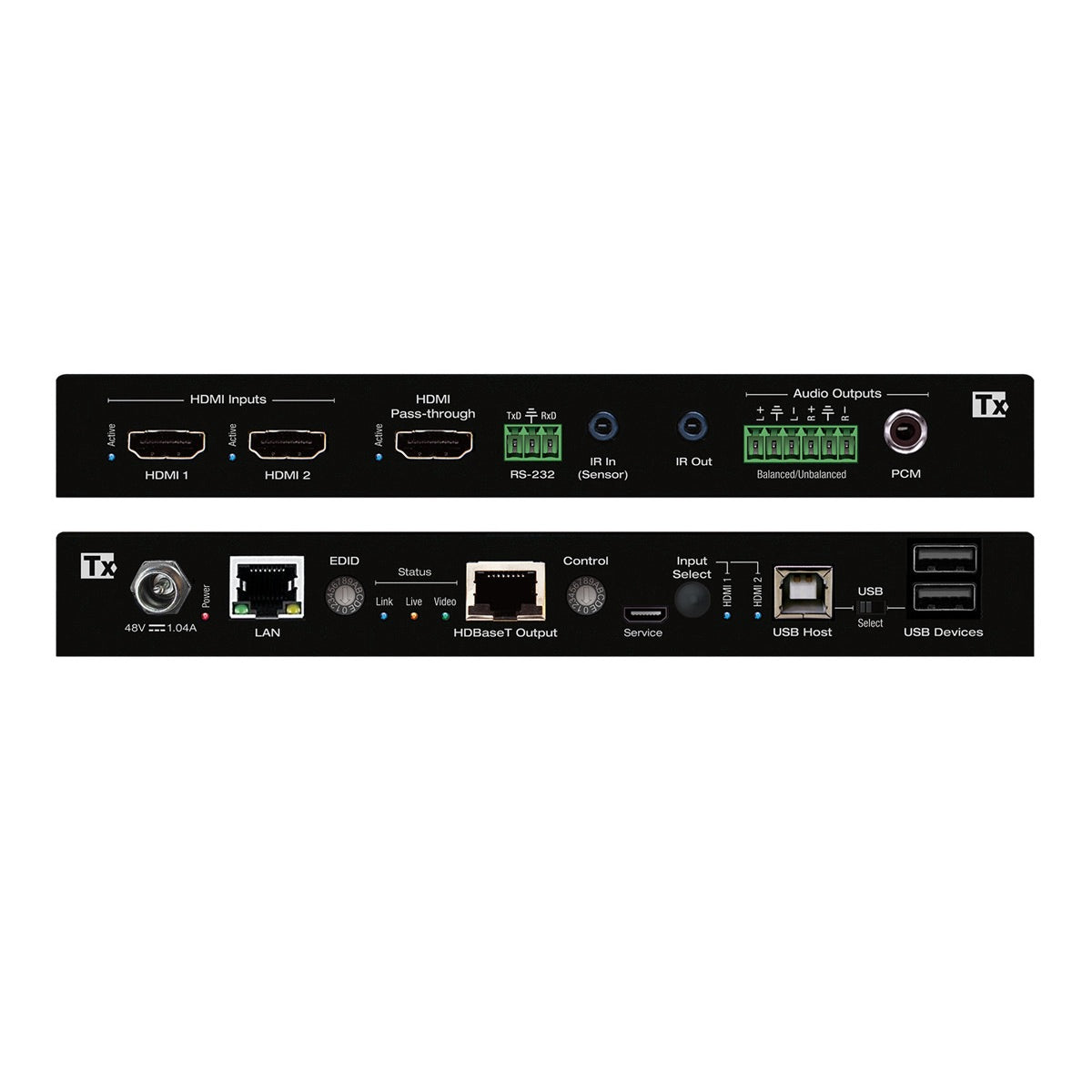

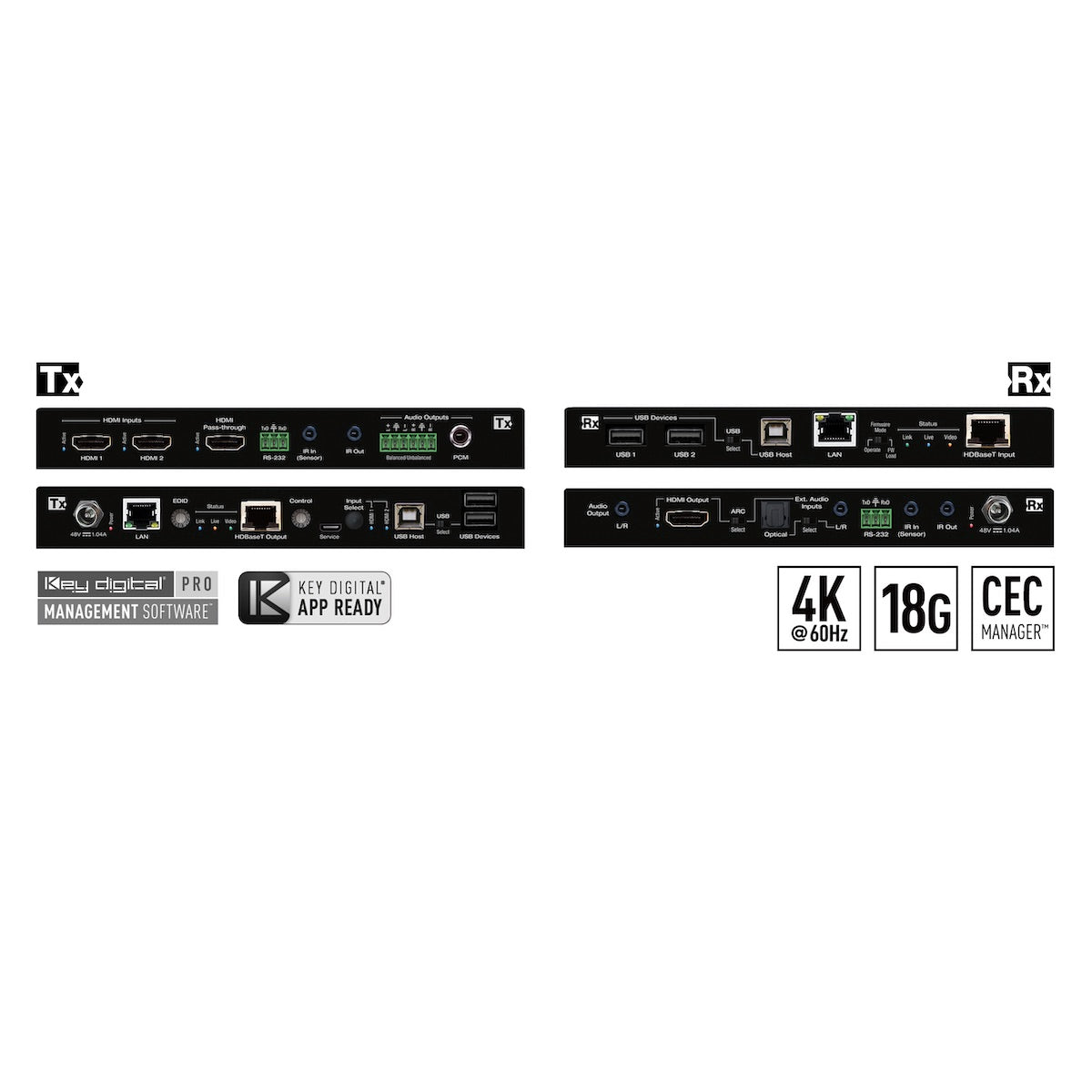

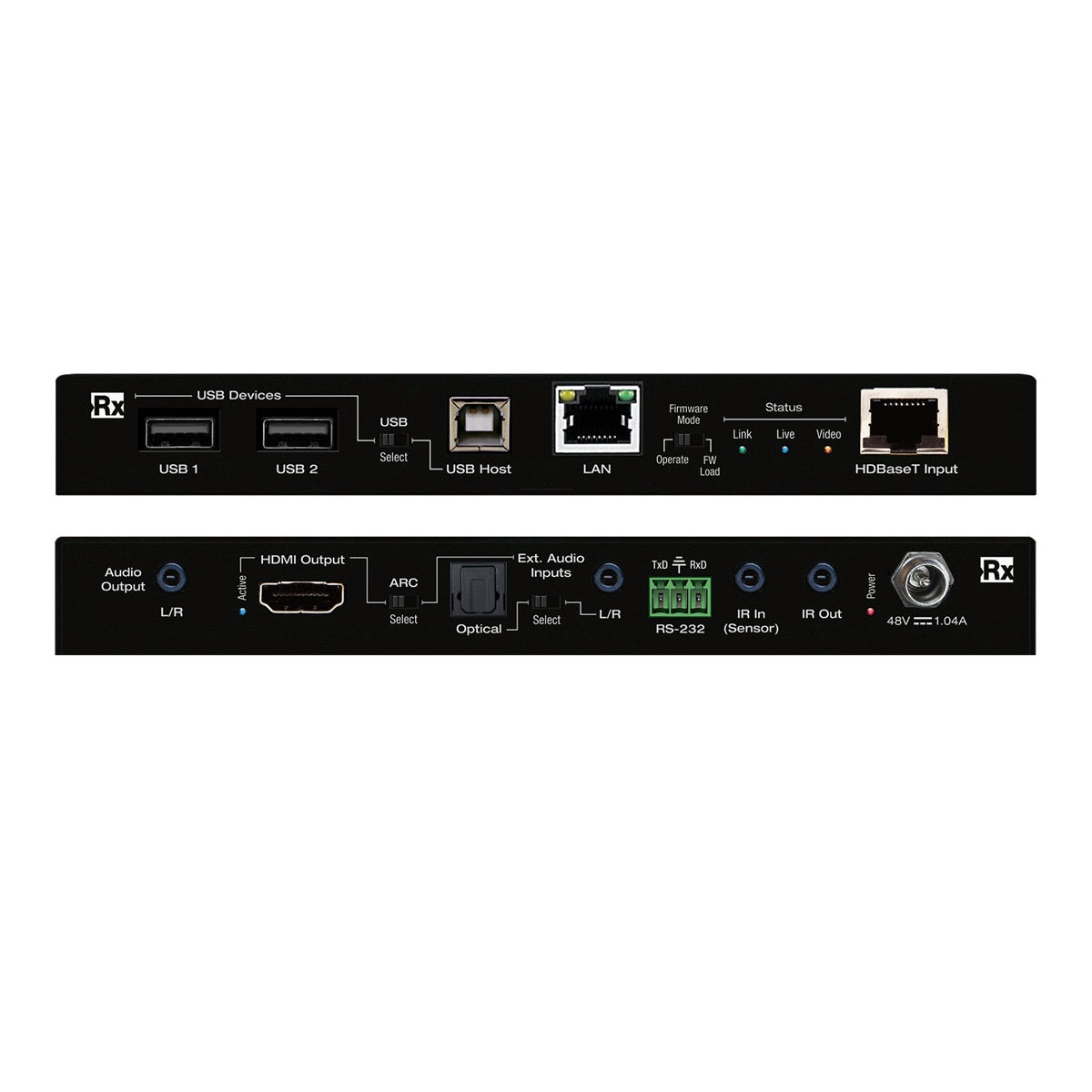

The Key Digital KD-XPS22U is a 4K/18G Smart Extender Kit that includes KD-PS22UTx transmitter and KD-X100MRx receiver. The kit extends HDMI, USB 2.0 KVM, LAN, IR, RS-232 up to 328ft (100m) and features a 2x1 Switcher, Mirrored Output, eARC of HDMI or Optical Audio, Audio De-Embed, Power over CAT, and CEC Display Control. IP Controllable, KD-App Ready, KDMS Pro Ready.
Features
• Signal Extension: 4K/UHD (18G) up to 100m/328ft, 1080p up to 150m/492ft
• UHD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate HDBaseT transmission channel
• 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
• Mirrored Outputs: 2 HDMI and HDBaseT Outputs
• Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• Power Over HDBaseT: Tx can be powered by Rx unit
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR10: More life-like images through a greater range of luminance levels
• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• Full Buffer System: Manages TMDS re-clocking/signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
• IR Bi-Directional control: Tx supports IR input via the included IR sensor and output via the included IR emitter
• RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
• Unit Control Mode: Provides TCP/IP control and status of/from Tx unit
• Soft-Codec & KVM Enabling System: USB Host + Device ports on Tx and Rx create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
• ARC/eARC: Audio may be returned from the connected display or Rx unit and output on the external analog & digital outputs
• Surround Sound Audio: Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio multi-channel audio formats
• KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager
• Control System Support: Key Digital App Ready. Key Digital Management Software Pro (KDMS Pro) ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
