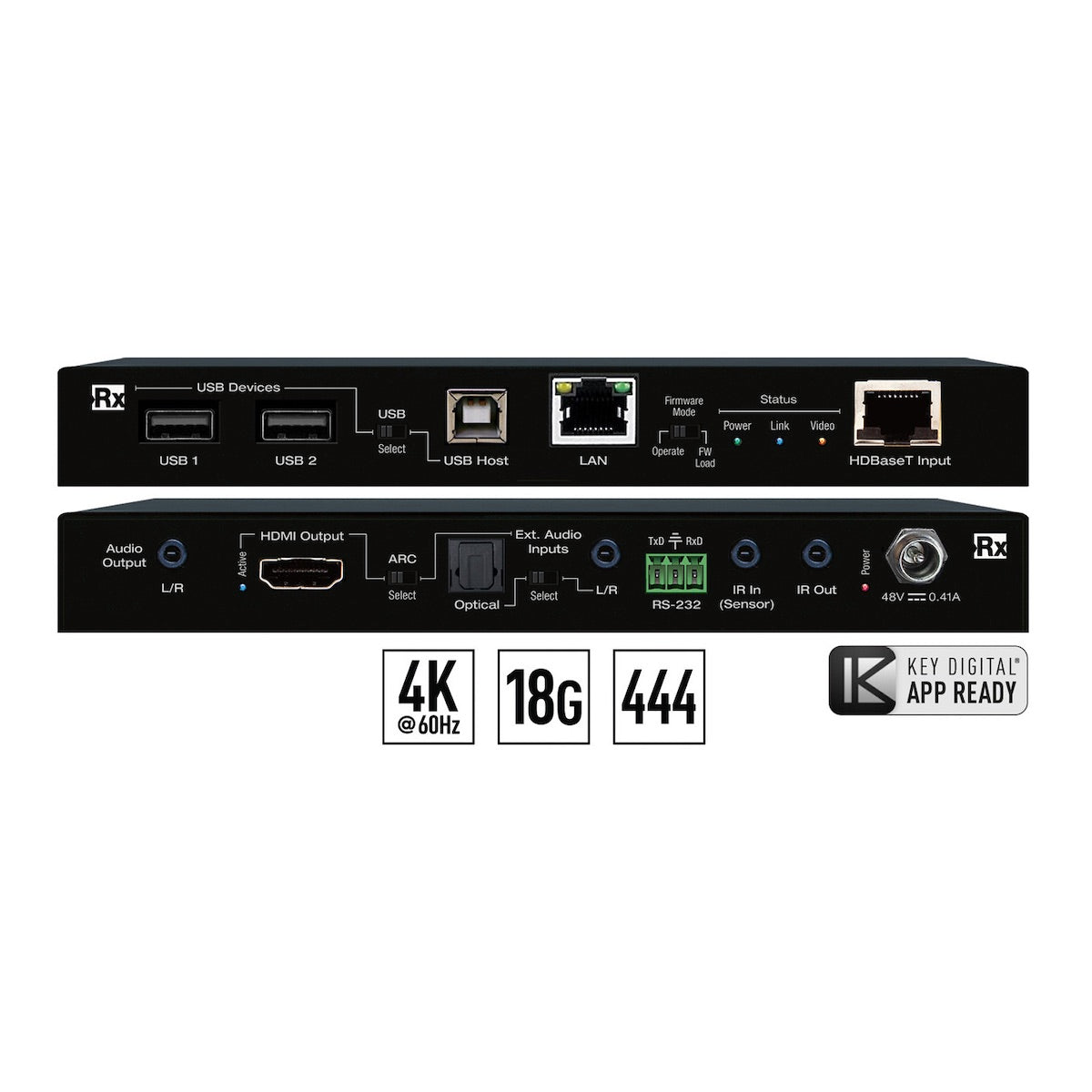

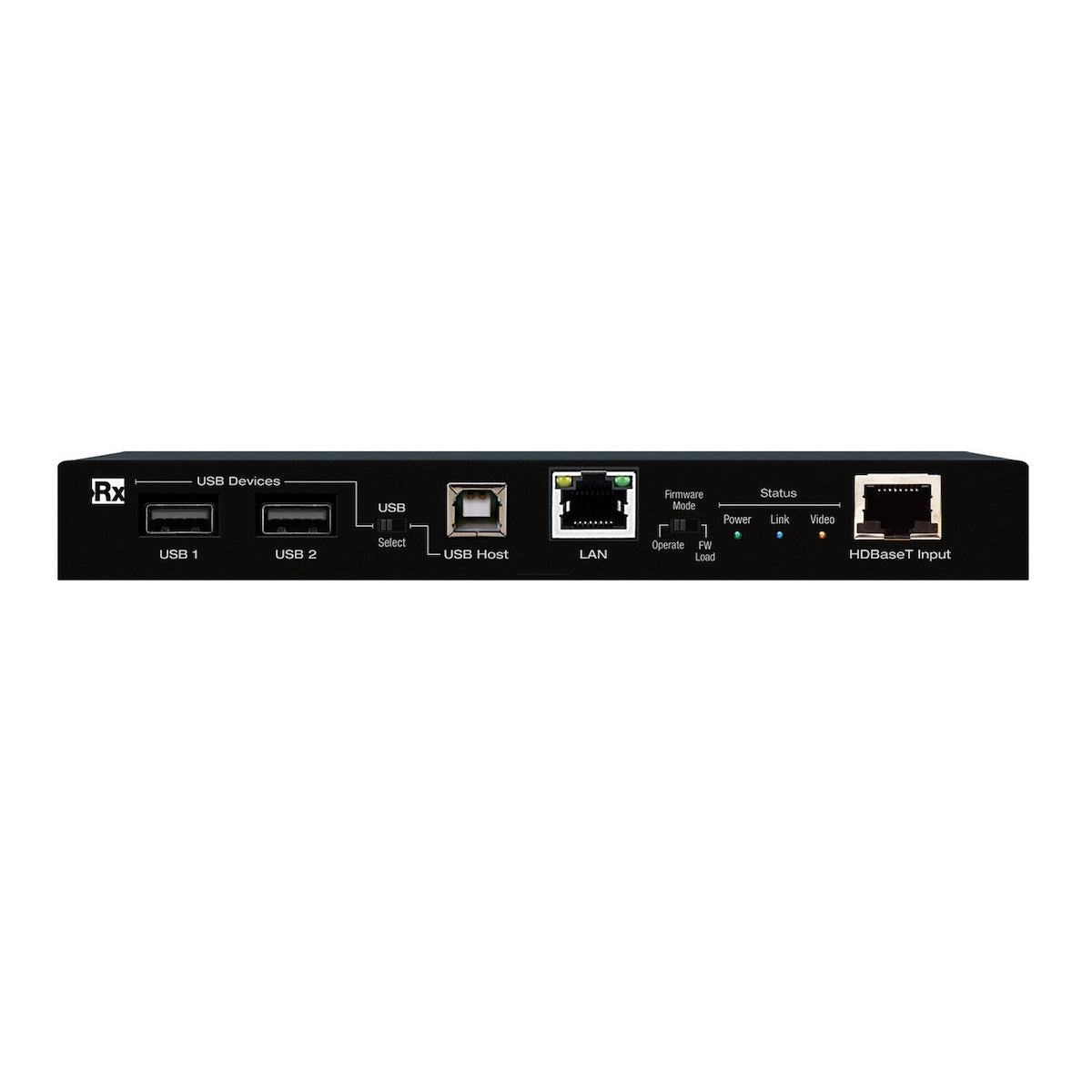

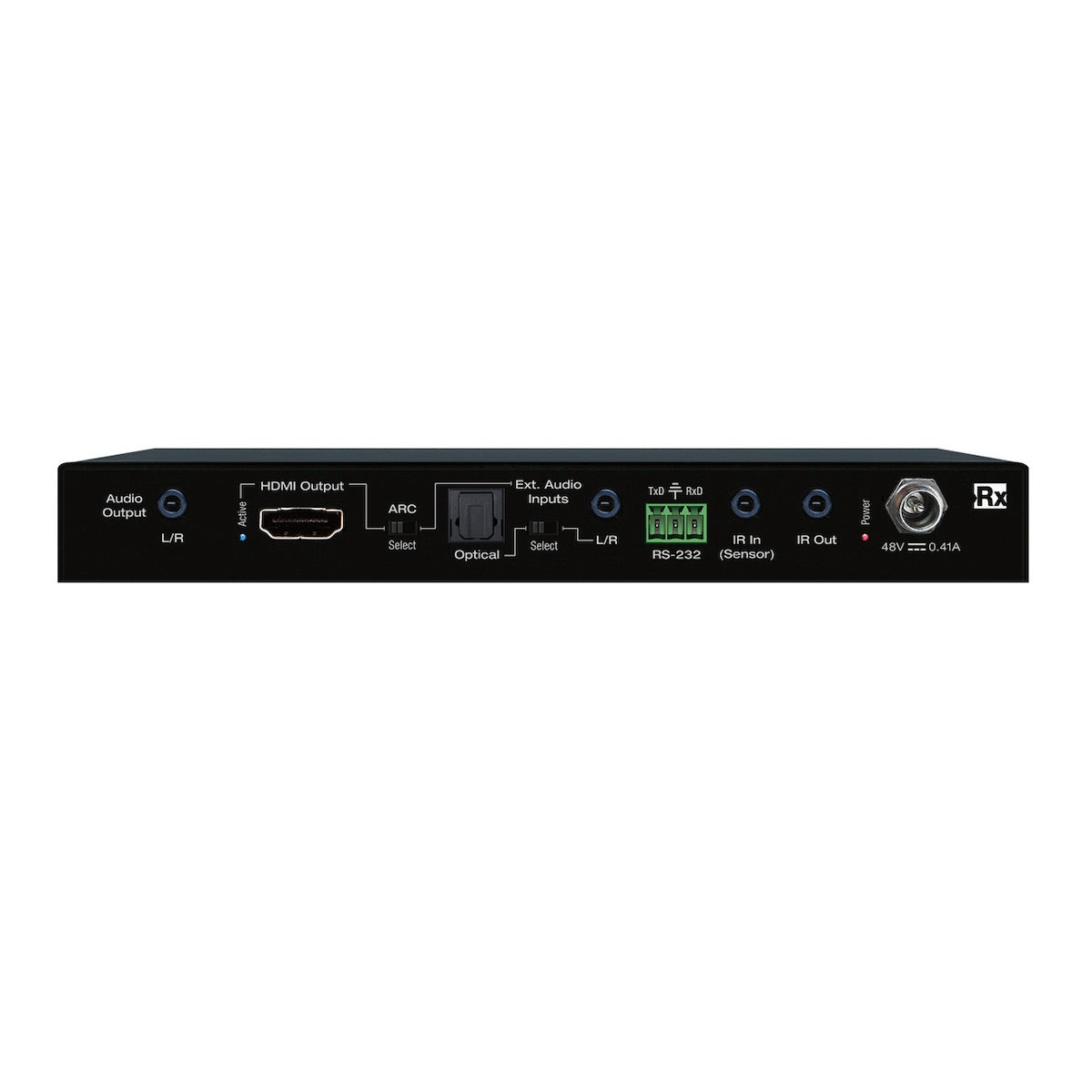

The Key Digital KD-X100MRx is a 4K/18G HDBaseT Receiver (100m) with USB 2.0 KVM, LAN, ARC, L/R Audio In, L/R Audio Output De-Embed, IR, RS-232.
Features
• Tx Options: Sold a-la-carte to integrate natively with KD-X4x1WUTx wall-plate or KD-PS22UTx black box transmitters (sold separately). Also integrates natively and is included with KD-UPS52U.
• Soft-Codec & KVM Enabling System: USB Host + Device ports create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
• Flexible Power over HDBaseT: Rx powers Tx when integrated with KD-X4x1WUTx/KD-PS22UTx. Rx is powered by Tx when integrated with KD-UPS52U
• Audio De-embedding: Audio of the incoming source is de-embedded at the unit’s analog L/R connector
• ARC/eARC: Audio may be returned to the connected Tx unit (KD-PS22UTx or KD-X3x1WUTx) from the connected HDMI display or external audio inputs
• CEC Manager: Passes through CEC control signals for monitors & projectors generated by KD-X4x1WUTx, KD-PS22UTx, or KD-UPS52U
• PTZ USB Camera Integration: Marries natively with KD-CAMUSB for full PTZ control via KD-App with supported presentation switcher
• KD-AMP220 Integration: Marries natively with KD-AMP220 for full volume and mic mix control with supported presentation switcher
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Signal Extension: For resolution and cable quality
- 4K/UHD (18G) up to 100m/328 ft.
- 1080p up to 150m/492 ft.
• 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
• HDR10: More life-like images through a greater range of luminance levels
• HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block
• RS-232: Bi-Directional control to/from Tx/Presentation Switch and Rx unit
• Lossless Compressed Digital Audio: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos
• Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API
• Low Profile: Super slim chassis design
