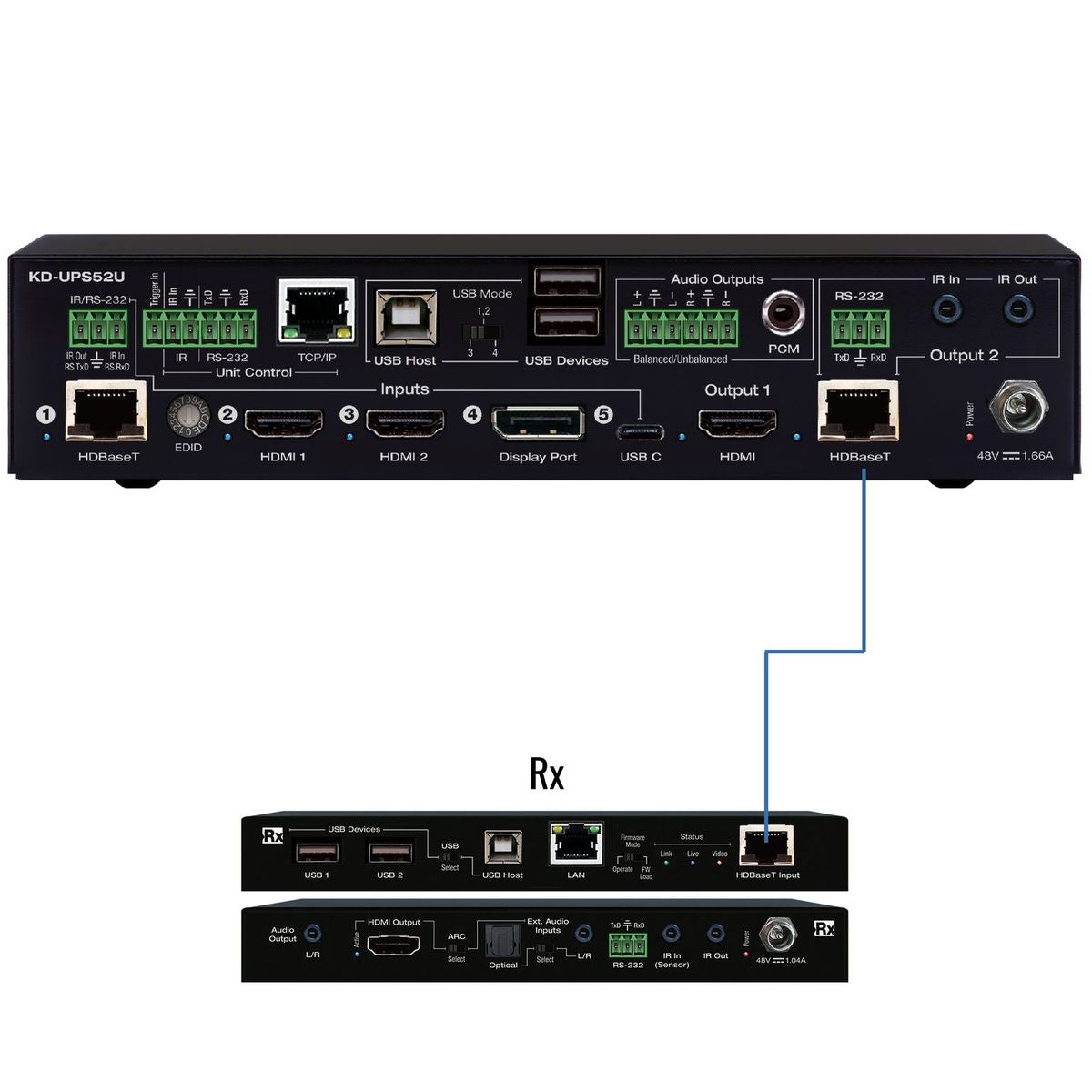

The Key Digital KD-UPS52U is a 4K/18G universal presentation switcher + soft-codec enabling interface with CEC Manager, auto switching, and audio de-embedding creating a user friendly, simplified presentation system. KD-UPS52U features 2 HDMI, 1 Display Port, 1 USB-C, and 1 HDBaseT input which integrates natively with universal presentation + USB switching wall plate transmitters, KD-X4x1WUTx, or KD-X3x1WUTx, or table mounted KD-PS22UTx (each sold separately). KD-UPS52U also features two USB-A and one USB-B connectors, enabling connected laptops and computers to connect with web cams, USB microphones, touchscreen displays, conferencing DSPs, and more. Mirrored HDMI and HDBaseT outputs enable audience + presenter views and the HDBaseT output marries in with the included KD-X100MRx for integrating monitors or projectors up to 100m/328ft away when the selected source is outputting 4K/UHD (up to 150m/492ft at 1080p).

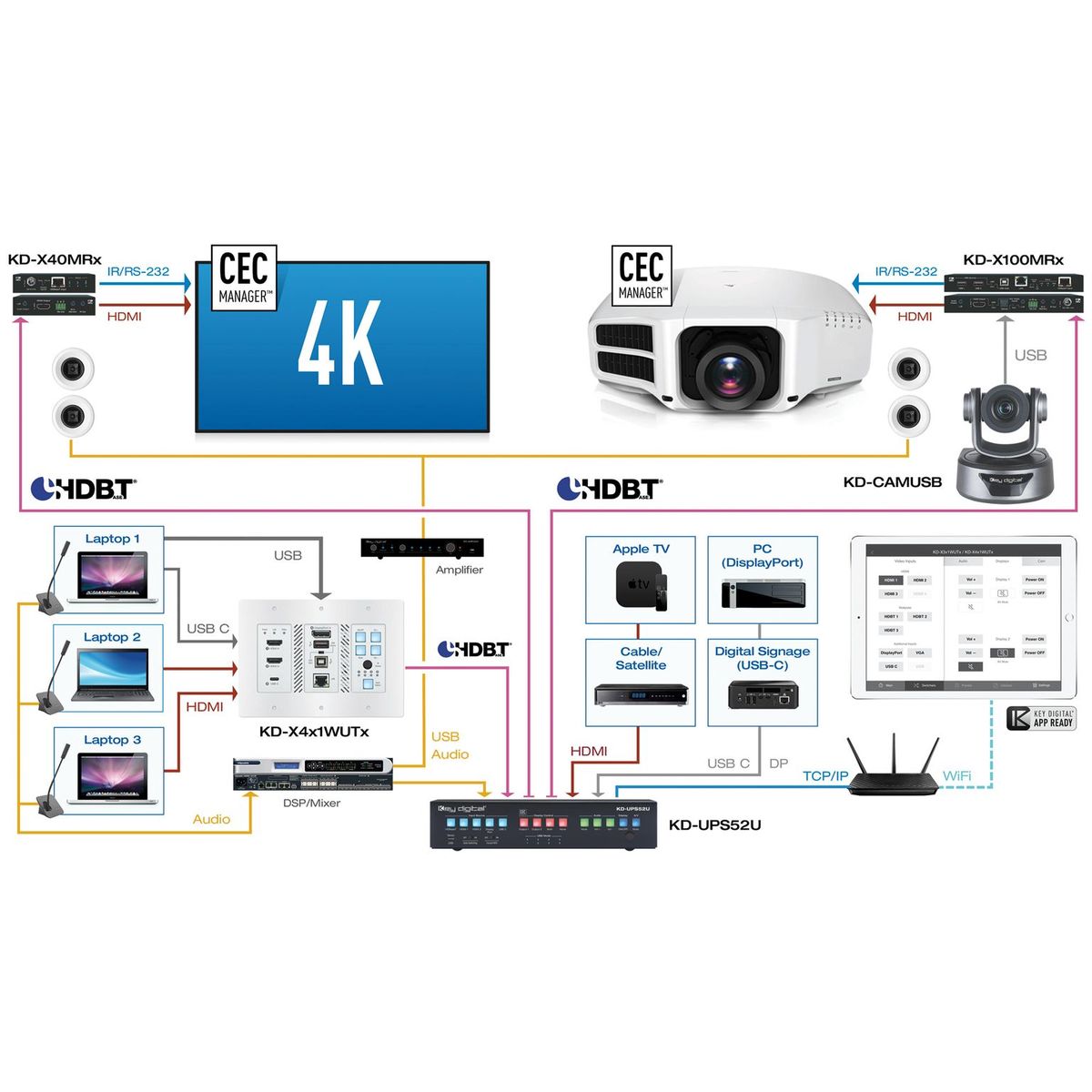

Designed for professional audio video installations in conference rooms, board rooms, classrooms, lecture halls, auditoriums, and more, KD-UPS52U enables connected video sources to be displayed on up to two connected displays while analog (balanced/unbalanced) and digital (PCM) audio de-embed ports feed audio of the selected source into an amplifier, DSP, or sound bar. Integrating KD-UPS52U with KD-AMP220 and KD-CAMUSB will enable an app-ready all-in-one solution for control of video switching, sound and speech enforcement, and PTZ camera control.

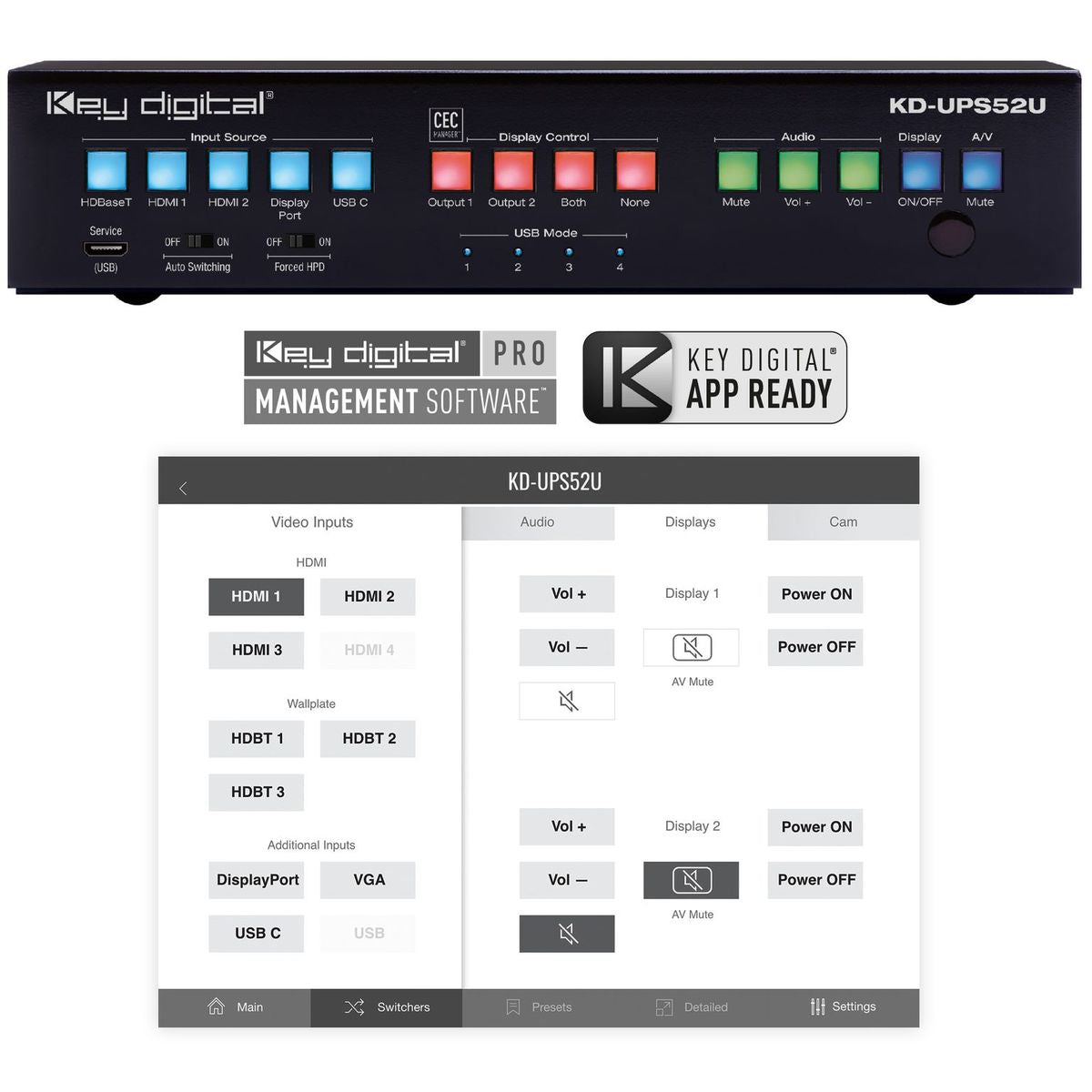

Key Digital CEC Manager enables basic controls of the connected displays for a simplistic all-in-one integration system. KD-UPS52U presentation switcher supports all SD, HD, VESA and Ultra HD/4K video standards with HDR header information included in a variety of 4K EDID handshakes. In addition to IR, RS-232, and TCP/IP control, KD-UPS52U can also be controlled via trigger voltage and features status-monitoring LEDs.
Features

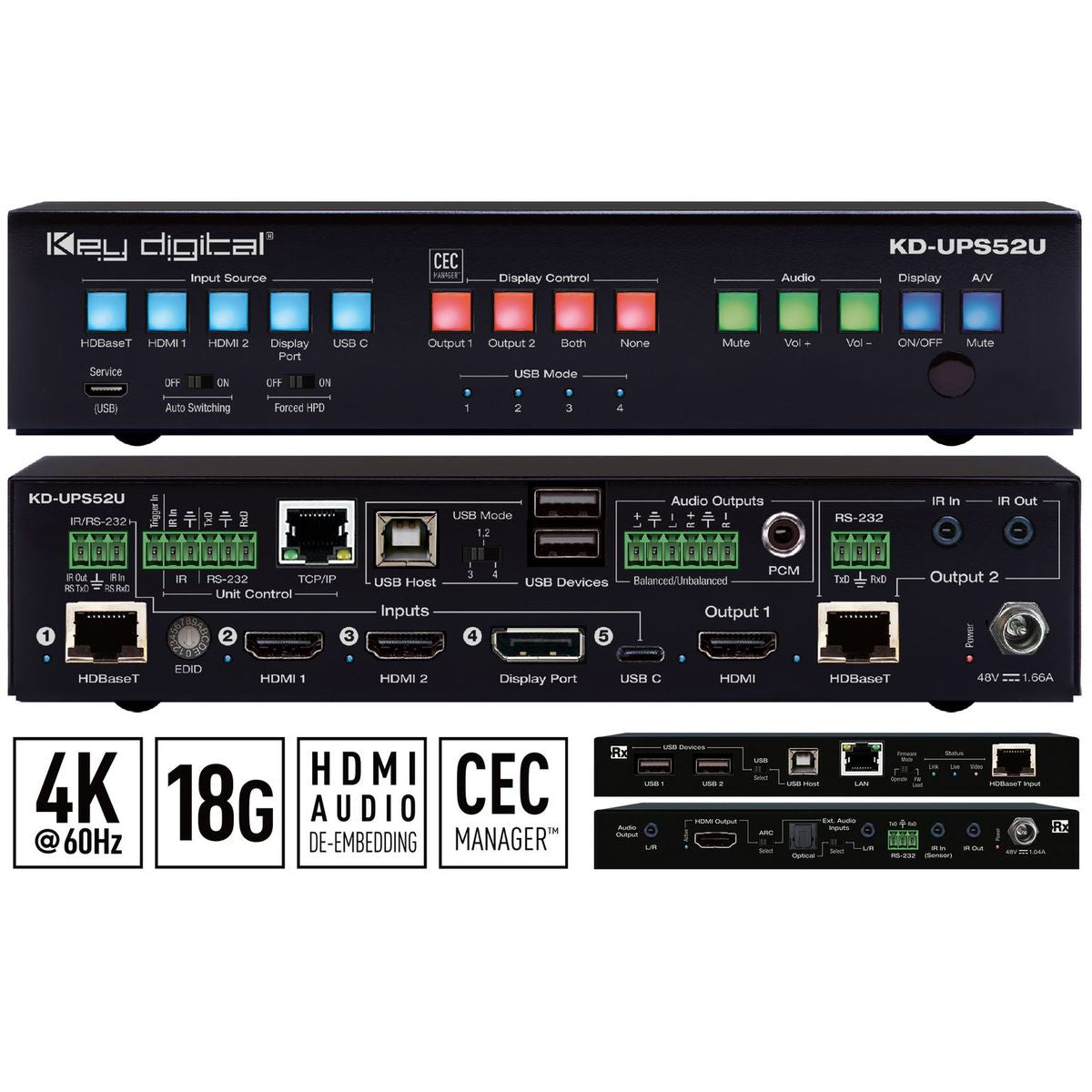

• 5 inputs (HDBT, 2x HDMI, DP, USB-C) and 2 mirrored outputs (HDBT, HDMI)
• The included KD-X100MRx extends video via HDBT up to 100m away
• Auto Switching selects a newly connected source and deselects a disconnected source
• Mirrored HDMI and HDBaseT output for Presenter's confidence monitor
• Part of a complete AV + USB 2.0 signal management solution for conference spaces
