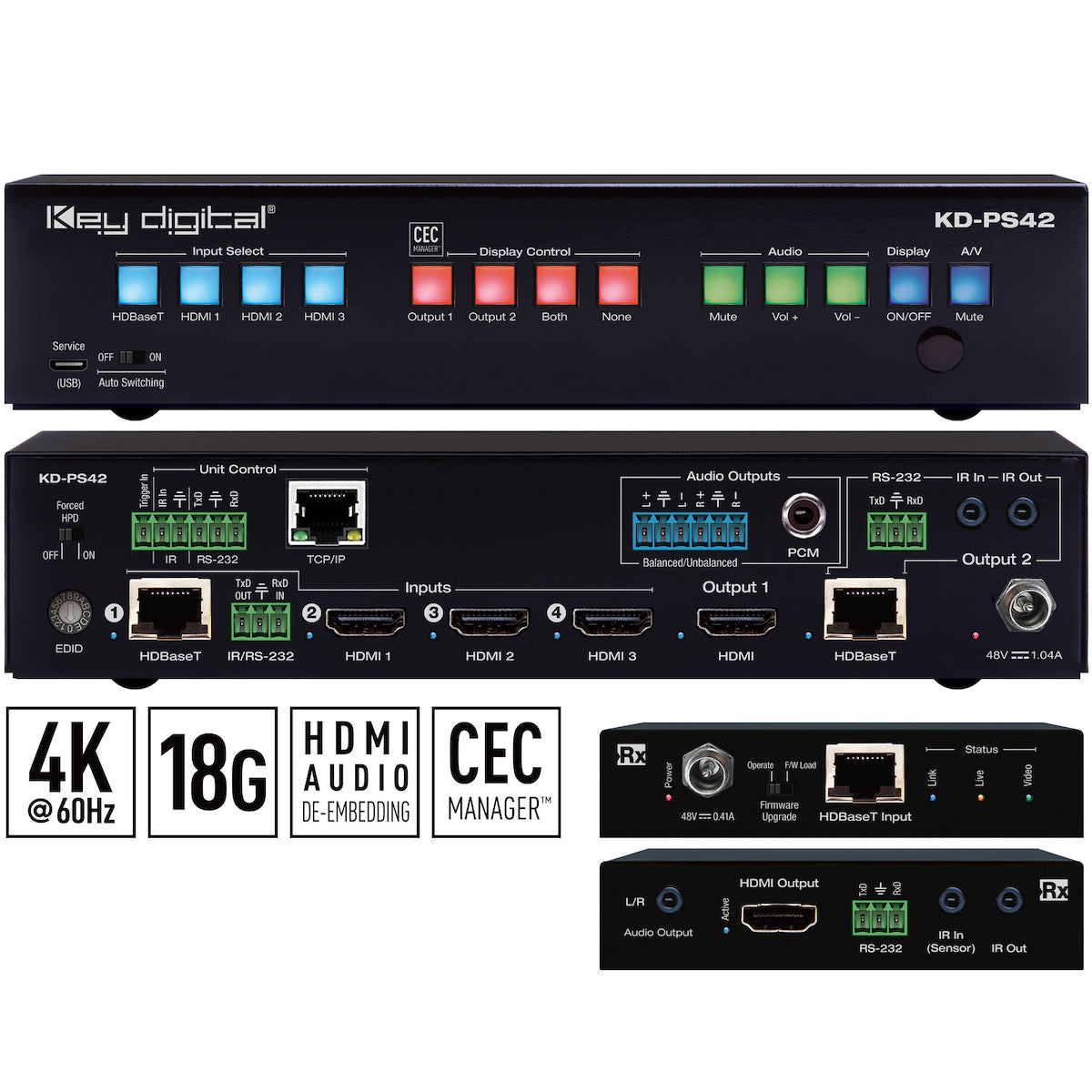

The Key Digital KD-PS42 is a 4K/18G Presentation Switcher kit with CEC Manager, auto switching, and audio de-embedding creating a user-friendly, simplified presentation system. KD-PS42 features three HDMI and one HDBaseT input which integrates natively with Key Digital wall plate HDBaseT transmitters. Mirrored HDMI and HDBaseT outputs enable audience + presenter views and the HDBaseT output marries in with the included KD-X40MRx for integrating monitors or projectors up to 40m/131ft away when the selected source is outputting 4K/UHD (up to 70m/230ft at 1080p).

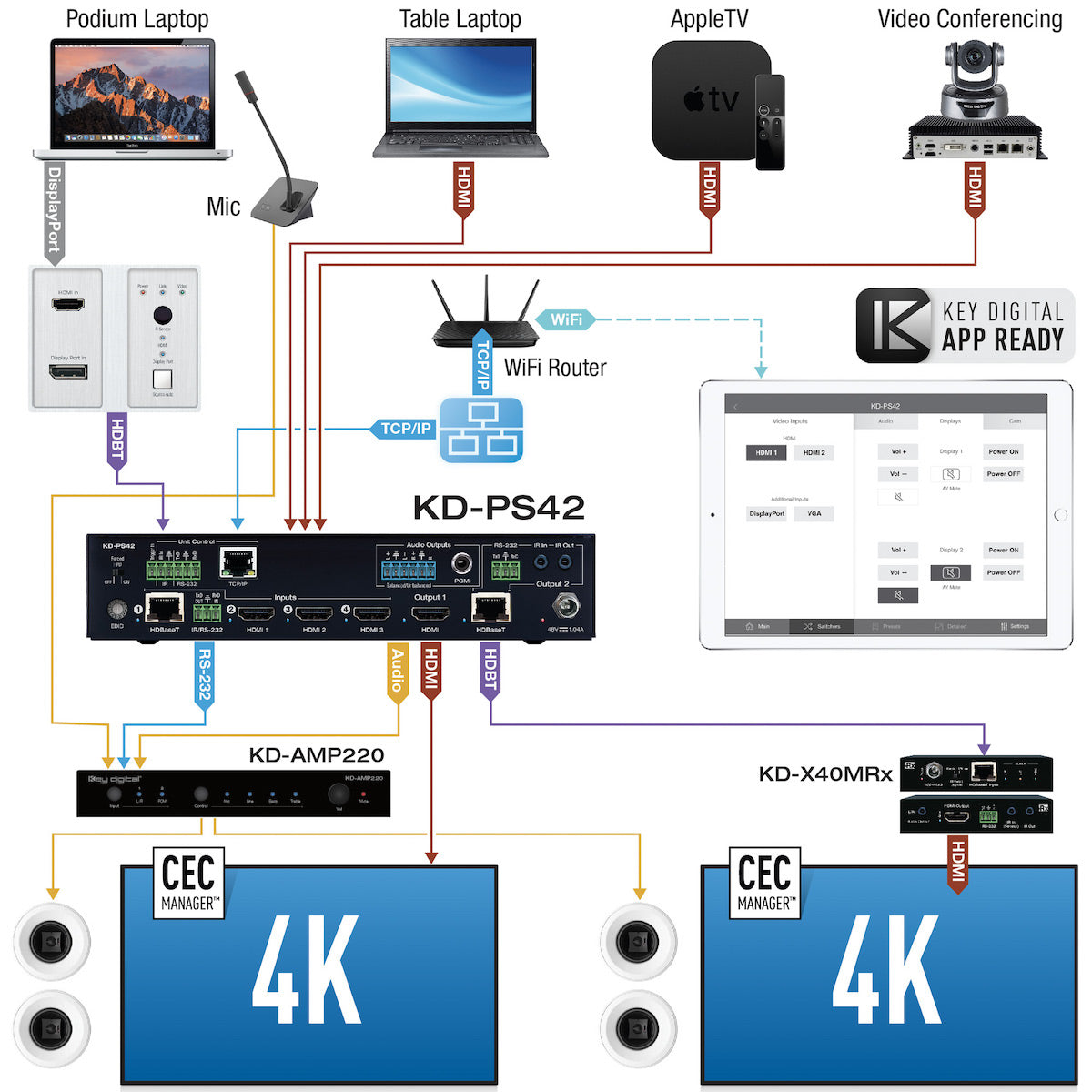

Designed for professional audio video installations in conference rooms, board rooms, classrooms, lecture halls, auditoriums, and more, KD-PS42 enables multiple video sources to be displayed on up to two connected displays while analog (balanced/unbalanced) and digital (PCM) audio de-embed ports feed audio of the selected source into an amplifier, DSP, or sound bar. Integrating KD-PS42 with KD-AMP220 and KD-CAMUSB will enable an app-ready all-in-one solution for control of video switching, sound and speech enforcement, and PTZ camera control.

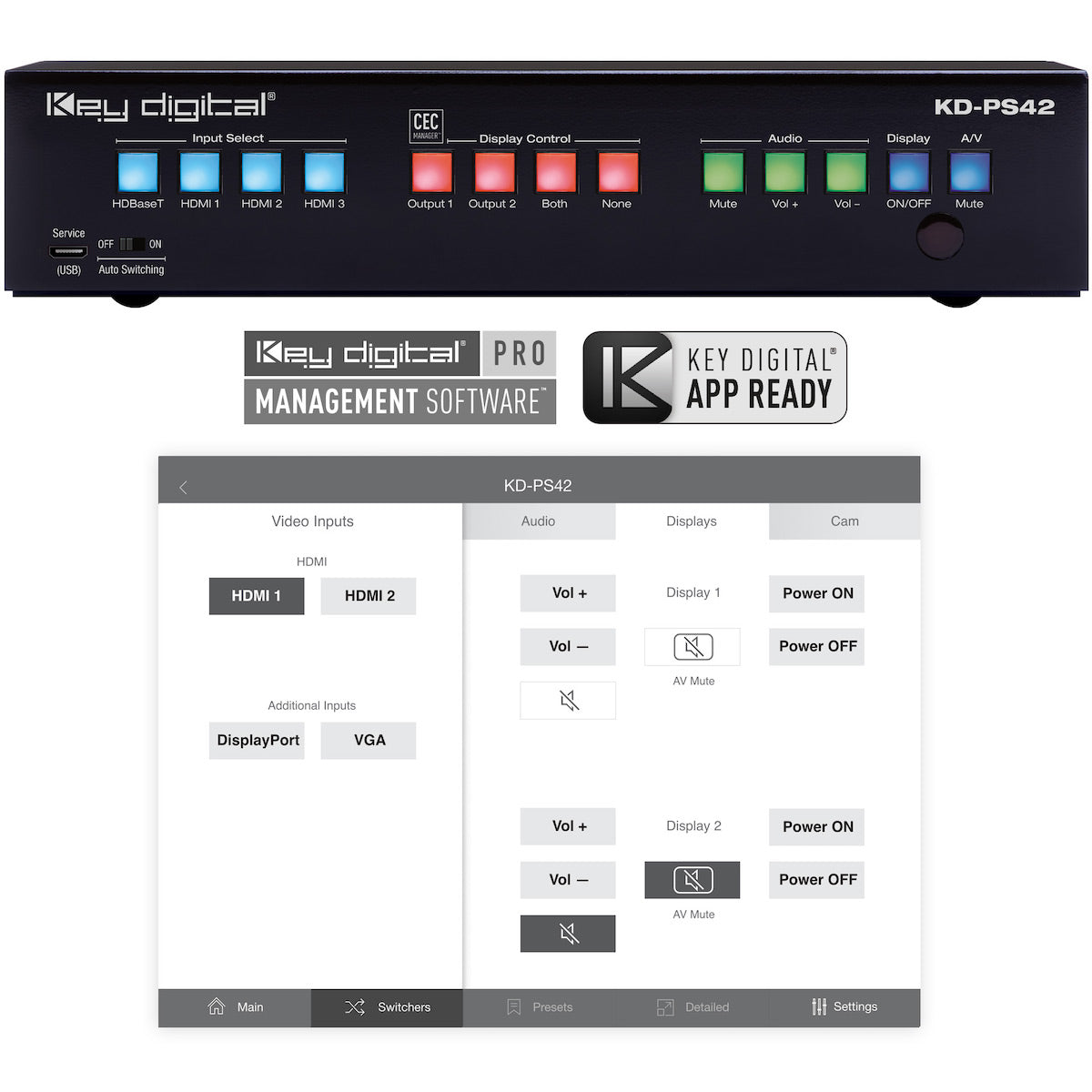

Key Digital CEC Manager enables basic controls of the connected displays for a simplistic all-in-one integration system. KD-PS42 presentation switcher supports all SD, HD, VESA and Ultra HD/4K video standards with HDR header information included in a variety of 4K EDID handshakes. In addition to IR, RS-232, and TCP/IP control, KD-PS42 can also be controlled via trigger voltage and features status monitoring LEDs.
Features
• 4 inputs (HDBT, 3x HDMI) and 2 mirrored outputs (HDBT, HDMI)

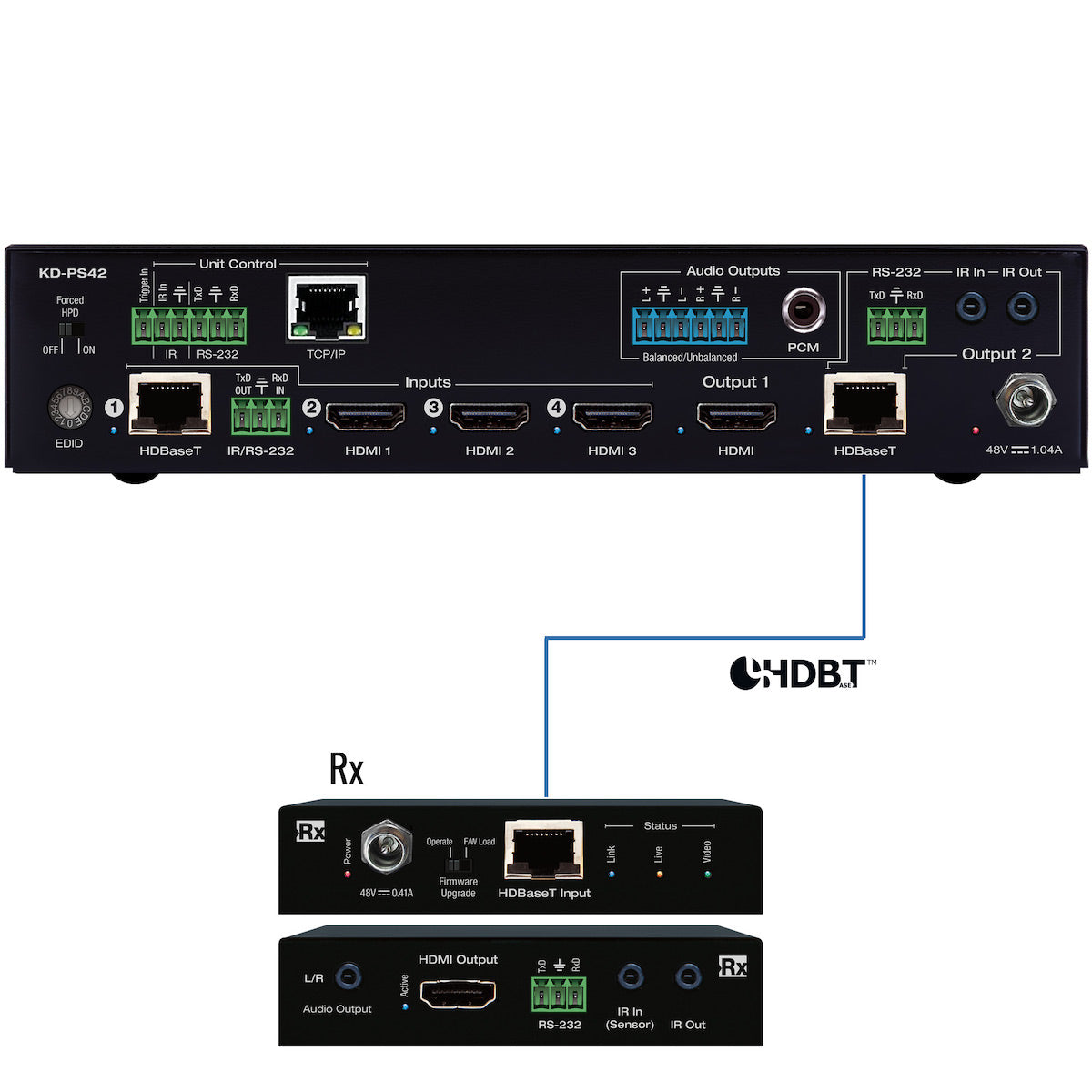

• The included KD-X40MRx extends 4K/UHD video via HDBT up to 40m away.
• Auto Switching selects a newly connected source and deselects a disconnected source
• Mirrored HDMI and HDBaseT output for Presenter's confidence monitor
• Part of a complete signal management solution for conference spaces
