The Key Digital KD-PS22UTx is an HDBaseT transmitter + presentation switcher + soft-codec enabling interface with two HDMI inputs, USB Host or Device connections, and HDMI pass-through output for an additional display. KD-PS22UTx is ideal for professional video installations in conference rooms, classrooms, lecture halls, auditoriums, as well as audio return (ARC) applications. KD-PS22UTx and its Receivers (sold separately) have audio de-embedding for ease of integration with audio systems. KD-PS22UTx features push-button or TCP/IP switching selection of the desired source and is KD-App Ready. In addition to AV signals, KD-PS22UTx extends USB 2.0, IR, RS-232, and LAN for controlling remotely located equipment.
Features
• Auto Switching transmitter with 2x HDMI inputs
• Integrates natively with KD-X100MRx or KD-UPS52U (sold separately)
• Extends 4K HDR 18Gbps signals up to 328ft/100m and 1080p signals up to 492ft/150m

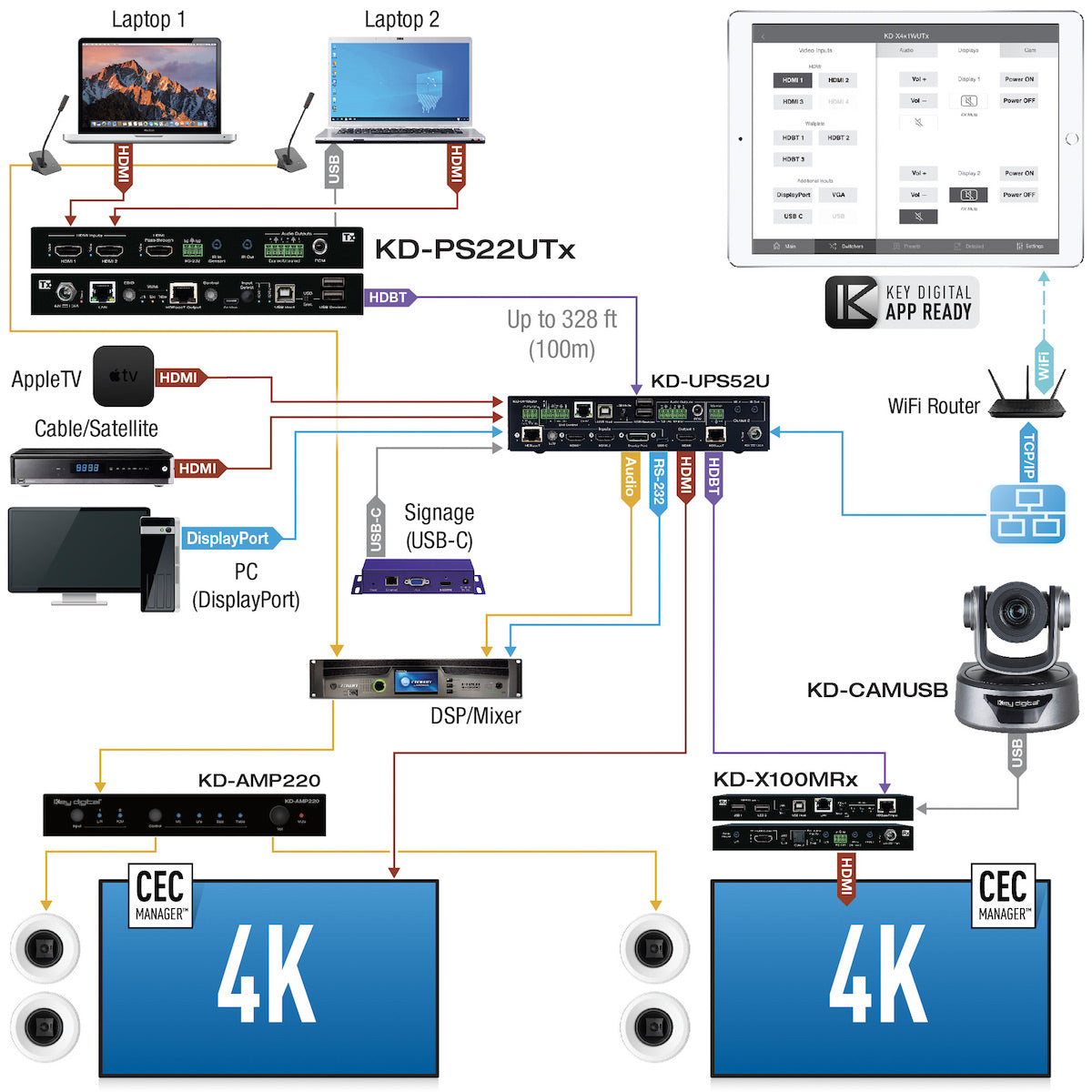

• Part of a complete AV + USB 2.0 signal management solution for conference spaces
