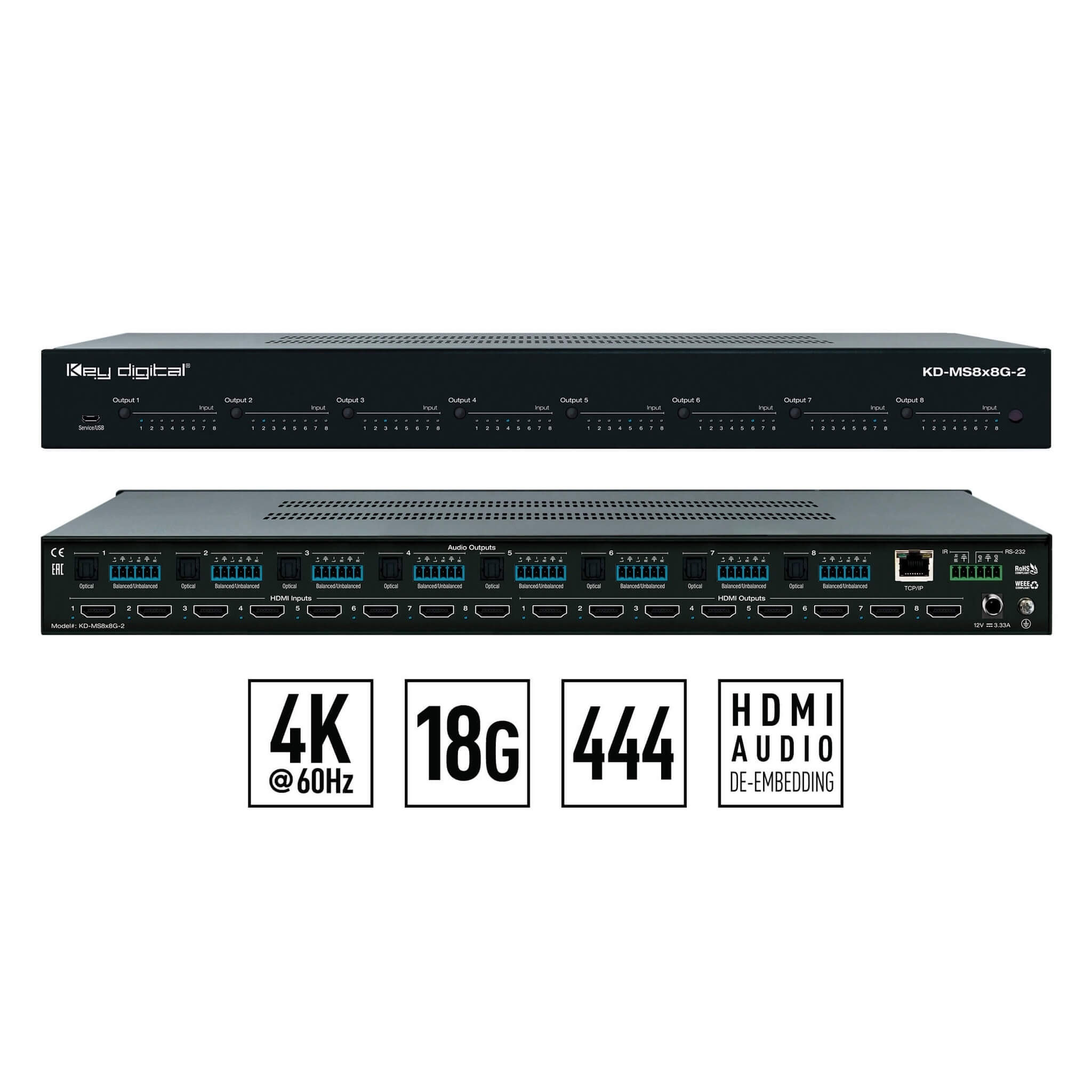

The Key Digital KD-MS8x8G-2 is a HDMI matrix switcher with support of 4K resolution HDCP 2.2, and signal bandwidth up to 18Gbps for routing of up to 8 HDMI sources to 8 HDMI displays at any time and in any combination.
Features
• HDMI Matrix Switching: 8 HDMI sources to 8 HDMI outputs
• Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR10 and Dolby Vision®: More life-like images through a greater range of luminance levels
• Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
• Deep Color Support: Up to UHD/4K 60Hz 4:2:0/12 bits, 60Hz 4:2:2/12 bits
• Audio De-Embed: 6 pin balanced / un-balanced and digital optical outputs
• Independent Audio and Video Matrix: Output HDMI and Audio ports may route together or independently
• Dolby Digital® & DTS™ Audio: Supports 2-channel and multi-channel surround formats up to DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, Dolby Atmos®
• Web UI: Control AV routing and other basic functions from any web browser
• Key Digital® App & KDMS® Pro Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital® App and Key Digital Management Software™ Pro (KDMS™ Pro) PC setup Software
