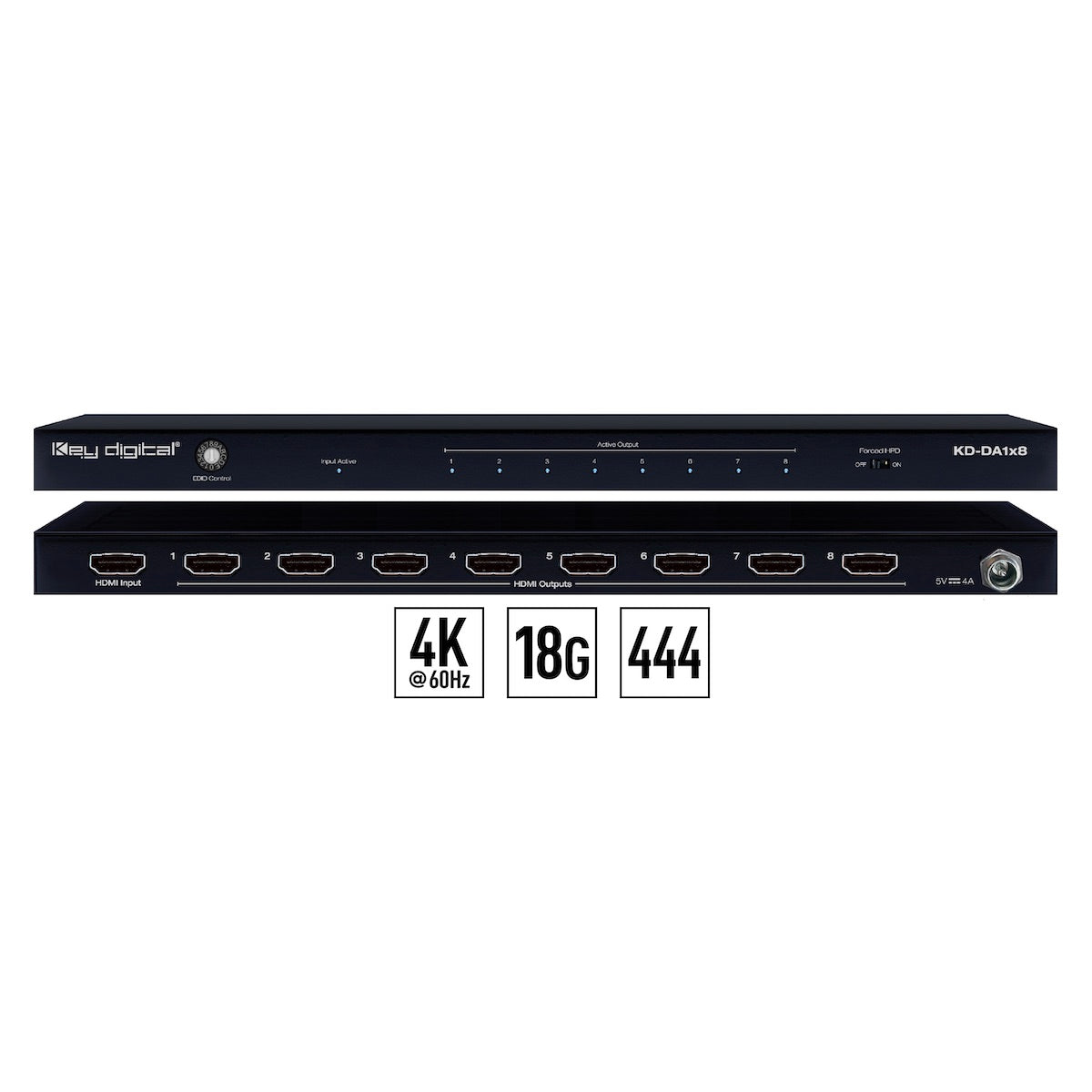

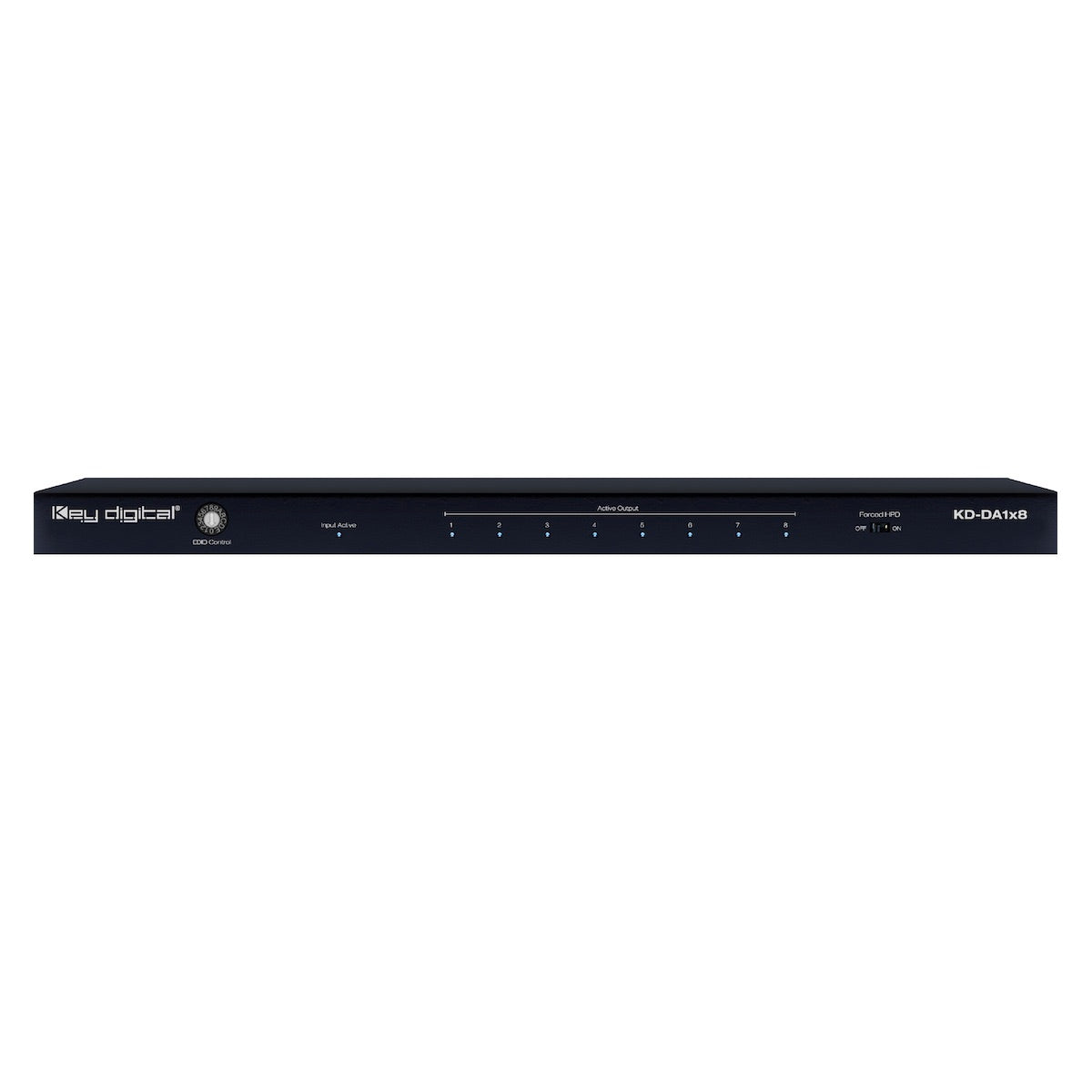

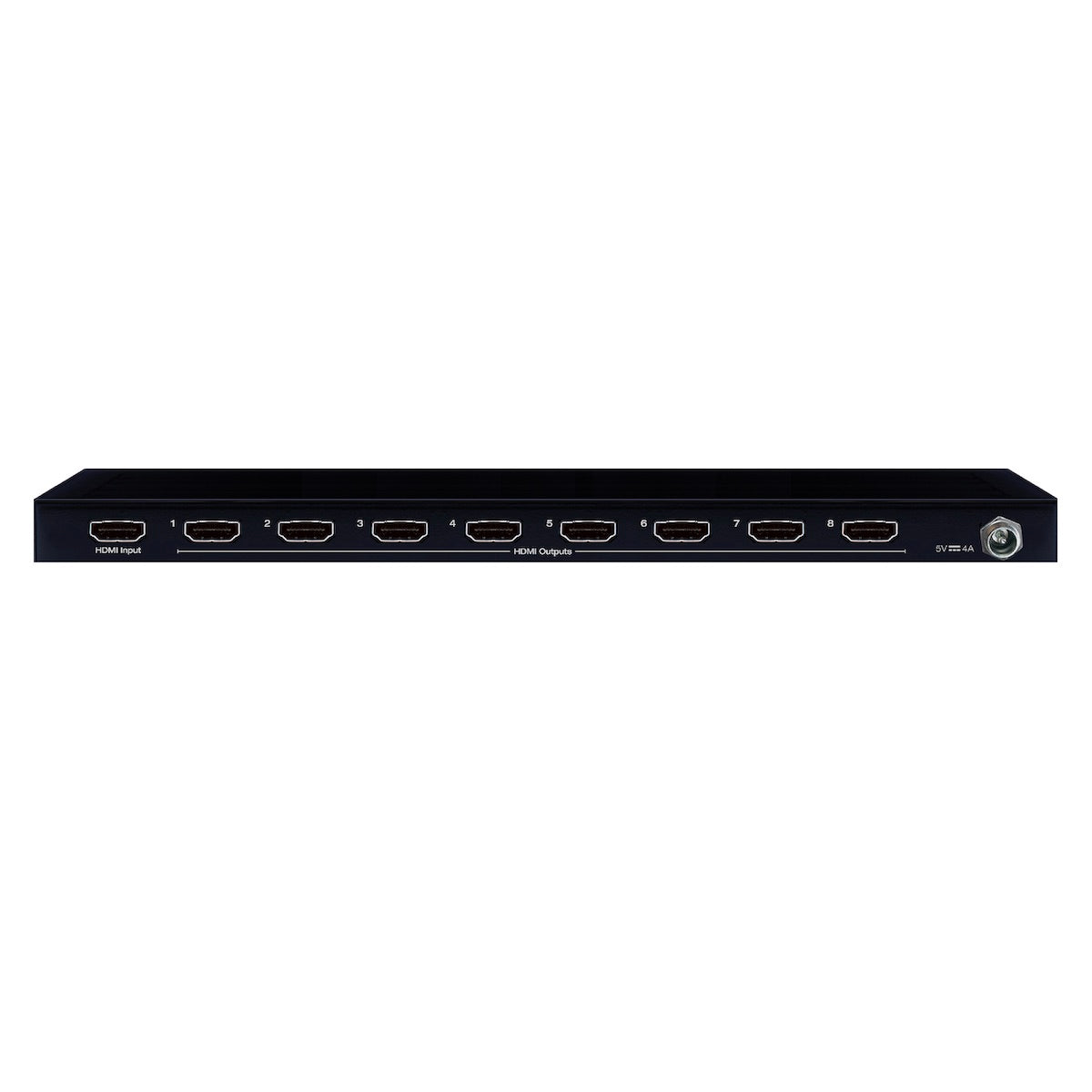

The Key Digital KD-DA1x8 is a 1x8 4K/18G HDMI distribution amplifier.
Features
• Digital Distribution: 1 HDMI Source to 8 HDMI Displays
• Ultra HD/4K Resolution: 4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4
• HDCP Licensing: Compliancy up to HDCP 2.2 and backward compliant
• 18 Gbps Bandwidth: High Speed/Performance for latest HDMI standards
• HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
• 3D Ready: Capability to pass 3D stereoscopic signal formats
• Resolution Support: SD, HD, and VESA up to UHD/4K
• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• EDID Control: Internal library with 15 EDID handshakes in addition to native EDID data of output/display 1
• Full Buffer System: Manages TMDS re-clocking/signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake
• Lossless Compressed Digital Audio: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio and Dolby Atmos
• Deep Color Support: Up to 12 Bit at UHD/4K 24/25/30Hz 4:4:4
• HDMI and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI
• I2C Communication: EDID and HDCP buffering from Display to Source
• CEC Disconnect: Prevents all device communication signals via CEC, ARC, and HDMI Ethernet channels
