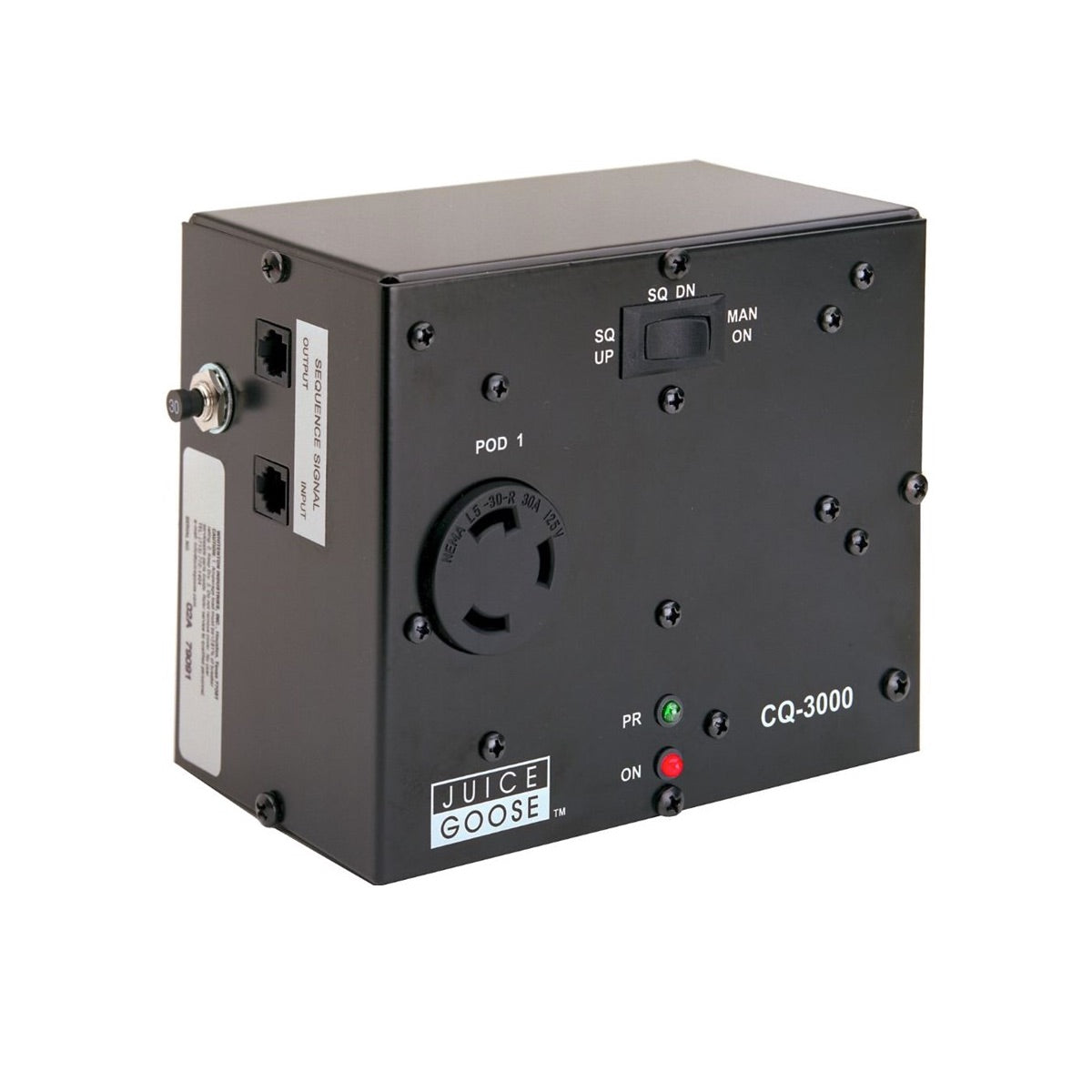

The Juice Goose CQ-3000 is necessary for high current, low frequency amplifier control. The same size as the CQ-2000, this product integrates seamlessly with the other CQ products. It fits anywhere in a chain of sequencers but it's usually located at the end of the system, being last on and first off.
The CQ-3000 features a single 30A NEMA L5-30R twist lock connector. Power control uses a high current relay with large inrush current handling capability. AC mains are attached to the CQ-3000 with a hardwire connection to a terminal block inside the chassis. Other features include a 30A thermal circuit breaker, a master sequence activation and override switch and operation indicator LEDs.
Features
• 1, 30A twist lock receptacle
• 1 sequence event
• Mounts behind a rack
• Operates independently or with other CQ devices
• Meant to be hardwired
• Made in America
