JBL VRX932LA-1 - 12-inch Two-Way Line Array Loudspeaker, VRX900 Series

The JBL VRX932LA-1 is a lightweight, compact 12" two-way line array speaker system designed for use in arrays of up to six units. VRX932LA-1 is the ideal choice when line array performance is needed but the venue size doesn’t call for the very long-throw characteristics of larger line arrays such as JBL’s VERTEC.

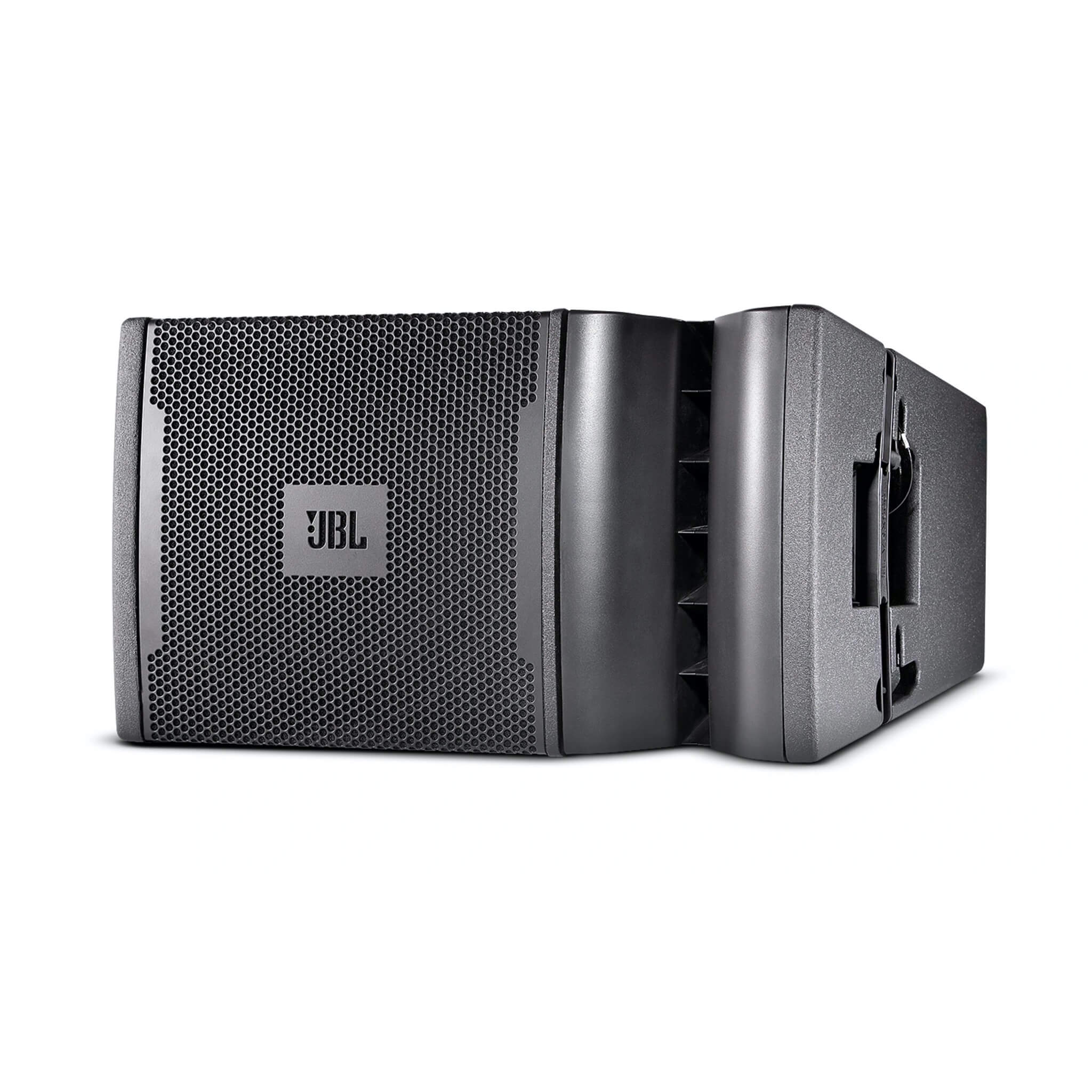

The Constant Curvature waveguide mounts three compression drivers on a continuous arc. When additional VRX932LA-1 speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide. Since there are three drivers in each VRX932LA-1, the combined power handling and acoustic output of the system is far greater than a single driver could achieve.

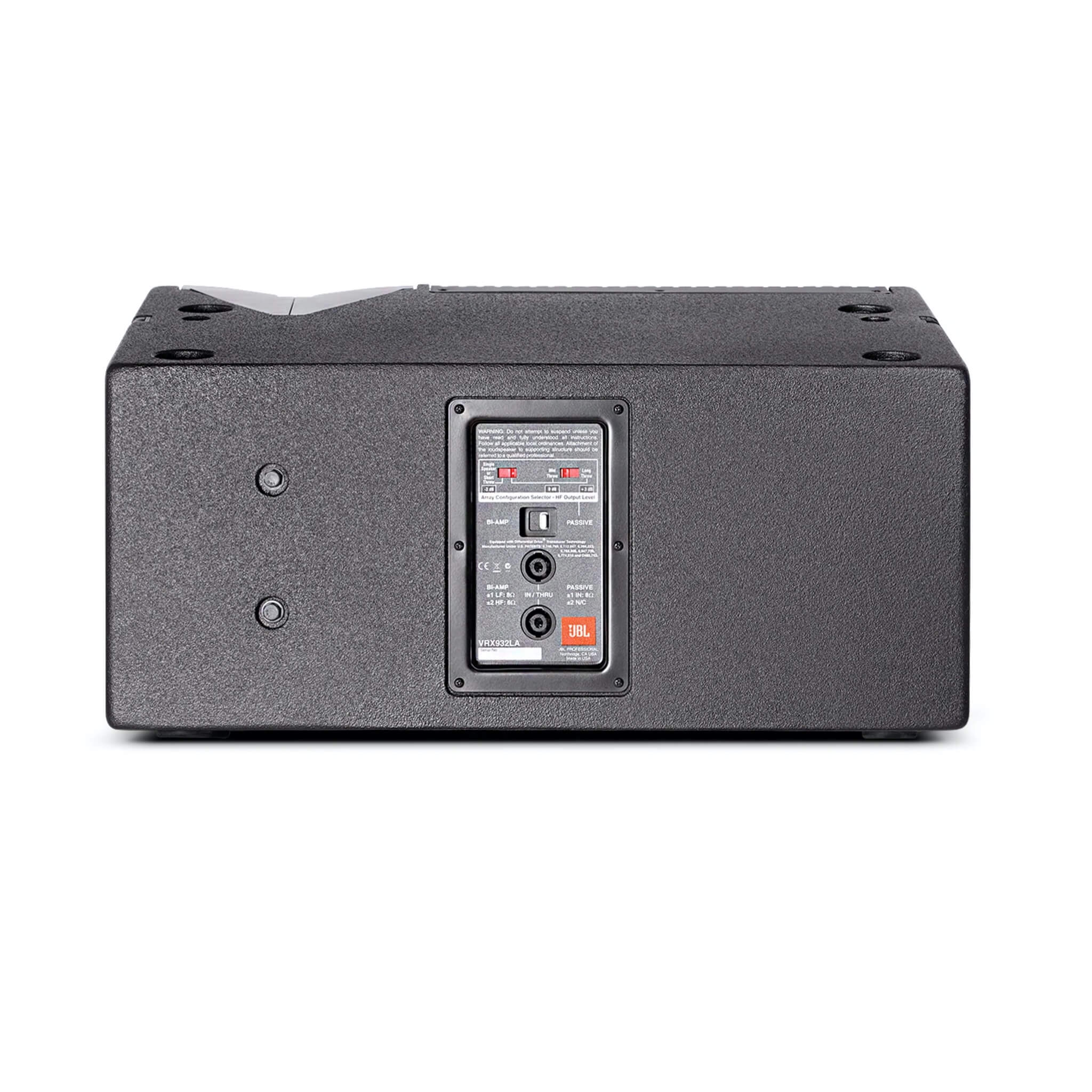

VRX932LA-1 uses amplitude shading to shape the coverage of the array. Switches on the input plate allow, for example, the upper box in an array to reach a distant balcony while the lower HF section is shaded back to reduce excessive level at the front of the listening area.

One or two VRX932LA-1’s may also be used on a tripod or over subwoofers. The integral rigging hardware is used to securely lock the array together while the dual-angle pole socket provides aiming flexibility.

Features
• Constant Curvature waveguide for unprecedented array coherence
• Array Configuration Selector permits array shading in passive mode
• Integral rigging hardware for simple connection of enclosures
• Dual Angle Pole Socket for aiming flexibility (not on - WH version)
• Neodymium magnet Differential Drive woofer for high power and light weight
