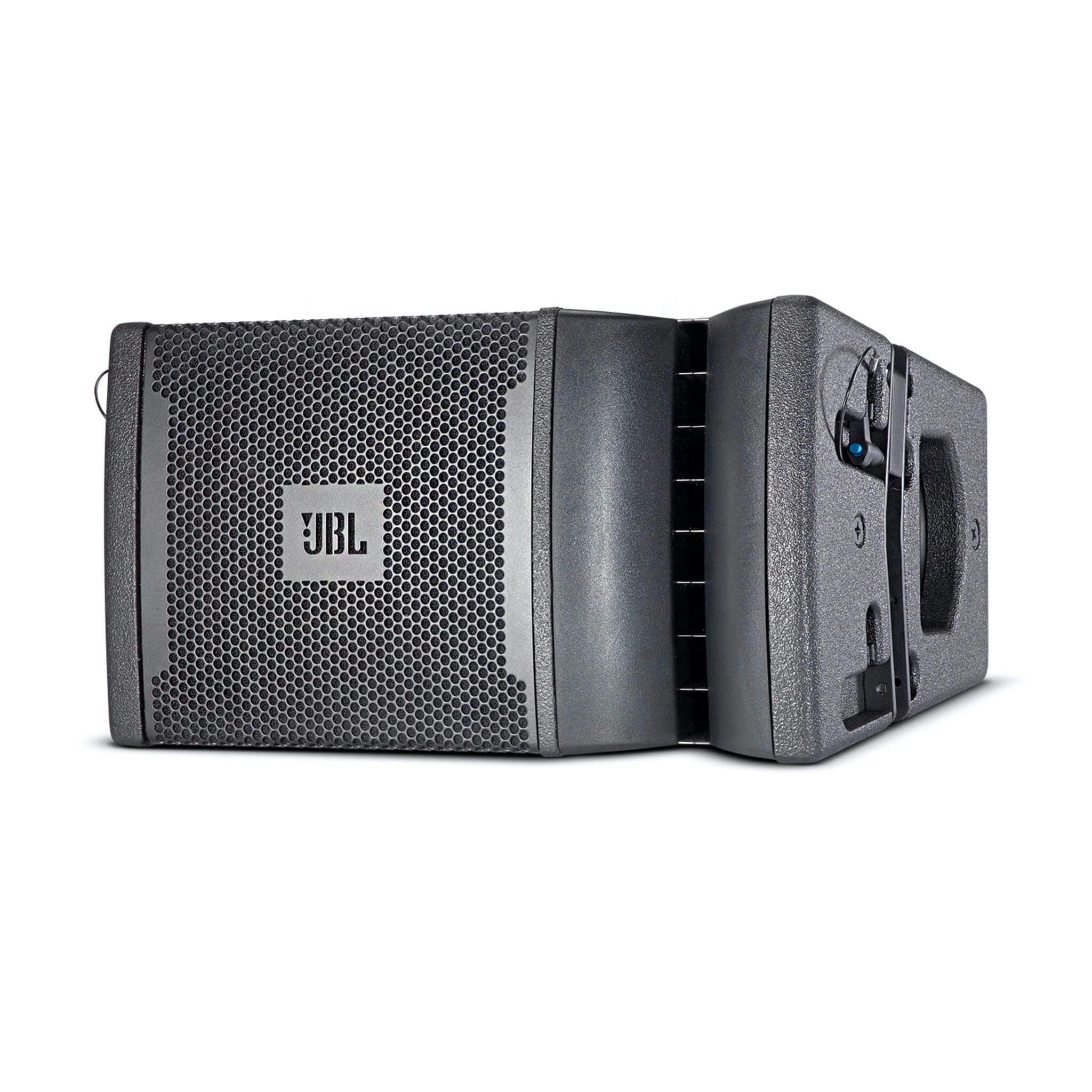

The JBL VRX928LA is a lightweight, compact 8" two-way line-array speaker system designed for use in arrays of up to six units. VRX928LA is the ideal choice when line-array performance is needed but the venue size doesn’t call for the very long-throw characteristics of larger line-arrays such as JBL’s VERTEC.
The Constant Curvature waveguide mounts two compression drivers on a continuous arc. When additional VRX928LA speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide. Since there are two HF drivers in each VRX928LA, the combined power handling and acoustic output of the system is far greater than a single driver could achieve.

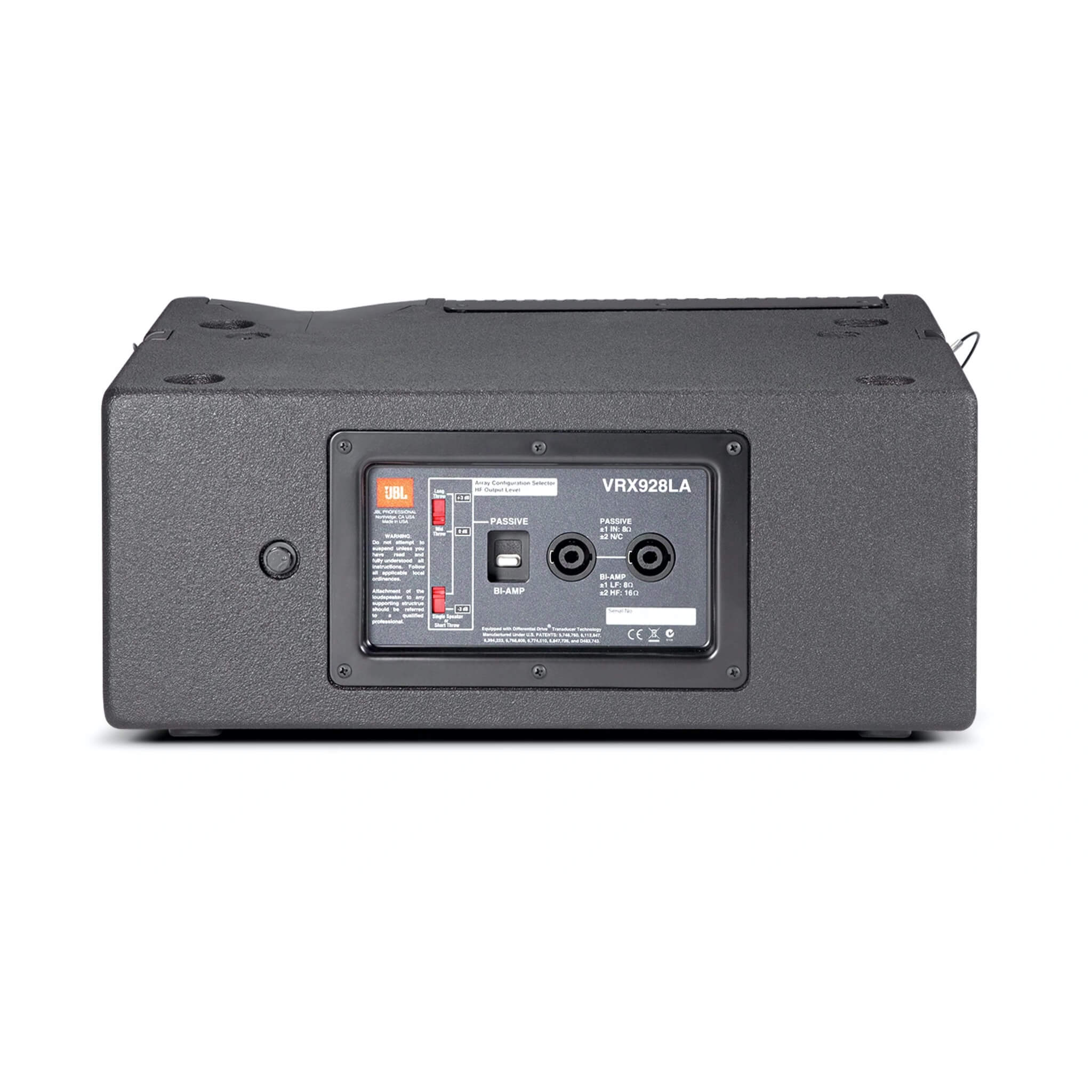

The VRX928LA uses amplitude shading to shape the coverage of the array. For example, switches on the input plate allow the upper box in an array to reach the distant rear of a room while the lower box is shaded back to reduce excessive level at the front of the listening area.
One or two VRX928LAs may also be used on a tripod or over the VRX915S subwoofer. The integral rigging hardware is used to securely lock the array together.
Features
• Constant Curvature waveguide for unprecedented array coherence
• Amplitude Shading
• Integral rigging hardware for simple connection of enclosures
• Dual Angle Pole Socket for aiming flexibility (not on - WH version)
• Neodymium magnet Differential Drive woofer for high power and light weight
