Description

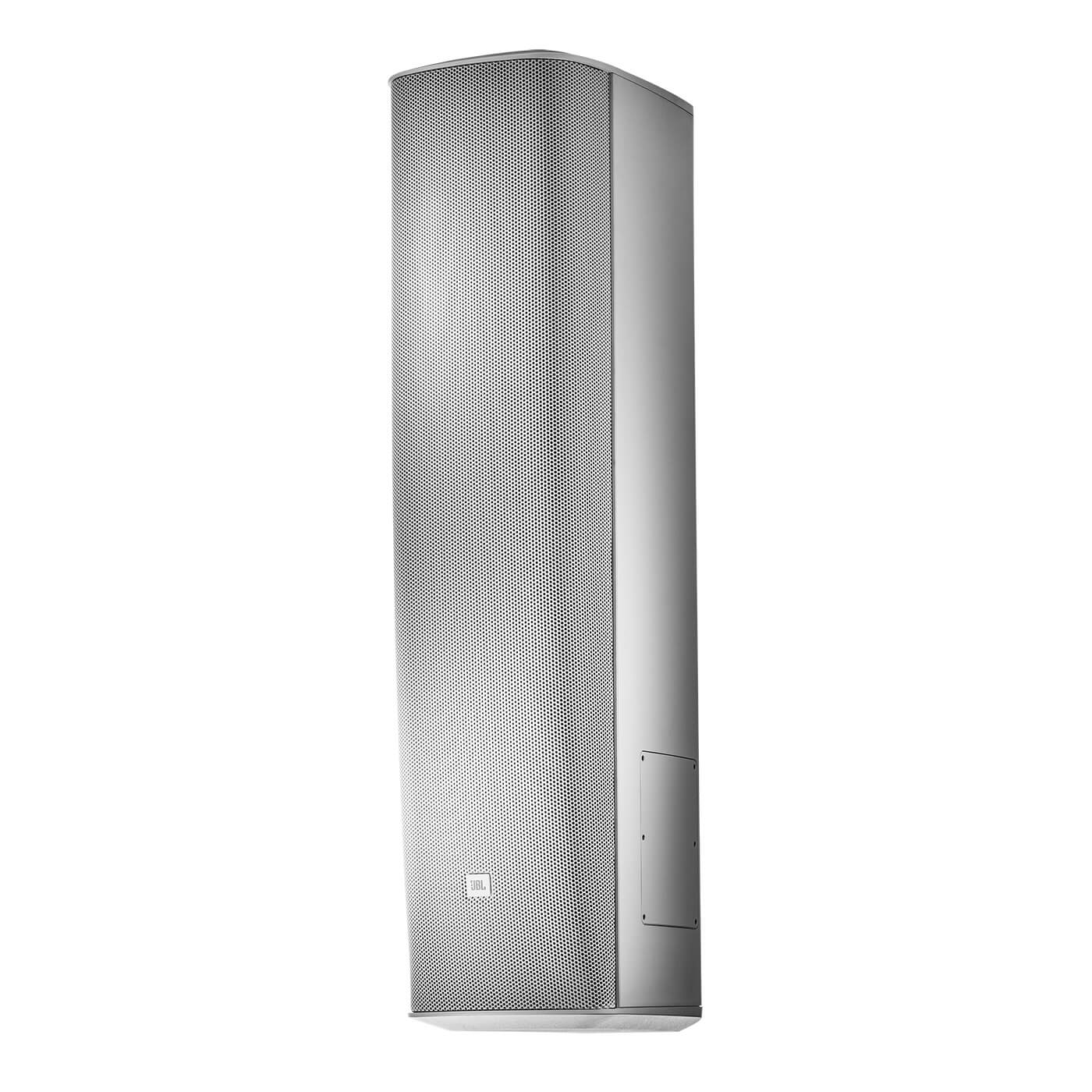

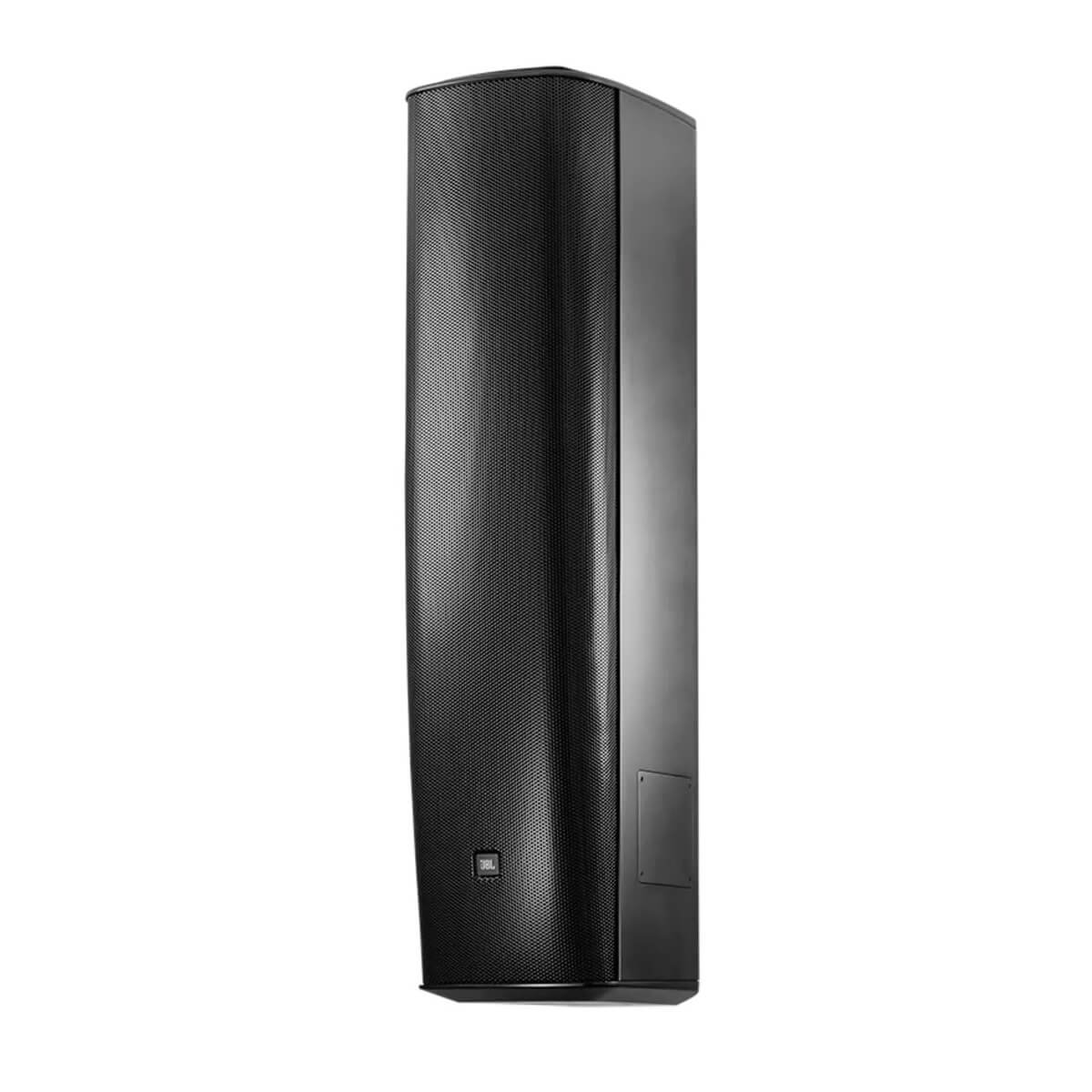

The JBL CBT 1000 Hi-Output 2-Way Line Array Column Loudspeaker expands upon the highly successful Constant Beamwidth Technology breakthrough, representing the next-generation in pattern control. It utilizes adjustable vertical coverage and a tapered horizontal waveguide to increase the versatility of aiming the coverage of the loudspeaker to more accurately map to the room geometry in a wide variety of listening spaces.
Features

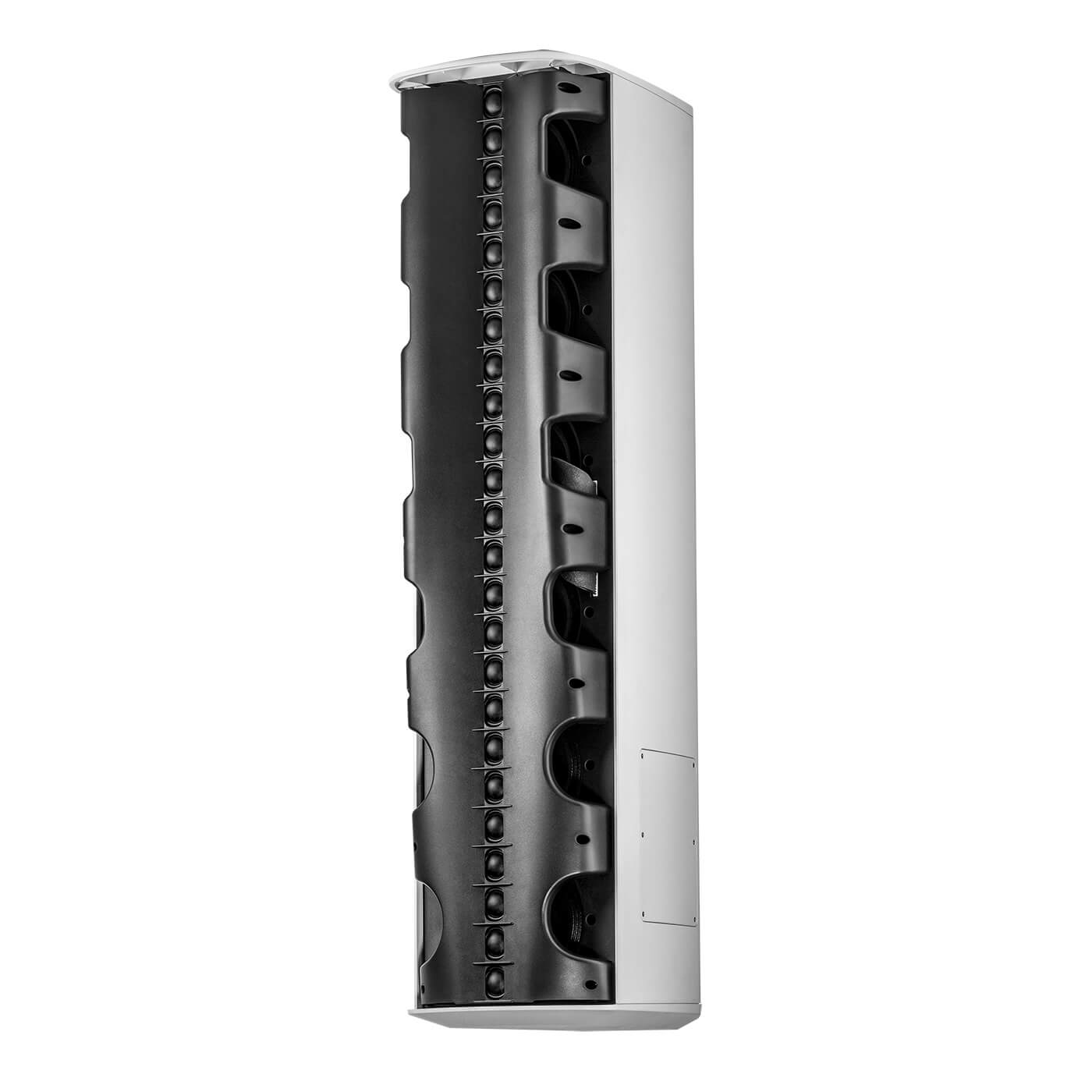

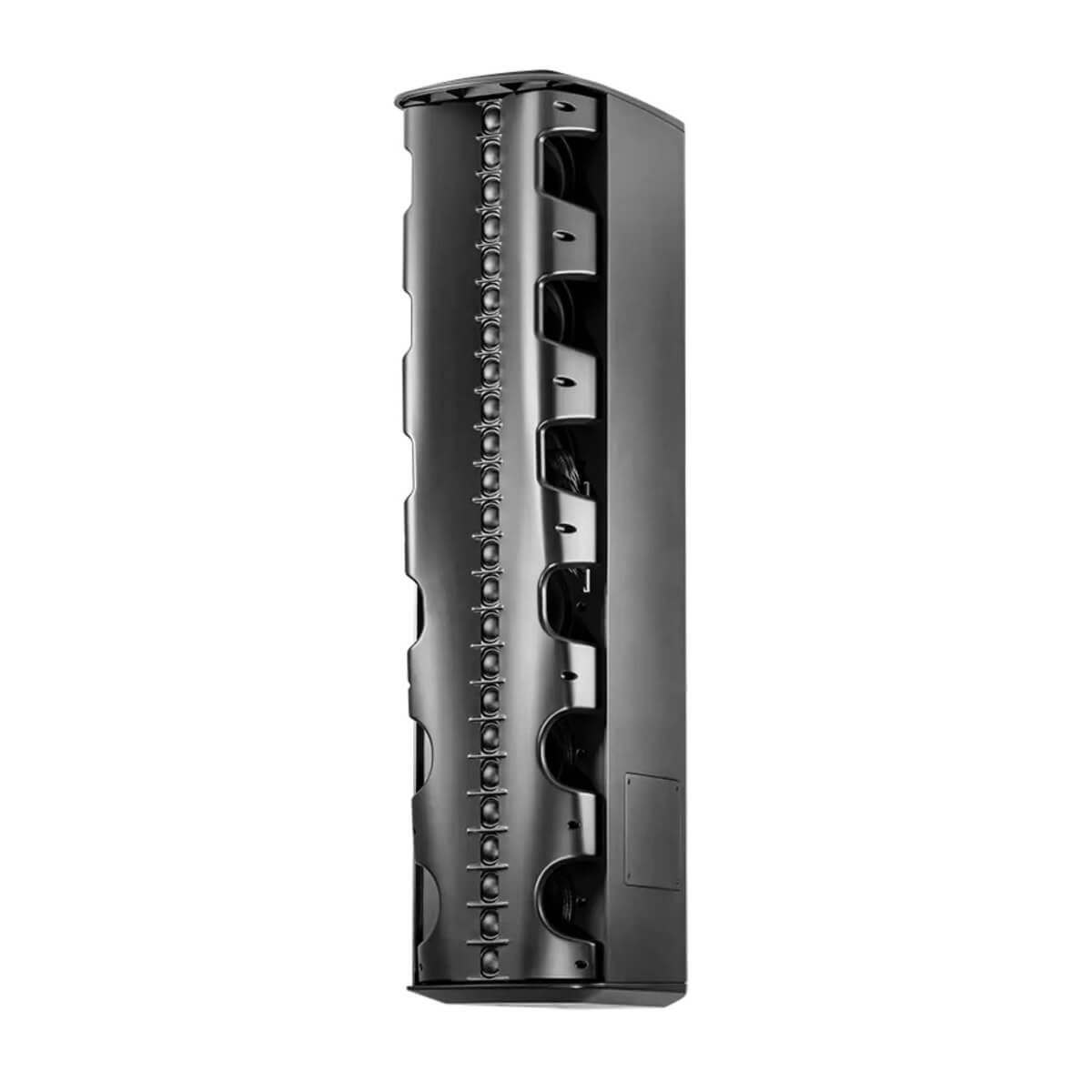

• Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters
• Six (6) 165 mm (6-1/2") high-excursion LF drivers arranged coaxially
• Power Capacity: 1500W (6000W peak), 2 hrs
• Vertical pattern coverage is individually adjustable through a range of four (4) “Pattern Up” angles and four (4) “Pattern Down” coverage angles for a total of sixteen (16) different coverage combinations, all without the use of external DSP processing.
• Patent-pending Tapered Horizontal Waveguide provides a continuously varying horizontal dispersion (very wide for short-throw, narrower for long-throw) delivering superior coverage in both the front and rear corners of a room.
• Single-speaker room coverage at high SPL, with little over-splash and strong bass response down to below 40 Hz.
• Switchable voicing provides flat response for music or mid-range presence for speech
• Swivel pan/tilt wall bracket included
