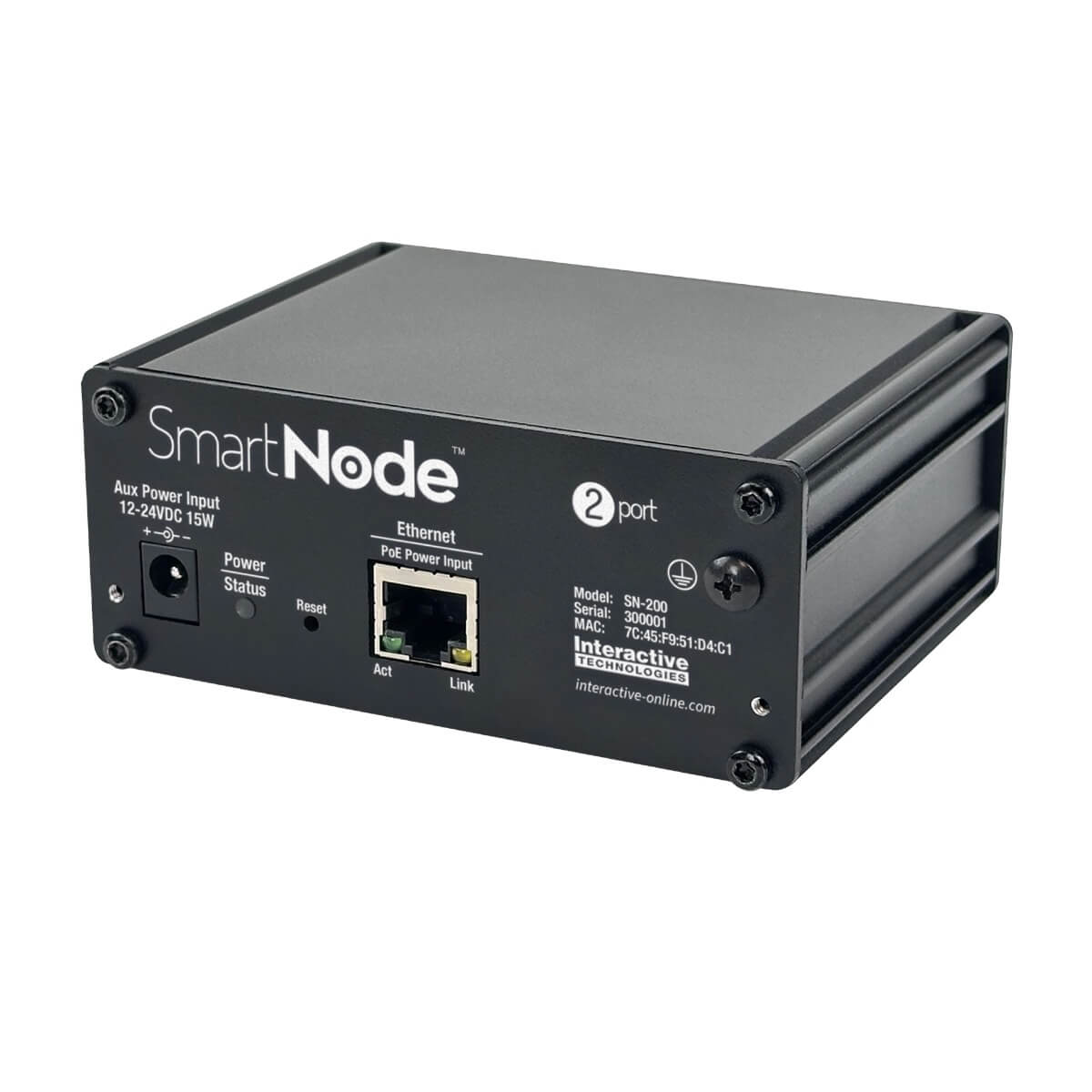

Interactive Technologies SN-200 - 2-Port SmartNode

The Interactive Technologies 2-Port SmartNode (SN-200) is a flexible network I/O device that is easily customized with a wide variety of interface types such as DMX, Digital I/O, Relays, Serial, Station Bus, MIDI, and more, using Smart Modules (sold separately). By adding modules, the physical interfaces become available on the network, and can be configured to augment a CueServer system or freely convert between popular network protocols such as sACN, ArtNet, or simple UDP messages.

For example, a SmartNode with DMX modules can convert between sACN, ArtNet, and physical DMX. Similarly, any of the other available modules, such as Relay, Digital I/O, Serial, Station Bus, MIDI, etc., can be configured to either augment a CueServer processor with additional I/O, or can be operated by lighting control protocols such as sACN or ArtNet, or exposed to the network via simple UDP messages.

Use the 2-Port SmartNode to add additional I/O to a lighting or general automation project over the network. With its vast array of configuration options, the SmartNode is easily integrated into CueServer-based systems, general lighting control projects, and custom networked-based applications.

Features

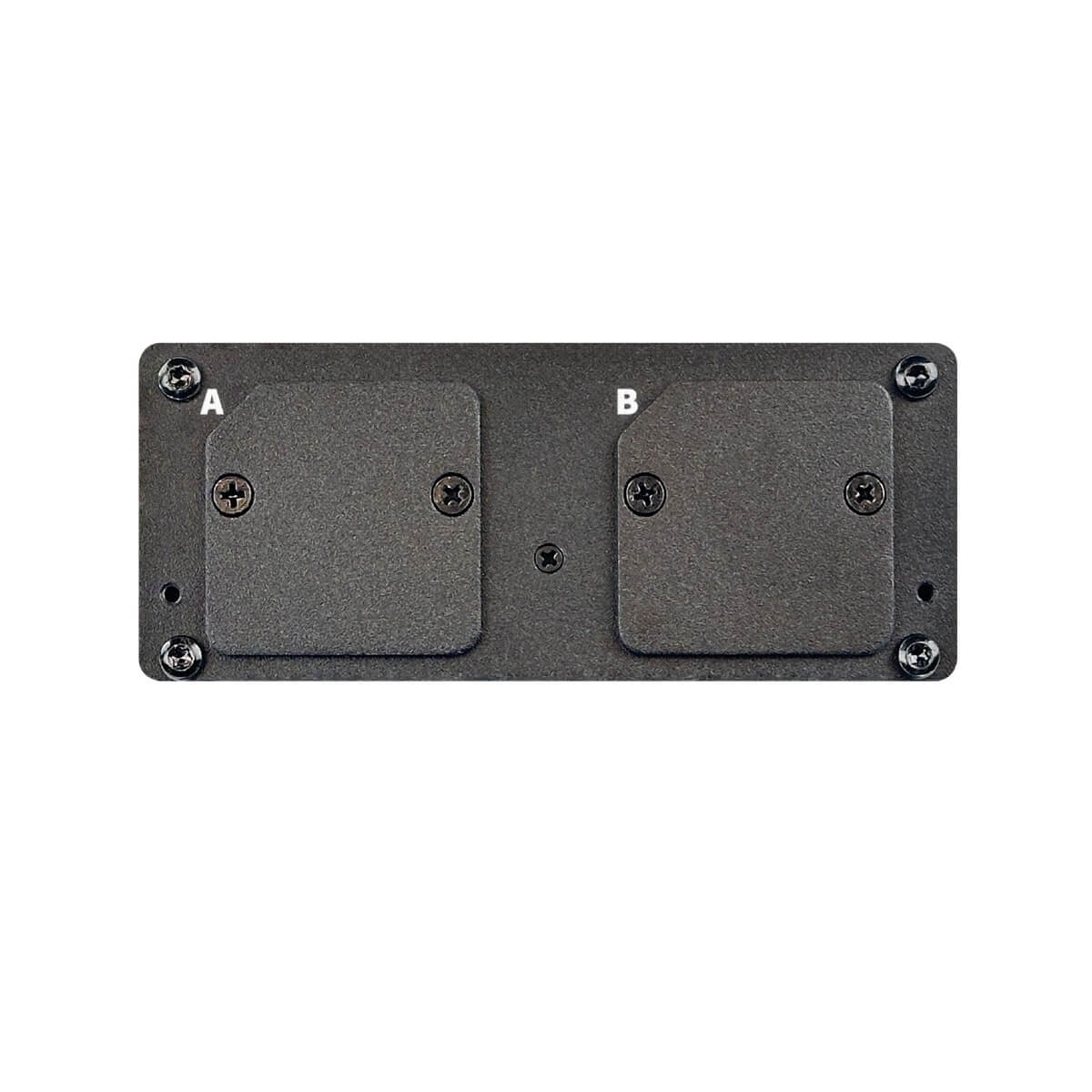

• Self-contained network I/O chassis for hosting up to two Smart Modules

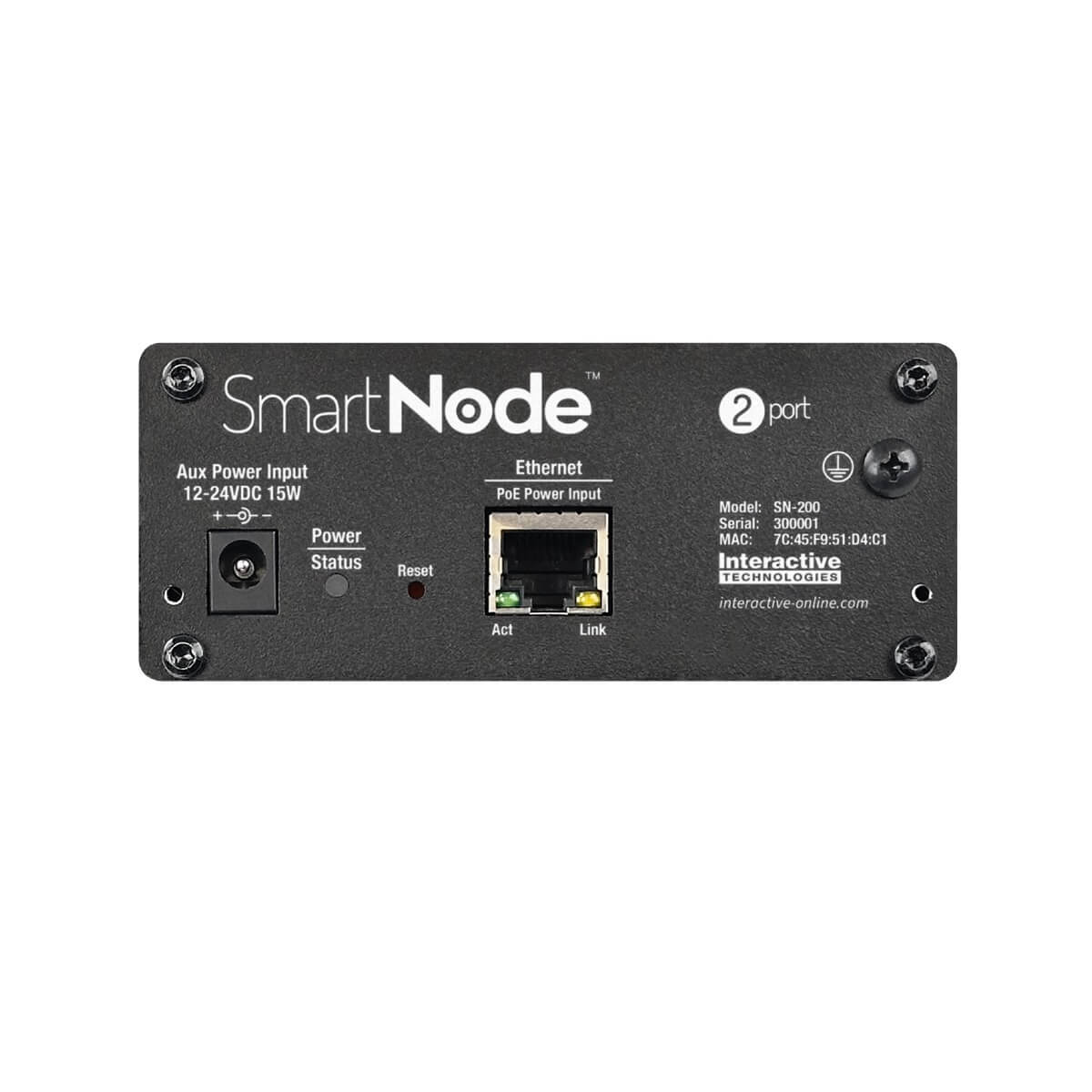

• May be powered via PoE or 24V DC Input
• Multiple protocol conversion between CueServer, sACN, ArtNet, and UDP
• Supports growing catalog of Smart Modules
• Optional brackets for panel, DIN, or truss mounting sold separately
• Smart Modules sold separately
