Description

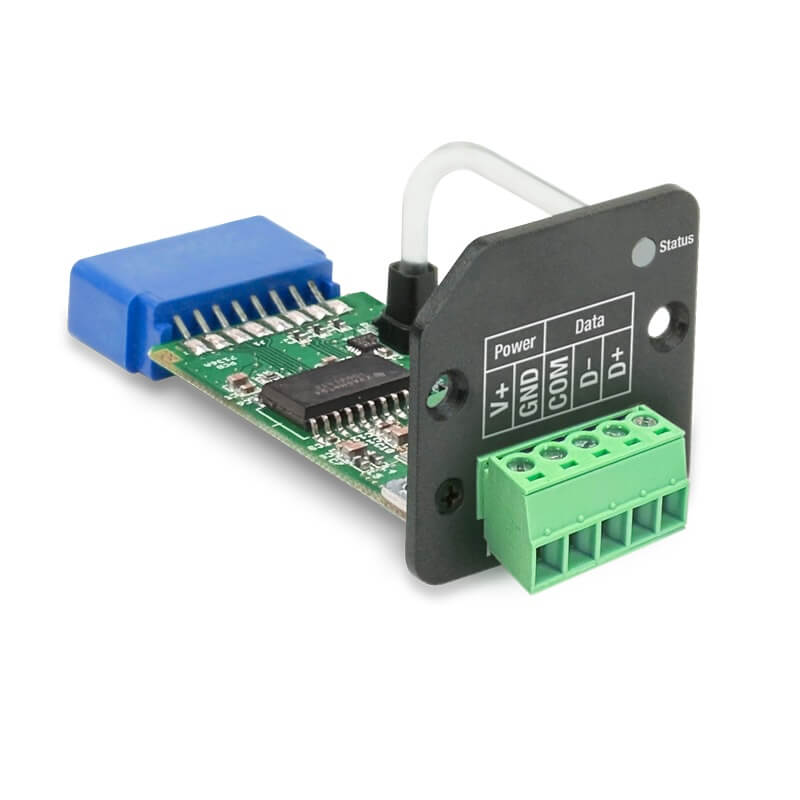

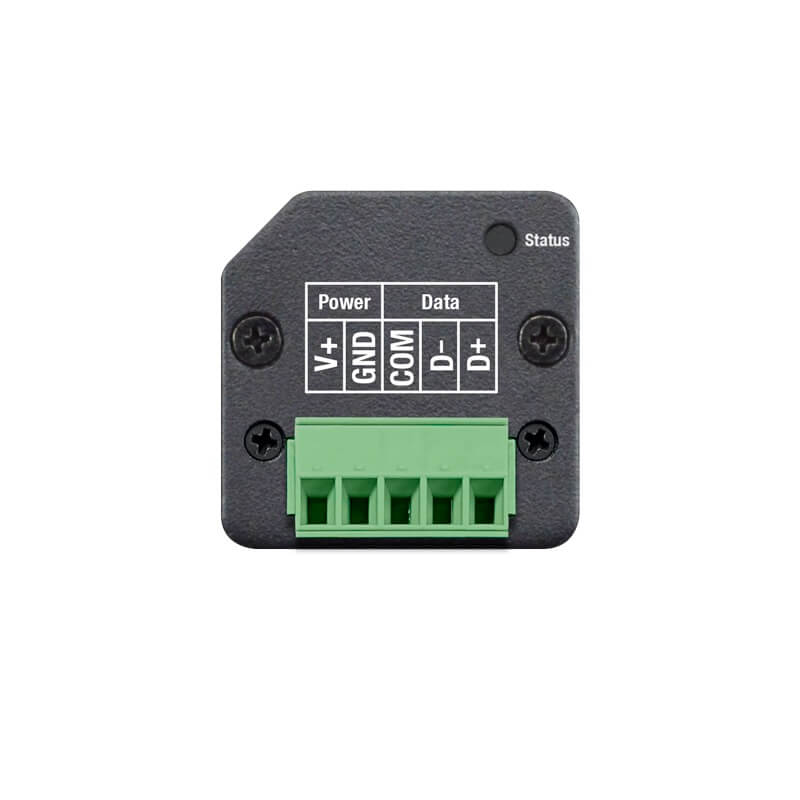

The Interactive Technologies SM-SBUS-5W smart module adds functionality and connectivity to select CueServer 3 models by interfacing with 5-Wire CueStation button stations (such as Mystique or Ultra stations).
The SM-SBUS-5W module also supports alternate protocols including DMX and RS-485 serial. In DMX mode, this module communicates with DMX-based lighting instruments. In RS-485 mode, the module can be used to communicate via RS-485 serial protocols.
The SM-SBUS-5W module provides data isolation and protection to help prevent failures caused by ground loops, voltage mismatches, power surges or electrostatic events. The module also provides software-controlled and over-current protected DC power output for the connected stations. A user-selectable termination switch allows configuration of the module to be able to support up to two home runs of stations. Also, an LED indicator on the module provides at-a-glance operational status.
Features
• Full galvanic isolation for best immunity to ground loops and voltage mismatches
• High ESD protection
• DC output power for stations
• Over-current protection
• Software controlled DC output
• Selectable bus termination for either one or two home-runs
• Additional DMX and RS-485 protocols supported
• Built-in status indicator LED
