Description
The Interactive Technologies SM-RS485 smart module adds functionality and connectivity to select CueServer 3 models by interfacing to devices that require RS‐485 serial communications. These may include video projectors, window covering motors, automation systems, media servers and more.
The SM-RS485 module also supports alternate protocols including Station Bus and DMX. In Station Bus mode, these modules allow for direct connection of 5‐Wire CueStation button stations (such as Mystique or Ultra stations). In DMX mode, the module can be used to communicate via the DMX‐512 protocol.

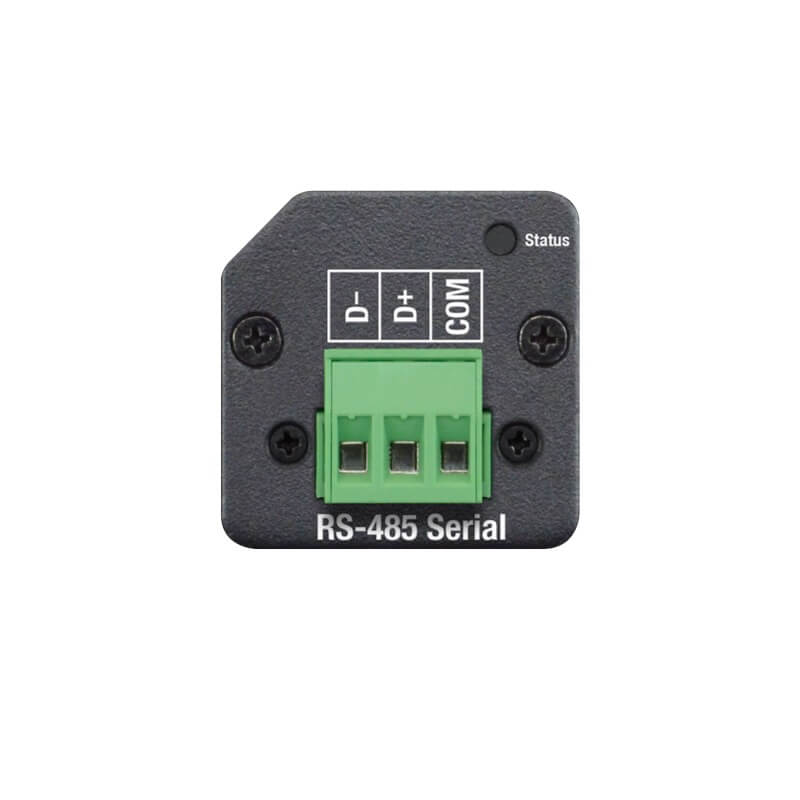

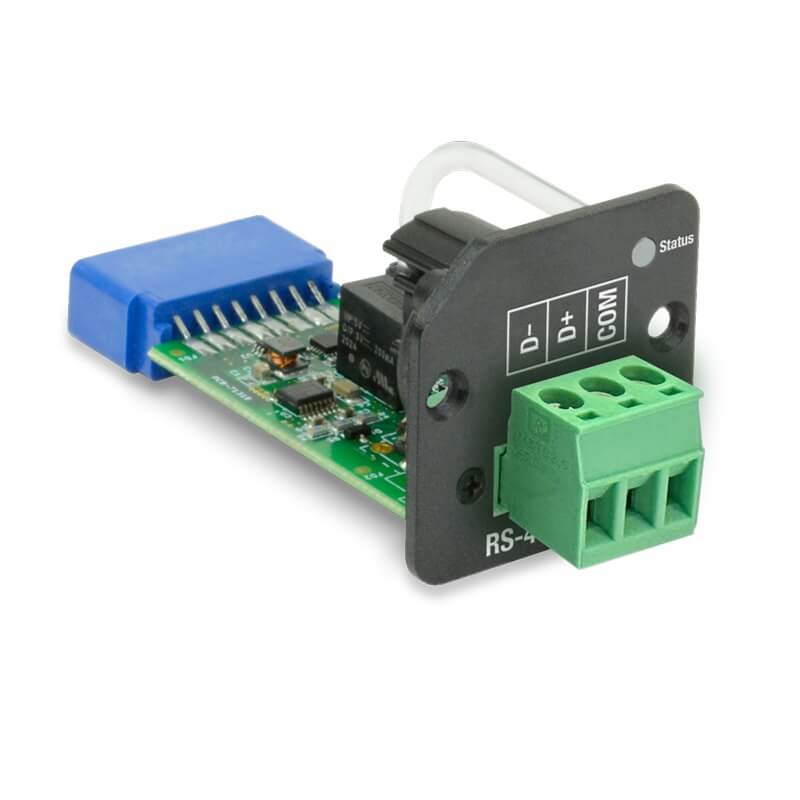

The SM-RS485 is provided with a 3‐position 5.08mm pluggable terminal block for easy field wiring. The terminals include D- (data minus), D+ (data plus), and COM (common).
Features
• Provides industry standard RS‐485 port
• Can be configured in software for many common baud rates from 300-250,000bps
• Serial ports can be configured in software to communicate in various protocols
• Up to 8 SM‐RS485 modules can be added to the CS‐3900 CueServer 3 Pro
• Up to 4 SM‐RS485 modules can be added to the CS‐3400 CueServer 3 Flex/Flex+
• Full galvanic isolation for best immunity to ground loops and voltage mismatches
• High ESD protection
• Additional Station Bus and DMX‐512 protocols supported
• Built‐in status indicator LED
