Description

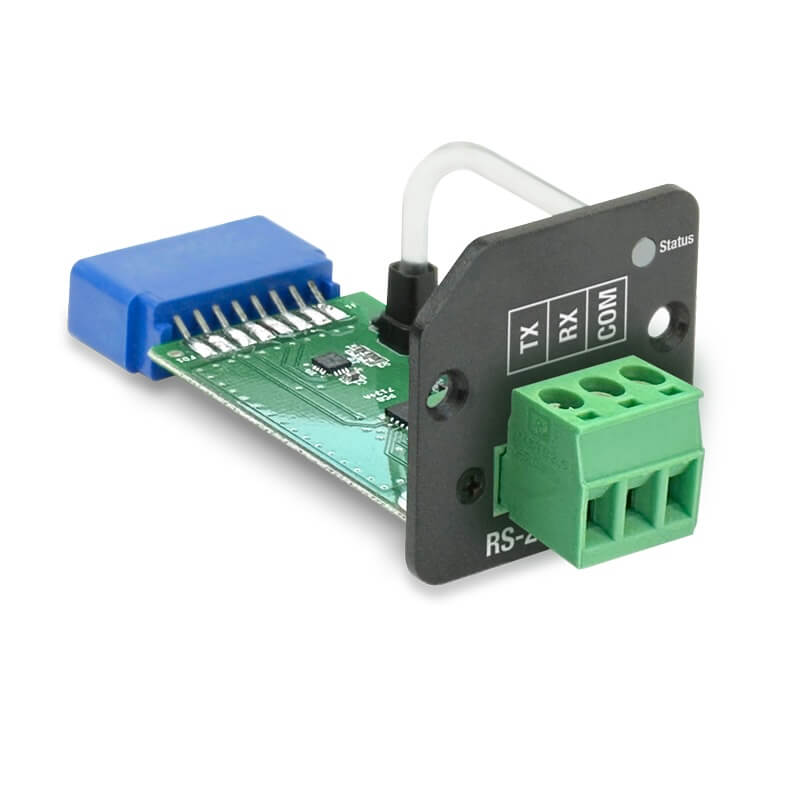

The Interactive Technologies SM-RS232 smart module adds functionality and connectivity to select CueServer 3 models by interfacing to devices that require RS‐232 serial communications. These may include video projectors, window covering motors, automation systems, media servers and more.
Each SM-RS232 module adds a single communication link using the RS‐232 serial standard.

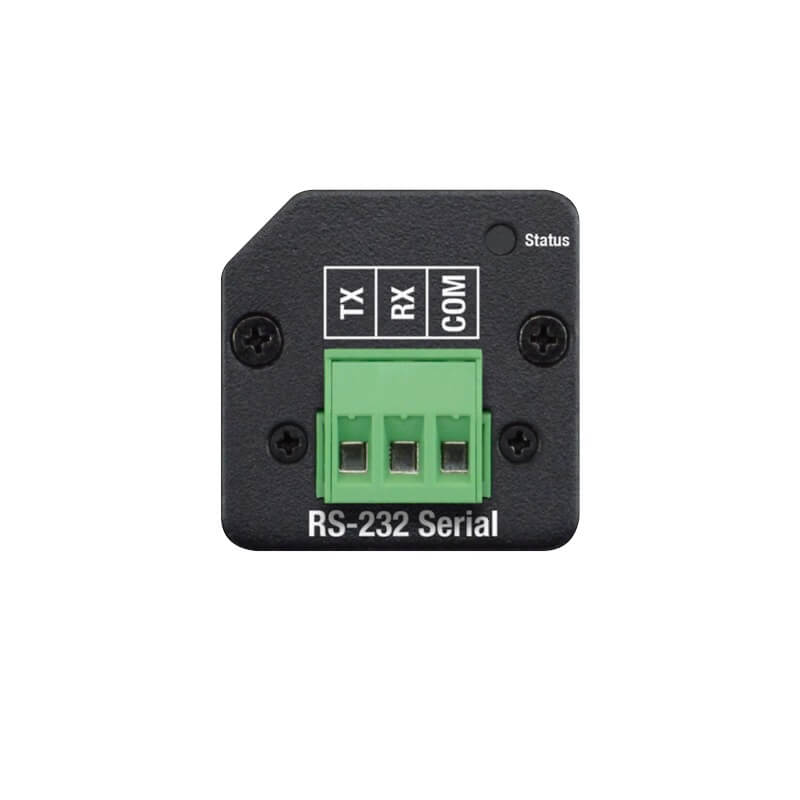

The SM-RS232 is provided with a 3‐position 5.08mm pluggable terminal block for easy field wiring. The terminals include Tx (transmit data), Rx (receive data), and COM (common).
Features
• Provides industry standard RS‐232 port
• Can be configured in software for many common baud rates from 300-250,000bps
• Serial ports can be configured in software to communicate in various protocols
• Up to 8 SM-RS232 modules can be added to the CS-3900 CueServer 3 Pro
• Up to 4 SM-RS232 modules can be added to the CS-34XX CueServer 3 Flex & Flex+
• Built‐in status indicator LED
