Description

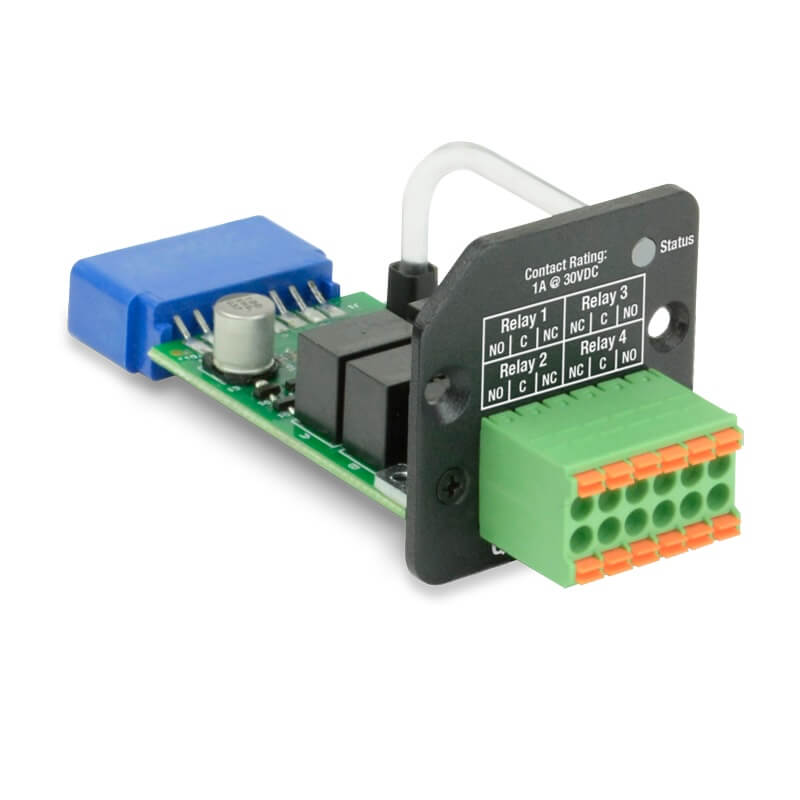

The Interactive Technologies SM-RELAY4 smart module adds functionality and connectivity to select CueServer 3 models by interfacing with devices that require signal-level dry contact closures. These may include low voltage indicators, buzzers, projection screens, window covering motors, security systems, and more.
Each SM-RELAY4 module adds four Form-C style signal level relays. Each relay can be opened or closed via software.

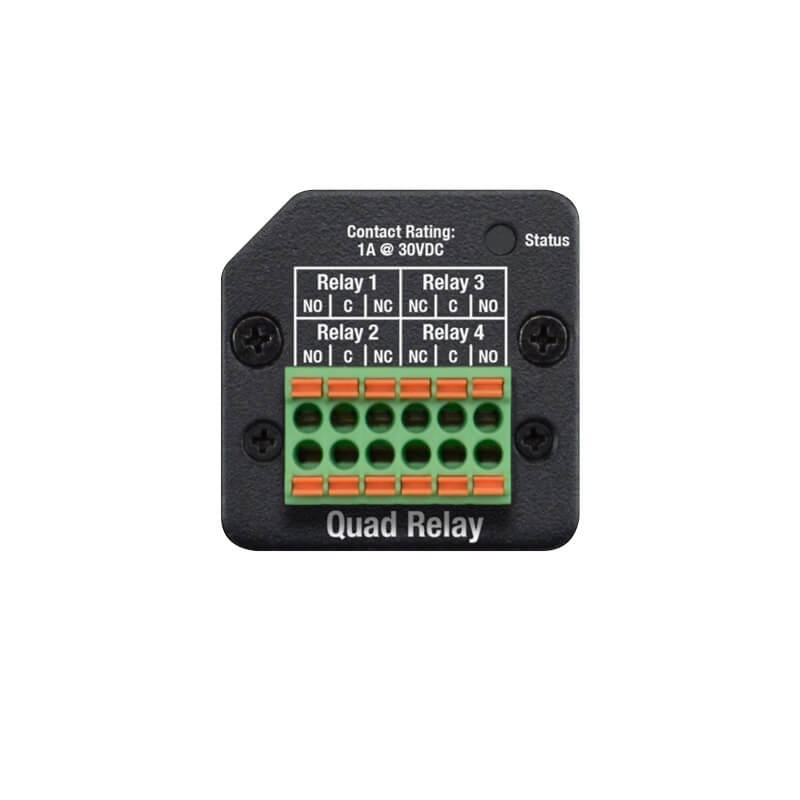

The SM-RELAY4 is provided with a 12-position pluggable spring cage terminal block for easy field wiring. The terminals include the standard Form-C relay connections (Normally Open, Normally Closed, and Common) for each of the four signal relays.
Features
• Provides 4 signal level Form-C relays
• Each relay is software controlled
• Relays have a 1A @ 30VDC current handling capacity
• Built-in status indicator LED
