Description

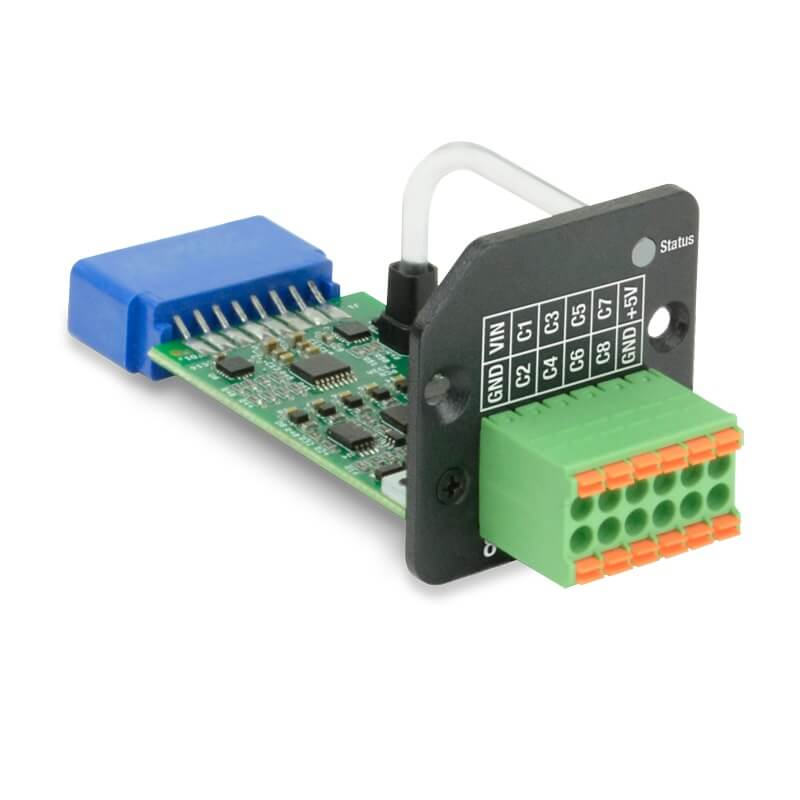

The Interactive Technologies SM-IO8 smart module adds functionality and connectivity to select CueServer 3 models. It interfaces with devices that provide a contact-closure type of signal or require a short-to-ground style of input, such as switches, buttons, sensors, external relays, indicators, annunciators, projection screens, window coverings, security systems, fire prevention systems, and more to CueServer.
Each SM-IO8 module adds 8 channels of Input/Output. Each channel can be software configured to be either a contact closure or voltage sensitive input or a digital short-to-ground output.

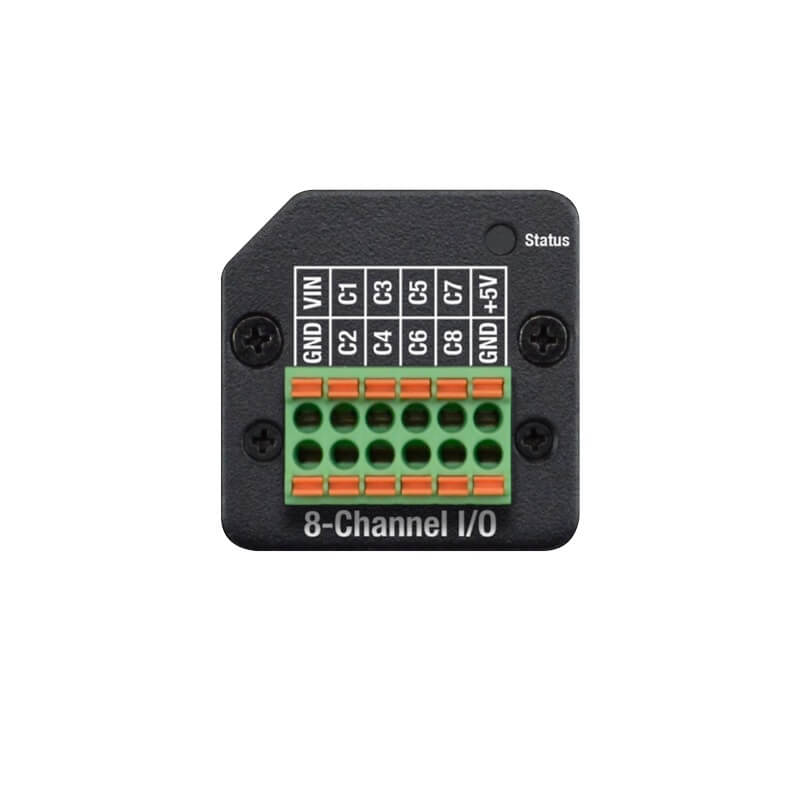

The SM-IO8 is provided with a 12-position pluggable spring cage terminal block for easy field wiring. The terminals include the eight I/O channels, ground reference, convenience regulated +5VDC, and VIN.
Features
• Provides 8 channels of input/output
• Each channel software selectable between input or output
• Outputs can drive up to 500mA in a short-to-ground configuration
• Inputs can be configured in contact-closure mode or in analog voltage mode
• Built-in status indicator LED
