Description

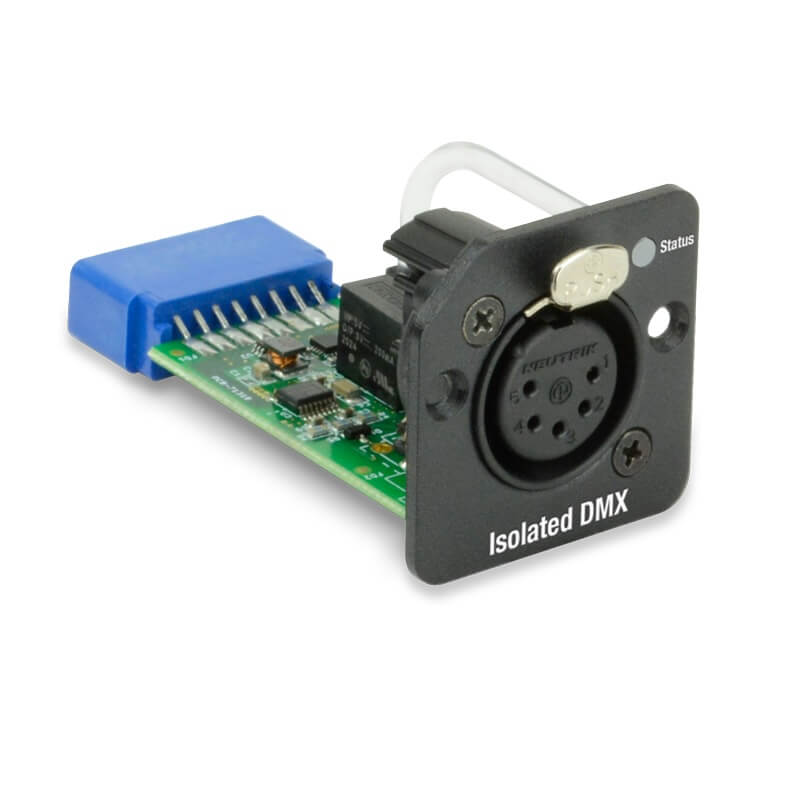

Interactive Technologies SM-DMX smart modules add bi-directional, isolated DMX-512 ports to select CueServer 3 models. Seven different module varieties are available in different combinations of 5-Pin XLR, 3-Pin XLR, RJ45, Terminal Block, etc. Each module is software definable as either a DMX Input or DMX Output.
SM-DMX modules also support alternate protocols including Station Bus and RS-485 serial. In Station Bus mode, these modules allow for direct connection of 5-Wire CueStation button stations (such as Mystique or Ultra stations). In RS-485 mode, the module can be used to communicate via RS-485 serial protocols.
The SM-DMX modules are fully isolated and protected to help prevent failures caused by ground loops, voltage mismatches, power surges or electrostatic events. Also, an LED indicator on the module provides at- a-glance operational status.
Features
• Full galvanic isolation for best immunity to ground loops and voltage mismatches
• High ESD protection
• Software configurable as a DMX input or output
• Additional Station Bus and RS-485 protocols supported
• Built-in status indicator LED
Variants
• SM-DMX-X5F - 5-Pin XLR Female
• SM-DMX-X5M - 5-Pin XLR Male

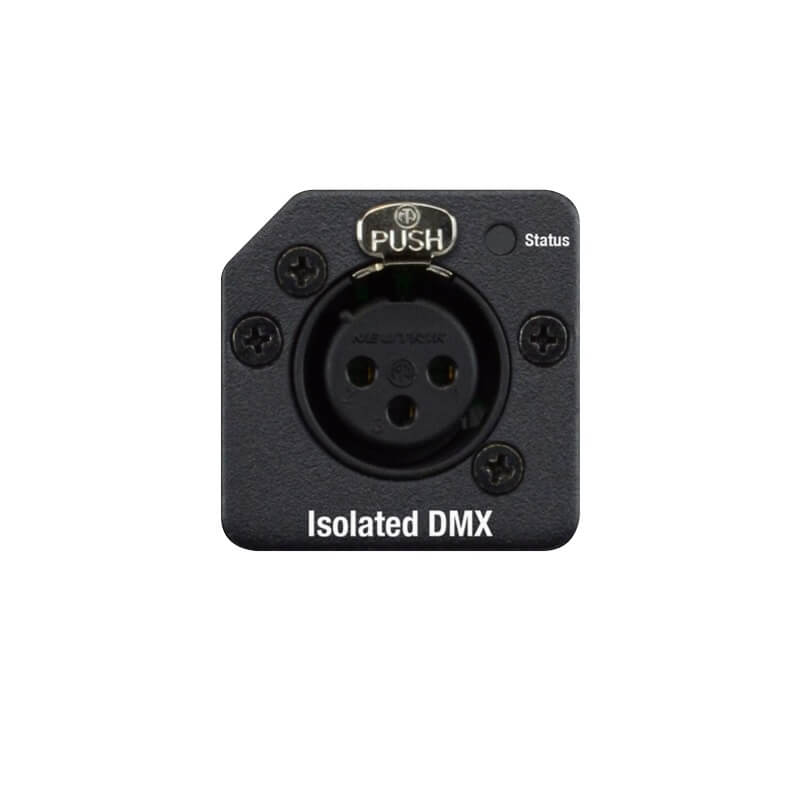

• SM-DMX-X3F - 3-Pin XLR Female
• SM-DMX-X3M - 3-Pin XLR Male
• SM-DMX-RJ45 - RJ45 etherCON

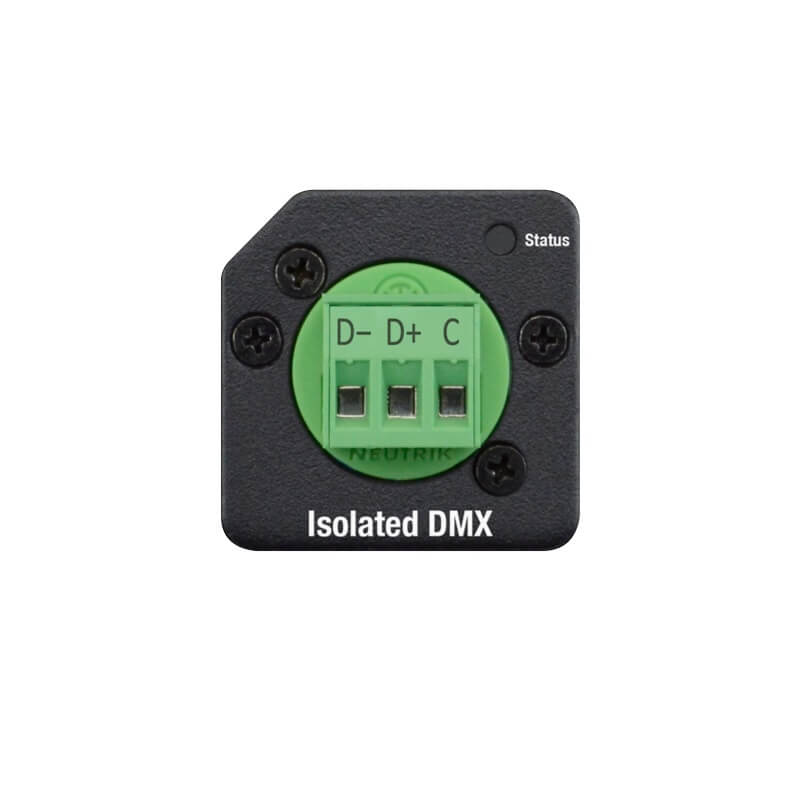

• SM-DMX-TB - Terminal Block
• SM-DMX-IDC - IDC Plug DMX
