Description

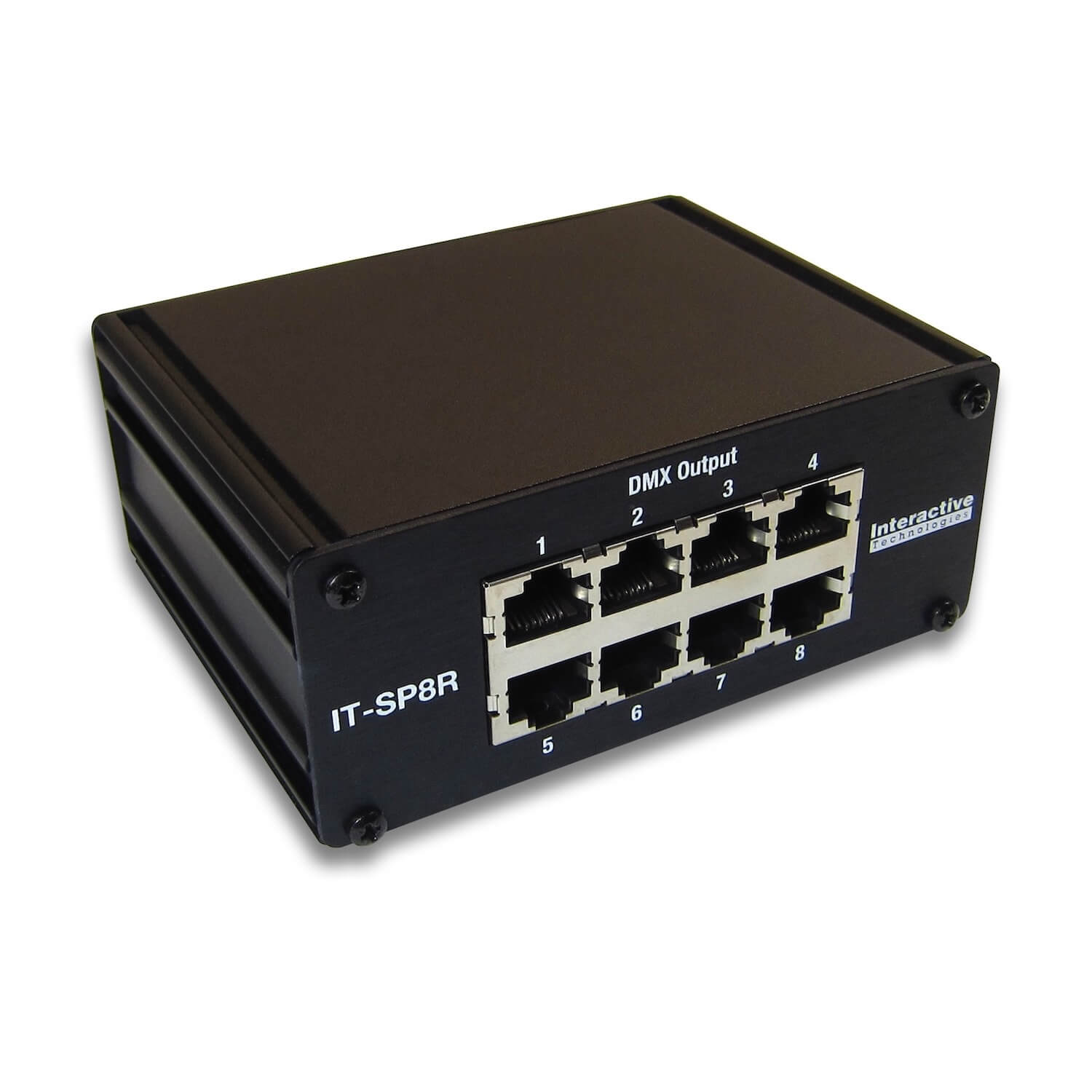

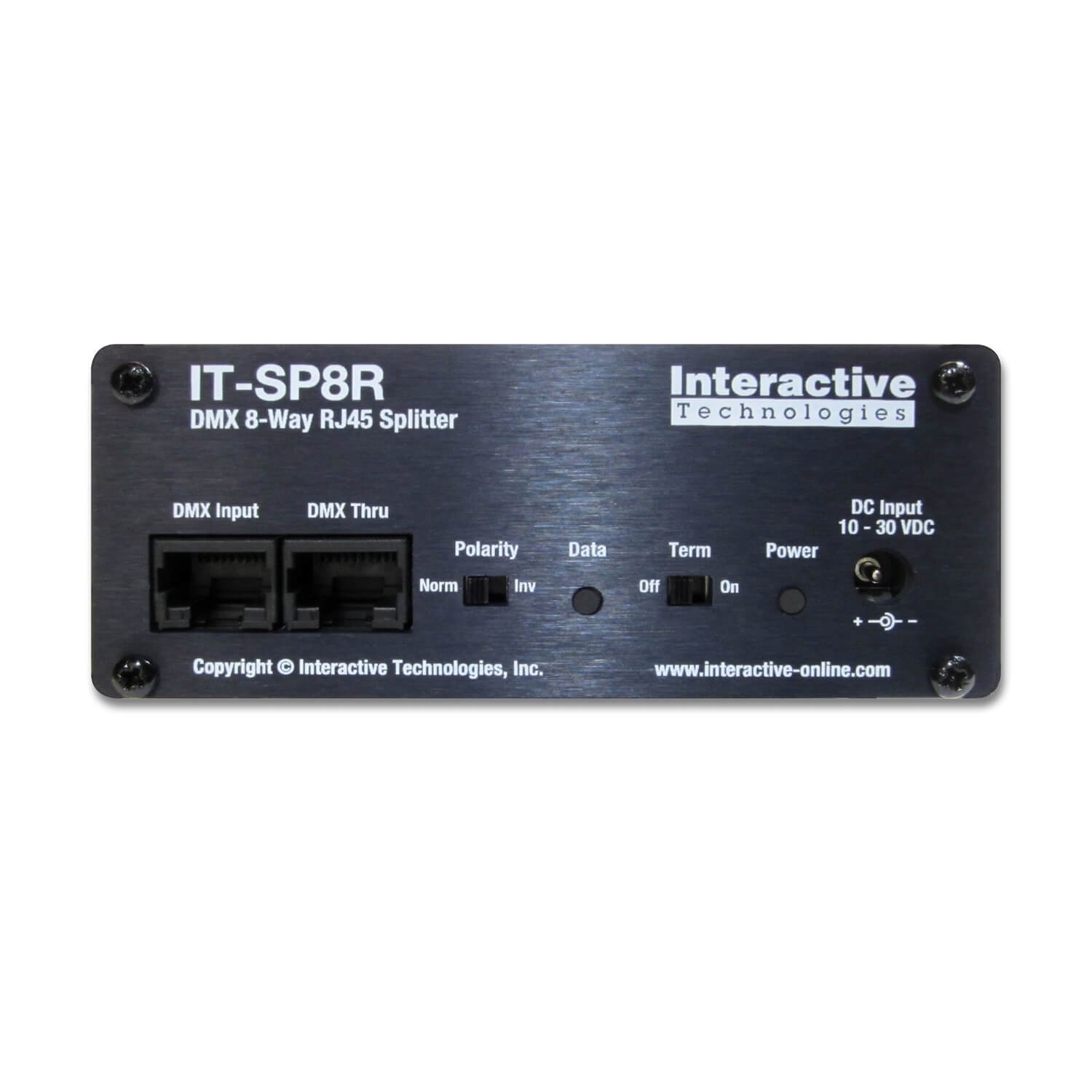

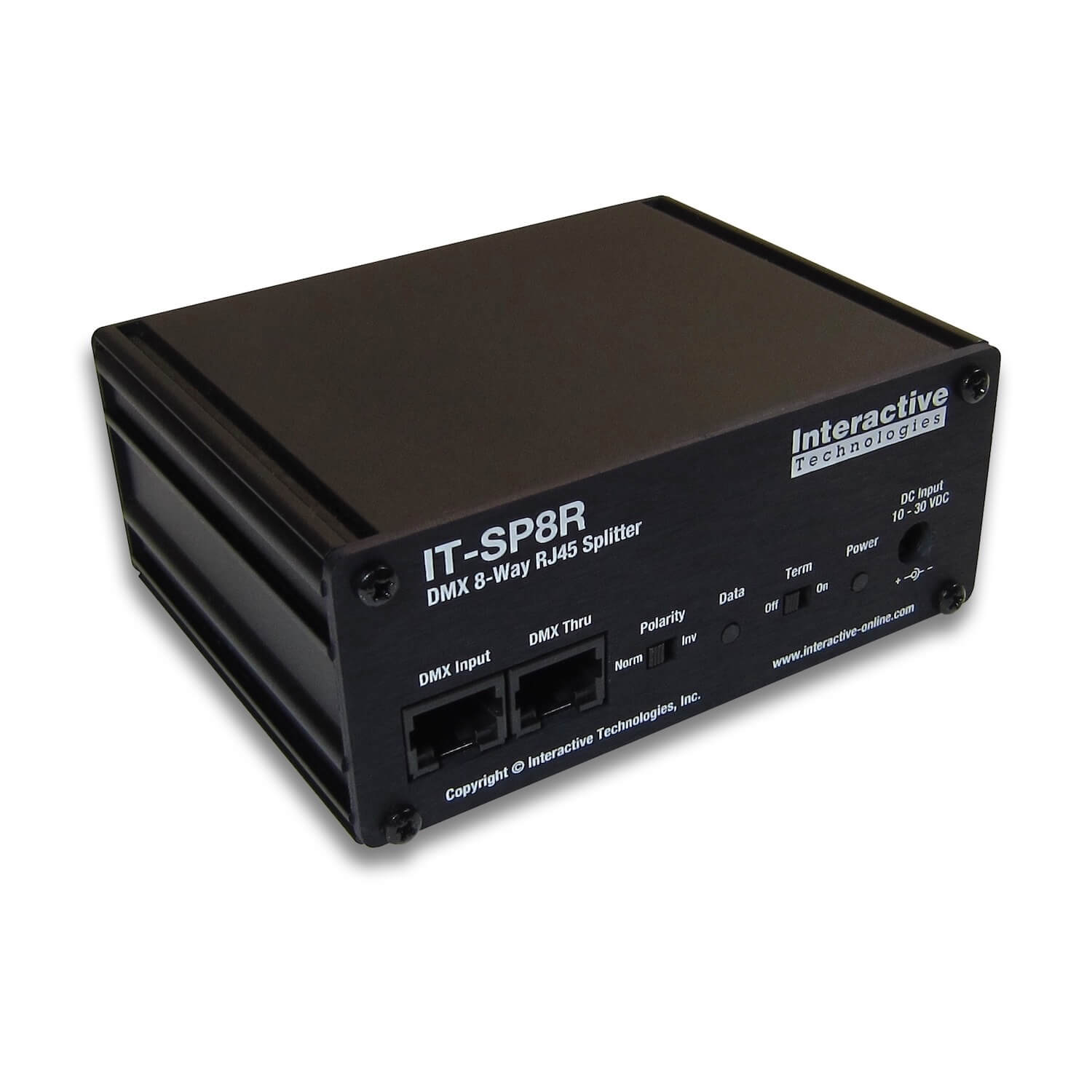

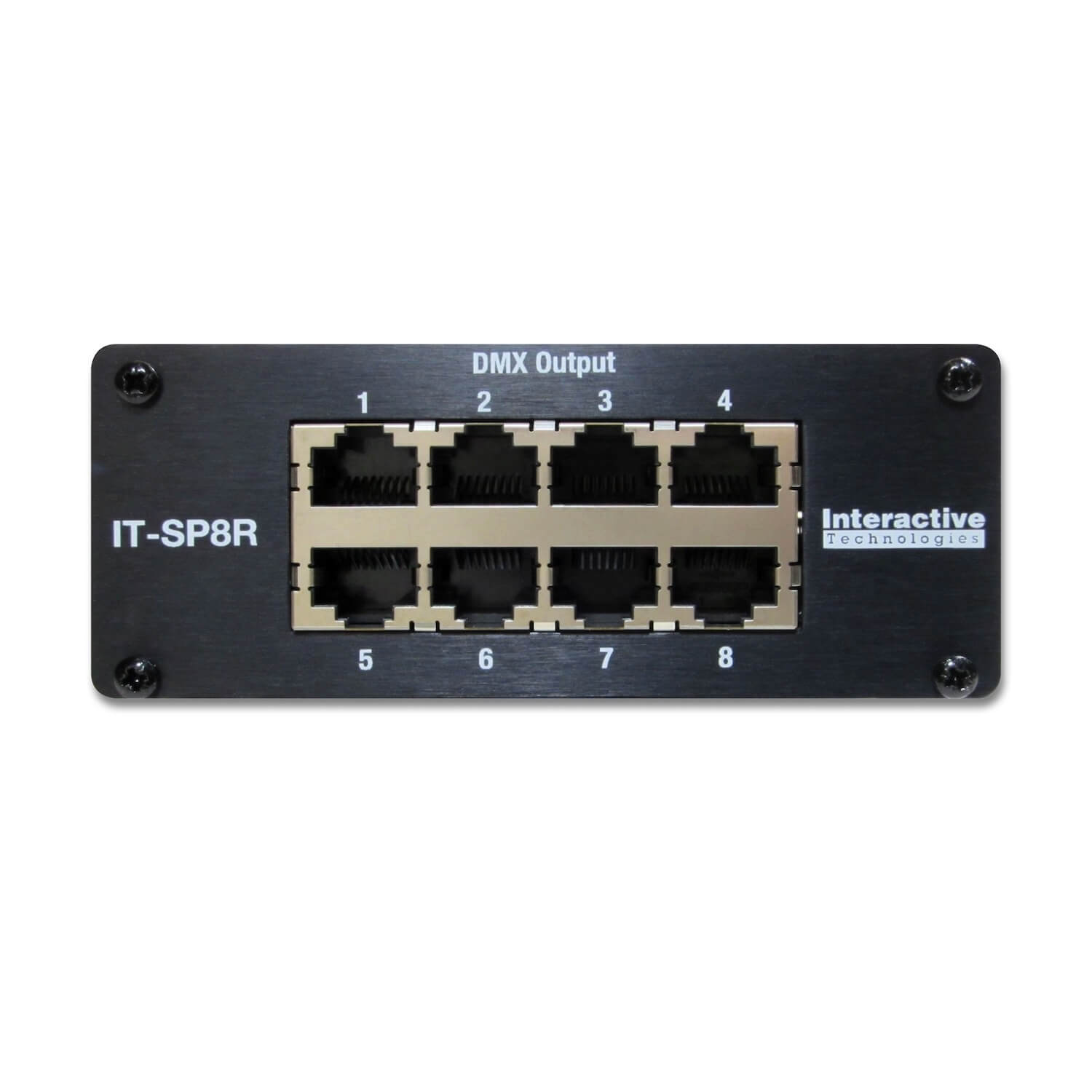

The Interactive Technologies IT-SP8R DMX 8-Way RJ45 Splitter is used to create multiple independent branches of a DMX signal and/or extend the usable distance of each branch. Our portable DMX Splitter, the IT-SP8R, is designed for use in installations wired with RJ45 terminated Category 5 or 6 (CAT5/6) cabling. Each of the 8 output ports on this model can generate an independently protected DMX signal capable of traveling up to 1,800 feet (550 meters). The IT-SP8R includes a DMX Pass-Thru port for cascading DMX through multiple splitters and provides a built-in DMX Termination switch. This model also features a Polarity Inversion switch which allows for easy conversion between DMX512 standard wiring and the reversed wiring used by Color Kinetics® devices.
Features
• Rugged anodized aluminum housing
• 8 Independently protected output ports
• RJ45 Ports for each DMX connection
• DMX Input and DMX Pass-Thru Ports for daisy-chaining multiple splitters
• Transient Voltage Suppression and Self-Resetting Poly-Switch Fuses for each port
• DMX signal range up to 1,800 feet (550 meters) from each output port
• Compatibility with DMX512 and Color Kinetics® devices
• User-selectable polarity inversion for DMX or Color Kinetics wiring schemes
• User-selectable input line termination switch
• Optional mounting bracket kits for panel, DIN Rail, or truss mounting.
• Ultra-compact design provides 8 DMX ports in just 14 sq. in.
